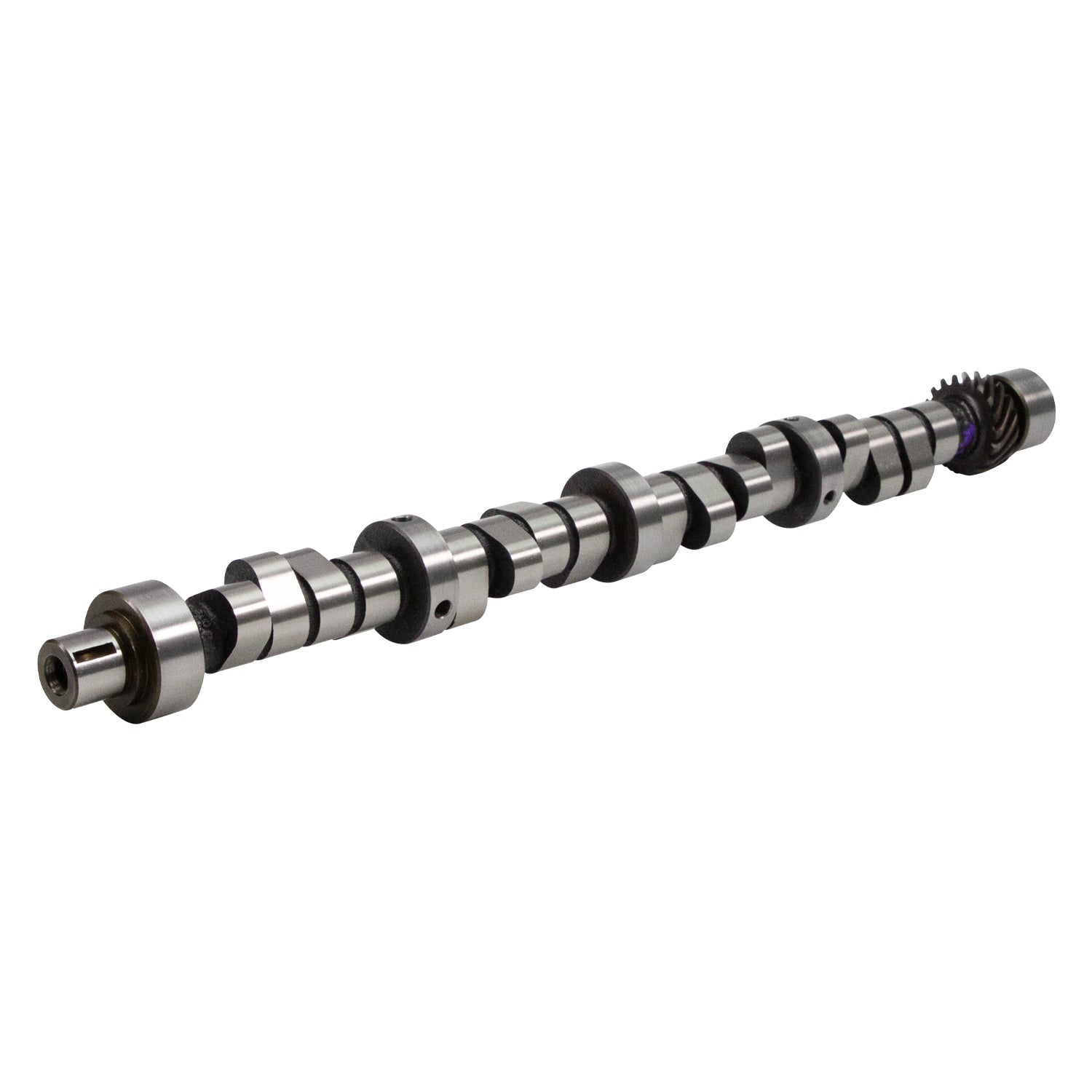

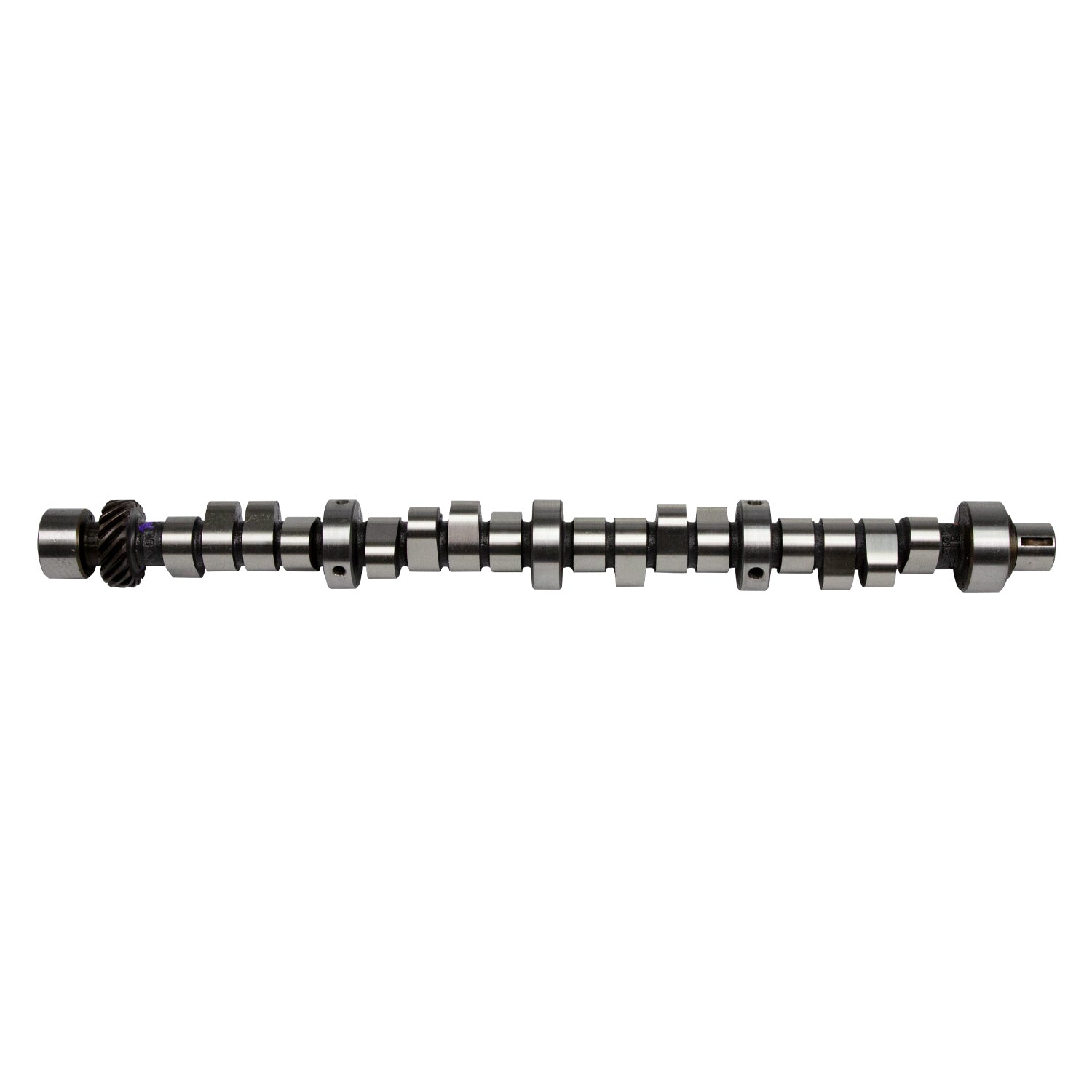

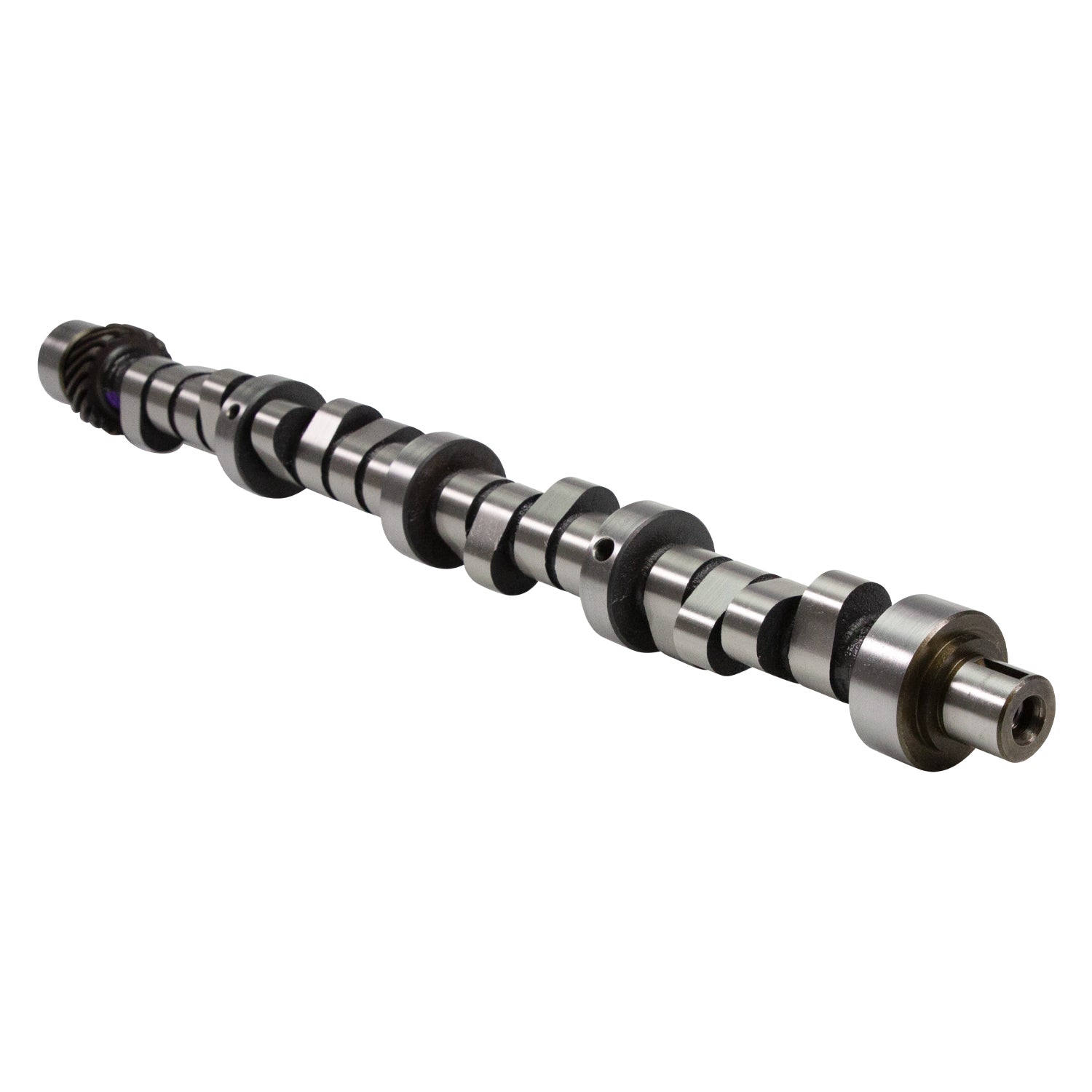

The Edelbrock Rollin Thunder Camshaft #2213 for 273-360 CID Chrysler small-block engines is a high-performance hydraulic roller cam for street or strip applications. With an RPM range of 2,500 to 6,200 RPM, this cam has been dyno-tested to deliver substantial gains at the 4,000 RPM mark. The #2213 Rollin Thunder Camshaft produces a rough idle with an intake lift of .544 inch, exhaust lift of .541 inch, 286/294 degrees duration, 236/242 degrees duration at .050-inch lift, and a lobe separation angle of 110 degrees. We recommend our Performer RPM #60775 Cylinder Heads, #7177 RPM Air-Gap Intake Manifold and #1906 AVS2 Carburetor with this combination. Engine assembly lube included.
Specifications:
| Description_ABR |
Hyd Rllr Cam |
| Description_ASM |
Chrysler:Small-Block LA-Series:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_DEF |
Engine Camshaft |
| Description_INV |
Edelbrock Hyd. Roller Camshaft, Chrysler |
| Description_EXT |
Edelbrock Rollin' Thunder Hydraulic Roller Camshaft #2213 for Chrysler 273-360 V8 engines |
| Description_LAB |
Rollin' Thunder Camshaft #2213 For SB Chrysler 273-360, Hydraulic Roller |
| Description_MKT |
The Edelbrock Rollin? Thunder Camshaft #2213 for 273-360 CID Chrysler small-block engines is a high-performance hydraulic roller cam for street or strip applications. With an RPM range of 2,500 to 6,200 RPM, this cam has been dyno-tested to deliver substantial gains at the 4,000 RPM mark. The #2213 Rollin? Thunder Camshaft produces a rough idle with an intake lift of .544 inch, exhaust lift of .541 inch, 286/294 degrees duration, 236/242 degrees duration at .050-inch lift, and a lobe separation angle of 110 degrees. We recommend our Performer RPM #60775 Cylinder Heads, #7177 RPM Air-Gap Intake Manifold and #1906 AVS2 Carburetor with this combination. Engine assembly lube included. |
| Computer Controlled Compatible |
No |
| Exhaust Duration at .050 inch Lift |
242 |
| Advertised Exhaust Duration |
294 |
| Basic Operating RPM Range |
2500-6200 |
| Intake Valve Lift |
0.544 |
| Quantity |
Sold Individually |
| Intake Duration at .050 Inch Lift |
236 |
| Intake Valve Lift with Factory Rocker Arm Ratio |
0.544 |
| Intake Center Line |
106 |
| Lobe Separation |
110 |
| Exhaust Cam Lift at Lobe |
0.361 |
| Cam Type |
Hydraulic Roller |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
0.541 |
| Advertised Intake Duration |
286 |
| Exhaust Valve Lift |
0.541 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Exhaust Timing at .050 inch Lift |
Opens: 44.0 BBDC; Closes: 7.0 ATDC |
| Intake Cam Lift at Lobe |
0.363 |
| Intake Timing at .050 inch Lift |
Opens: 12.0 BTDC; Closes: 55.0 ABDC |
| Lifter Type |
Hydraulic Roller |
| Length |
3.0000 |
| Width |
3.0000 |
| Height |
25.0000 |
| Weight |
12.0000 |
