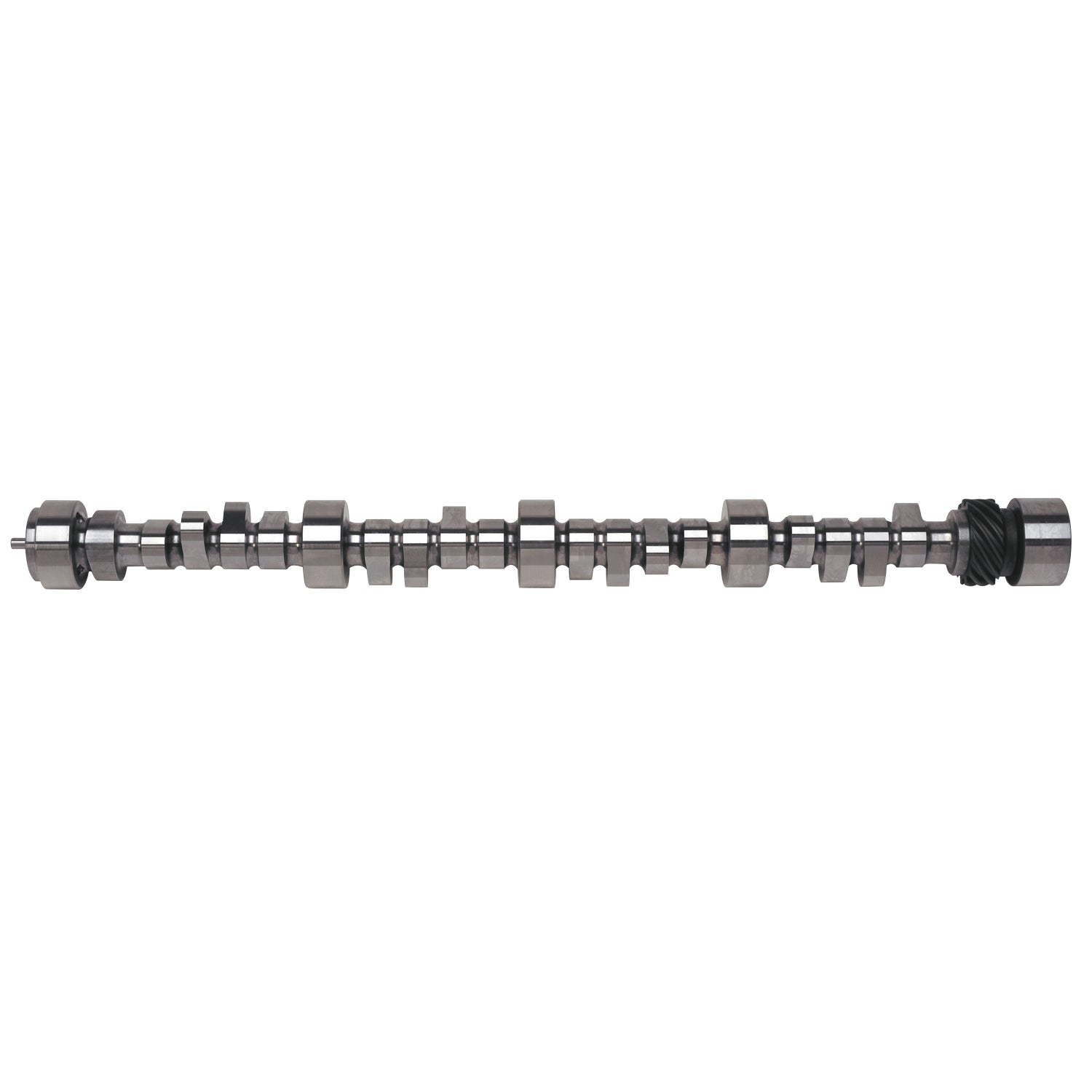

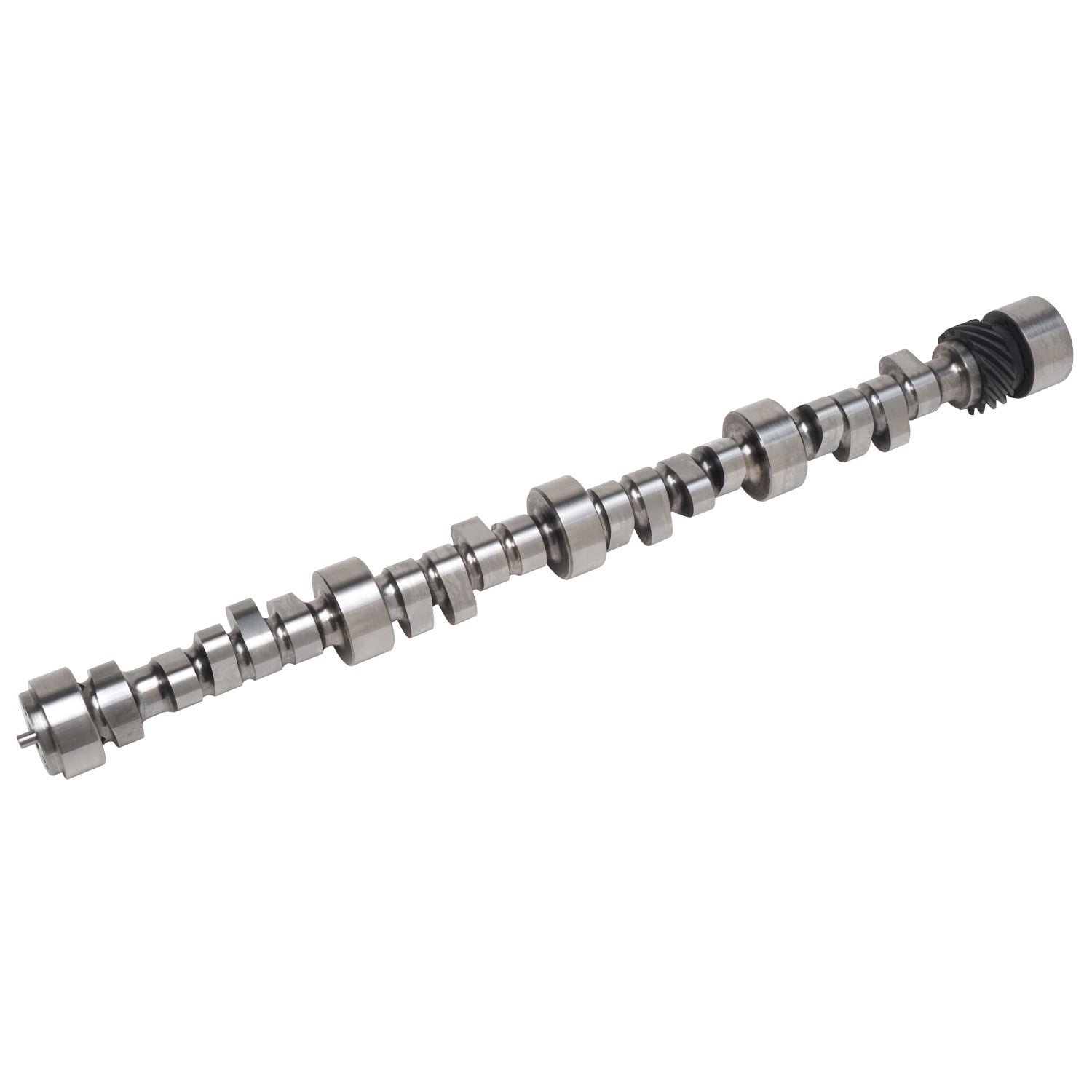

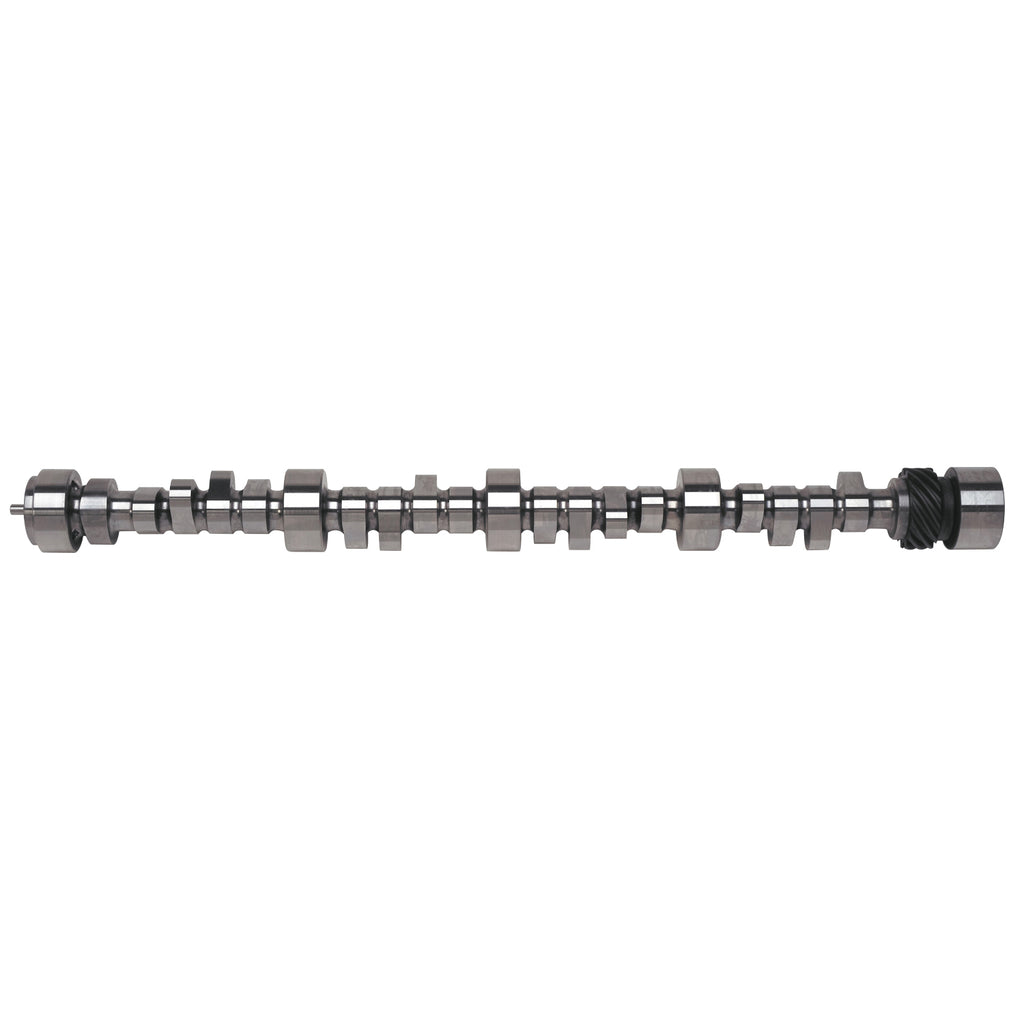

Edelbrock Rollin' Thunder Camshaft #2207 is designed for 283-400 V8 Chevy engines from 1987-Later and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This camshaft produced 460HP and 460 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516, Thunder Series AVS carb #1813 and Performer RPM E-Tec cylinder heads #60985 on a 383 c.i.d. Small Block Chevy engine. Use with a high stall torque converter and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 242 Degrees - Exhaust duration: 240 Degrees - Intake lift: .594" - Exhaust lift: .594" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 11"
Specifications:
| Description_ABR |
SBC Camshaft |
| Description_ASM |
Chevrolet:Small-Block Gen I:350 (5.7L) |
| Description_DEF |
Engine Camshaft |
| Description_LAB |
Edelbrock Rollin' Thunder Camshaft for 1987-Later Small-Block Chevy 283-400 V8 |
| Description_INV |
Edelbrock Rollin' Thunder camshaft #2207 |
| Description_EXT |
Edelbrock Rollin' Thunder Camshaft #2207 is designed for 283-400 V8 Chevy engines from 1987-Later and produces optimum torque from the low-end to the mid-range. |
| Description_MKT |
Edelbrock Rollin' Thunder Camshaft #2207 is designed for 283-400 V8 Chevy engines from 1987-Later and produces optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This camshaft produced 460HP and 460 Ft Lbs of Torque when paired with Performer RPM Air-Gap intake manifold #7516, Thunder Series AVS carb #1813 and Performer RPM E-Tec cylinder heads #60985 on a 383 c.i.d. Small Block Chevy engine. Use with a high stall torque converter and stock ratio rocker arms only. Camshaft specifications: - Intake duration: 242 Degrees - Exhaust duration: 240 Degrees - Intake lift: .594" - Exhaust lift: .594" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 11" |
| Description_TRA |
Compression ratio of at least 9.5:1 |
| Description_TRA |
Adjustable valvetrain required |
| Description_TRA |
For street high-performance and racing applications only |
| Description_TRA |
Lower than stock rear gearing |
| Description_TRA |
High performance torque converter (in automatic transmission equipped vehicles) are necessary. |
| Description_TRA |
Please be advised that an improper installation may result in LOW MILEAGE, POOR PERFORMANCE, and COSTLY REINSTALLATION AND EVEN ENGINE DAMAGE. Installing a camshaft is a complex procedure. Please follow these instructions carefully. Failure to do so may void your warranty. |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Exhaust Valve Lift |
0.396 |
| Lobe Separation |
112 |
| Lifter Type |
Roller |
| Exhaust Valve Lift with Factory Rocker Arm Ratio |
0.594 |
| Intake Valve Lift |
0.396 |
| Intake Duration at .050 Inch Lift |
305 |
| Computer Controlled Compatible |
No |
| Advertised Exhaust Duration |
314 |
| Cam Type |
Roller |
| Exhaust Duration at .050 inch Lift |
240 |
| Intake Valve Lift with Factory Rocker Arm Ratio |
0.594 |
| Advertised Intake Duration |
305 |
| Length |
2.0000 |
| Width |
2.0000 |
| Height |
26.0000 |
| Weight |
9.0000 |
