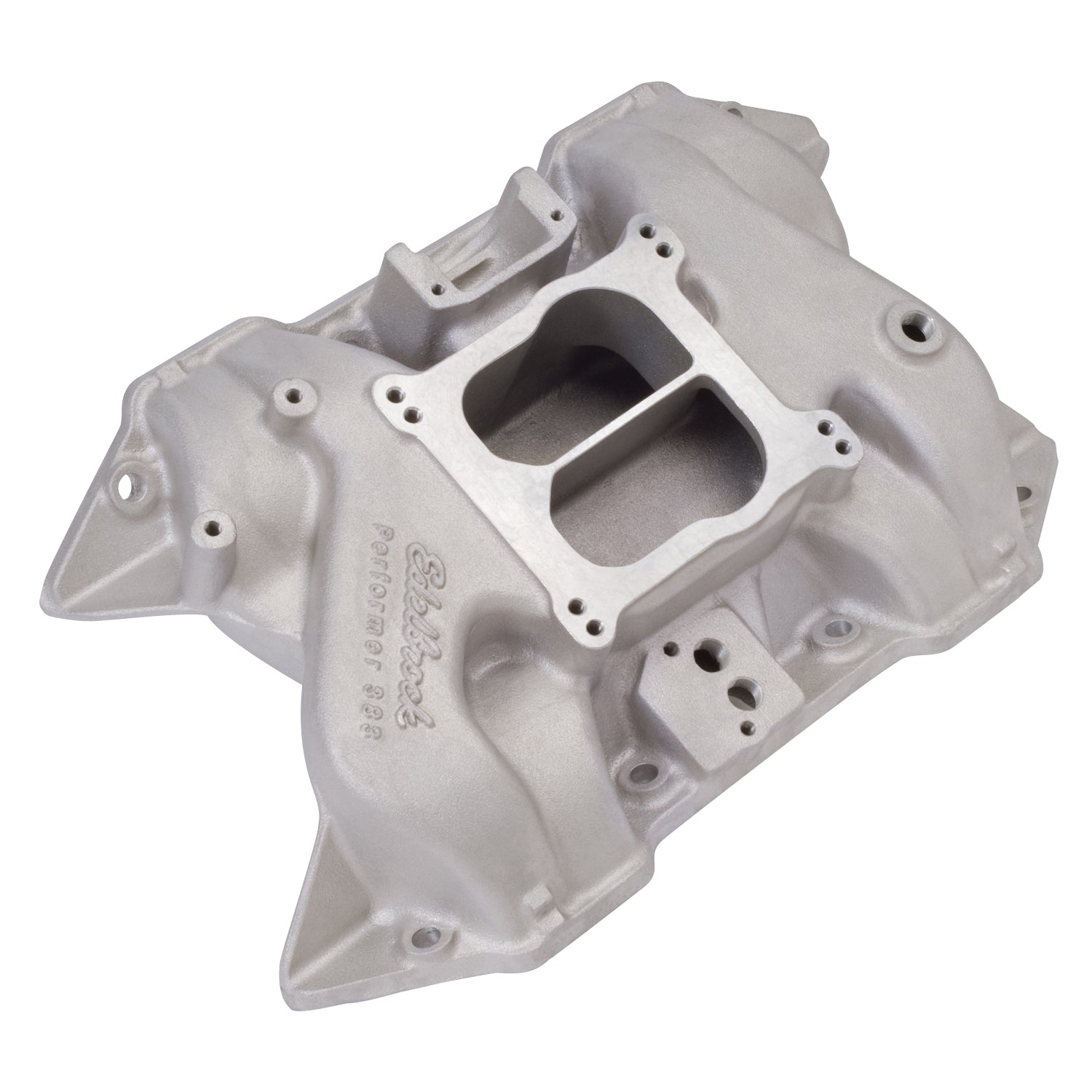

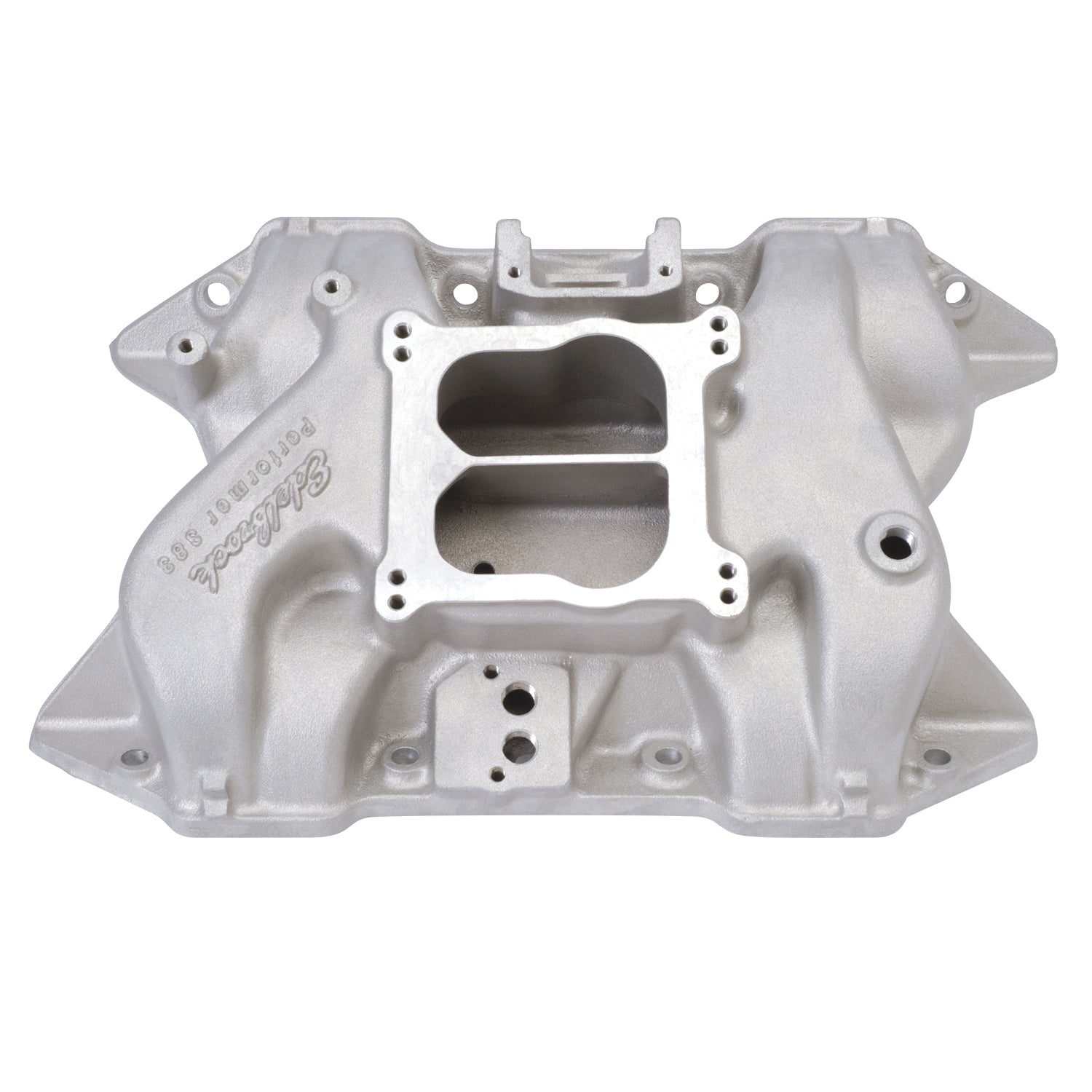

Edelbrock part #2186 Performer 383 intake manifold is designed for street 361-383-400 c.i.d. Chrysler V8's that measure 7.75" across block. May be used with OEM or aftermarket carbs. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold |
| Description_LAB |
Performer 383 Intake Manifold for 1958-1979 Chrysler, B Series Engines |
| Description_EXT |
Edelbrock Performer 383 Intake Manifold for 1966-72 Chrysler "B" Block V8 Engines is Designed for 361-383-400 c.i.d. Accepts OEM 4-bbl or 4150-Style Square-Bore Carburetors |
| Description_EXT |
Non-EGR. Works with EGR for 1972-78 400cid w/ OEM 4-bbl. carb. |
| Description_INV |
Performer Chrysler 361-400 Intake Manfld |
| Description_TRA |
Recommended intake gasket: Edelbrock #7225 |
| Description_TRA |
Manifold height: A-3.65", B-4.35", measured to engine block |
| Description_TRA |
Carb pad height: 4.00" |
| Description_TRA |
Carb recommendations: OEM 4-Bbl, Edelbrock Thunder AVS or Performer Series 600-800cfm.Use #1481 or #1483 throttle/transmission lever kit. |
| Description_TRA |
Port exit dimensions: 1.14" x 2.12" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_MKT |
Edelbrock part #2186 Performer 383 intake manifold is designed for street 361-383-400 c.i.d. Chrysler V8's that measure 7.75" across block. May be used with OEM or aftermarket carbs. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. |
| Basic Operating RPM Range |
Idle-5500 |
| Front Maximum Height |
3.650 |
| Gasket Or Seal Included |
No |
| Single Or Dual Plane Type |
Dual |
| Grade Type |
Performance |
| EGR Port |
With Or Without |
| Finish |
Satin |
| Center Maximum Height |
4.000 |
| Rear Maximum Height |
4.350 |
| Flange Type |
4150 |
| Series |
Performer |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Material |
Aluminum |
| CNC Ported |
No |
| Vehicle Model |
Chrysler |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
