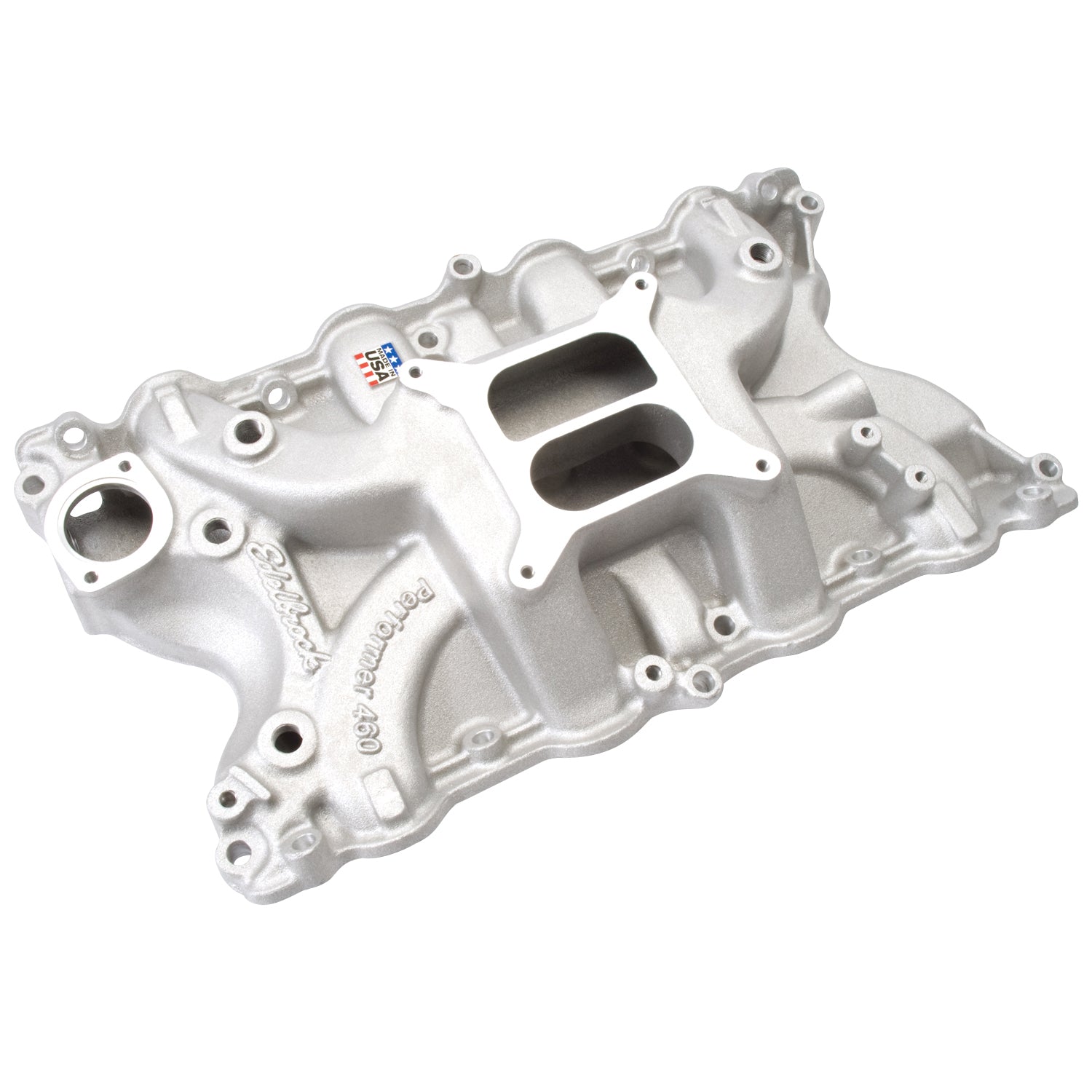

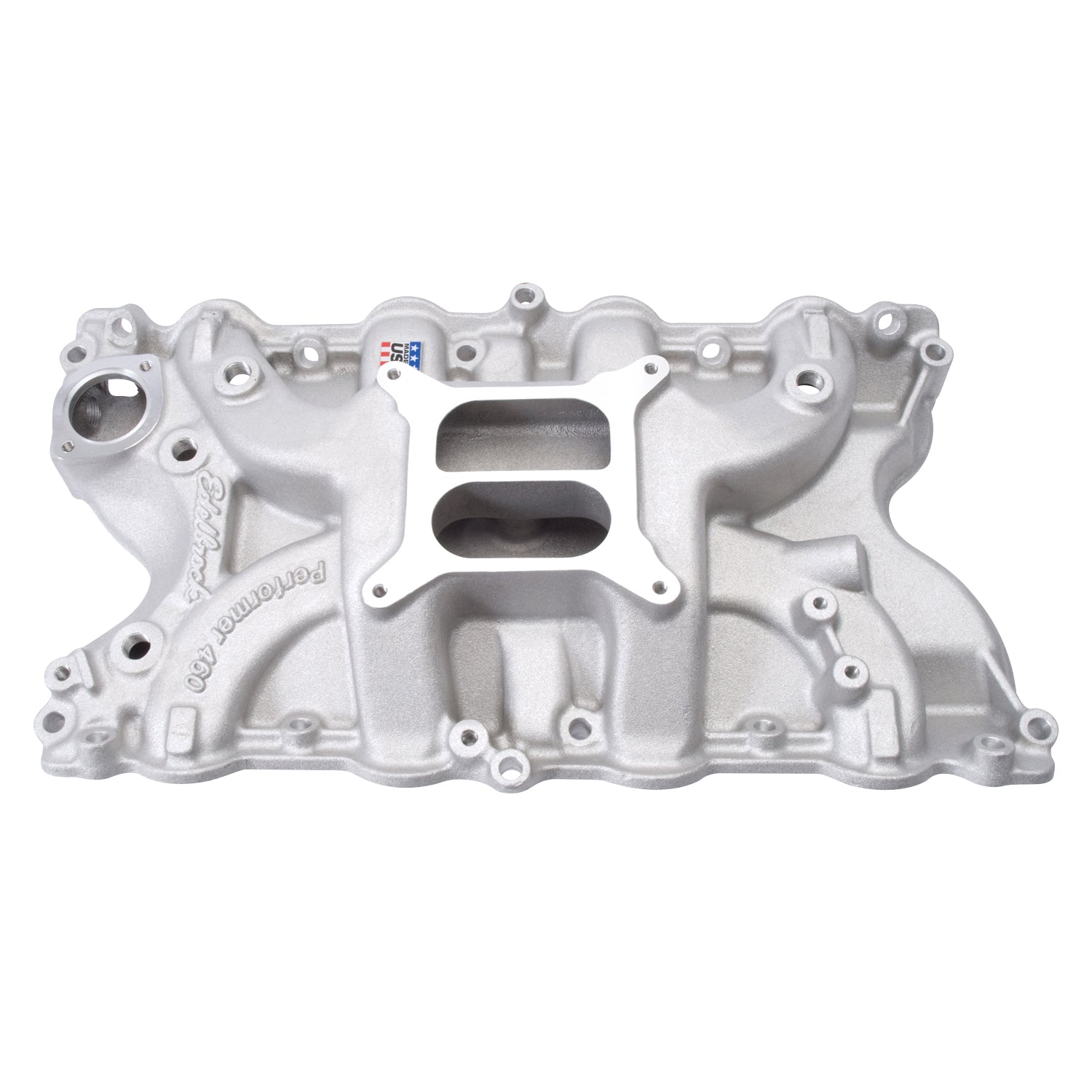

Edelbrock part #2166 Performer 460 intake manifold is designed for street 429/460 c.i.d. Ford V8's. Will not fit 429 Cobra-Jets or 1966-68 462 Lincolns and will not accept stock spread-bore carb. Will not fit 1988 and later models. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Must use stock OE EGR plate!
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Big-Block:429 (7.0L )/460 (7.5L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Performer 460 Intake Manifold for Big-Block Ford 429/460 V8 Engines. Will Not Fit Cobra Jet Heads or OEM 4-bbl Carb. Accepts 4150-Style Square-Bore Carburetors. Non-EGR. Will not fit 1988 and later models. |
| Description_INV |
Performer BBF Intake Manifold 429-460 |
| Description_MKT |
Edelbrock part #2166 Performer 460 intake manifold is designed for street 429/460 c.i.d. Ford V8's. Will not fit 429 Cobra-Jets or 1966-68 462 Lincolns and will not accept stock spread-bore carb. Will not fit 1988 and later models. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response from off-idle through 5500rpm. This Performer intake manifold is ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. Must use stock OE EGR plate! |
| Description_LAB |
Performer 460 Intake Manifold #2166 for Ford 429/460, Non-EGR, Satin Finish |
| Description_TRA |
Recommended intake gasket: Edelbrock #7223 or Fel-Pro #MS96018 |
| Description_TRA |
Replacement EGR plate gaskets: Edelbrock #3898 |
| Description_TRA |
Manifold height: A-3.75", B-4.49" same as stock |
| Description_TRA |
Carb pad height: 4.12" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 650-800 cfm, for automatic transmissions use #1483 and #1495 or #1844 |
| Description_TRA |
Port exit dimensions: 1.65" x 1.96" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Rear Maximum Height |
4.490 |
| Grade Type |
Performance |
| Series |
Performer |
| Flange Type |
4150 |
| CNC Ported |
No |
| Finish |
Satin |
| EGR Port |
No |
| Basic Operating RPM Range |
Idle-5500 |
| Material |
Aluminum |
| Center Maximum Height |
4.120 |
| Single Or Dual Plane Type |
Dual |
| Front Maximum Height |
3.750 |
| Vehicle Model |
Ford |
| Gasket Or Seal Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
19.0000 |
