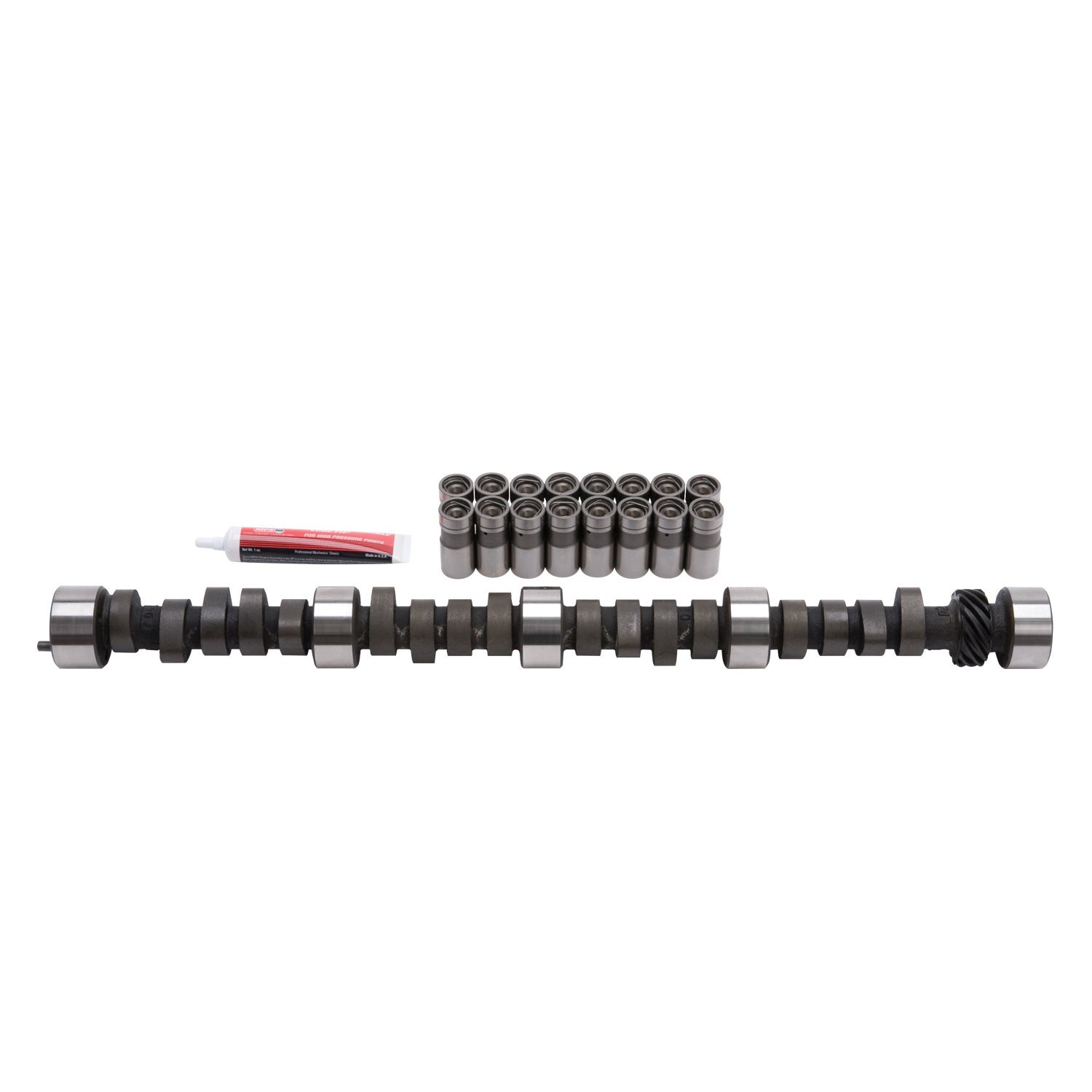

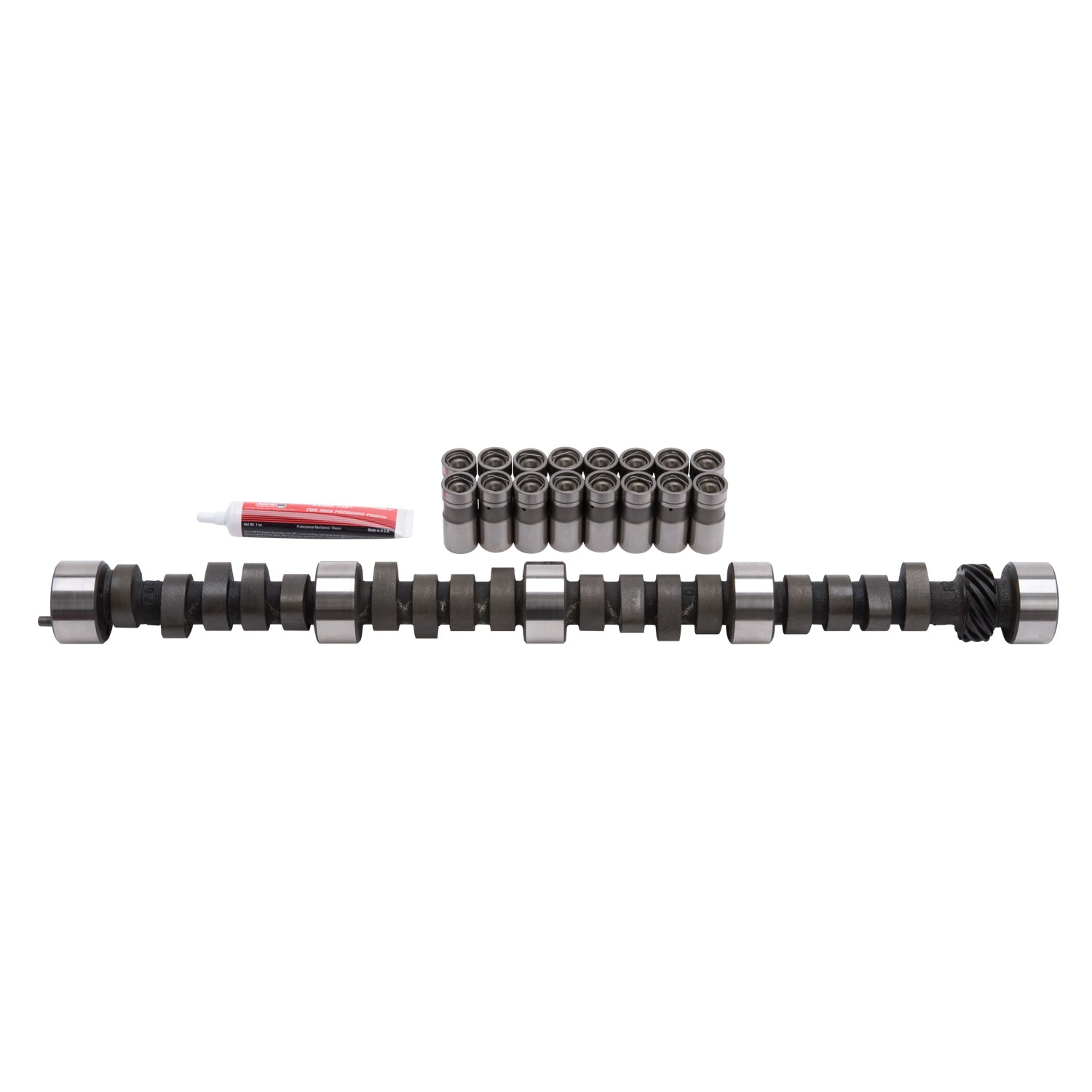

Edelbrock Performer-Plus Camshaft #2162 is designed for 396-427-454 Chevy V8 engines and produces optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus #2162 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 470 Ft Lbs of Torque when paired with Performer 2-0 intake manifold #2161 and stock cylinder heads. Not for 1965-66 big-block Chevrolets requiring a grooved rear cam journal. Camshaft specifications: - Intake duration: 218 Degrees - Exhaust duration: 228 Degrees - Intake lift: .500" - Exhaust lift: .500" - Lobe separation: 114 Degree - Intake Center Line: 109 Degree - Vacuum: 15"
Specifications:
| Description_ABR |
Cam Lift kt |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L) |
| Description_DEF |
Engine Camshaft and Lifter Kit |
| Description_EXT |
Edelbrock Performer-Plus #2162 is designed for 396-427-454 Chevy V8 engines and produces optimum torque from the low-end to the mid-range. |
| Description_INV |
Edelbrock Performer-Plus Cam Kit #2162 |
| Description_MKT |
Edelbrock Performer-Plus Camshaft #2162 is designed for 396-427-454 Chevy V8 engines and produces optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus #2162 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 470 Ft Lbs of Torque when paired with Performer 2-0 intake manifold #2161 and stock cylinder heads. Not for 1965-66 big-block Chevrolets requiring a grooved rear cam journal. Camshaft specifications: - Intake duration: 218 Degrees - Exhaust duration: 228 Degrees - Intake lift: .500" - Exhaust lift: .500" - Lobe separation: 114 Degree - Intake Center Line: 109 Degree - Vacuum: 15" |
| Description_LAB |
Edelbrock Performer-Plus Camshaft Kit for Big-Block Chevy 396-427-454 V8 |
| Description_TRA |
Recommended Valve Springs for OEM heads: Edelbrock part #5862 non-rotator/# 5932 Rotator |
| Description_TRA |
In order for this Performer-Plus cam and lifter kit to be covered under ANY WARRANTY you must use either the correct Edelbrock Sure Seat valve springs or the stock original equipment valve springs. |
| Description_TRA |
Oil/additive must contain Zinc designed for use with flat tappet camshafts. |
| Description_TRA |
Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up. |
| Description_TRA |
Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm. |
| Advertised Exhaust Duration |
302 |
| Advertised Intake Duration |
292 |
| Exhaust Duration at .050 inch Lift |
228 |
| Grade Type |
Performance |
| Cam Type |
Cast |
| Intake Valve Lift |
0.500 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Lifter Materials |
Hardened Steel |
| Intake Duration .050 Inch Lift |
218 |
| Computer Controlled Compatible |
Yes |
| Lobe Separation |
114 |
| Exhaust Valve Lift |
0.500 |
| Lifter Type |
Hydraulic |
| Length |
4.0000 |
| Width |
8.0000 |
| Height |
27.0000 |
| Weight |
16.0000 |
