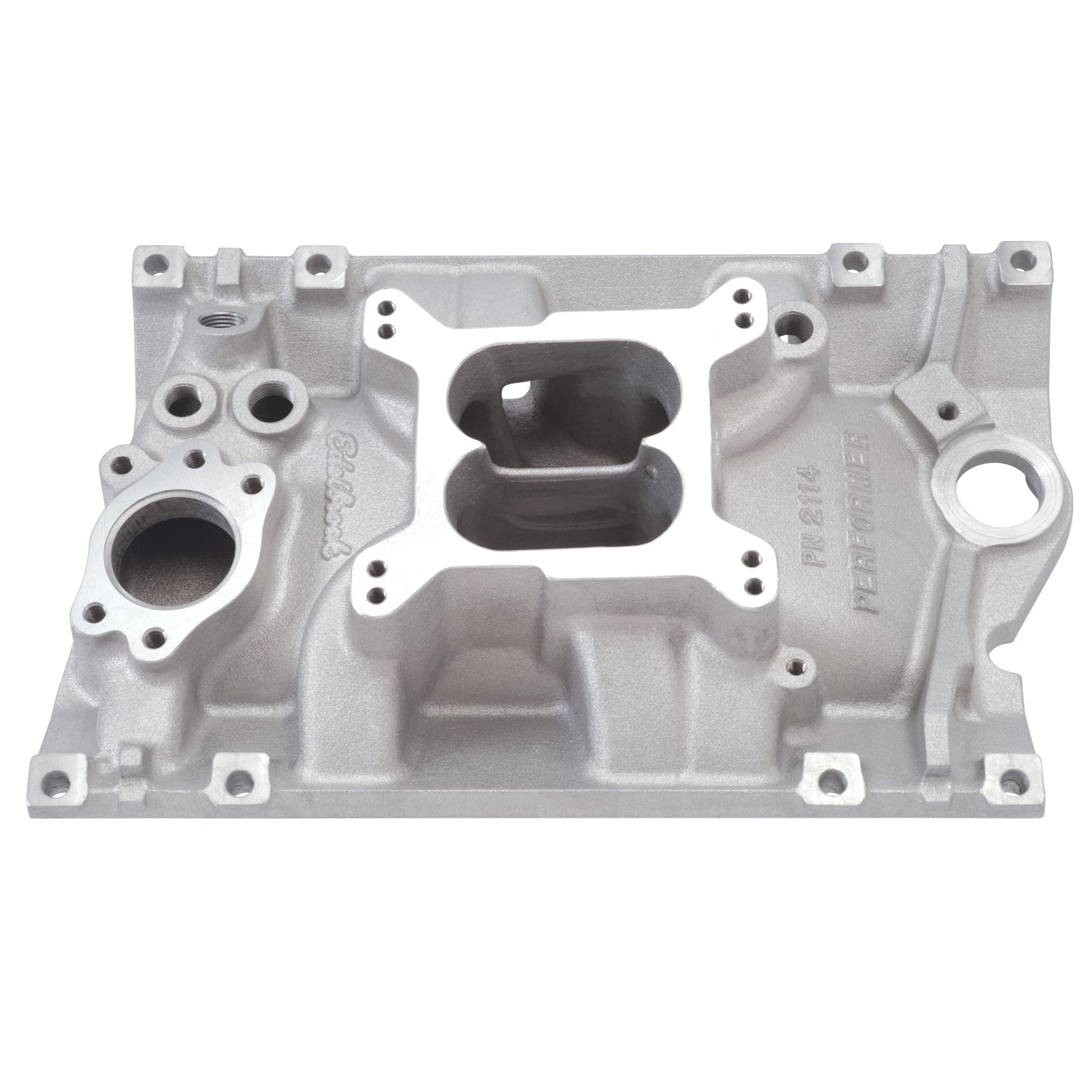

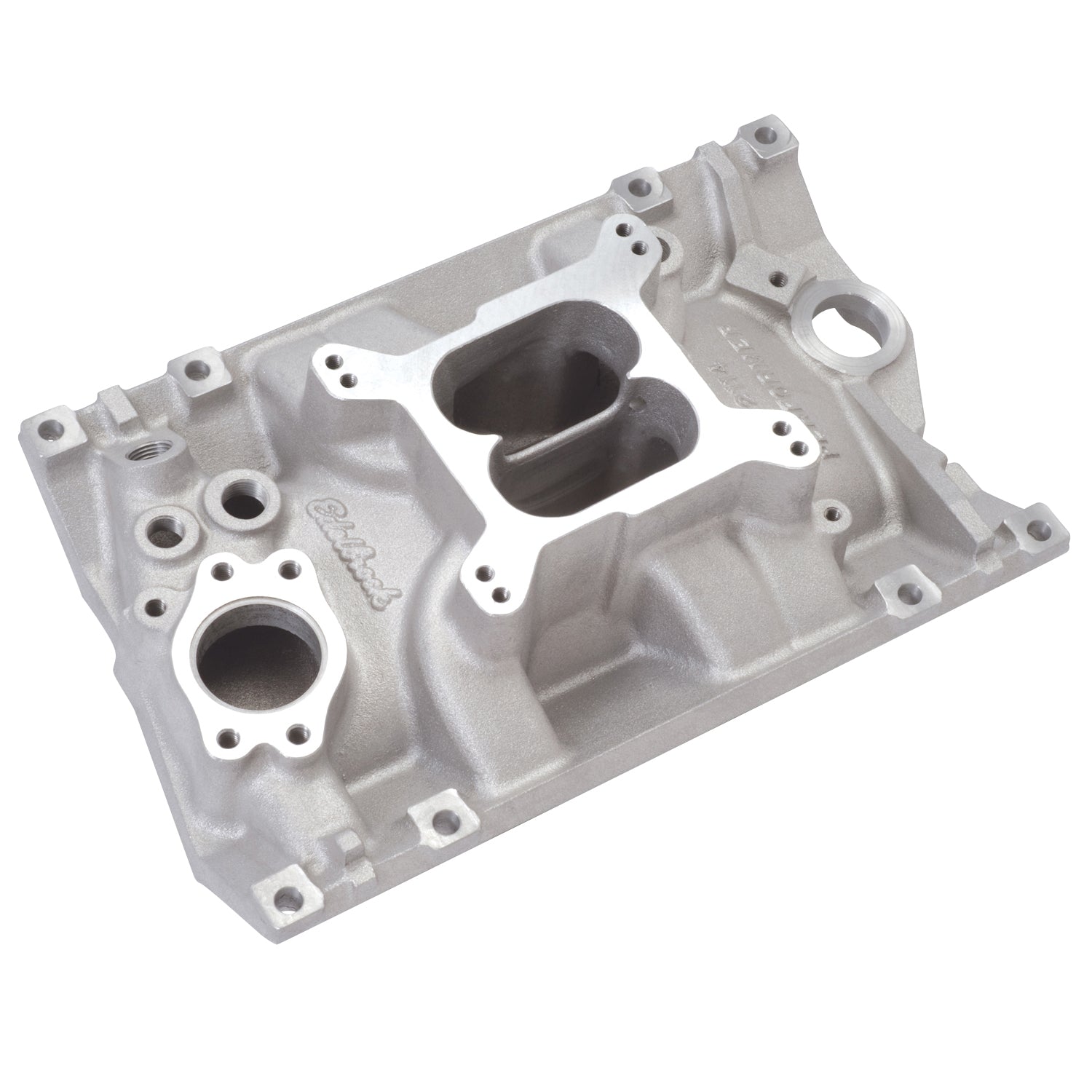

Edelbrock part #2114 Performer Vortec V6 intake manifold is based on the powerful Edelbrock #2111, this dual-plane intake is designed for the engine swap market utilizing 1985 and later Chevy 200-229-262 c.i.d. (3.8L and 4.3L) V6 engines with Vortec heads. With this manifold, rodders can take advantage of the higher flow available with the Vortec head design. This Performer Vortec intake manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. Designed for use with Edelbrock Thunder Series AVS or Performer Series 500 cfm carbs, it accepts late model water neck, alternator, HEI and air conditioning.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen I Vortec 90 Deg V6:200 (3.3L)/229 (3.8L)/262 (4.3L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Performer Vortec Intake Manifold for 90 Deg GM V6, 200-229-262 c.i.d. (3.8L and 4.3L) Engines will allow a Square-Bore 4150-Style Carburetor (#1403 or #1404 500cfm Recommended) to be used with the Vortec V6 Cylinder Heads. Non-EGR |
| Description_INV |
Perform Vortec V6 Chevrolet Intake Mnfld |
| Description_LAB |
Performer Intake Manifold for GM 90 Deg V6 (3.8L & 4.3L), Vortec |
| Description_MKT |
Edelbrock part #2114 Performer Vortec V6 intake manifold is based on the powerful Edelbrock #2111, this dual-plane intake is designed for the engine swap market utilizing 1985 and later Chevy 200-229-262 c.i.d. (3.8L and 4.3L) V6 engines with Vortec heads. With this manifold, rodders can take advantage of the higher flow available with the Vortec head design. This Performer Vortec intake manifold has provisions for external water bypass and may be used on either Vortec blocks or 1995 and earlier blocks. Designed for use with Edelbrock Thunder Series AVS or Performer Series 500 cfm carbs, it accepts late model water neck, alternator, HEI and air conditioning. |
| Description_TRA |
Recommended intake gasket: GM 89017866 |
| Description_TRA |
Manifold height: A-3.50", B-4.18" |
| Description_TRA |
Carb pad height: 3.84" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 Series or Performer Series 500cfm |
| Description_TRA |
Port exit dimensions: port exit is 2.05" tall with slanted side walls |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Finish |
Satin |
| CNC Ported |
No |
| EGR Port |
No |
| Series |
Performer |
| Material |
Aluminum |
| Single Or Dual Plane Type |
Dual |
| Rear Maximum Height |
4.180 |
| Flange Type |
4150 |
| Grade Type |
Performance |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Center Maximum Height |
3.840 |
| Basic Operating RPM Range |
Idle-5500 |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chevrolet |
| Front Maximum Height |
3.500 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
14.0000 |
