| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chevrolet:Small-Block Gen I:305 (5.0L)/350 (5.7L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |

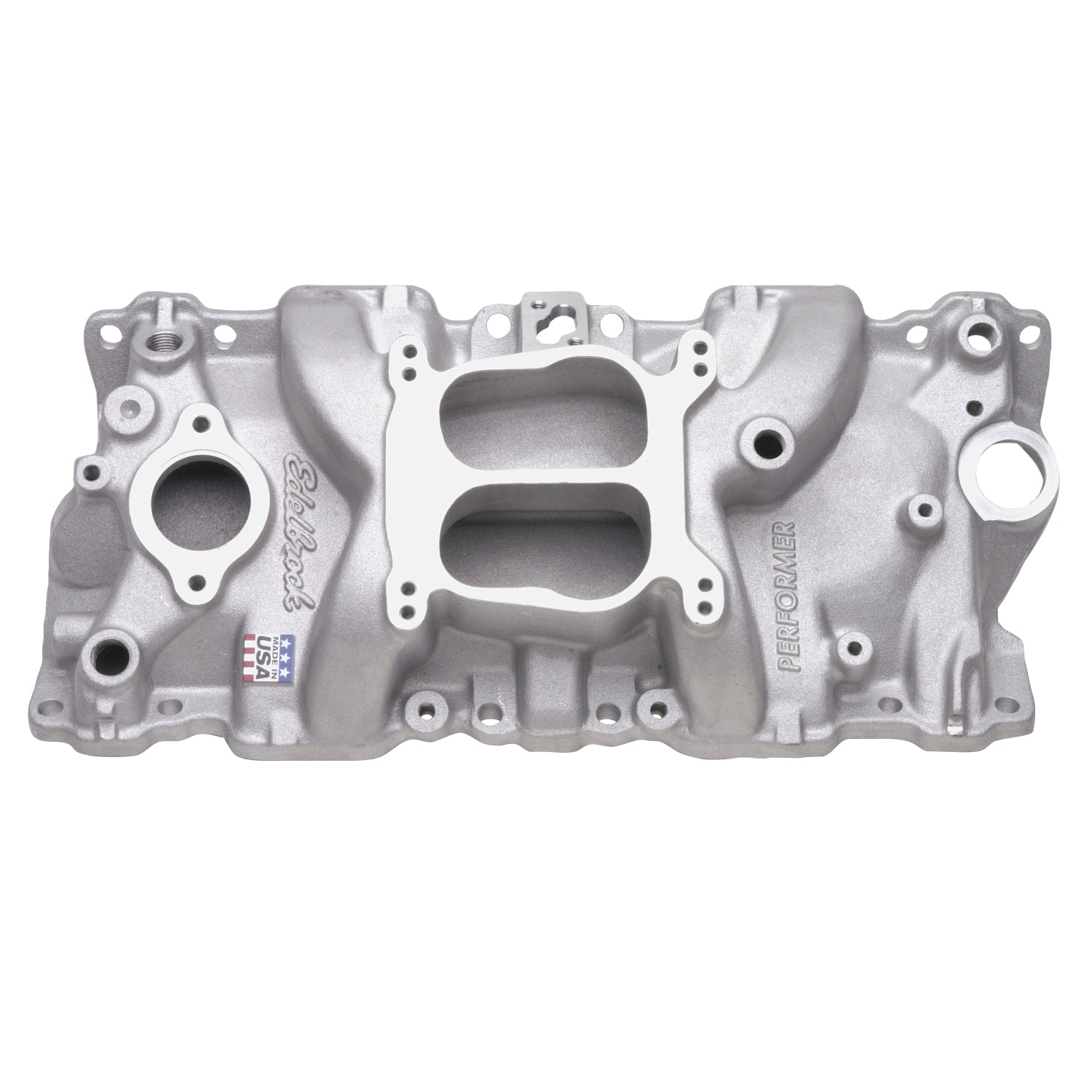

Edelbrock Performer Intake Manifold For Chevrolet 262-400 Small-Block V8 is Designed for Street Applications with 1987-95 Cast Iron Heads & Canted Center Bolt holes. Accepts (4150-Style) Edelbrock or Q-Jet Carburetors. Non-EGR |
| Description_LAB |
Performer Intake Manifold for 1987-95 Small Block Chevy, Satin Finish |
| Description_MKT |
Edelbrock part #2104 Performer intake manifold is designed for street 262-400 c.i.d. Chevy V8's that have heads with canted center bolt holes, 1987-1995. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response. The Performer intake manifolds are ideal for passenger cars, trucks, 4x4s, tow vehicles and RVs. For 1987-95 stock aluminum heads use #2101. |
| Description_INV |
Performer Intk Mnfld 1987-95 SBC |
| Description_TRA |
Manifold ht: A-3.50", B-4.60" |
| Description_TRA |
Carb pad height: 4.05" |
| Description_TRA |
Carb recommendations: OEM 4-Bbl, Use choke rod #9171. Edelbrock AVS2 Series or Performer Series Carb 500-650cfm. Bracket #8031 or #8036 for 1972-1978. |
| Description_TRA |
Port exit dimensions: 1.14" x 1.88" |
| Description_TRA |
Recommended intake gasket: GM #10163409 |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Choke plate #8901 included |
| Description_TRA |
Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Basic Operating RPM Range |
Idle-5500 |
| Gasket Or Seal Included |
No |
| Front Maximum Height |
3.500 |
| Material |
Aluminum |
| Finish |
Satin |
| Rear Maximum Height |
4.600 |
| EGR Port |
No |
| Single Or Dual Plane Type |
Dual |
| Center Maximum Height |
4.050 |
| Series |
Performer |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Flange Type |
4150 |
| CNC Ported |
No |
| Grade Type |
Performance |
| Vehicle Model |
Chevrolet |
| Length |
7.0000 |
| Width |
12.0000 |
| Height |
18.0000 |
| Weight |
16.0000 |
