| Description_ABR |
Mn Instl Kit |
| Description_ASM |
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold Installation Kit |
| Description_EXT |

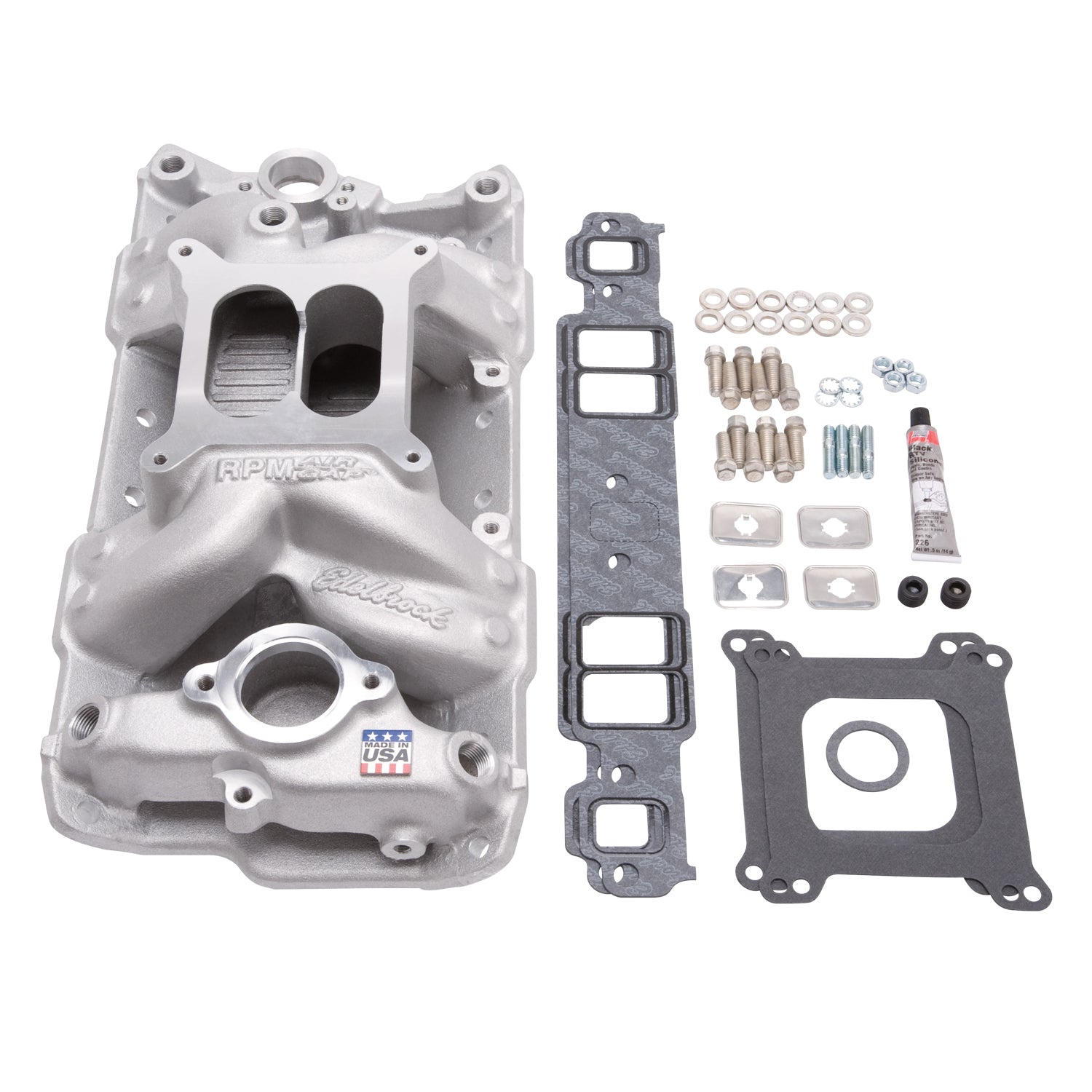

Edelbrock Manifold Installation kit PN 2042 includes all the necessary components to replace your existing intake: PN 7501 RPM Air Gap intake manifold, intake gasket set, carburetor base gasket, RTV sealant, intake bolts & carb studs. |
| Description_LAB |
Edelbrock Chevrolet SB RPM Air Gap Manifold w/ Gaskets, Bolts, Studs, RTV |
| Description_MKT |
Edelbrock part #2042 Manifold Installation kit will simplify the process of adding more power and efficiency to your street rod or muscle car. It combines all the necessary components to replace your stock iron intake manifold with an Edelbrock aluminum intake manifold. Kit includes: Performer RPM Air Gap intake manifold #7501, intake gasket set, carburetor base gasket, RTV sealant, intake bolts and carb studs. |
| Description_INV |
7501 Chev SB Air Gap w/Full Install Kit |
| Description_TRA |
Manifold ht: A-4.20", B-5.25" (.70" taller than #2101) |
| Description_TRA |
Carb pad height: 4.27" |
| Description_TRA |
Port exit dimensions: 1.14" x 1.95" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Use #8504 Edelbrock bolt kit |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Will not fit under stock Corvette hood. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Mounting Hole Diameter |
(Carb Bolt) 5/16-18 UNC |
| Single Or Dual Plane Type |
Dual |
| Port Exit Dimensions |
1.14 x 1.95 |
| Material |
Aluminum |
| CNC Ported |
No |
| Rear Maximum Height |
(B) (Measured To Engine Block) 5.25 |
| Family |
RPM Air-Gap |
| Hardware Included |
Yes |
| Flange Type |
4150 |
| Vehicle Model |
Chevrolet |
| Quantity |
Kit |
| Finish |
Satin |
| Series |
RPM Air-Gap |
| EGR Port |
No |
| Bolts Or Studs Included |
Yes |
| Angle |
(Carb) 3 |
| Carburetor Quantity |
One |
| Gasket Or Seal Included |
Yes |
| Intake Manifold Type |
Part #7501 |
| Deck Height |
Standard |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Hole Quantity |
(Carb Bolt) 4 |
| Center Maximum Height |
(Carb Pad) 4.72 |
| Basic Operating RPM Range |
1500-6500 |
| Fastener Material |
Steel |
| Front Maximum Height |
(A) 4.20 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
