| Description_ABR |
Mn Instl Kit |
| Description_ASM |
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Intake Manifold Installation Kit |
| Description_INV |
2701 Chev SB Perf Man w/Full Install Kit |
| Description_EXT |

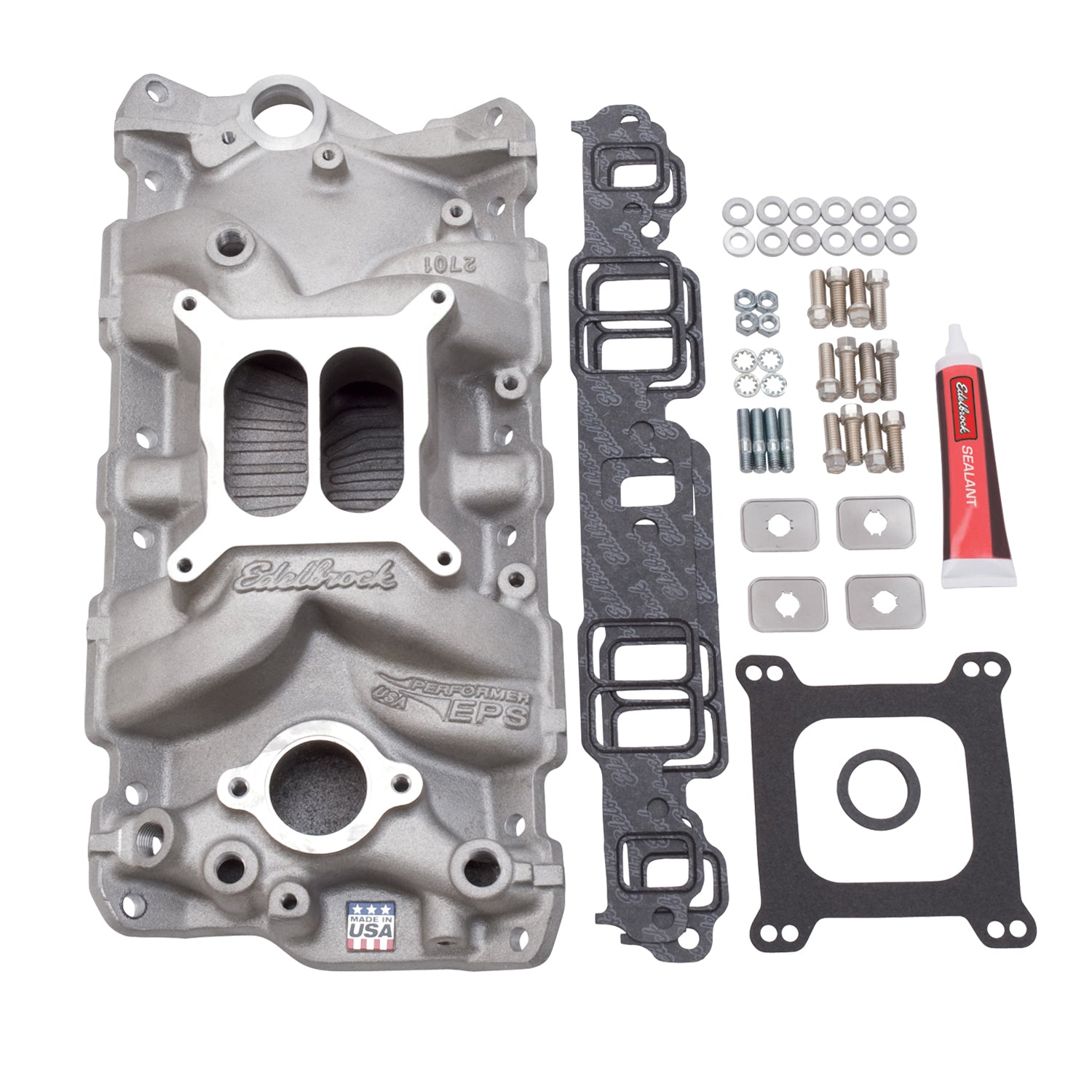

Edelbrock Manifold Installation kit PN 2040 includes all the necessary components to replace your existing intake: PN 2701 Performer EPS intake manifold, intake gasket set, carburetor base gasket, RTV sealant, intake bolts & carb studs. |
| Description_LAB |
Edelbrock Chevrolet SB Performer EPS Manifold w/ Gaskets, Bolts, Studs |
| Description_MKT |
Edelbrock part #2040 Manifold Installation kit will simplify the process of adding more power and efficiency to your street rod or muscle car. It combines all the necessary components to replace your stock iron intake manifold with an Edelbrock aluminum intake manifold. Kit includes: Performer EPS intake manifold #2701, intake gasket set, carburetor base gasket, RTV sealant, intake bolts and carb studs. |
| Description_TRA |
Manifold ht: A-3.74", B-4.80" |
| Description_TRA |
Carb pad height: 4.27" |
| Description_TRA |
Port exit dimensions: 1.15" x 1.87". |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage. |
| Description_TRA |
NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal. |
| Description_TRA |
DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Description_TRA |
Will not fit under stock Corvette hood. |
| Description_TRA |
Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality. |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
| Front Maximum Height |
(A) 4.45 |
| Intake Manifold Type |
Part #2701 |
| Basic Operating RPM Range |
Idle-5500 |
| Vehicle Model |
Chevrolet |
| Gasket Or Seal Included |
Yes |
| Angle |
(Carb) 3 |
| Center Maximum Height |
(Carb Pad) 4.27 |
| Carburetor Quantity |
One |
| Fastener Material |
Steel |
| Deck Height |
Standard |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Hole Quantity |
(Carb Bolt) 4 |
| Bolts Or Studs Included |
Yes |
| Material |
Aluminum |
| Hardware Included |
Yes |
| Single Or Dual Plane Type |
Dual |
| CNC Ported |
No |
| Family |
Performer |
| Port Exit Dimensions |
1.15 x 1.87 |
| EGR Port |
No |
| Mounting Hole Diameter |
(Carb Bolt) 5/16-18 UNC |
| Rear Maximum Height |
(B) (Measured To Engine Block) 4.80 |
| Series |
Performer |
| Flange Type |
4150 |
| Quantity |
Kit |
| Finish |
Satin |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
22.0000 |
