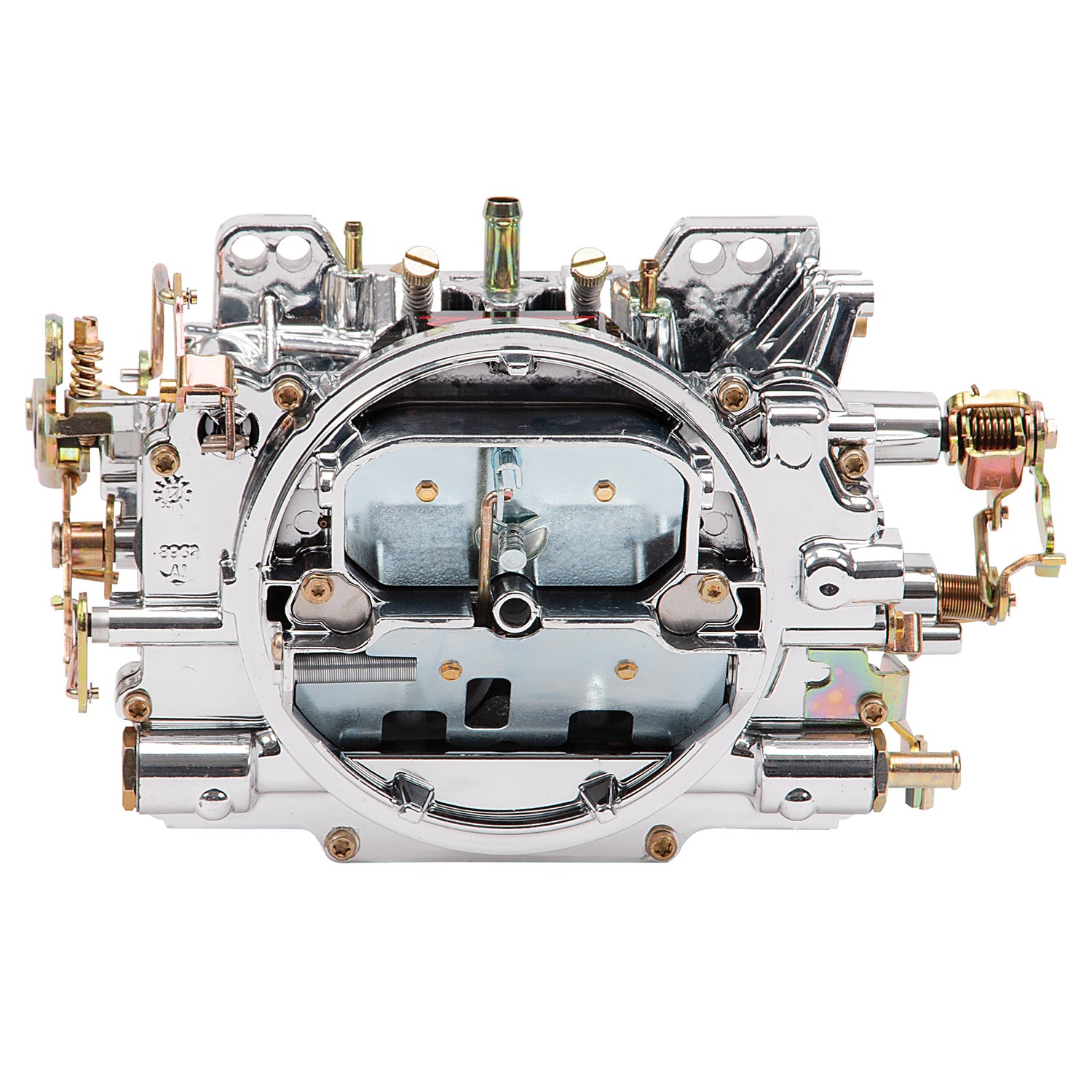

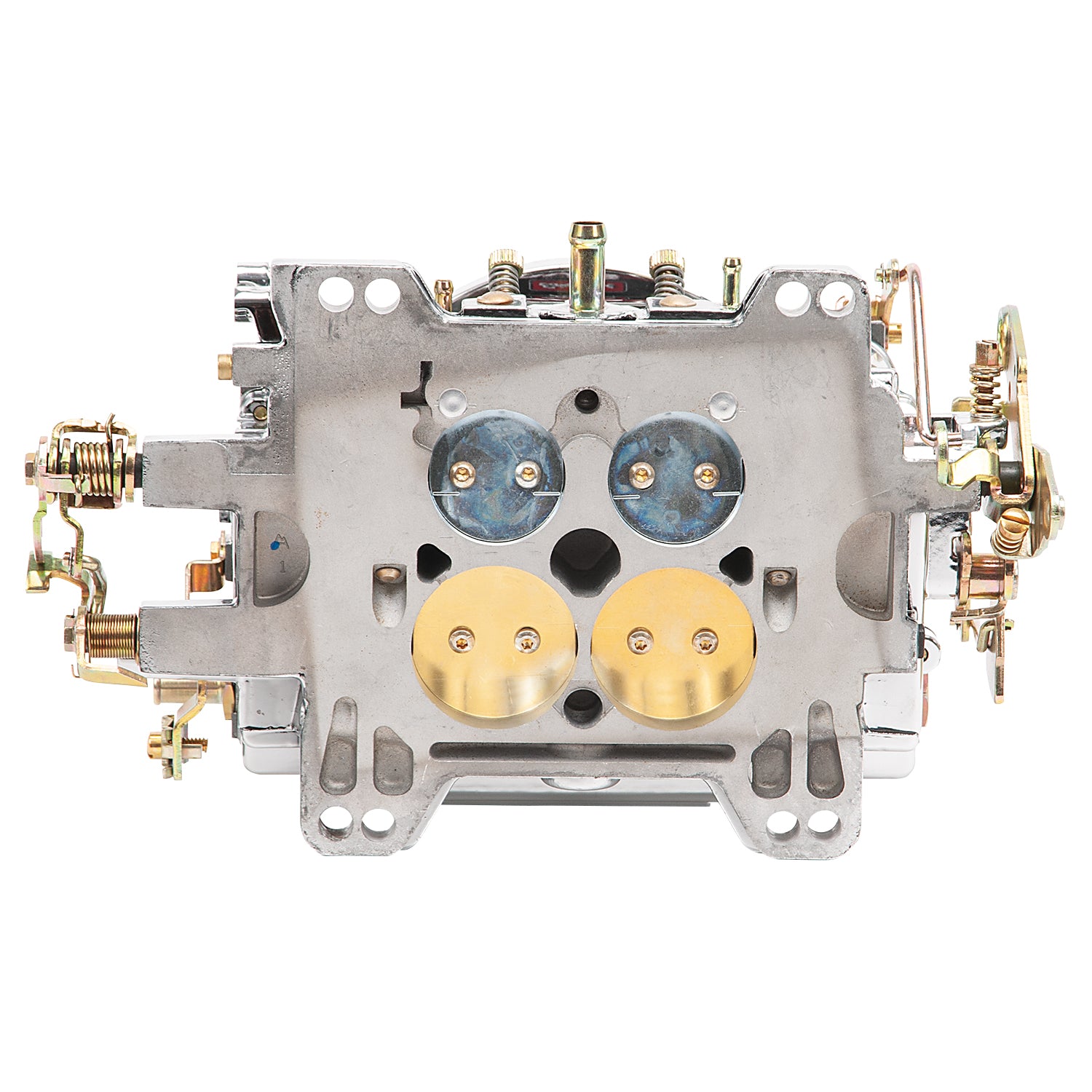

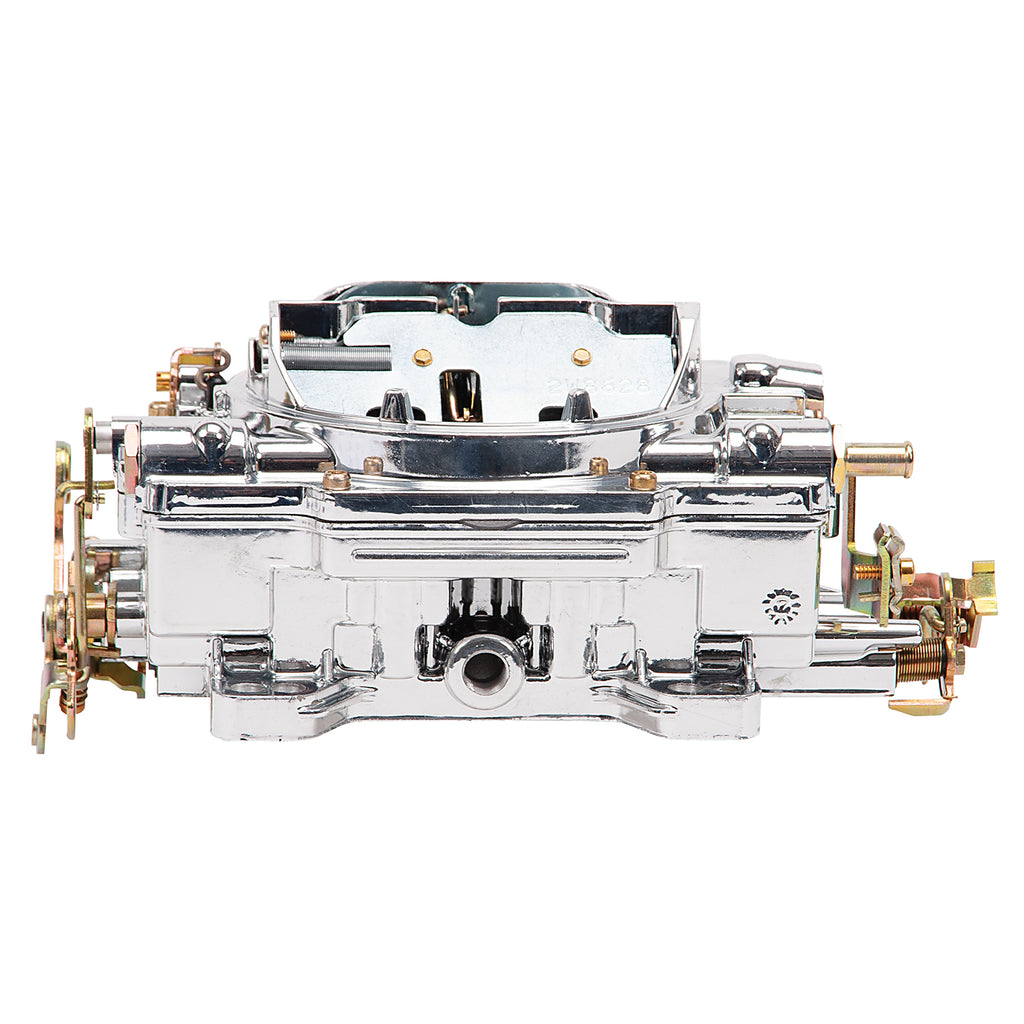

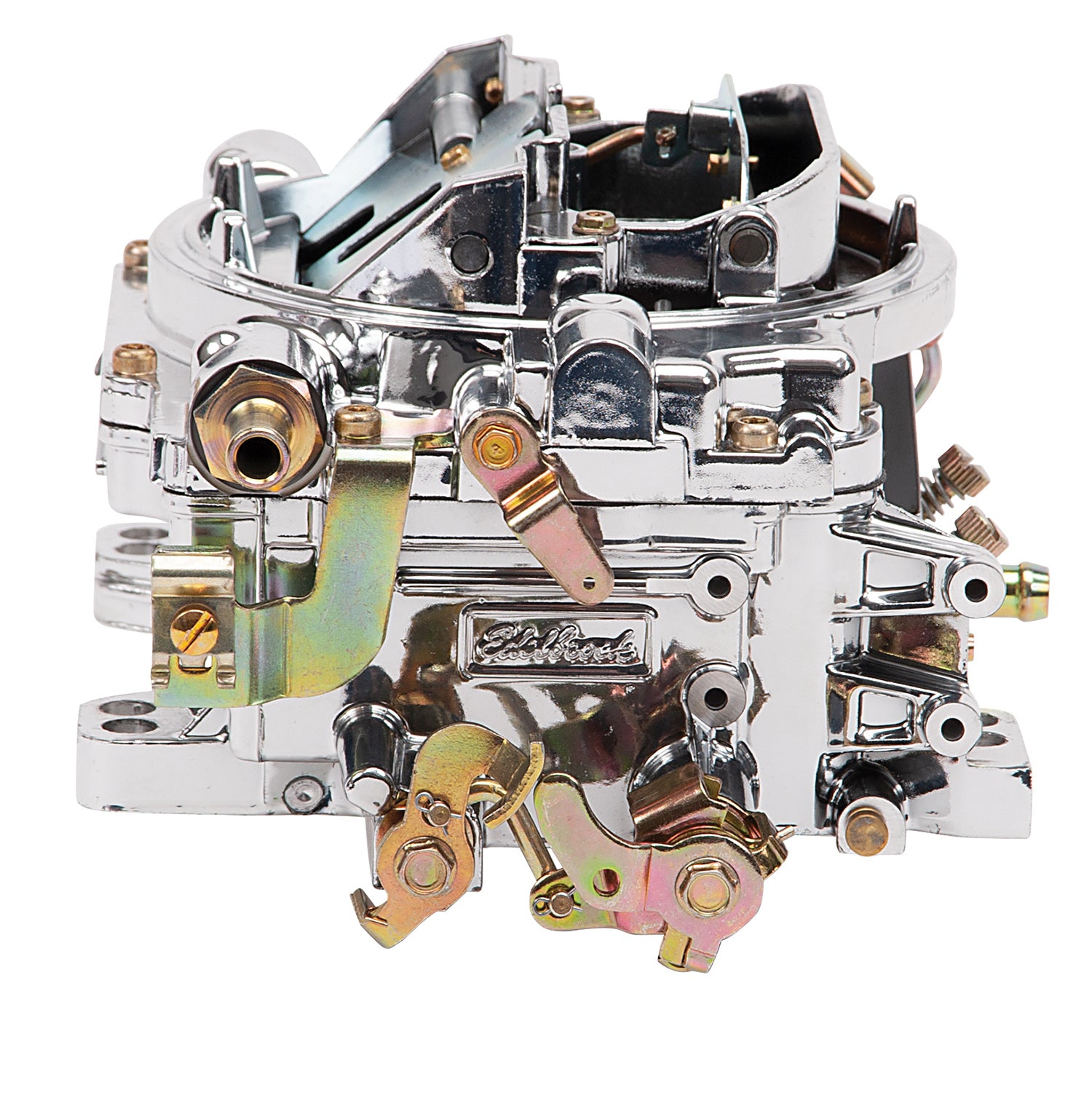

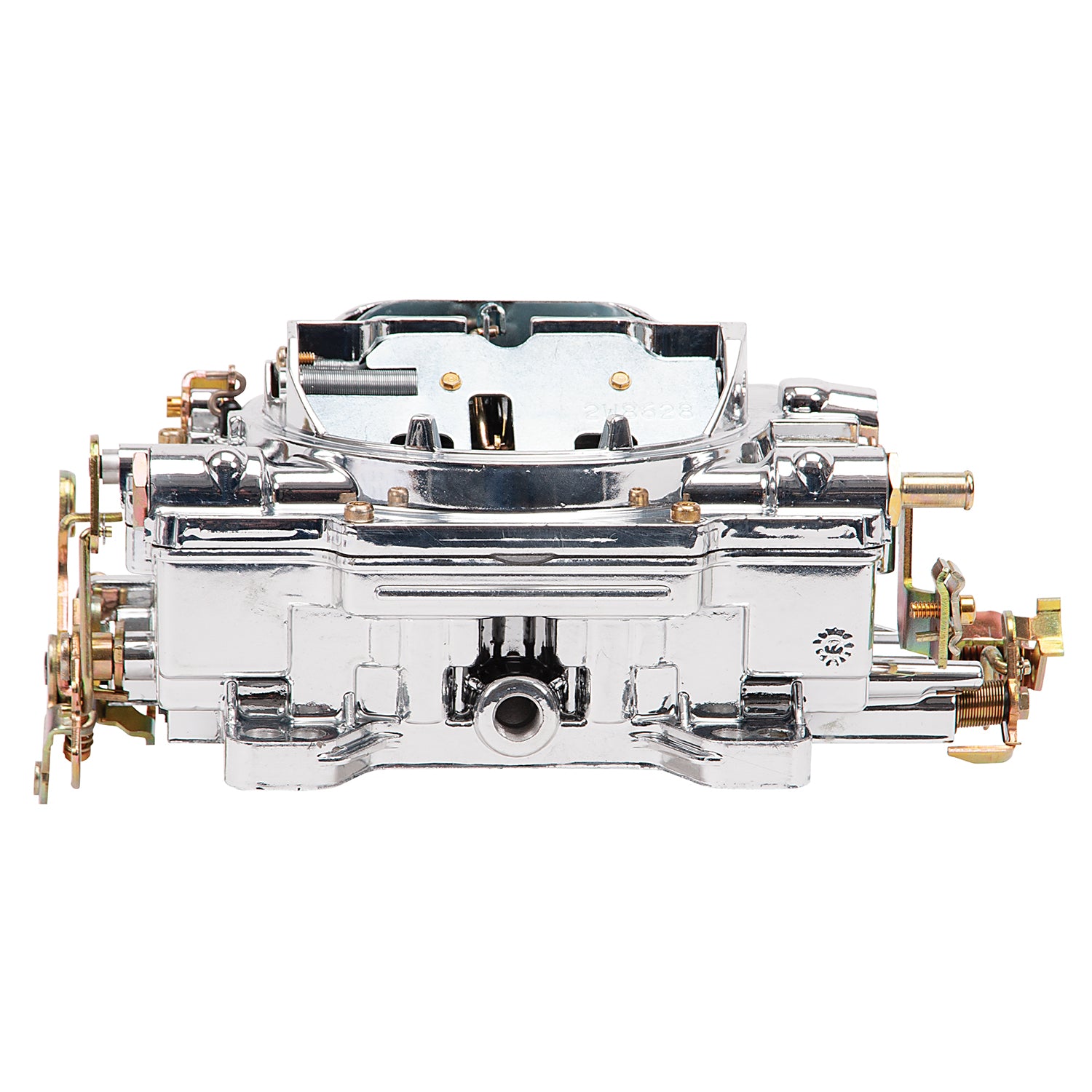

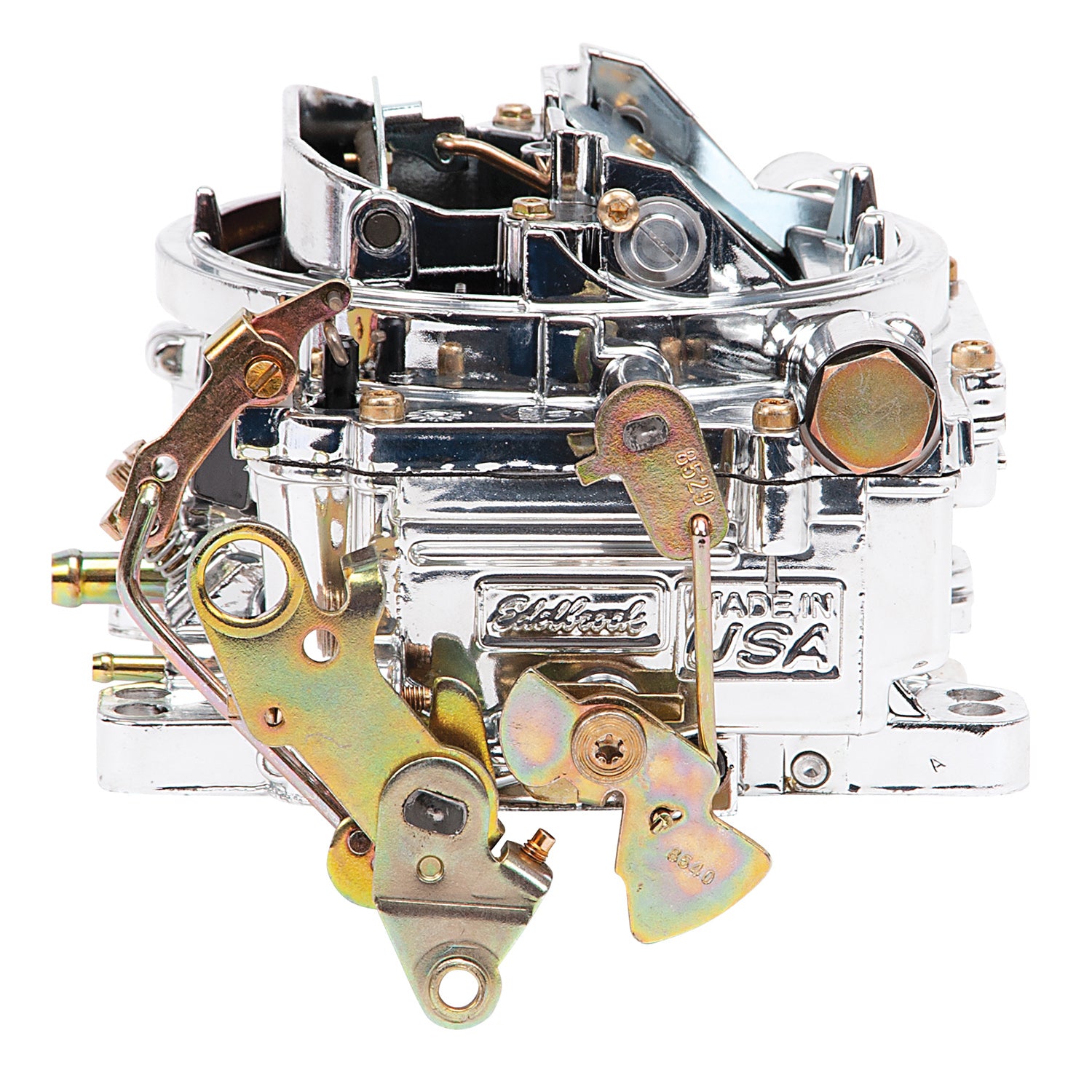

Edelbrock's Annular Flow Booster technology brings superior fuel atomization to all high-horsepower small- and big-block engines with the AVS2 800 CFM Manual Choke Carburetor #19124 that is specially calibrated to make power. Annular Flow Boosters deliver near EFI-like drivability that you can feel as soon as you step on the gas. Fuel distribution is refined by eight equally spaced orifices in the booster rings that replace down-leg boosters which simply dump raw fuel into the venturi. Flat spots are completely eliminated, and throttle response in the low- to mid-RPM range is improved tremendously without sacrificing that top-end power that Edelbrock is known for. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to "hold a tune" when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. The AVS2 features a two-piece ease-of-tuning design that lets you make float level adjustments or replace internal components without draining the fuel from the carburetor or removing it from the engine. The AVS2 800 CFM #19124 comes with a manual (#19124) or electric (#19134) choke in chrome-like EnduraShine finish or satin. All AVS2 Series carburetors, like Edelbrock's popular Performer Series and Thunder Series AVS, are designed, manufactured, assembled and calibrated by Edelbrock in the USA.
Specifications:
| Description_ABR |
AVS2 Carb |
| Description_DEF |
Carburetor |
| Description_LAB |
AVS2 Carburetor #19124 800 CFM With Manual Choke, EnduraShine Finish (Non-EGR) |
| Description_INV |
AVS2 800 CFM Carb w/Manual Choke #19124 |
| Description_EXT |
Edelbrock's Annular Flow Booster technology brings superior fuel atomization to all high-horsepower small- and big-block engines with the AVS2 800 CFM Manual Choke Carburetor #19124 that is specially calibrated to make power. |
| Description_MKT |
Edelbrock's Annular Flow Booster technology brings superior fuel atomization to all high-horsepower small- and big-block engines with the AVS2 800 CFM Manual Choke Carburetor #19124 that is specially calibrated to make power. Annular Flow Boosters deliver near EFI-like drivability that you can feel as soon as you step on the gas. Fuel distribution is refined by eight equally spaced orifices in the booster rings that replace down-leg boosters which simply dump raw fuel into the venturi. Flat spots are completely eliminated, and throttle response in the low- to mid-RPM range is improved tremendously without sacrificing that top-end power that Edelbrock is known for. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to "hold a tune" when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. The AVS2 features a two-piece ease-of-tuning design that lets you make float level adjustments or replace internal components without draining the fuel from the carburetor or removing it from the engine. The AVS2 800 CFM #19124 comes with a manual (#19124) or electric (#19134) choke in chrome-like EnduraShine finish or satin. All AVS2 Series carburetors, like Edelbrock's popular Performer Series and Thunder Series AVS, are designed, manufactured, assembled and calibrated by Edelbrock in the USA. |
| Description_SLA |
With our innovative Annular Flow Booster technology, Edelbrock brings superior fuel atomization to all high-horsepower small- and big-block engines with the AVS2 800 CFM Manual Choke Carburetor #19124 that is specially calibrated to make power. Annular Flow Boosters deliver near EFI-like drivability that you can feel as soon as you step on the gas. Fuel distribution is refined by eight equally spaced orifices in the booster rings that replace down-leg boosters which simply dump raw fuel into the venturi. Flat spots are completely eliminated, and throttle response in the low- to mid-RPM range is improved tremendously with no sacrificing of that top-end power that Edelbrock is known for. AVS2 carbs are unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. Our AVS2 carbs have the unique ability to "hold a tune" when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, our Qwik-Tune Secondary Air Valve design allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. The AVS2 features a two-piece design that allows you to make float level adjustments or replace internal components without draining the fuel from the carburetor or removing it from the engine. The AVS2 800 CFM carburetor is available with either manual (#19124) or electric (#19134) choke in chrome-like EnduraShine or satin finish. All AVS2 carburetors are designed, manufactured, assembled and calibrated by Edelbrock in the USA. |
| Description_TRA |
Manual choke AVS2 Carbs cannot be converted to electric choke. |

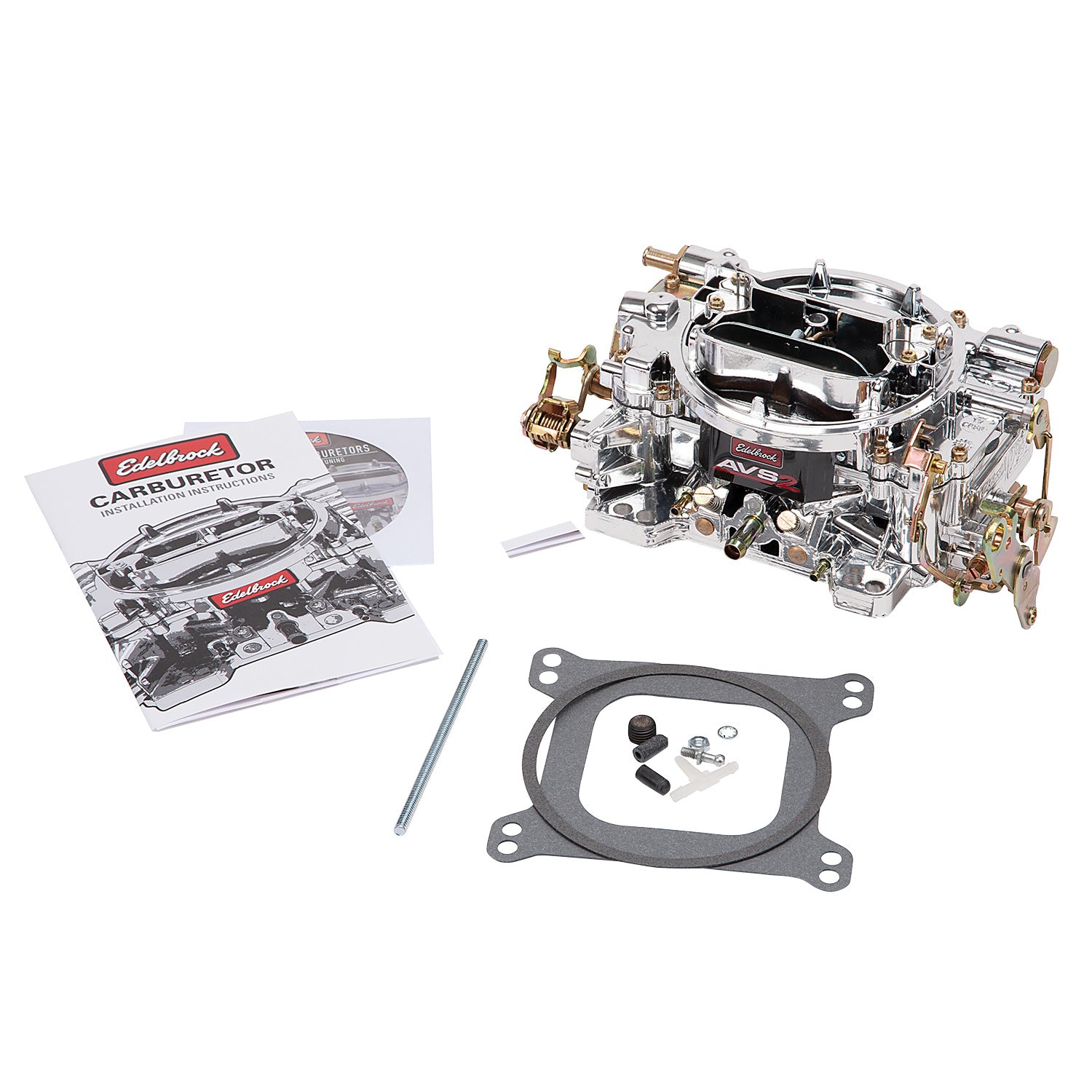

| Gasket Or Seal Included |
Yes |
| Choke Type |
Manual |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Jet Diameter |
0.104 |
| Spring Force |
5" Hg (Orange) |
| Maximum Flow Rating |
800 |
| Material |
Aluminum |
| Barrel Quantity |
4 Barrel |
| Metering Rod Size |
.065 x .052 |
| Series |
AVS2 |
| Body Height |
3.25 |
| Bore Diameter |
Primary Bore 1.75; Secondary Bore 1.75 |
| Booster Type |
annular |
| EGR Port |
No |
| Primary Jet Diameter |
0.104 |
| Finish |
EnduraShine |
| Flange Shape |
Square |
| Condition |
New |
| Main Venturi Diameter |
1.525 |
| Length |
7.0000 |
| Width |
7.0000 |
| Height |
13.0000 |
| Weight |
12.0000 |
