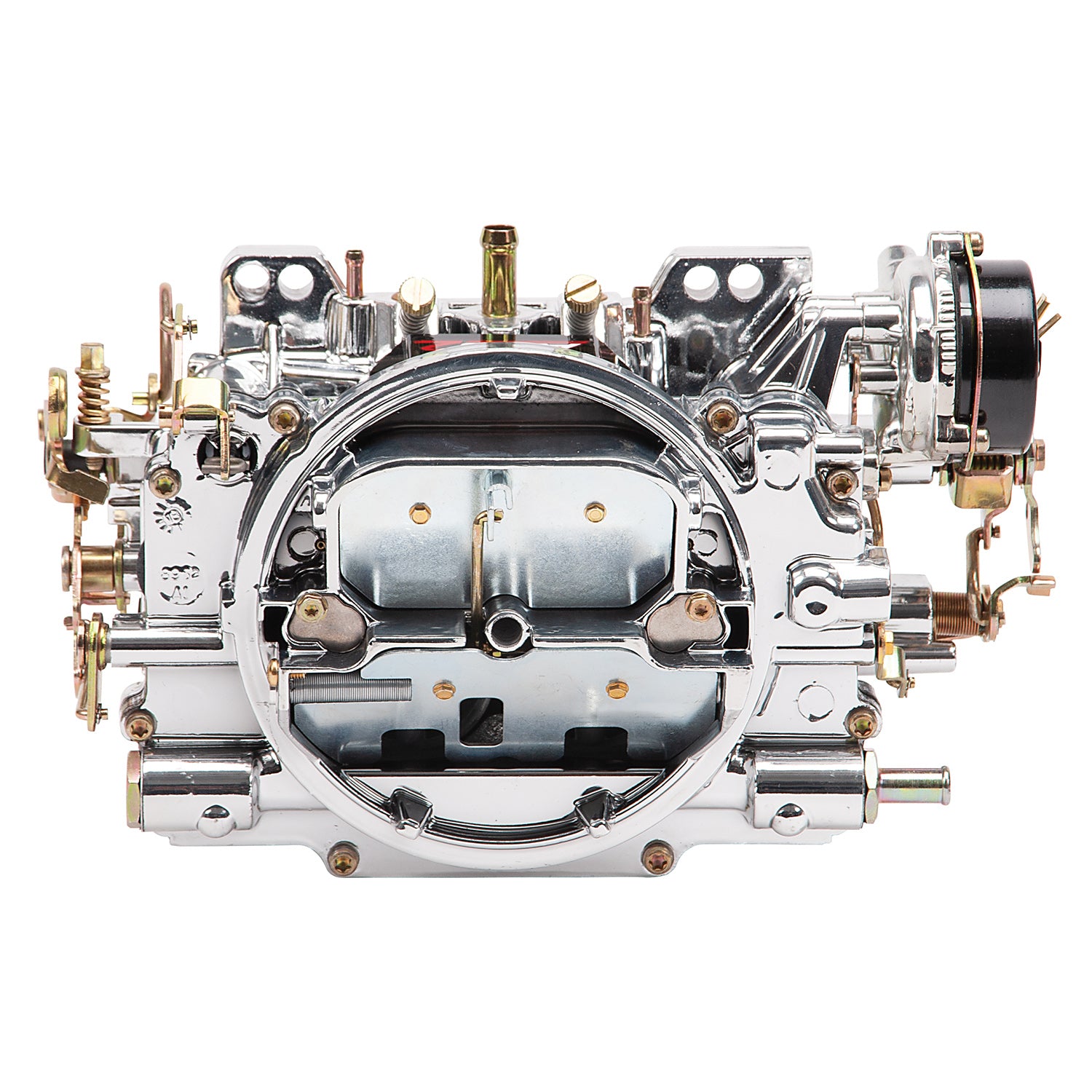

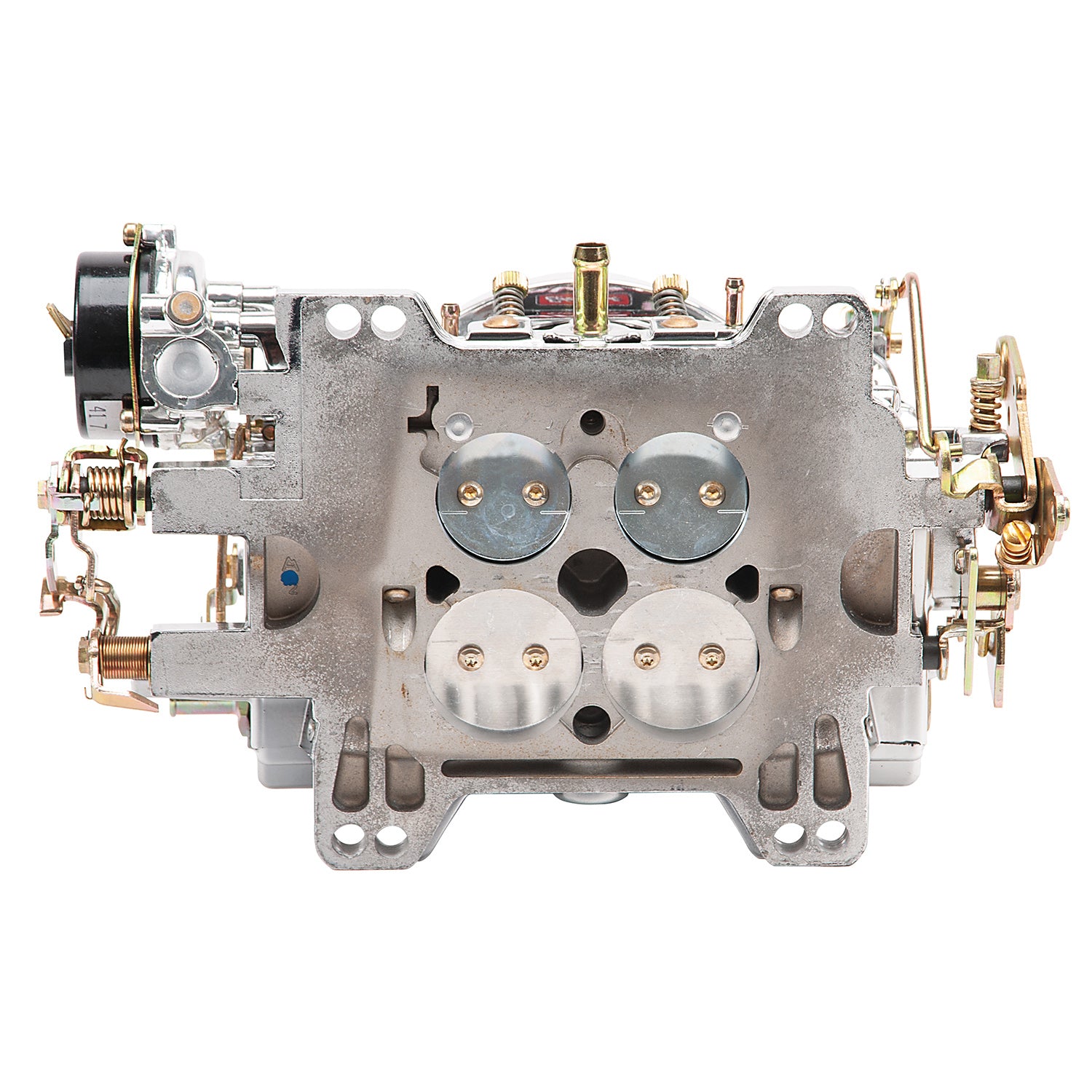

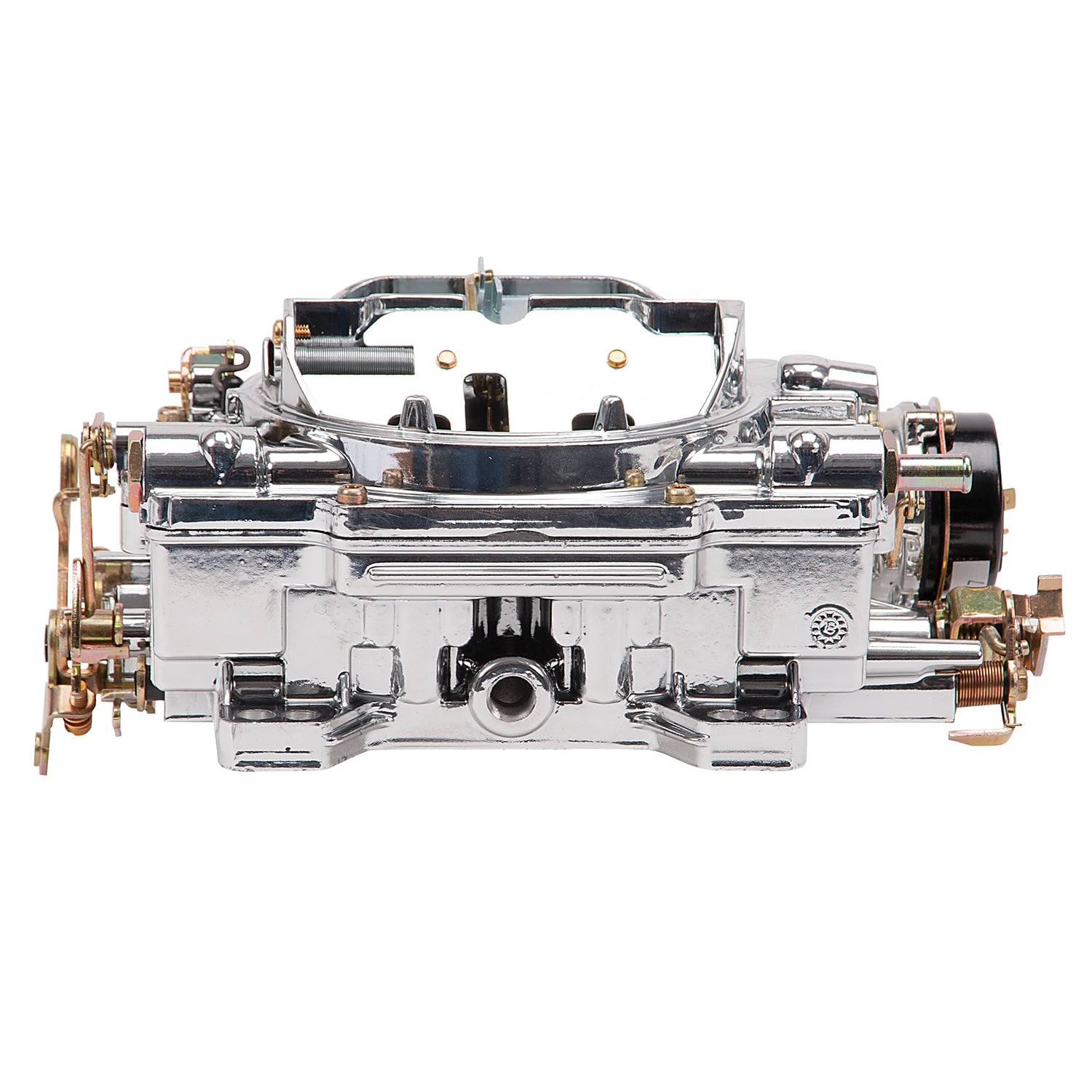

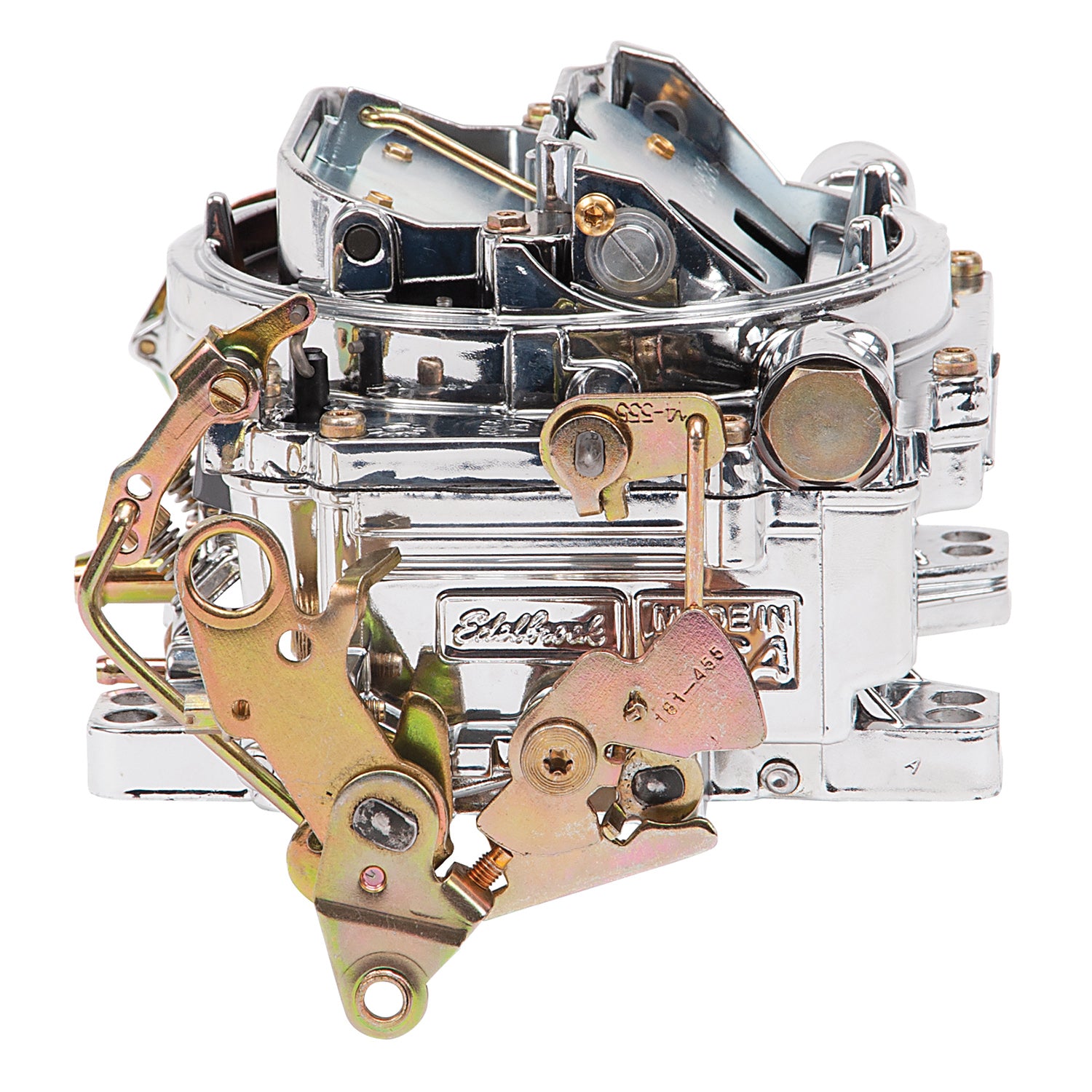

The Edelbrock #19064 AVS2 Series EnduraShine 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual or single plane intake manifolds. The Edelbrock #19064 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with Metering Jets: Primary .101, Secondary .098
Specifications:
| Description_ABR |
CARB |
| Description_DEF |
Carburetor |
| Description_EXT |
The Edelbrock #19064 AVS2 Series EnduraShine 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. |
| Description_INV |
Edelbrock AVS2 650 cfm Carburetor |
| Description_LAB |
AVS2 Carburetor #19064 650 CFM With Electric Choke, EnduraShine Finish (Non-EGR) |
| Description_TRA |
Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000 |
| Description_TRA |
Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. |
| Description_TRA |
The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor |
| Description_TRA |
You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds |
| Description_MKT |
The Edelbrock #19064 AVS2 Series EnduraShine 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual or single plane intake manifolds. The Edelbrock #19064 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with Metering Jets: Primary .101, Secondary .098 |
| Description_MKT |
Metering Rods: .070 x .037 |
| Description_MKT |
Step-Up Spring: Orange (5" Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. |
| Material |
Aluminum |
| Bore Diameter |
Primary Bore 1.44; Secondary Bore 1.75 |
| RGL |
WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Series |
AVS2 |

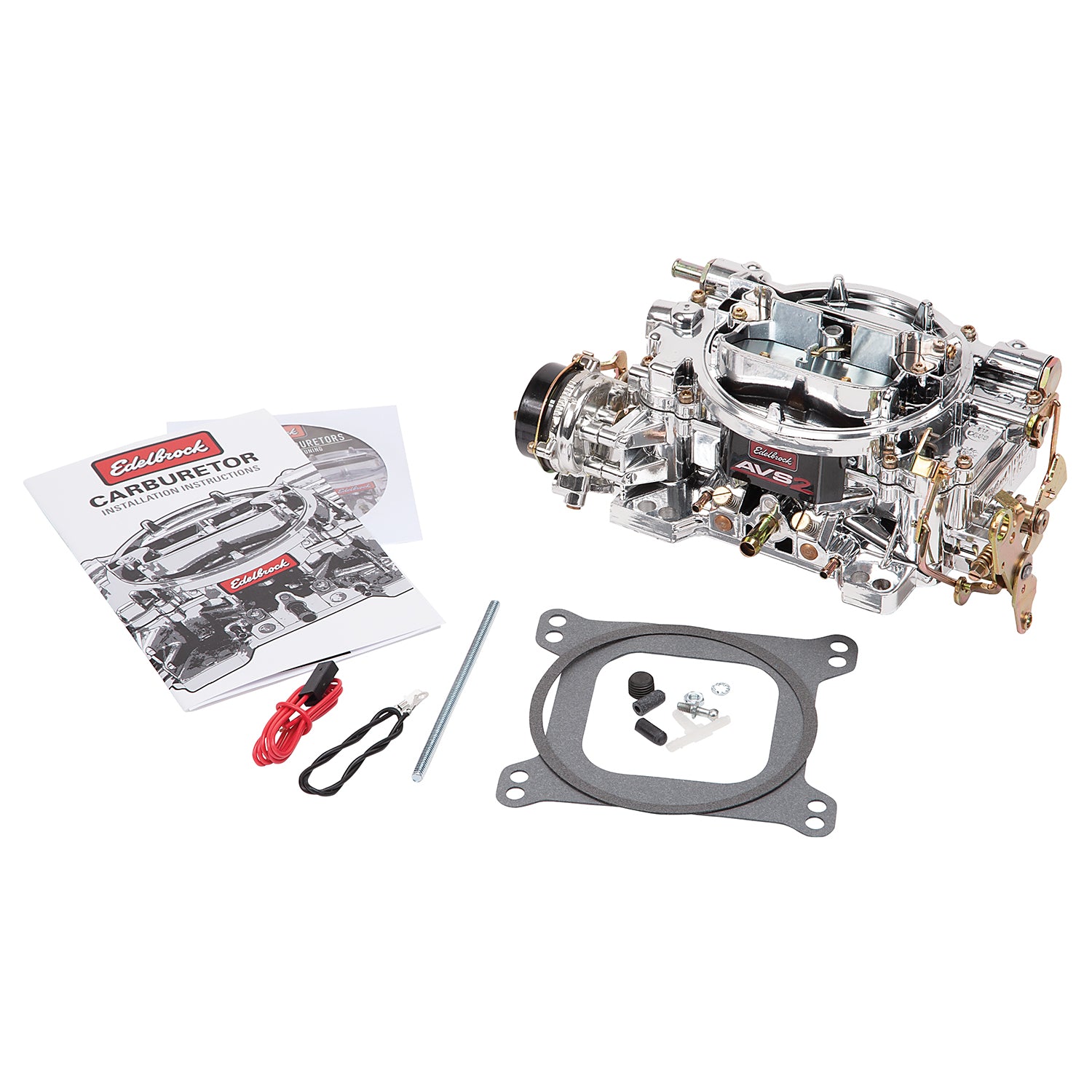

| Gasket Or Seal Included |
Yes |
| Condition |
New |
| Metering Rod Size |
.070 x .037 |

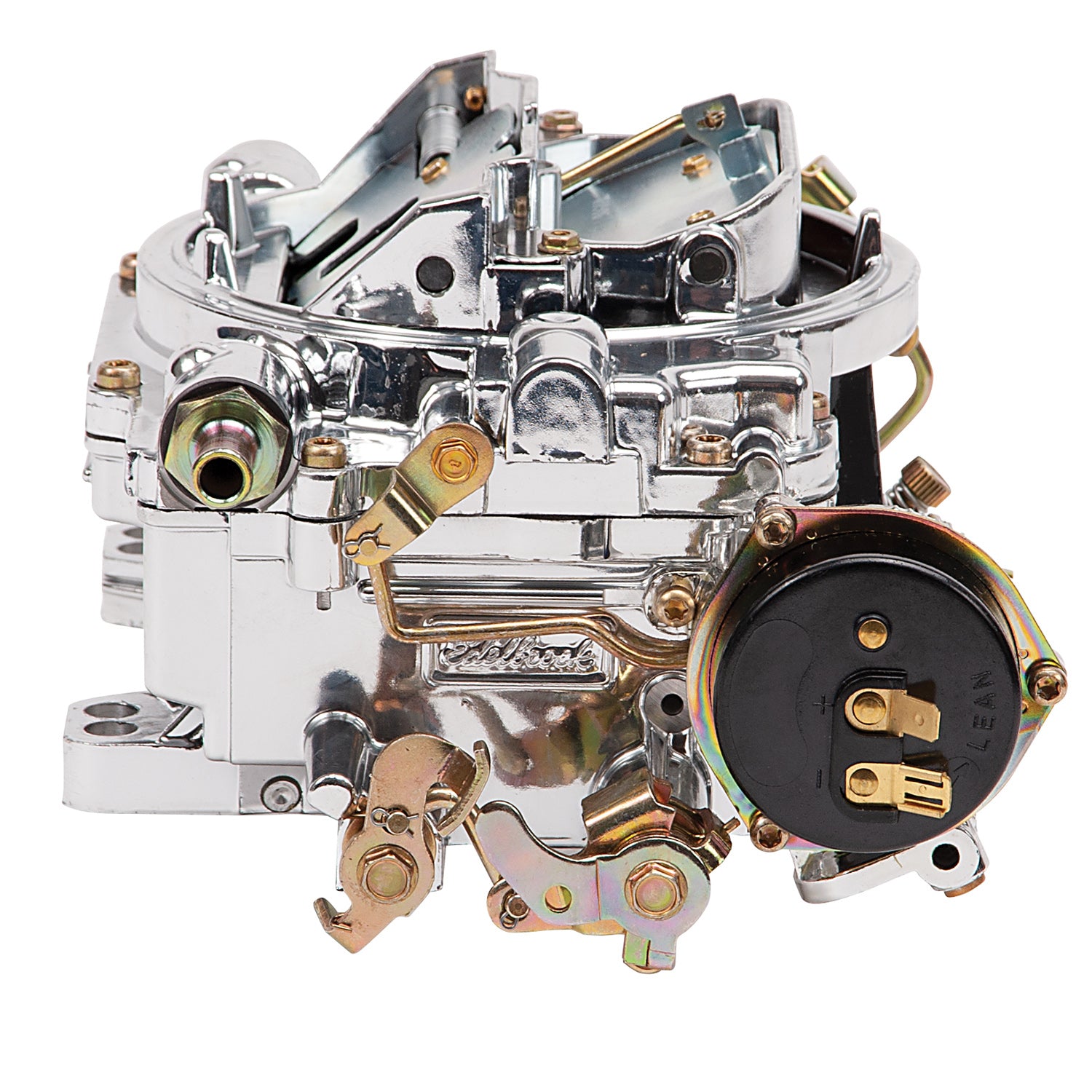

| Choke Type |
Electric |
| Spring Force |
5" Hg (Orange) |
| Maximum Flow Rating |
650 |
| Flange Shape |
Square |
| Primary Jet Diameter |
0.101 |
| Booster Type |
annular |
| Barrel Quantity |
4 Barrel |
| Main Venturi Diameter |
1.19 |
| Body Height |
3.25 |
| EGR Port |
No |
| Finish |
EnduraShine |
| Secondary Jet Diameter |
0.098 |
| Length |
7.0000 |
| Width |
7.0000 |
| Height |
13.0000 |
| Weight |
9.0000 |
