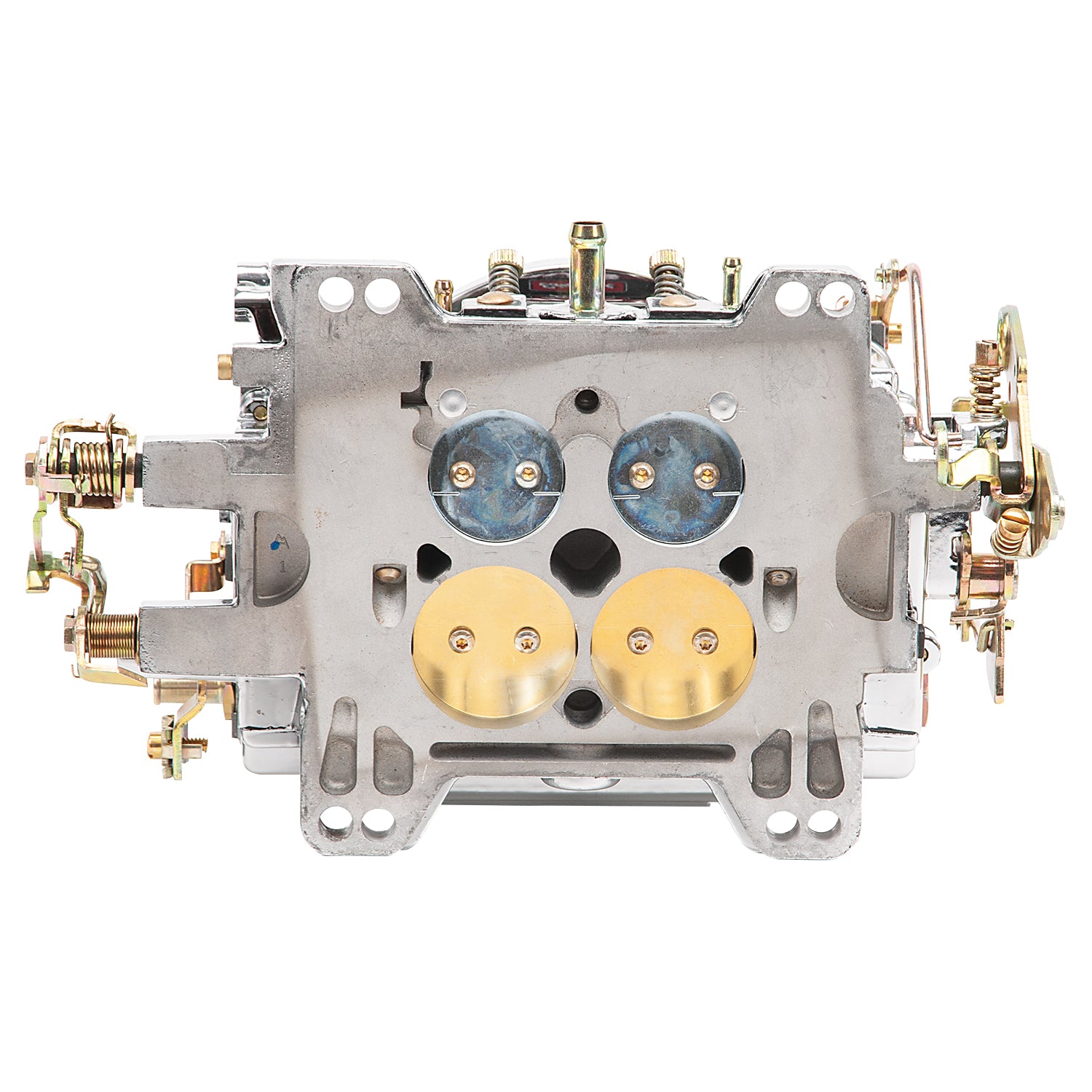

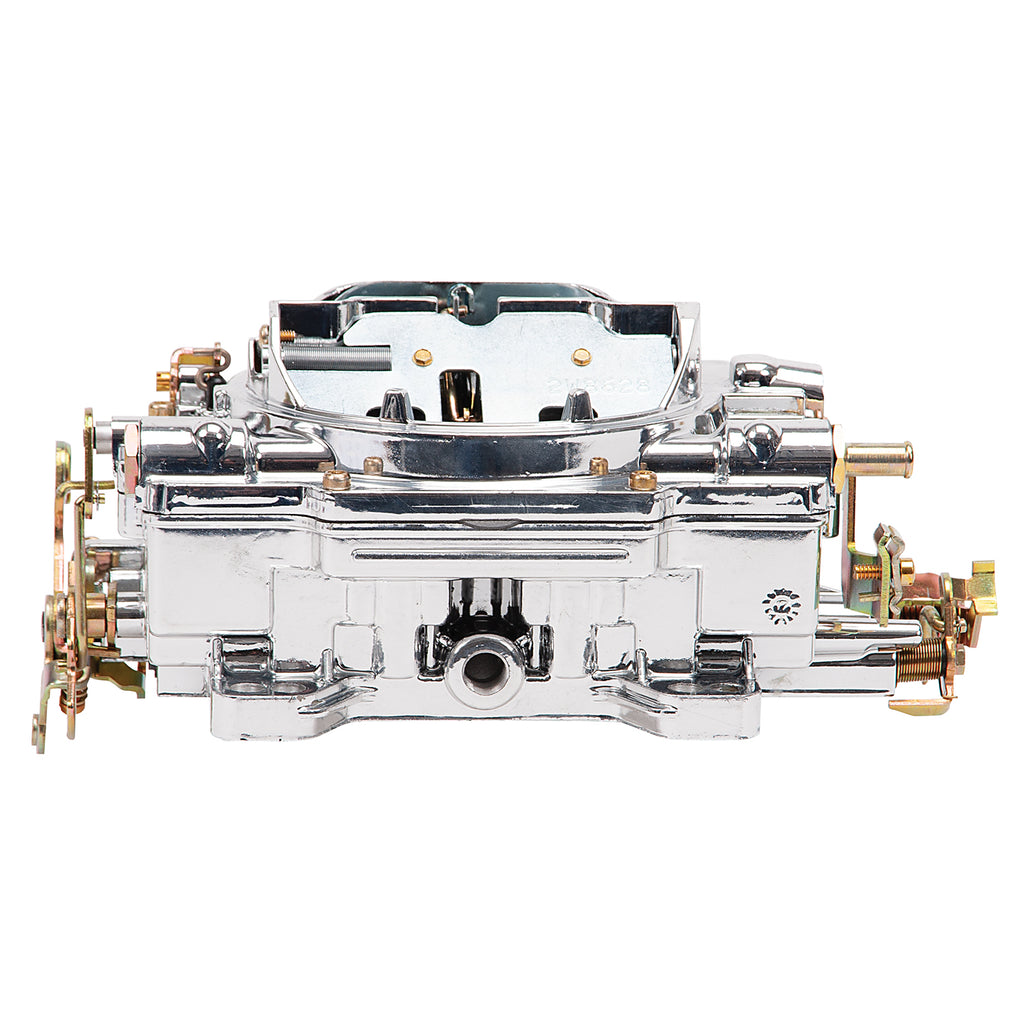

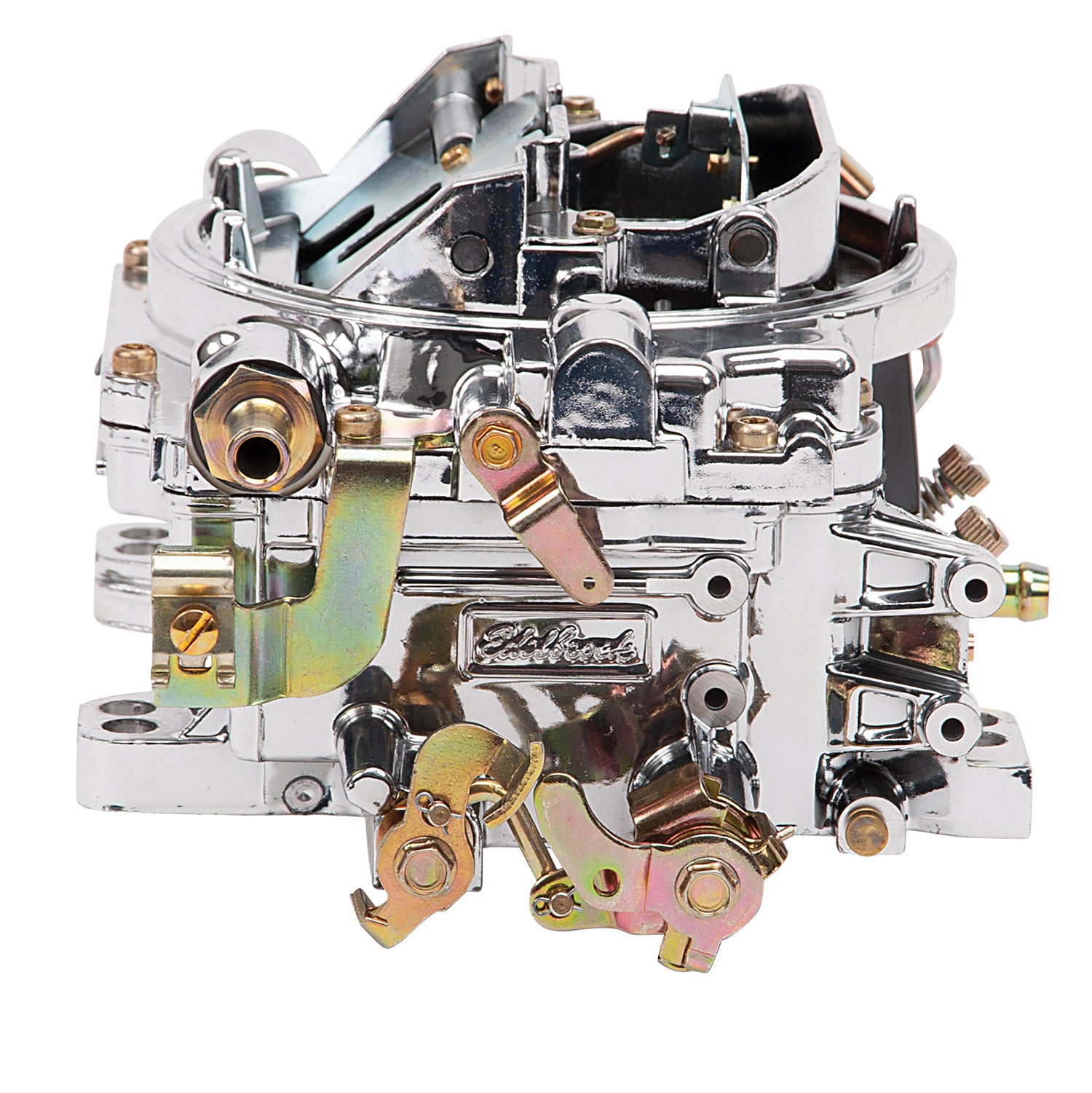

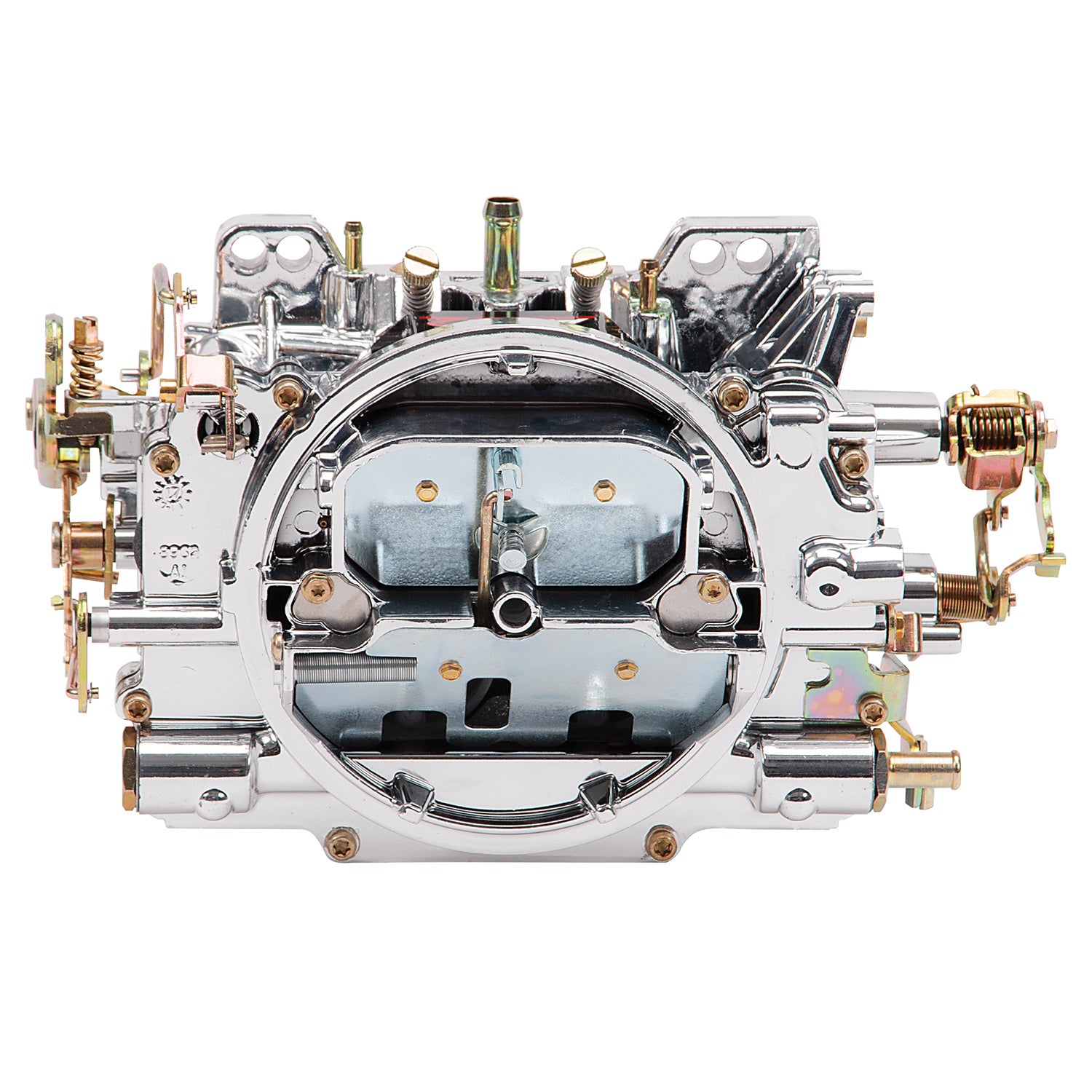

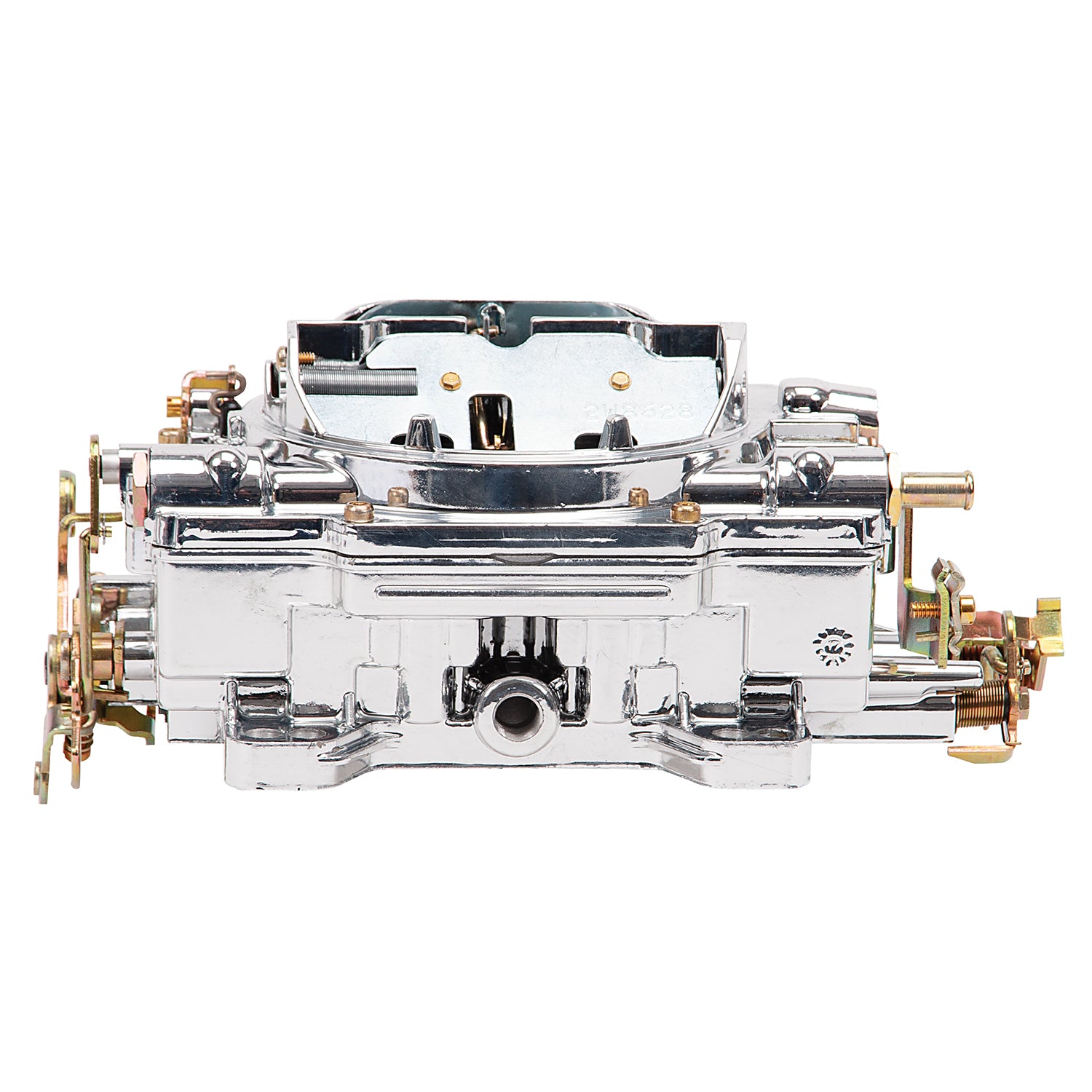

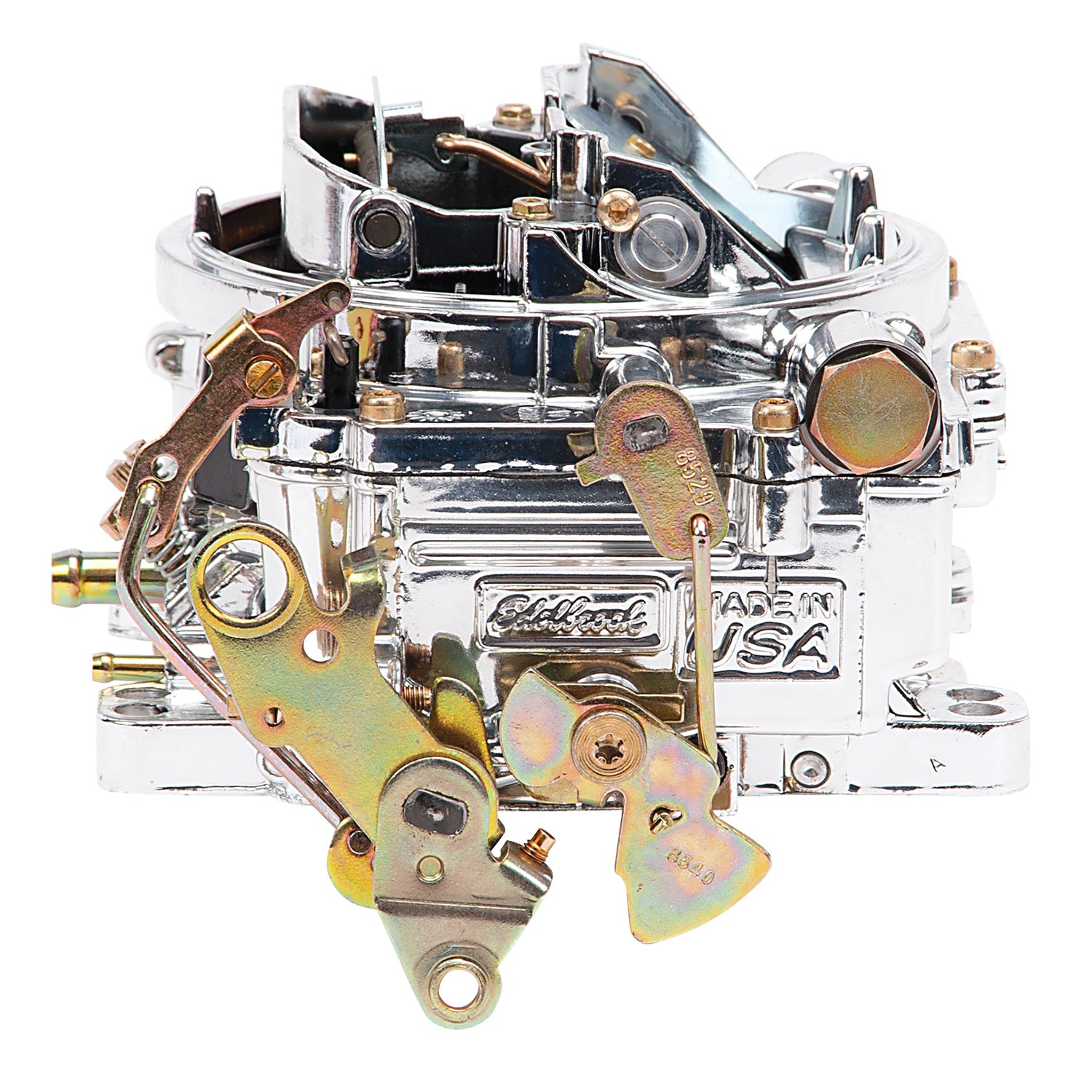

The Edelbrock #19024 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #19024 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
Specifications:
| Description_ABR |
CARB |
| Description_DEF |
Carburetor |
| Description_LAB |
AVS2 Carburetor #19024 500 CFM With Manual Choke, EnduraShine Finish (Non-EGR) |
| Description_INV |
Edelbrock AVS2 500 cfm Carburetor |
| Description_EXT |
The Edelbrock #19024 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. |
| Description_MKT |
The Edelbrock #19024 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #19024 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade. |
| Description_TRA |
Manual Choke |
| Description_TRA |
Manual choke AVS2 Carbs cannot be converted to electric choke |
| Description_TRA |
Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000 |
| Description_TRA |
Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. |
| Description_TRA |
The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor |
| Description_TRA |
You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds |
| Barrel Quantity |
4 Barrel |
| Spring Force |
5" Hg (Orange) |
| RGL |
WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Booster Type |
annular |
| Maximum Flow Rating |
500 |
| EGR Port |
No |
| Primary Jet Diameter |
0.095 |
| Choke Type |
Manual |

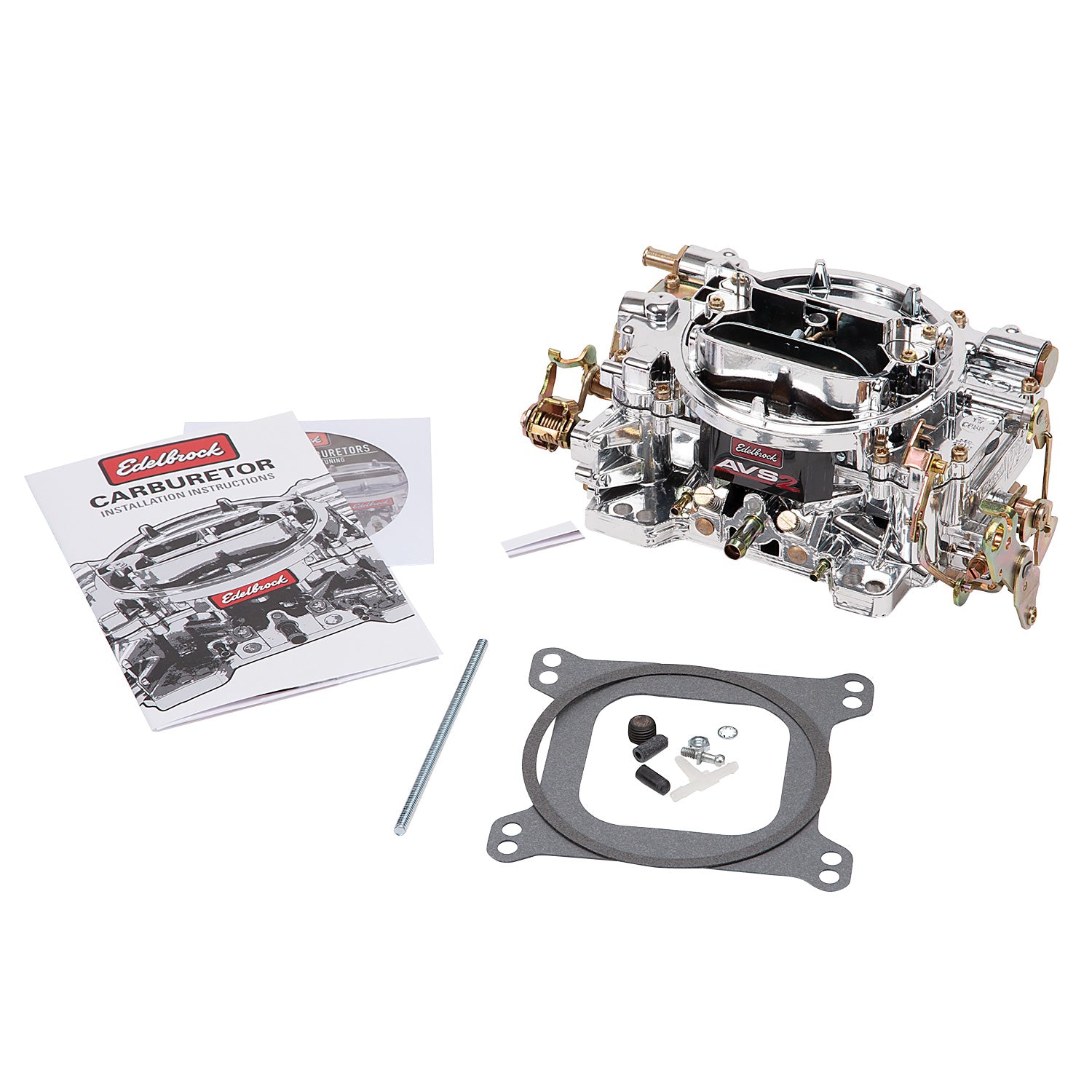

| Gasket Or Seal Included |
Yes |
| Bore Diameter |
Primary Bore 1.44; Secondary Bore 1.6875 |
| Secondary Jet Diameter |
0.095 |
| Material |
Aluminum |
| Body Height |
3.25 |
| Condition |
New |
| Series |
AVS2 |
| Flange Shape |
Square |
| Main Venturi Diameter |
1.19 |
| Finish |
EnduraShine |
| Recommended Use |
For Single Carb Applications |
| Metering Rod Size |
.070 x .052 |
| Length |
7.0000 |
| Width |
7.0000 |
| Height |
13.0000 |
| Weight |
11.0000 |
