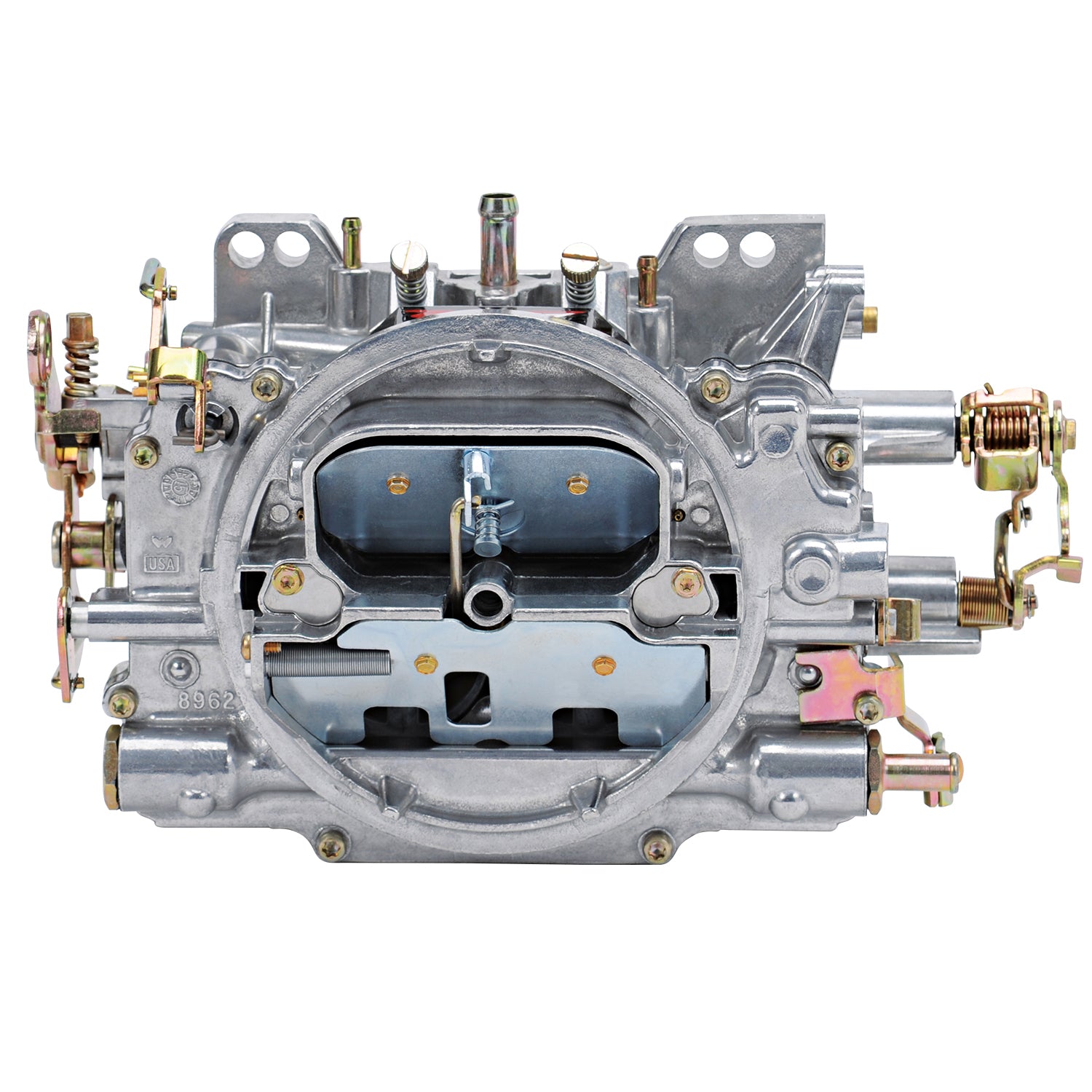

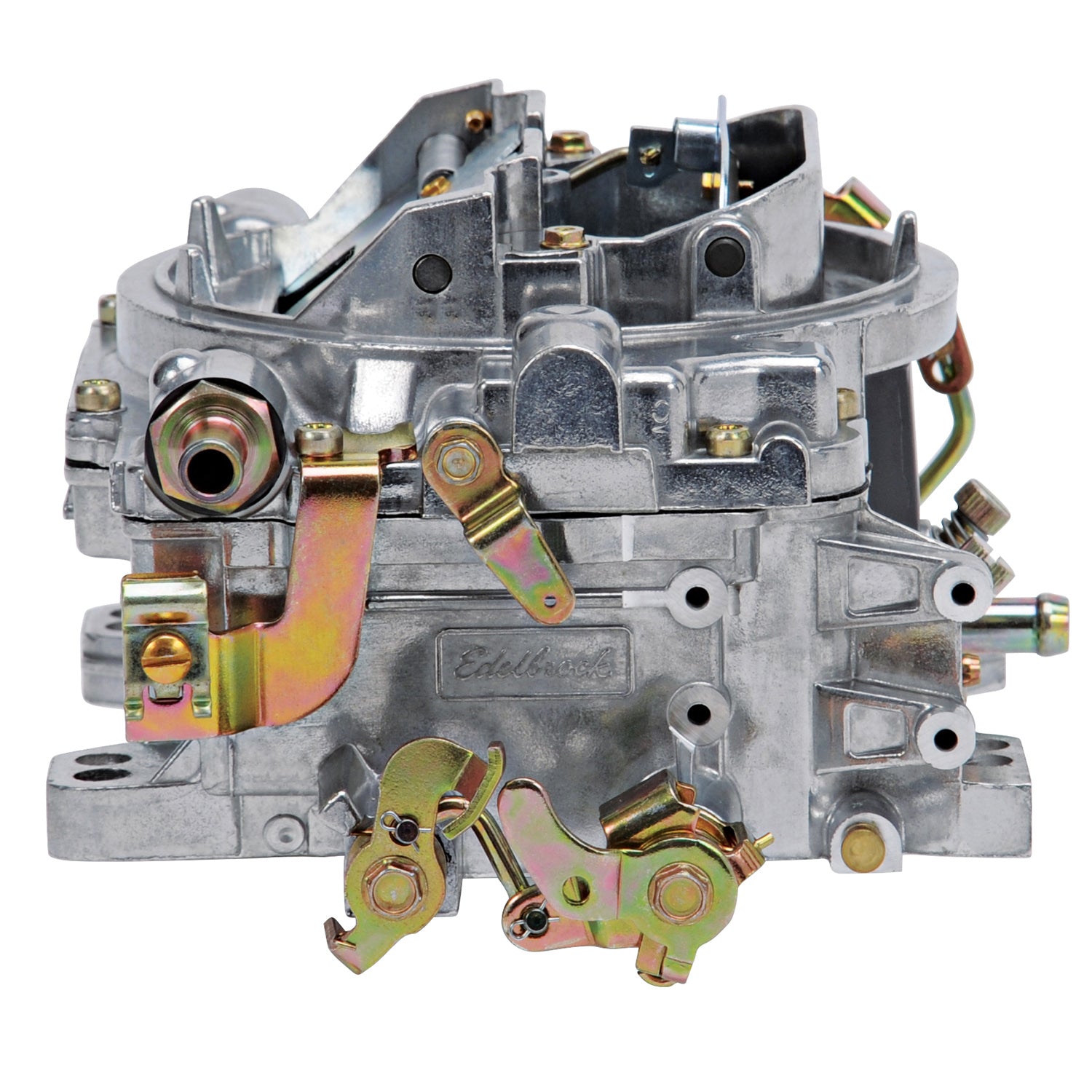

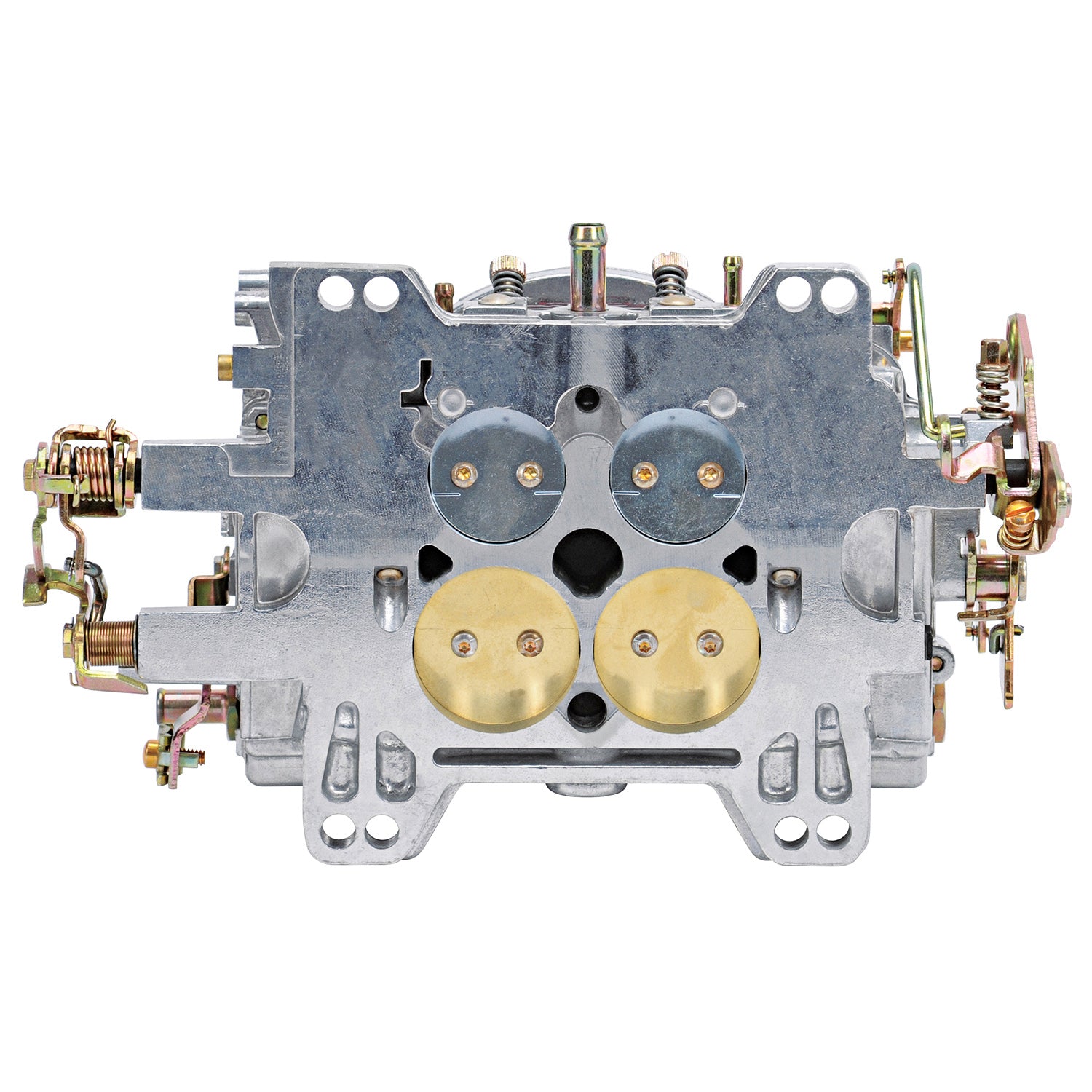

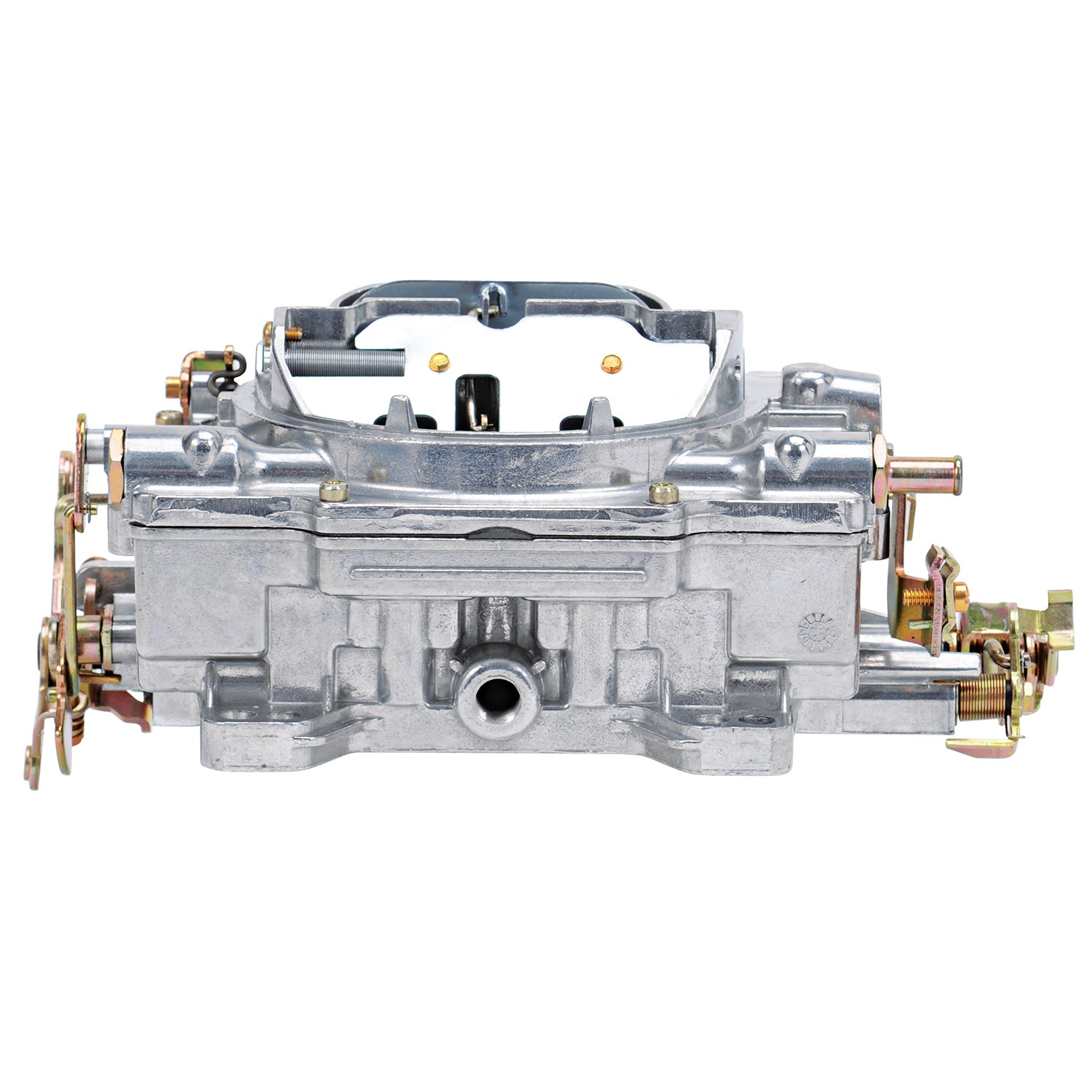

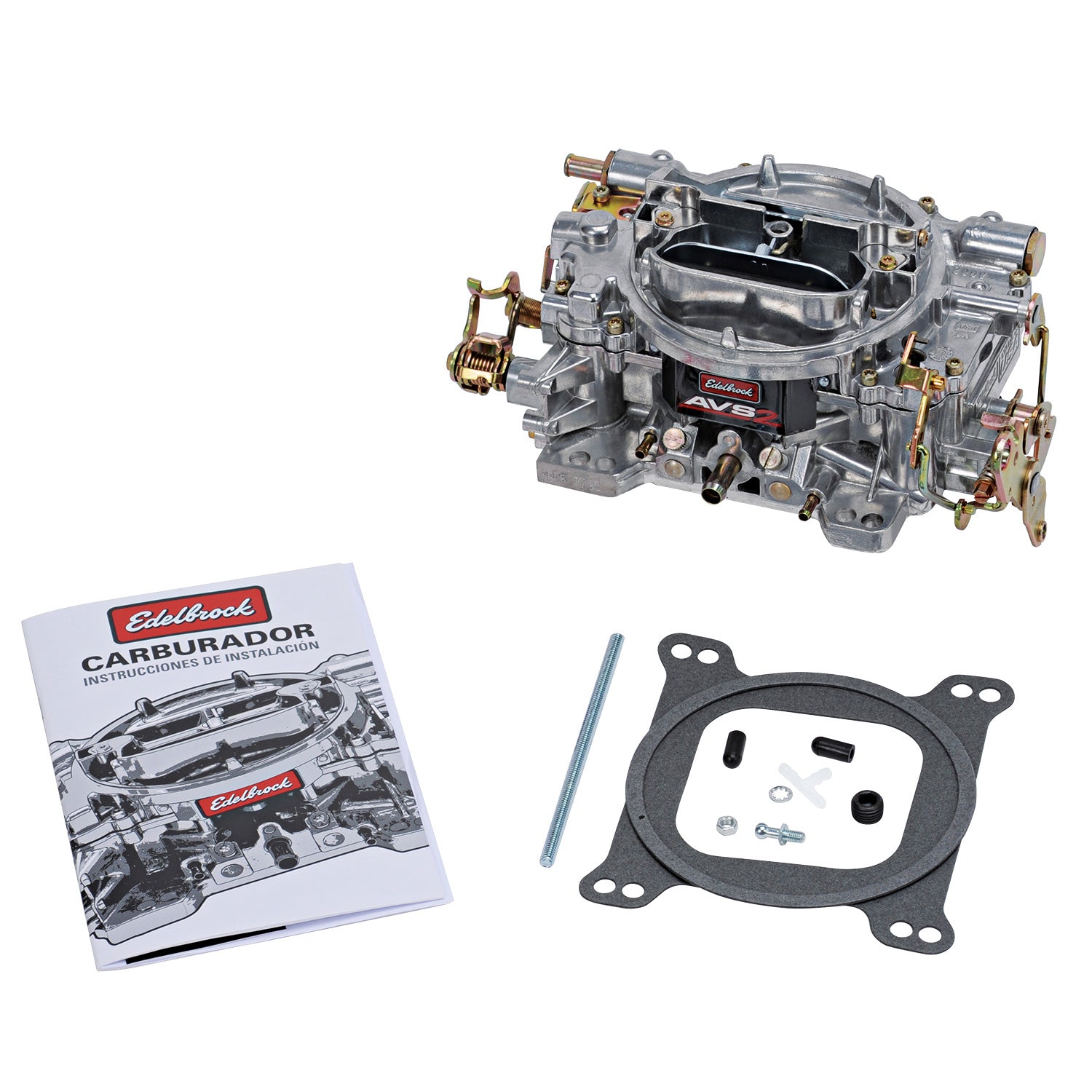

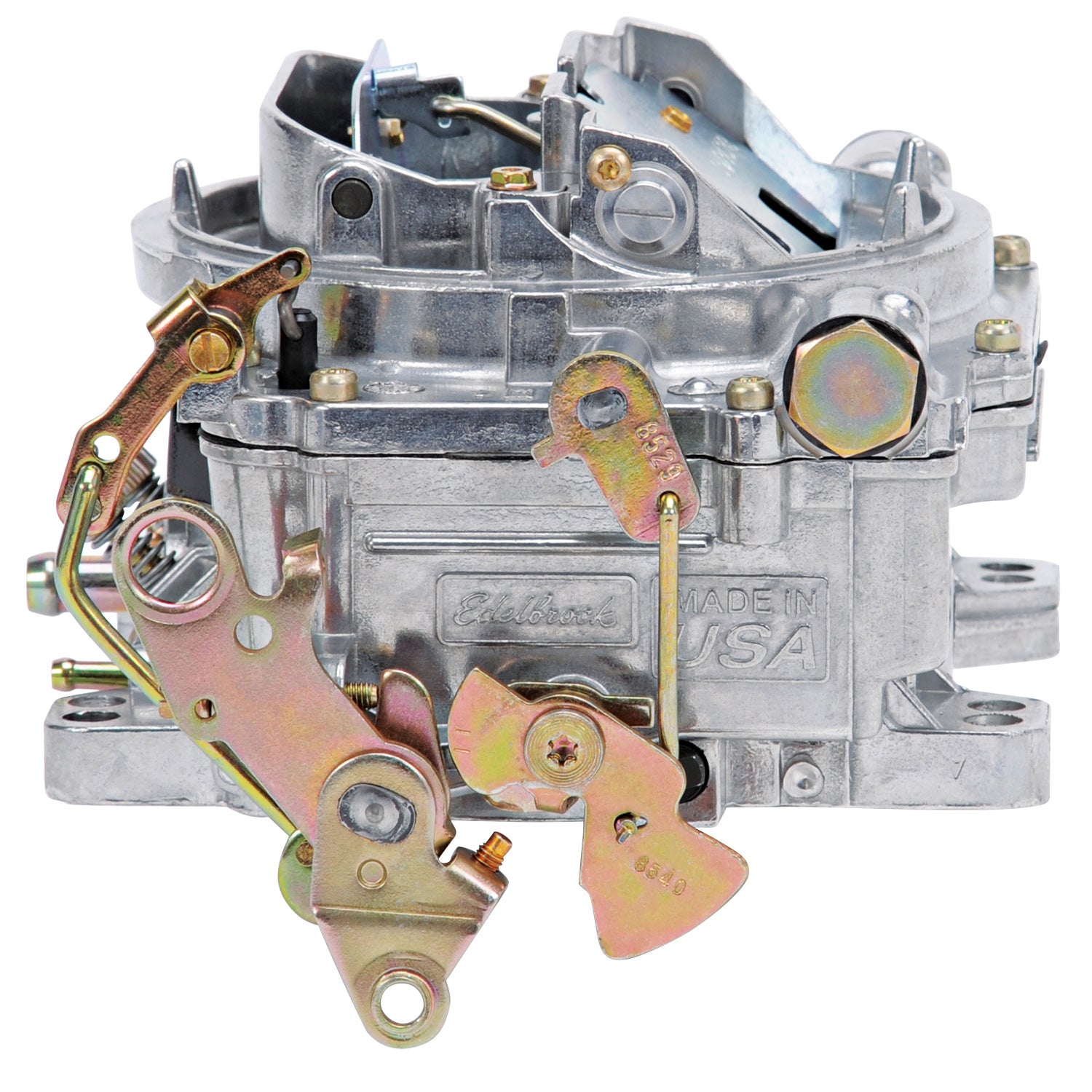

Edelbrock 1902 AVS2 500 cfm Carburetor

2 sold in last 8 days
Edelbrock
ds_BDVJ_1902
Carburetor
$884.78 $702.88
$702.88
customers are viewing this product
Edelbrock 1902 AVS2 500 cfm Carburetor
Details

The Edelbrock #1902 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1902 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Specifications:

Description_ABR CARB
Description_DEF Carburetor
Description_INV Edelbrock AVS2 500 cfm Carburetor
Description_EXT The Edelbrock #1902 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design.
Description_LAB AVS2 Carburetor #1902 500 CFM With Manual Choke, Satin Finish (Non-EGR)
Description_TRA Manual Choke
Description_TRA Manual choke AVS2 Carbs cannot be converted to electric choke
Description_TRA Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000
Description_TRA Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty.
Description_TRA The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor
Description_TRA You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds
Description_MKT The Edelbrock #1902 AV2 Series 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #1902 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
Primary Jet Diameter 0.095
Main Venturi Diameter 1.19
RGL WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Barrel Quantity 4 Barrel
Spring Force 5" Hg (Orange)
Finish Satin
EGR Port No
Secondary Jet Diameter 0.095
Maximum Flow Rating 500
Body Height 3.25
Flange Shape Square
Booster Type annular
Material Aluminum
Series AVS2
Recommended Use For Single Carb Applications
Condition New
Gasket Or Seal Included Yes
Metering Rod Size .070 x .052
Choke Type Manual
Bore Diameter Primary Bore 1.44; Secondary Bore 1.6875
Length 7.0000
Width 11.0000
Height 13.0000
Weight 11.0000
