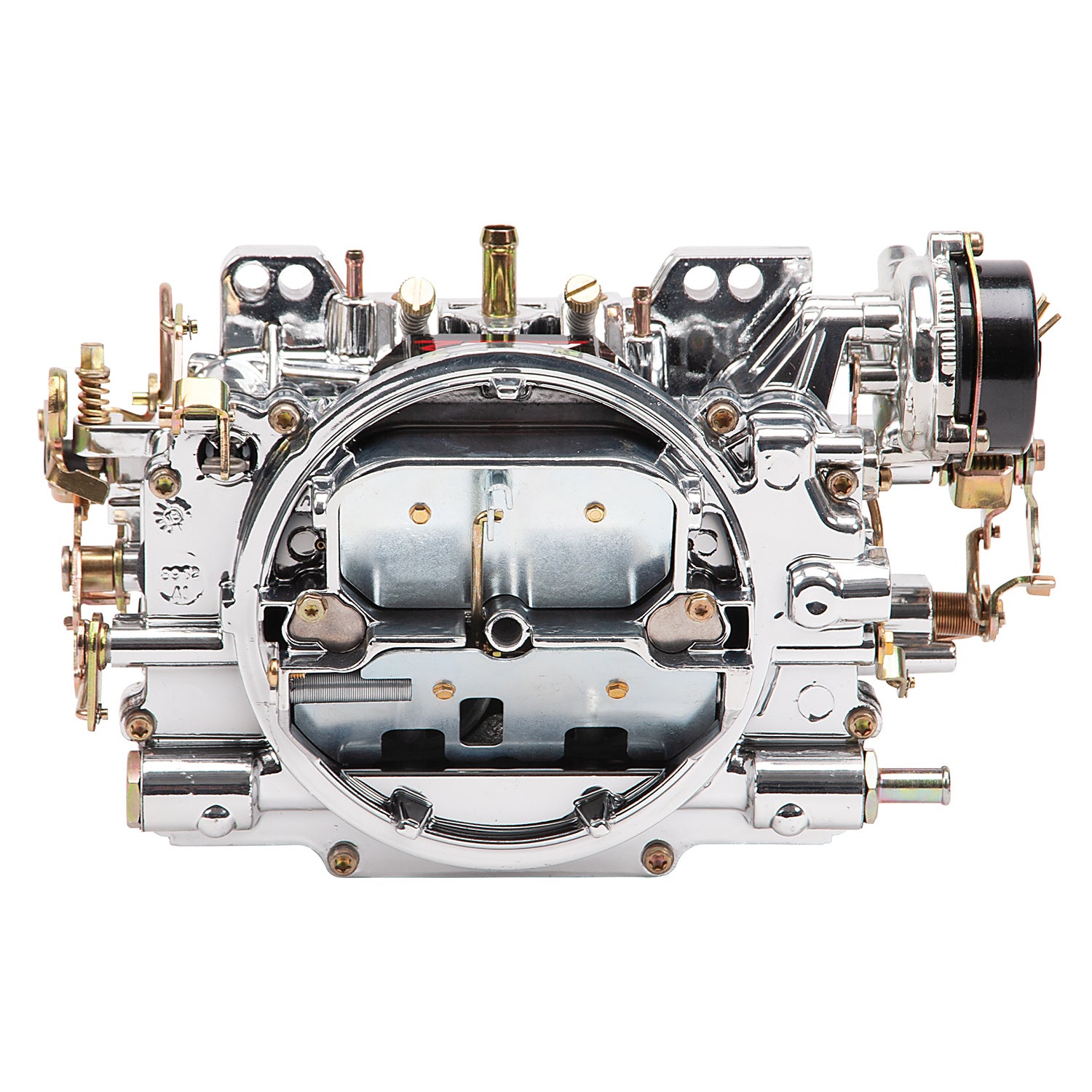

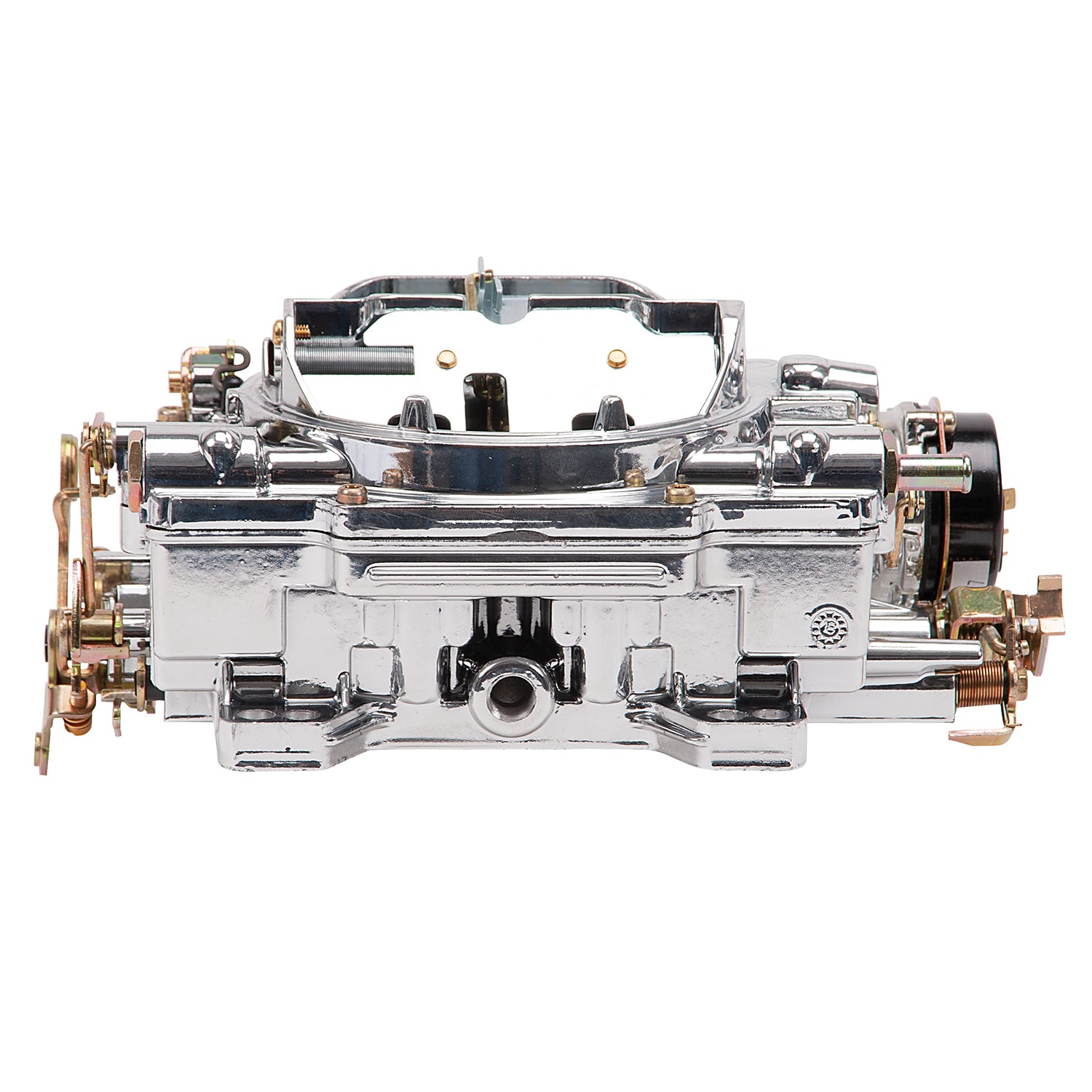

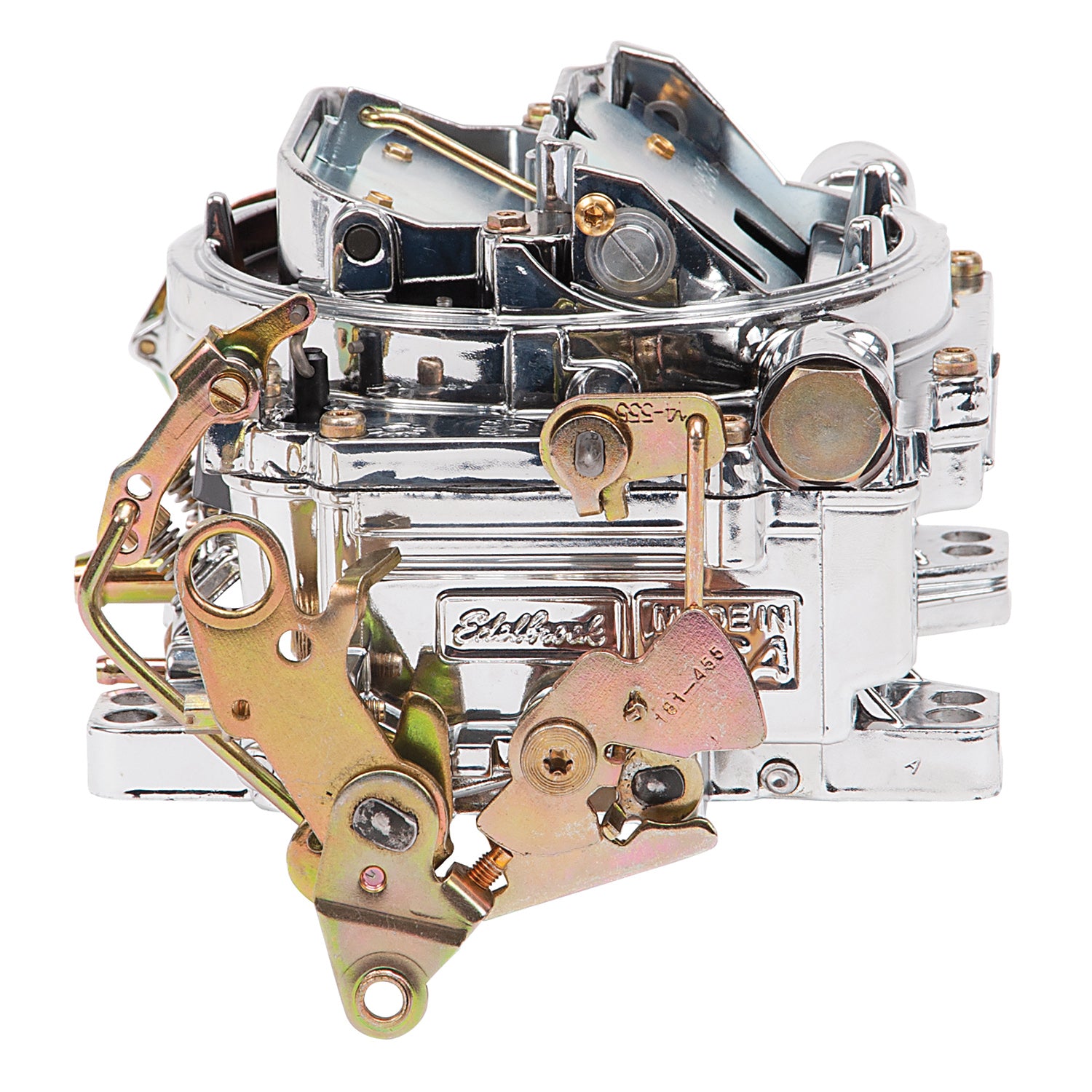

The Edelbrock #19014 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #19014 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.
Specifications:
| Description_ABR |
CARB |
| Description_DEF |
Carburetor |
| Description_LAB |
AVS2 Carburetor #19014 500 CFM With Electric Choke, EnduraShine Finish (Non-EGR) |
| Description_EXT |
The Edelbrock #19014 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. |
| Description_MKT |
The Edelbrock #19014 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #19014 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade. |
| Description_INV |
Edelbrock AVS2 500 cfm Carburetor |
| Description_TRA |
Thunder Series AVS2 Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000 |
| Description_TRA |
Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. |
| Description_TRA |
The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor |
| Description_TRA |
You must use Edelbrock Adapter #2732 when installing a Performer Series carburetor on certain Edelbrock intake manifolds |
| Recommended Use |
For Single Carb Applications |
| Metering Rod Size |
.070 x .052 |

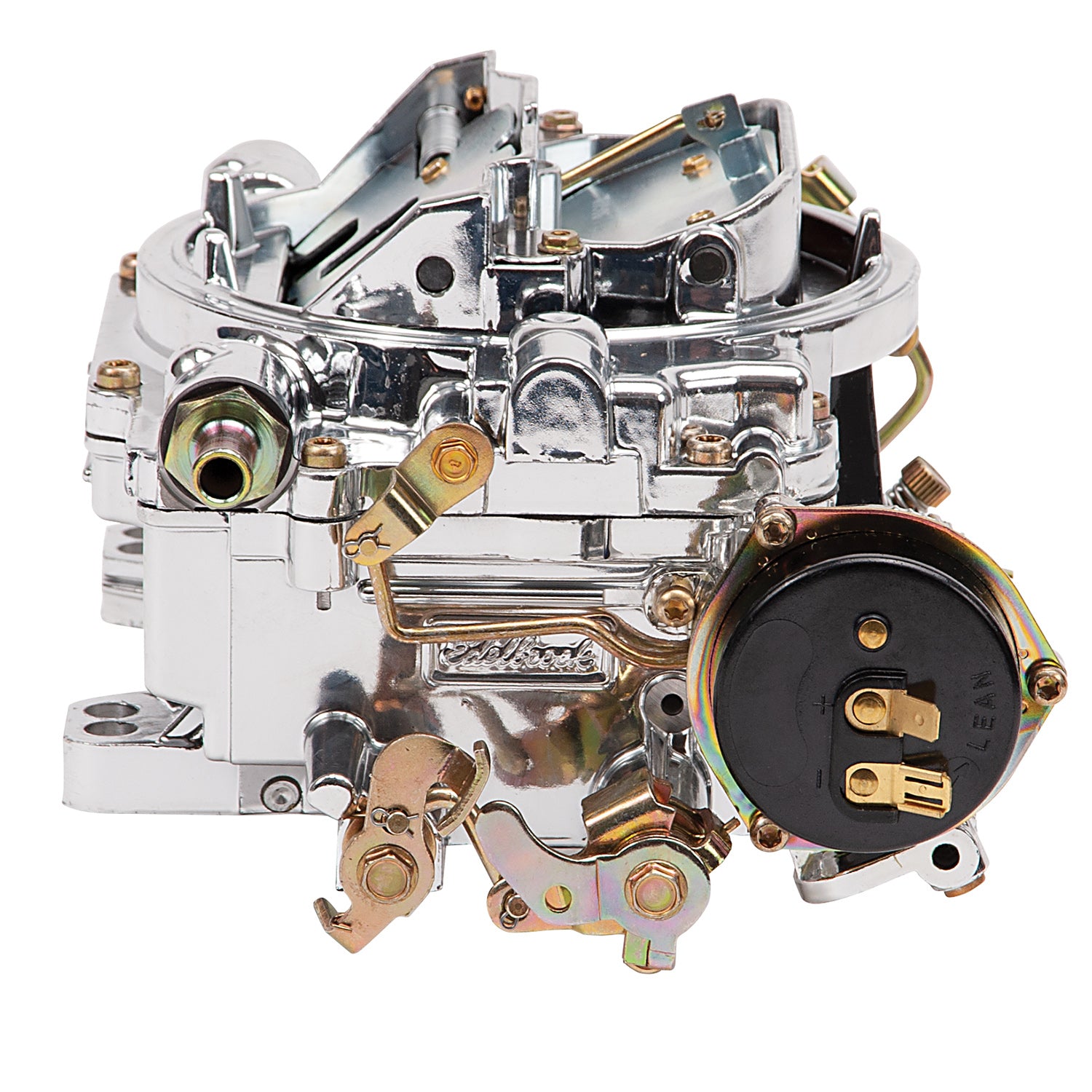

| Choke Type |
Electric |
| Secondary Jet Diameter |
0.095 |

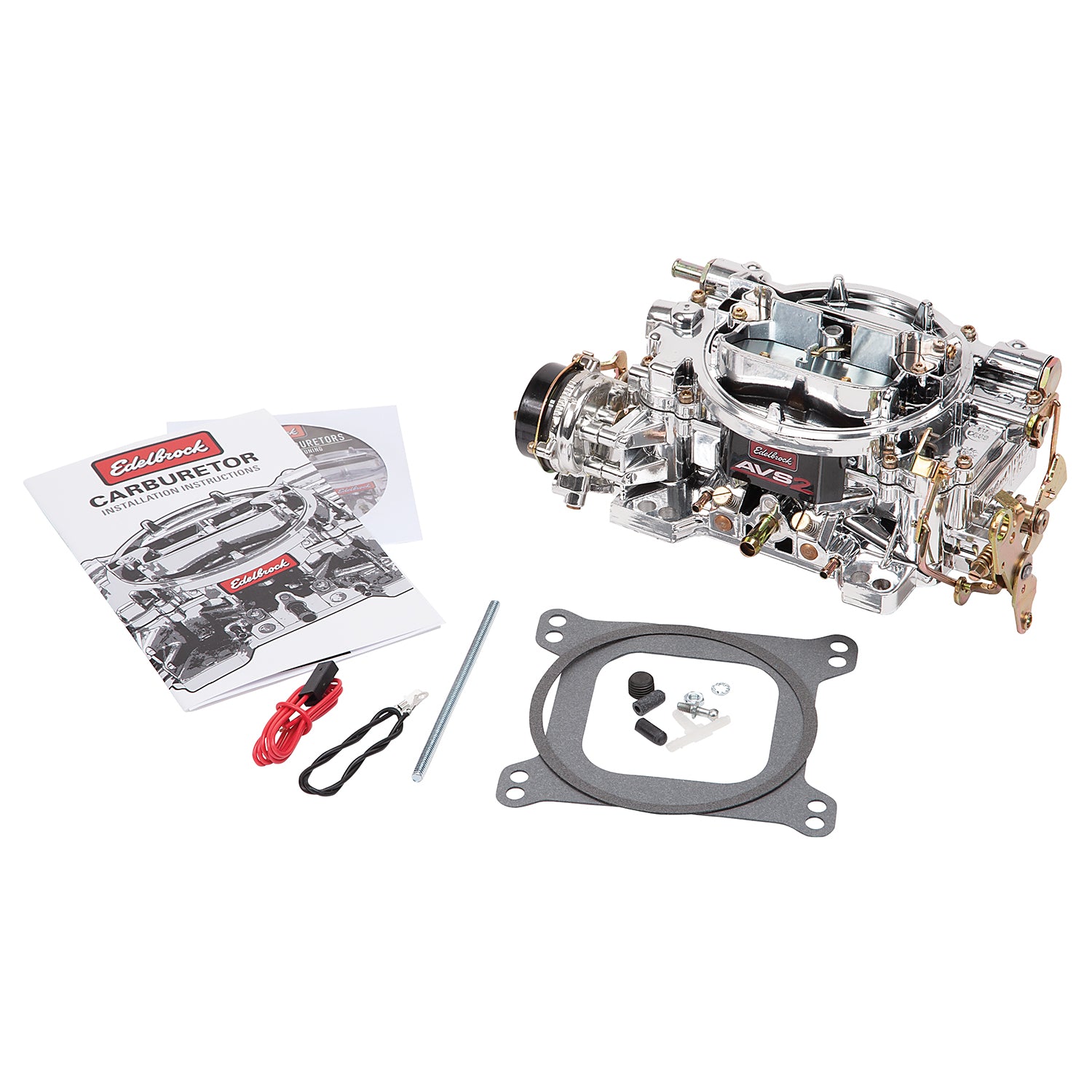

| Gasket Or Seal Included |
Yes |
| Main Venturi Diameter |
1.19 |
| Finish |
EnduraShine |
| EGR Port |
No |
| Series |
AVS2 |

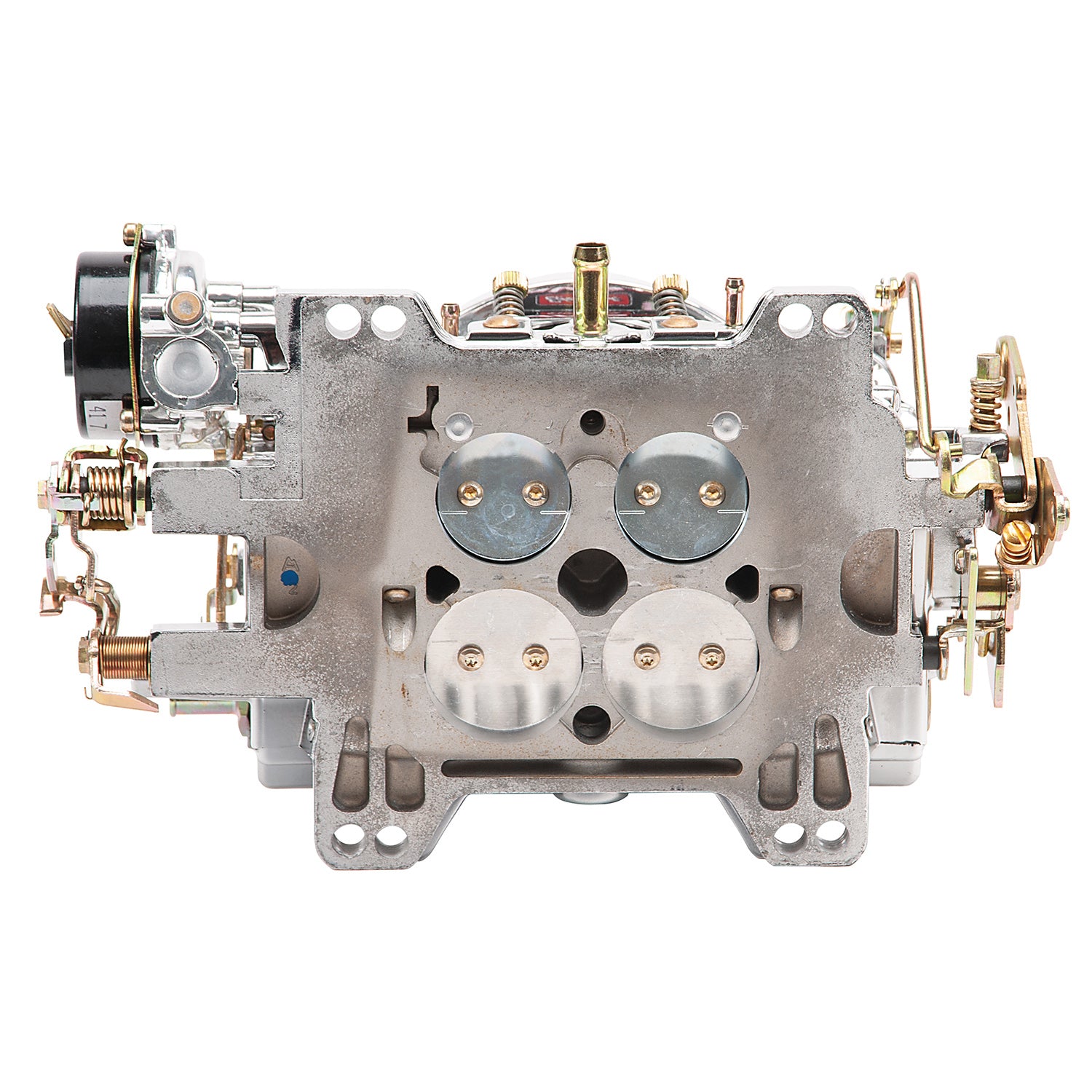

| Bore Diameter |
Primary Bore 1.44; Secondary Bore 1.6875 |
| Flange Shape |
Square |
| Material |
Aluminum |
| Barrel Quantity |
4 Barrel |
| Booster Type |
annular |
| Maximum Flow Rating |
500 |
| Body Height |
3.25 |
| Spring Force |
5" Hg (Orange) |
| Condition |
New |
| Primary Jet Diameter |
0.095 |
| RGL |
WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
7.0000 |
| Width |
7.0000 |
| Height |
13.0000 |
| Weight |
11.0000 |
