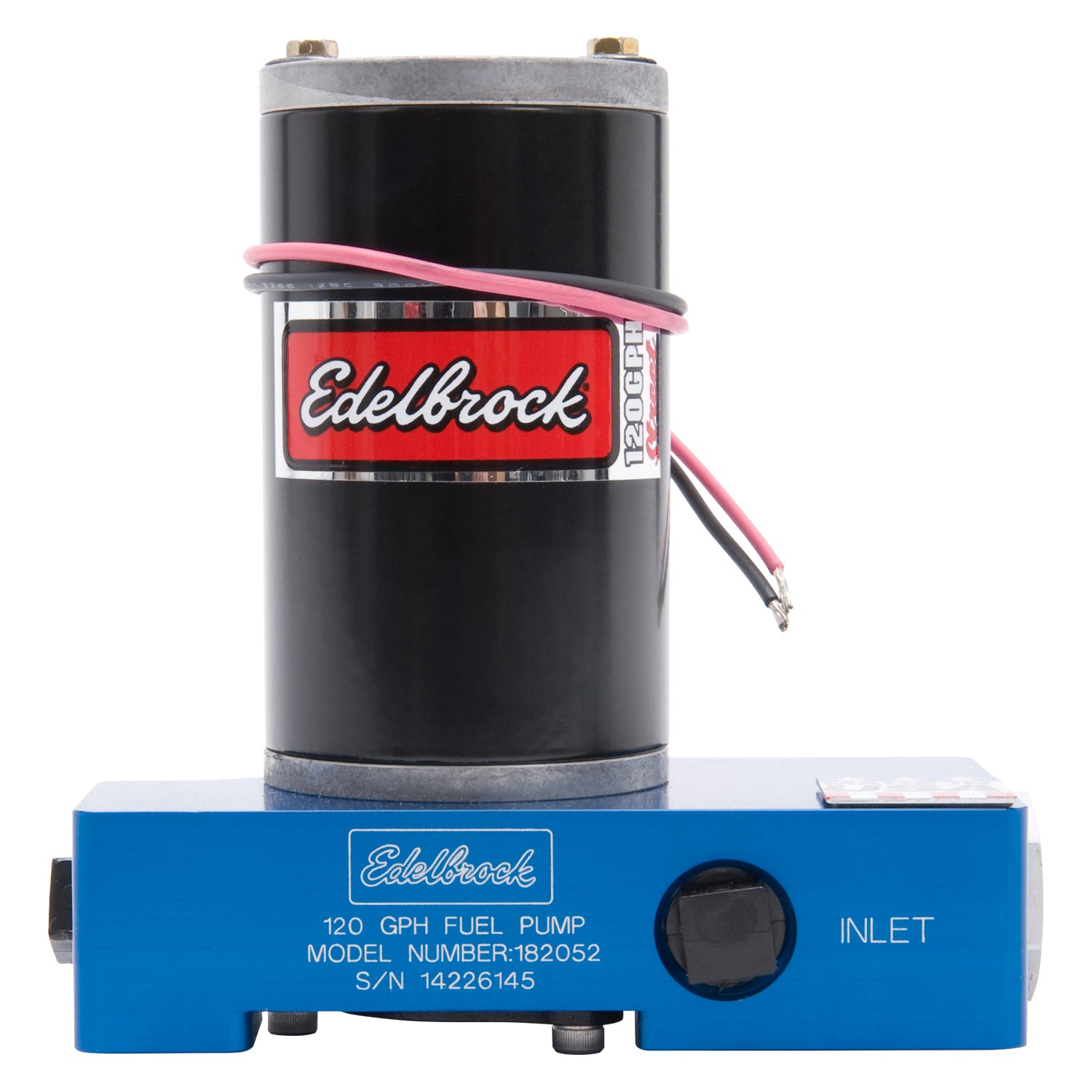

Edelbrock part #182052 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. With a Blue anodized aluminum housing and high-quality internals, they are both strong and durable. The carbon vanes and composite rotor give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 dB quieter than competitors' pumps at the same pressure. Edelbrock #182052 is factory preset to 6.5 psi and no regulator is required. With a replaceable screen type inlet filter and the free flow rate of 120 GPH it is sufficient to supply 480+ hp.
Specifications:
| Description_ABR |
ElecFuelPump |
| Description_DEF |
Electric Fuel Pump |
| Description_EXT |
Edelbrock part #182052 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. |
| Description_INV |
Edelbrock Electric Fuel Pump #182052 |
| Description_TRA |
120GPH |
| Description_TRA |
Factory pressure setting: 6.5 psi |
| Description_TRA |
Inlet Port: 3/8" (NPT) |
| Description_TRA |
Outlet Port: 3/8" (NPT) |
| Description_TRA |
External Regulator Required: No |
| Description_TRA |
Supported HP: 480+ |
| Description_TRA |
These pumps should be mounted as close to the fuel tank ass possible, at or below the fuel level |
| Description_TRA |
For proper installation and voltage requirements, use fuel pump relay kit #1795 |
| Description_TRA |
Pump is for gasoline only |
| Description_TRA |
Call for more information |
| Description_LAB |
Blue Electric Fuel Pump - 120 GPH |
| Description_MKT |
Edelbrock part #182052 is a state-of-the-art Electric Fuel Pump offering maximum performance in a compact package. With a Blue anodized aluminum housing and high-quality internals, they are both strong and durable. The carbon vanes and composite rotor give these pumps the added boost for maximum performance. The high quality construction results in a pump that is 4 to 14 dB quieter than competitors' pumps at the same pressure. Edelbrock #182052 is factory preset to 6.5 psi and no regulator is required. With a replaceable screen type inlet filter and the free flow rate of 120 GPH it is sufficient to supply 480+ hp. |
| Pump Design |
In-line Electric Fuel Pump |
| Outlet Fitting Thread Size |
0.375 |
| Compatible Fuel Type |
Gas |
| Strainer Included |
No |

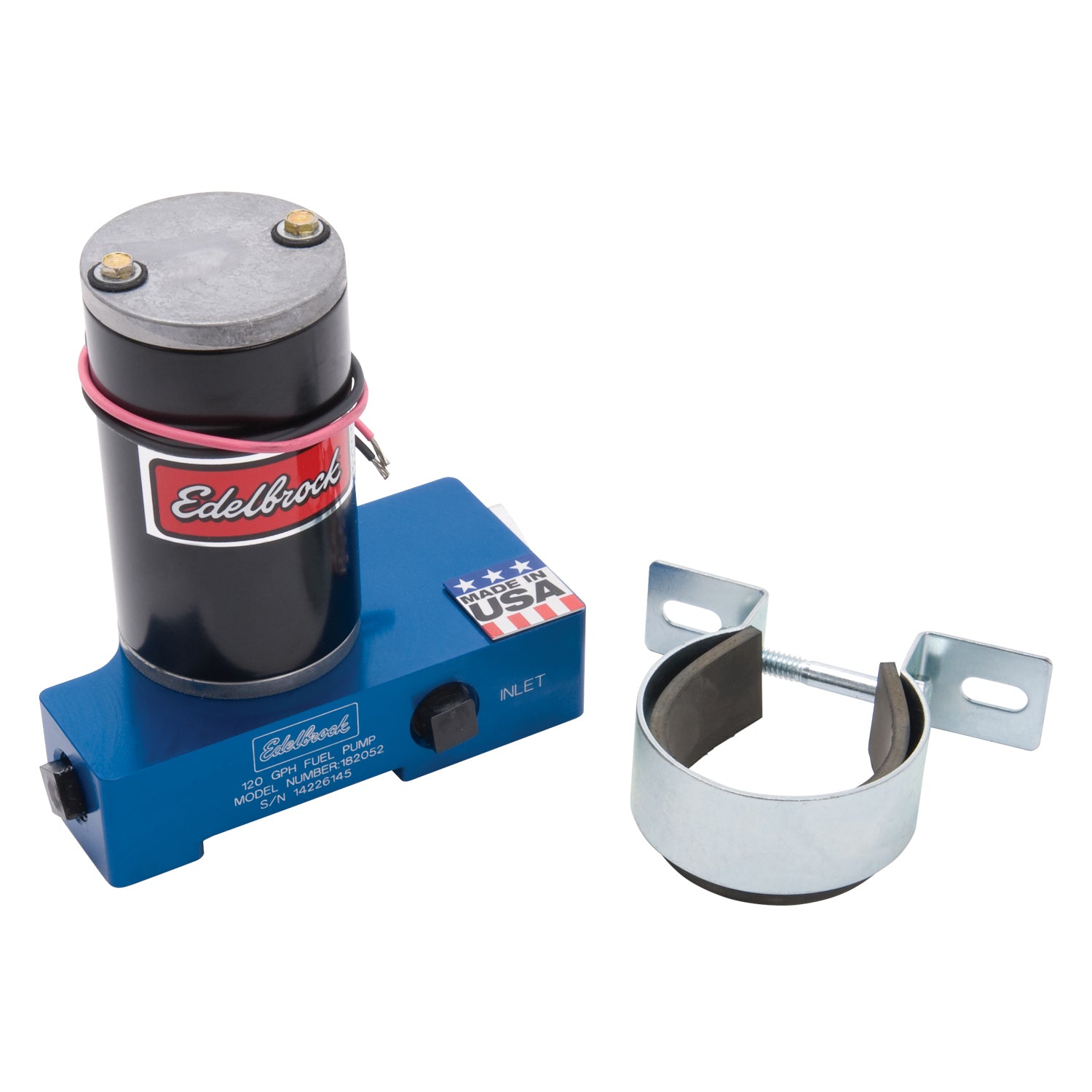

| Mounting Bracket Included |
Yes |
| Terminal Type |
Lead Wire |
| Fuel Sending Unit Included |
No |
| Negative Ground |
Yes |
| Voltage |
12 |
| Regulator Included |
No |
| Outlet Quantity |
1 |
| Inlet Type |
NPT |
| Universal Or Specific Fit |
Universal |
| Internal Or External |
External |
| Fuel Pump Inlet Type |
NPT |
| Outlet Thread Diameter |
0.375 |
| Wire Quantity |
2 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Outlet Type |
NPT |
| Inlet Thread Diameter |
0.375 |
| Fuel Type |
Gas |
| Gasket Or Seal Included |
No |
| Pump Type |
Electric |
| Mounting Hardware Included |
Yes |
| Inlet Fitting Thread Size |
0.375 |
| In Tank or External |
External |
| Seal And Lock Ring Included |
No |
| Wiring Harness Included |
No |
| Length |
7.0000 |
| Width |
4.0000 |
| Height |
6.0000 |
| Weight |
4.0000 |
