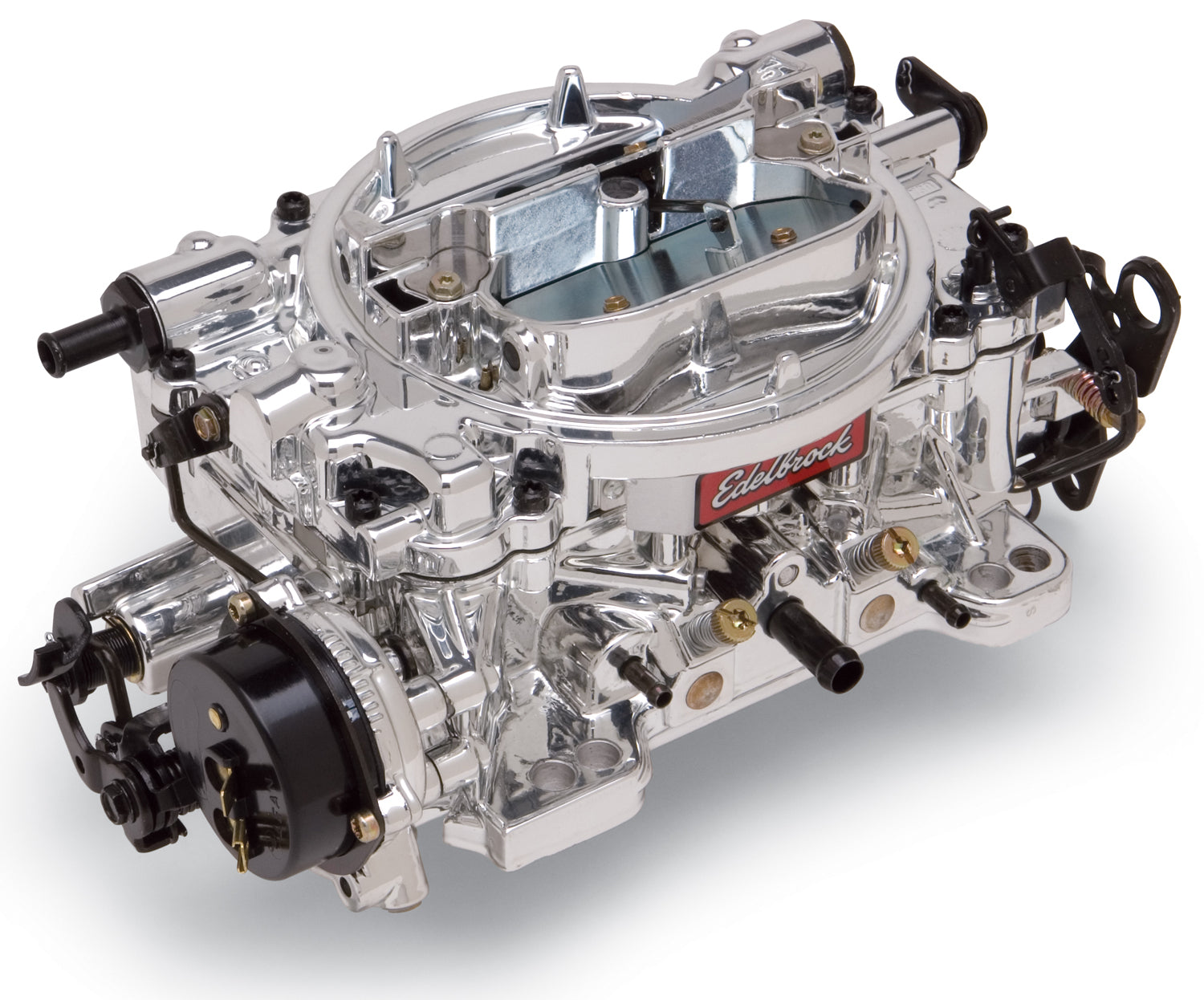

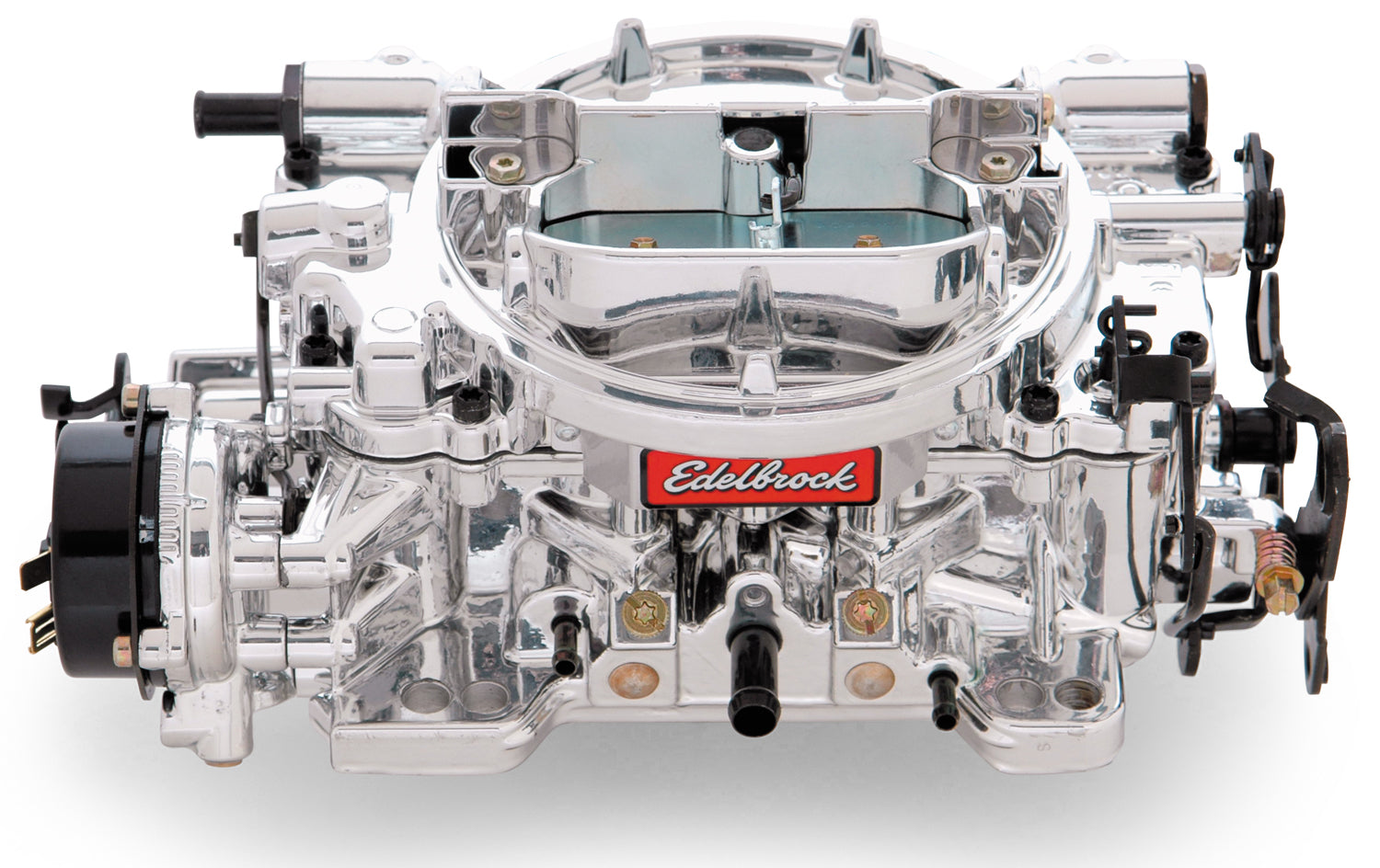

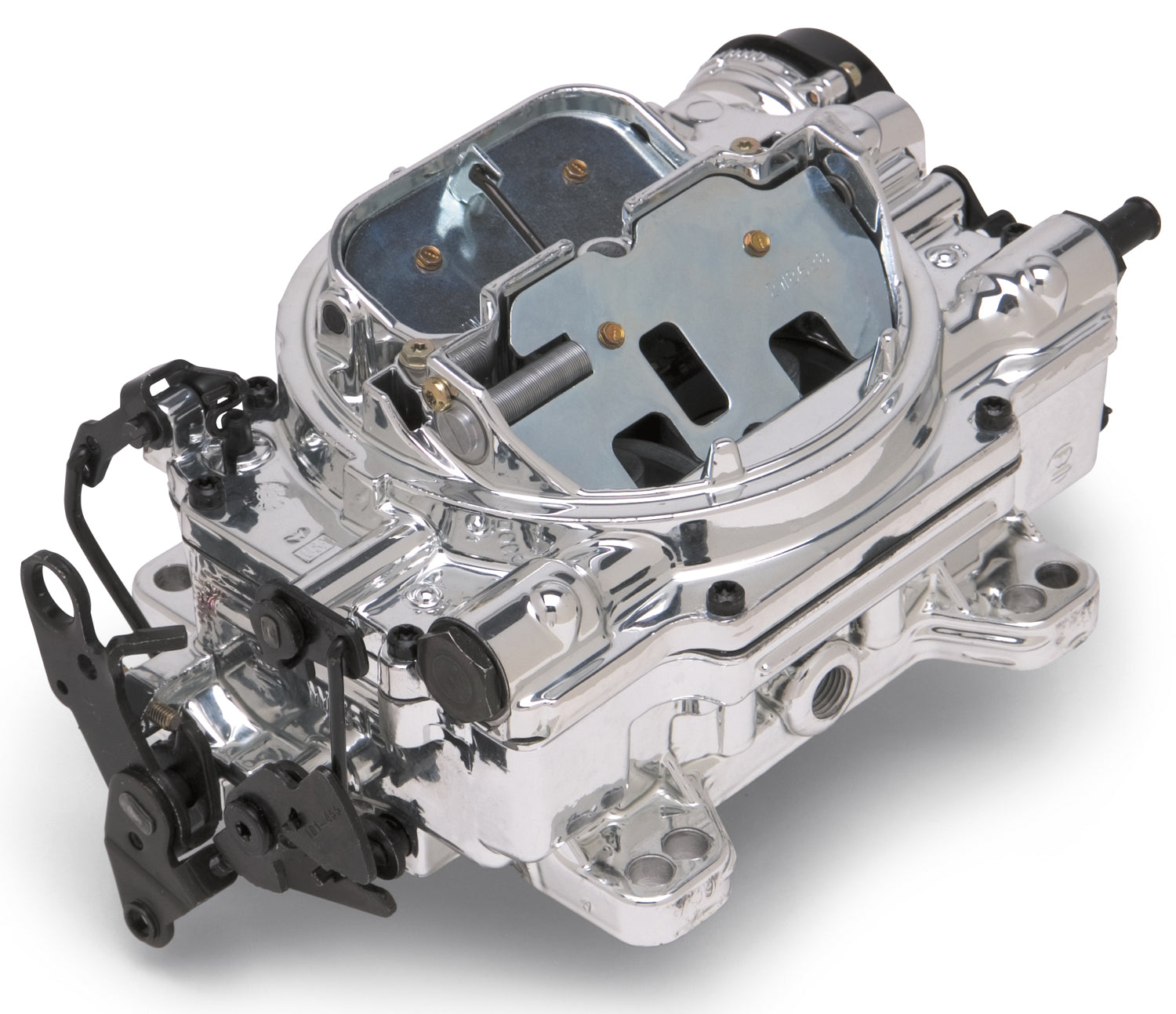

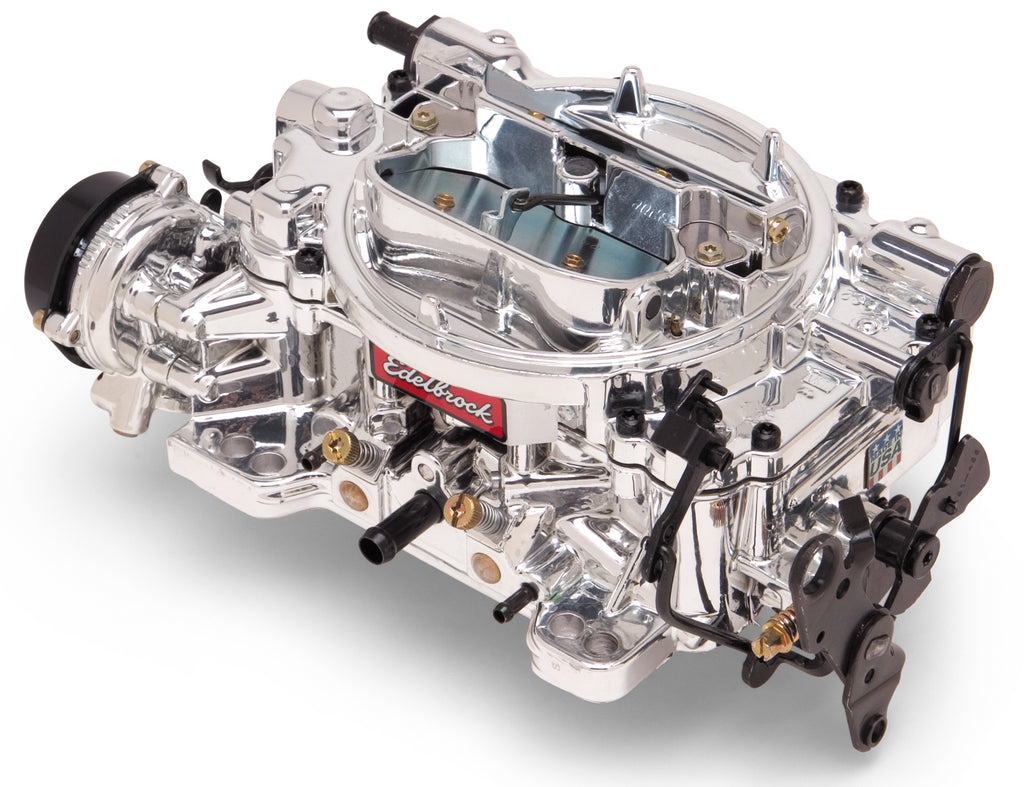

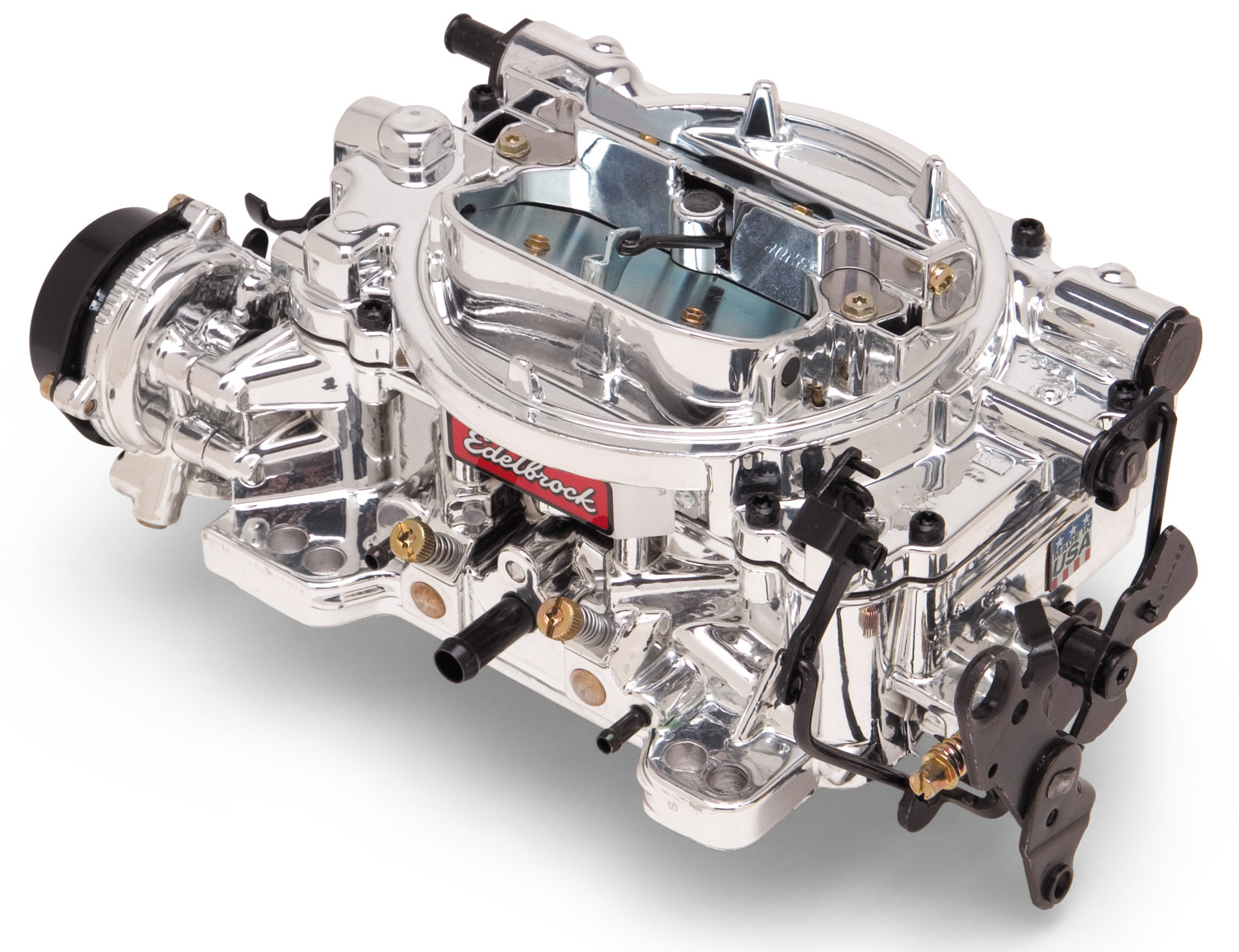

The Edelbrock 180349 Remanufactured Thunder Series AVS 500 CFM electric choke EnduraShine carburetor has been designed and calibrated to deliver optimum street performance in Dual-Quad applications. Several characteristics make the 180349 Remanufactured Thunder Series AVS 500 CFM electric choke EnduraShine carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The third characteristic is the primary and secondary booster clusters that are utilized offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Fourth the unique Thunder Series' Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit with simple hand tools while on your vehicle. It's quick. It's simple. It's effective. It can be easily adjusted - in seconds - to suit your application.. no extra parts required to achieve optimum performance. Simply put the Edelbrock 180349 Remanufactured Thunder Series AVS 500 CFM electric choke EnduraShine carburetor is undeniably the most innovative and dependable street performance carburetor available today.
Specifications:
| Description_ABR |
CARB |
| Description_DEF |
Carburetor |
| Description_EXT |
Edelbrock Remanufactured Thunder Series AVS 500 cfm, Square-Flange, Electric Choke Carburetor (non-EGR) |
| Description_LAB |
Reman Thunder AVS Carb #180349 500 CFM W/ Electric Choke, EnduraShine (Non-EGR) |
| Description_INV |
Reman Edelbrock Thunder AVS 500 CFM Carb |
| Description_MKT |
The Edelbrock 180349 Remanufactured Thunder Series AVS 500 CFM electric choke EnduraShine carburetor has been designed and calibrated to deliver optimum street performance in Dual-Quad applications. Several characteristics make the 180349 Remanufactured Thunder Series AVS 500 CFM electric choke EnduraShine carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The third characteristic is the primary and secondary booster clusters that are utilized offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Fourth the unique Thunder Series' Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit with simple hand tools while on your vehicle. It's quick. It's simple. It's effective. It can be easily adjusted - in seconds - to suit your application.. no extra parts required to achieve optimum performance. Simply put the Edelbrock 180349 Remanufactured Thunder Series AVS 500 CFM electric choke EnduraShine carburetor is undeniably the most innovative and dependable street performance carburetor available today. |
| Description_TRA |
Carbs #1803, #1804 and #18034, #18044 are calibrated for dual-quad applications only and need to be purchased together, one manual and one electric choke |
| Description_TRA |
Thunder Series AVS Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000 |
| Maximum Flow Rating |
500 |
| Flange Shape |
Square Bore |
| EGR Port |
No |
| Base Length |
6.25 |
| Finish |
EnduraShine |
| Body Material |
Aluminum |
| Spacer Included |
No |
| Mounting Hole Quantity |
8 |
| Linkage Attached |
No |
| Base Width |
5.937 |
| Body Height |
3.25 |
| Inlet Fitting Thread Diameter |
0.625 |
| Metering Rod Power Tip Diameter |
0.057 |
| Primary Jet Diameter |
0.086 |
| Main Venturi Diameter |
1.190 |
| Grade Type |
Performance |
| Mounting Hole Diameter |
0.355 |
| Gasket Or Seal Included |
Yes |
| Center Hung Floats |
No |
| Float Drop |
1.0 |
| Barrel Quantity |
4 |
| Choke Type |
Electric |
| Street Legal |
No |
| Air Cleaner Flange Diameter |
5.125 |
| Float Level |
0.437 |
| Small Venturi Diameter |
1.560 |
| Marine Approved |
No |
| Float Material |
Brass |
| Adjustable Float Level |
No |
| Secondary Jet Diameter |
0.077 |
| Mounting Hardware Included |
No |
| RGL |
WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Metering Rod Length |
3.15 |
| Length |
7.0000 |
| Width |
7.0000 |
| Height |
13.0000 |
| Weight |
9.0000 |
