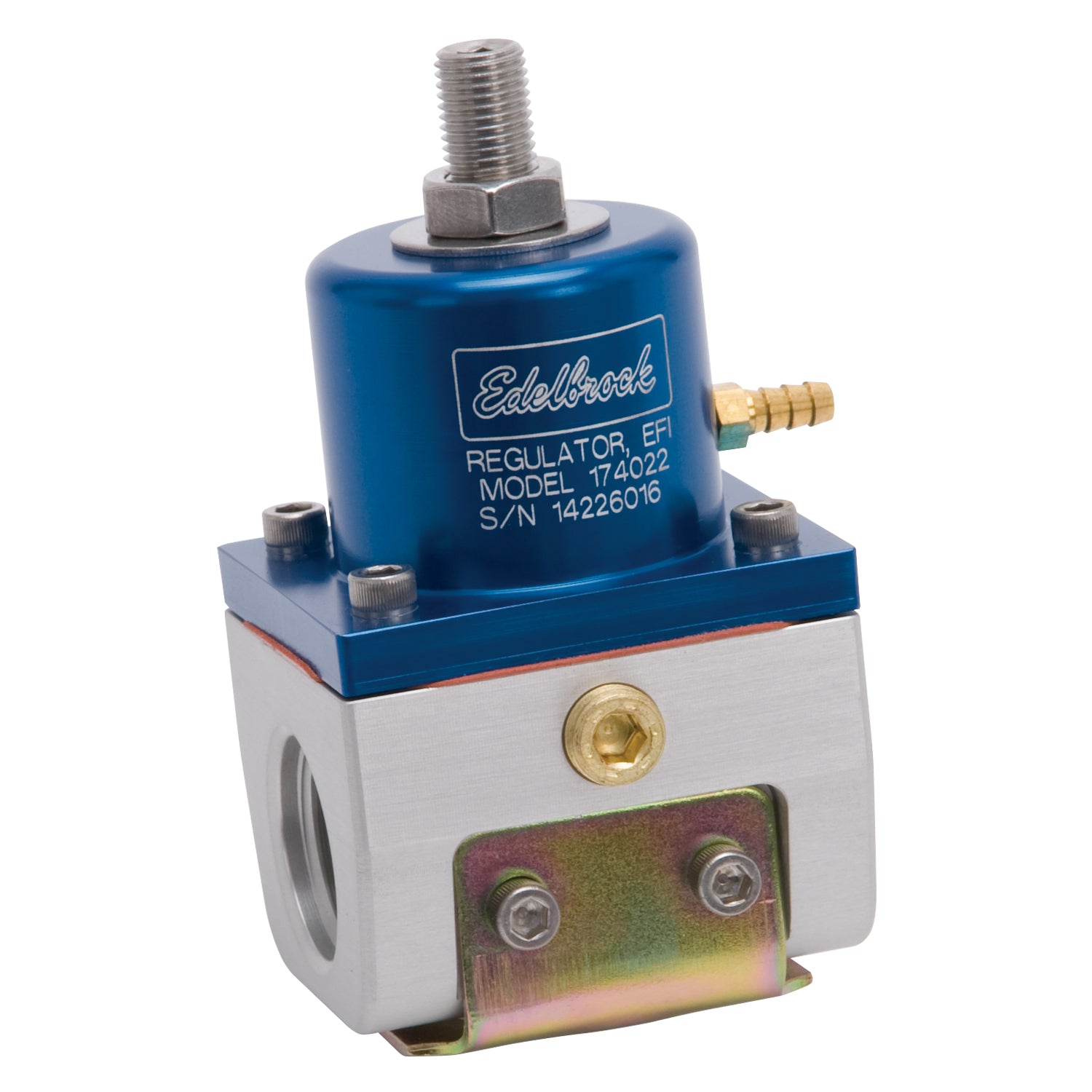

Edelbrock fuel pressure regulators #174022 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection.
Specifications:
| Description_ABR |
EFI |
| Description_DEF |
Fuel Injection Pressure Regulator |
| Description_EXT |
Edelbrock fuel pressure regulators #174022 is machined from high quality aluminum. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. Will hold fuel pressure for at least 20 min after pump shutdown. |
| Description_MKT |
Edelbrock fuel pressure regulators #174022 are machined from aircraft quality aluminum for those who demand the best. These EFI fuel pressure regulators have an internal diaphragm made of fluorosilicone to ensure high temperature protection resulting in an extended life. They are compatible with all grades of gasoline, ethanol, methanol and E85 fuels. These regulators will hold fuel system pressure for at least 20 minutes after pump shutdown. Mounting bracket and hardware are included. Each regulator features a vacuum/boost compensating port for a supercharger, turbo or intake manifold vacuum connection. |
| Description_LAB |
EFI Fuel Pressure Regulator -10 AN (180 GPH) in Blue/Clear Finish |
| Description_INV |
Edel Fuel Injection Pressure Regulator |
| Outlet Port Diameter |
-10.0 |
| Outlet Quantity |
1 |
| Gauge Port |
Yes |
| Inlet Type |
Port |
| Maximum Pressure Reading |
90 |
| Adjustable |
Yes |
| Inlet Port Diameter |
-10.0 |
| Mounting Type |
Bracket |
| Inlet Quantity |
1 |
| Outlet Type |
Port |
| Port Quantity |
4 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
3.0000 |
| Width |
5.0000 |
| Height |
4.0000 |
| Weight |
1.0000 |
