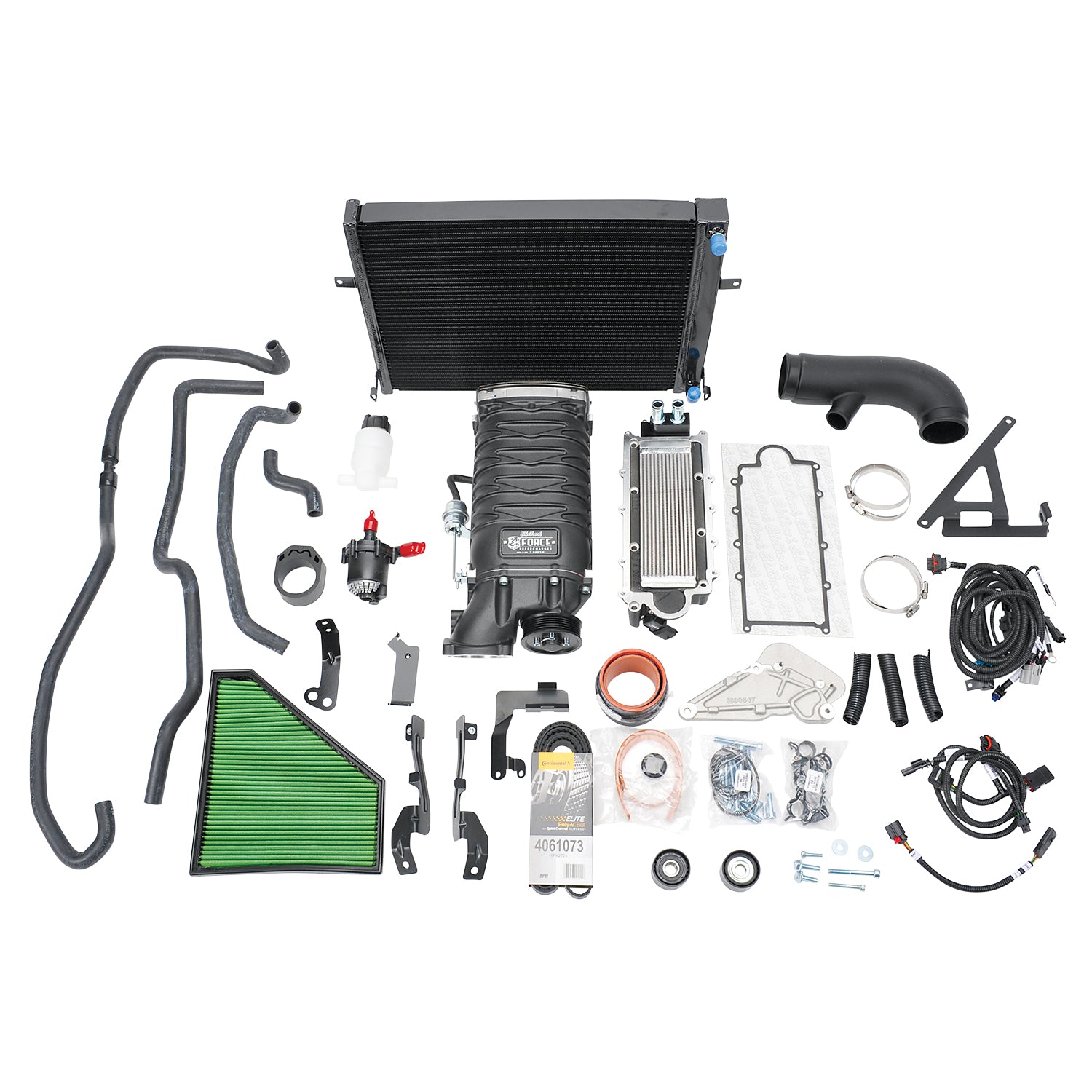

Transform your mild-mannered V6-powered 2016-23 Camaro into a true street sleeper with an Edelbrock supercharger under the hood! If you love the light, evenly balanced weight of your V6 Camaro but are underwhelmed by the smaller six-cylinder engine's power, the Edelbrock supercharger Kit W/O TUNER #159950 will deliver the best of both worlds with 376 horsepower and 319 ft-lbs of torque at the rear wheel, all from a 50-state emissions-legal bolt-on kit. The increase in horsepower and torque comes with little to no loss in fuel economy thanks to an integrated bypass valve. Features include an Eaton TVS R1740 rotor assembly with an integrated air-to-water intercooler core and front-mount heat exchanger for low inlet air temperature and increased power potential. The Edelbrock supercharger for the Gen 2 HFV6-powered Camaro is designed to fit under the stock hood with no cutting or modifications and is backed by our industry-leading 3-year/36,000-mile powertrain warranty when applicable. Comes finished with a durable black powder-coating that blends nicely into the Camaro engine compartment. Supercharger System #159950 is designed and manufactured in the USA.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
The Edelbrock Stage 1 Supercharger System w/o Tune #159950 is designed for a 2016-23 Chevrolet Camaro V6. |
| Description_INV |
Edelbrock supercharger W/O Tuner #159950 |
| Description_MKT |
Transform your mild-mannered V6-powered 2016-23 Camaro into a true street sleeper with an Edelbrock supercharger under the hood! If you love the light, evenly balanced weight of your V6 Camaro but are underwhelmed by the smaller six-cylinder engine's power, the Edelbrock supercharger Kit W/O TUNER #159950 will deliver the best of both worlds with 376 horsepower and 319 ft-lbs of torque at the rear wheel, all from a 50-state emissions-legal bolt-on kit. The increase in horsepower and torque comes with little to no loss in fuel economy thanks to an integrated bypass valve. Features include an Eaton TVS R1740 rotor assembly with an integrated air-to-water intercooler core and front-mount heat exchanger for low inlet air temperature and increased power potential. The Edelbrock supercharger for the Gen 2 HFV6-powered Camaro is designed to fit under the stock hood with no cutting or modifications and is backed by our industry-leading 3-year/36,000-mile powertrain warranty when applicable. Comes finished with a durable black powder-coating that blends nicely into the Camaro engine compartment. Supercharger System #159950 is designed and manufactured in the USA. |
| Description_TRA |
Edelbrock Supercharger Systems sold without a tuner are only emissions-legal when used with the correct Edelbrock calibration program. For safety, Edelbrock-supplied calibration programs will retain the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stage 1 Supercharger Kit #159950 For 2016-23 Camaro 3.6L V6 W/O Tune |
| Gasket Or Seal Included |
Yes |
| Pulley Belt Width |
6-Rib |
| Rotor Type |
Eaton TVS R1740 |
| Mounting Hardware Included |
Yes |
| System Type |
Stage 1 - Street System |
| Internal Step Up |
Yes |
| Finish |
Black Powder Coated |
| Vehicle Model |
Camaro |
| Mounting Bracket Included |
Yes |
| Housing Material |
Cast Aluminum |
| Oil Capacity |
125 |
| Air Filter Included |
Yes |
| Calibration |
No |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Universal Or Specific Fit |
Specific |
| Quantity |
Kit |
| Hose Included |
Yes |
| Harmonic Balancer Diameter |
Stock |
| Outside Pulley Diameter |
3.5 |
| Center Housing Cooling Type |
Intercooler |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
164.0000 |
