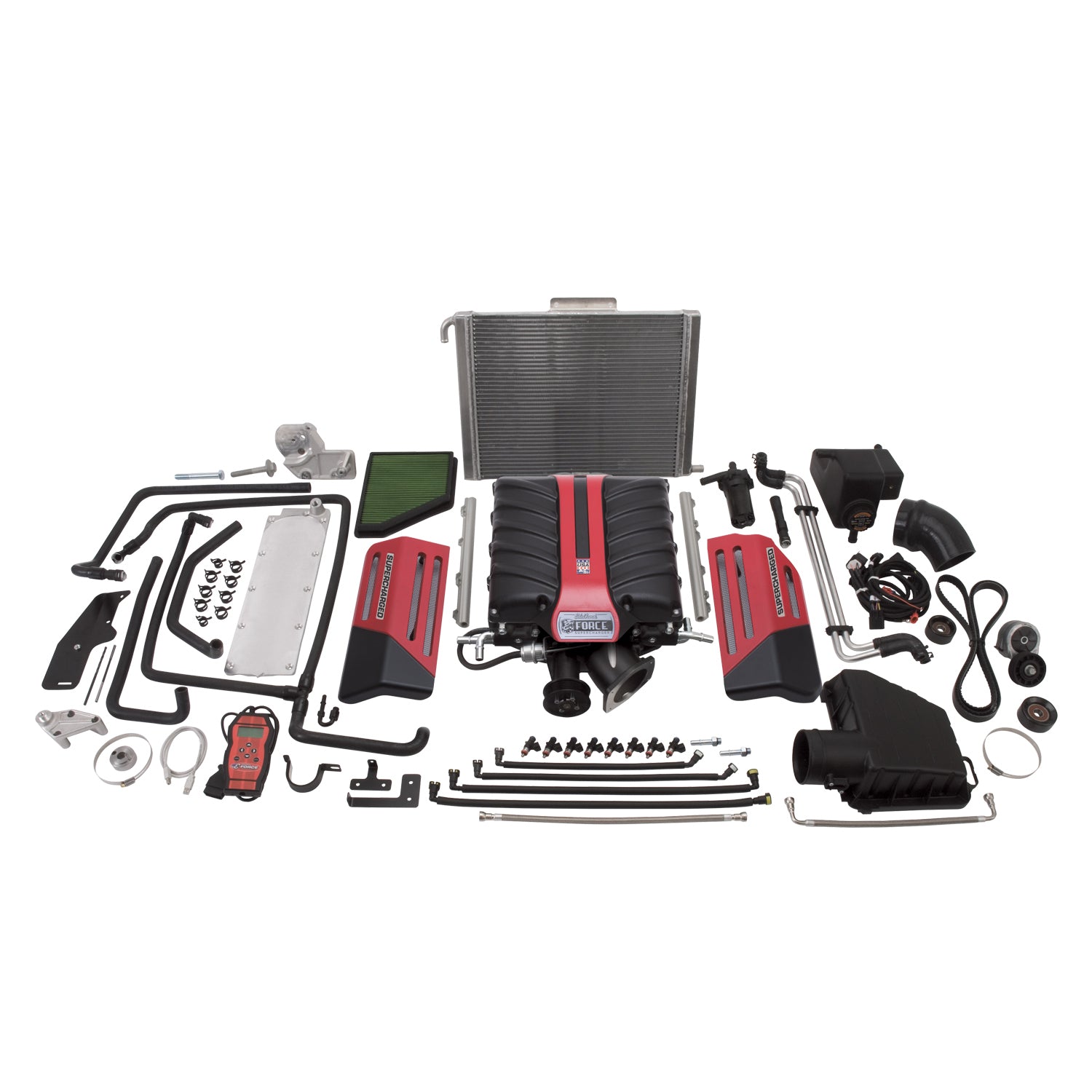

The Edelbrock supercharger Stage 1 Street system part #1598 for 2010-2013, Manual Trans, Camaro SS increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1598 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. 2010-15 convertible installations will require the use of Edelbrock Convertible Brace #15956 (sold separately).
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
The Edelbrock Supercharger System part #1598 is for the 2010-13 Camaro SS with a MANUAL transmission. This kit produces 599 horsepower and 547 ft-lbs of torque. |
| Description_INV |
Edelbrock supercharger #1598 |
| Description_LAB |
Edelbrock Stg 1 Supercharger #1598 For 10-13 Camaro SS LS3 Manual Trans W/ Tune |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street system part #1598 for 2010-2013, Manual Trans, Camaro SS increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1598 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. 2010-15 convertible installations will require the use of Edelbrock Convertible Brace #15956 (sold separately). |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Tensioner Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| Gasket Or Seal Included |
Yes |
| Internal Step Up |
Yes |
| Mounting Bracket Included |
Yes |
| Fuel Injector Type |
52 |
| System Type |
Stage 1 - Street System |
| Harmonic Balancer Diameter |
7.5 |
| Maximum Torque |
547 |
| Vehicle Model |
Camaro |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish |
Black Powder Coated |
| Quantity |
Kit |
| Calibration |
Yes |
| Oil Capacity |
150 |
| Mounting Hardware Included |
Yes |
| Universal Or Specific Fit |
Specific |
| Center Housing Cooling Type |
Intercooler |
| Transmission Type |
Manual |
| Maximum Pressure Reading |
7.5 |
| Housing Material |
Cast Aluminum |
| Outside Pulley Diameter |
3.5 |
| Air Filter Included |
Yes |
| Maximum Horsepower |
599 |
| Pulley Belt Width |
6-Rib |
| Maximum Boost Pressure |
7.5 |
| Hose Included |
Yes |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
177.0000 |
