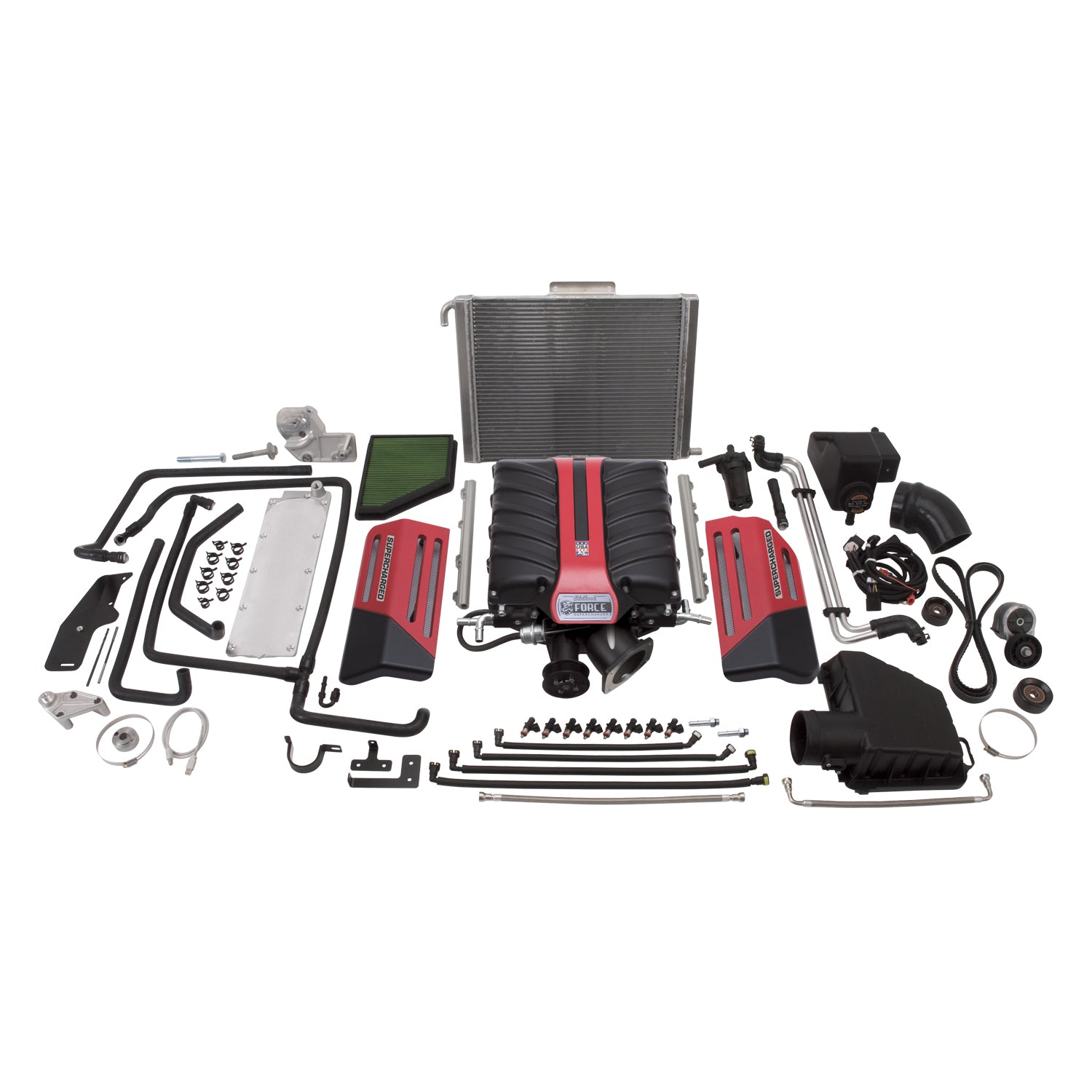

The Edelbrock supercharger Stage 1 Street system part #15970 for 2010-13 Camaro SS increases the performance of your L99 engine to 421 horsepower and 439 ft-lbs of torque to the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. 2010-15 convertible installations will require the use of Edelbrock Convertible Brace #15956 (sold separately).
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV L99:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
The Edelbrock Supercharger System part #15970 is for the 2010-13 Camaro SS with a AUTOMATIC transmission. No Programmer is included which requires custom tuning done by the customer. |
| Description_INV |
Edelbrock supercharger #15970 |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street system part #15970 for 2010-13 Camaro SS increases the performance of your L99 engine to 421 horsepower and 439 ft-lbs of torque to the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. 2010-15 convertible installations will require the use of Edelbrock Convertible Brace #15956 (sold separately). |
| Description_LAB |
Edelbrock Stg 1 Supercharger #15970 For 10-13 Camaro SS L99 Auto Trans W/O Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Universal Or Specific Fit |
Specific |
| Mounting Bracket Included |
Yes |
| Housing Material |
Cast Aluminum |
| Finish |
Black Powder Coated |
| Quantity |
Kit |
| Transmission Type |
Automatic |
| Outside Pulley Diameter |
3.875 |
| Oil Capacity |
150 |
| Fuel Injector Type |
52 |
| Internal Step Up |
Yes |
| Air Filter Included |
Yes |
| Vehicle Model |
Camaro |
| Pulley Belt Width |
6-Rib |
| Calibration |
No |
| Mounting Hardware Included |
Yes |
| Gasket Or Seal Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Harmonic Balancer Diameter |
7.5 |
| System Type |
Stage 1 - Street System |
| Center Housing Cooling Type |
Intercooler |
| Hose Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| Tensioner Included |
Yes |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
177.0000 |
