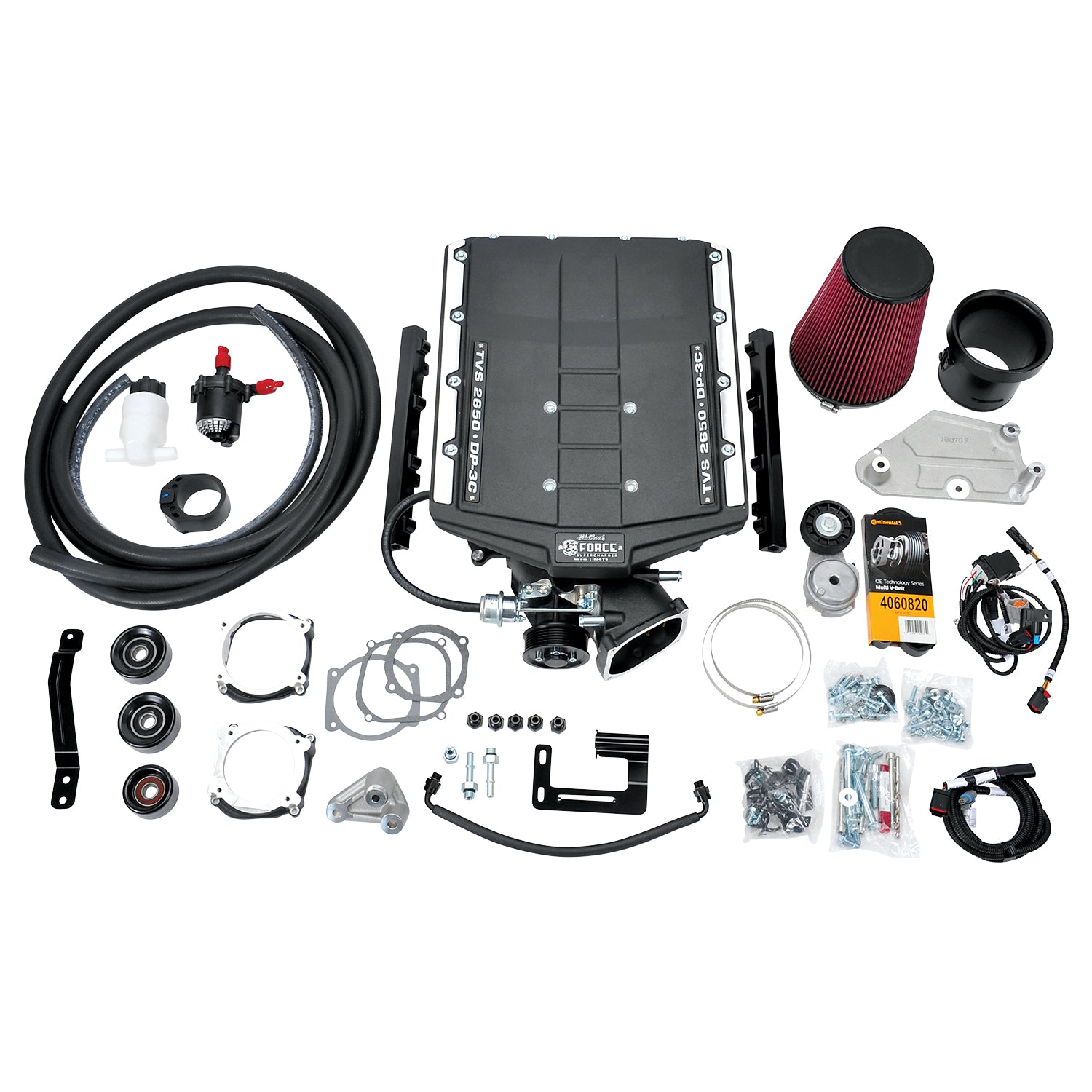

The Edelbrock Universal Supercharger System #15885 is intended for Coyote engine swap applications using a Gen 1, Gen 2 or Gen 3 Coyote 5.0L engine. Its compact design fits under the stock hood on most applications and complements the clean look of any engine compartment. The core of this system is the Eaton Gen VI 2650 TVS rotating assembly coupled with Edelbrock's patented Dual Pass 3-Core intercooler making this the perfect choice for mild to wild power goals. Our unique, modular inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power robbing jack-shaft. This system includes two throttle body adapters, one with the stock Coyote bolt pattern and the other with the wider GT350 bolt pattern. Edelbrock 103mm throttle bodies (sold separately) use the GT350 bolt pattern. Two versions of the 103mm throttle body are available, part #38988 analog (for 2015-17 Gen 2 PCM) and part #38989 digital (for 2018+ Gen 3 PCM). NOTE: Edelbrock 103mm throttle bodies are NOT compatible with 2011-14 Gen 1 PCMs. Gen 1 applications may use the stock or Ford Racing 90mm throttle body part #M-9926-M5090 (not included). This kit includes the standard 6-rib belt drive system with 3.25" pulley for about 10-11psi. For high horsepower applications, an optional 8-Rib belt drive system part #15879 is available separately. Note: This system DOES NOT include fuel injectors, fuel pump, spark plugs, intake piping and calibration. PCM calibration is not available through Edelbrock for this system. Custom tuning is required.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Ford:Coyote 4V:302 (5.0L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock part #15885 is a universal supercharger kit for the 2015-2017 Ford Coyote 5.0L V8. It utilizes Eaton's 2650 TVS Supercharger rotor group along with the DP-3C intercooler system. |
| Description_INV |
Edelbrock supercharger #15885 |
| Description_LAB |
Edelbrock Supercharger Kit #15885 For Ford Coyote 5.0 V8 Swap |
| Description_MKT |
The Edelbrock Universal Supercharger System #15885 is intended for Coyote engine swap applications using a Gen 1, Gen 2 or Gen 3 Coyote 5.0L engine. Its compact design fits under the stock hood on most applications and complements the clean look of any engine compartment. The core of this system is the Eaton Gen VI 2650 TVS rotating assembly coupled with Edelbrock's patented Dual Pass 3-Core intercooler making this the perfect choice for mild to wild power goals. Our unique, modular inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power robbing jack-shaft. This system includes two throttle body adapters, one with the stock Coyote bolt pattern and the other with the wider GT350 bolt pattern. Edelbrock 103mm throttle bodies (sold separately) use the GT350 bolt pattern. Two versions of the 103mm throttle body are available, part #38988 analog (for 2015-17 Gen 2 PCM) and part #38989 digital (for 2018+ Gen 3 PCM). NOTE: Edelbrock 103mm throttle bodies are NOT compatible with 2011-14 Gen 1 PCMs. Gen 1 applications may use the stock or Ford Racing 90mm throttle body part #M-9926-M5090 (not included). This kit includes the standard 6-rib belt drive system with 3.25" pulley for about 10-11psi. For high horsepower applications, an optional 8-Rib belt drive system part #15879 is available separately. Note: This system DOES NOT include fuel injectors, fuel pump, spark plugs, intake piping and calibration. PCM calibration is not available through Edelbrock for this system. Custom tuning is required. |
| Description_TRA |
Due to the nature of swap applications, a front mount heat exchanger is not included. See Edelbrock Universal Heat Exchangers for options. Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Housing Material |
Cast Aluminum |
| Universal Or Specific Fit |
Universal |
| Oil Capacity |
150 |
| Outside Pulley Diameter |
3.25 |
| Air Filter Included |
Yes |
| Finish |
Black Powder Coated |
| Hose Included |
Yes |
| Center Housing Cooling Type |
Intercooler |
| Vehicle Model |
Universal |
| Rotor Type |
Eaton TVS 2650 |
| Internal Step Up |
Yes |
| Offset Type |
Stock |
| Compatibility |
5.0L Stock |
| Tensioner Included |
Yes |
| System Type |
Universal System |
| Mounting Hardware Included |
Yes |
| Pulley Belt Width |
6-Rib |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Gasket Or Seal Included |
Yes |
| Quantity |
Kit |
| Mounting Bracket Included |
Yes |
| Length |
10.0000 |
| Width |
19.0000 |
| Height |
26.0000 |
| Weight |
107.0000 |
