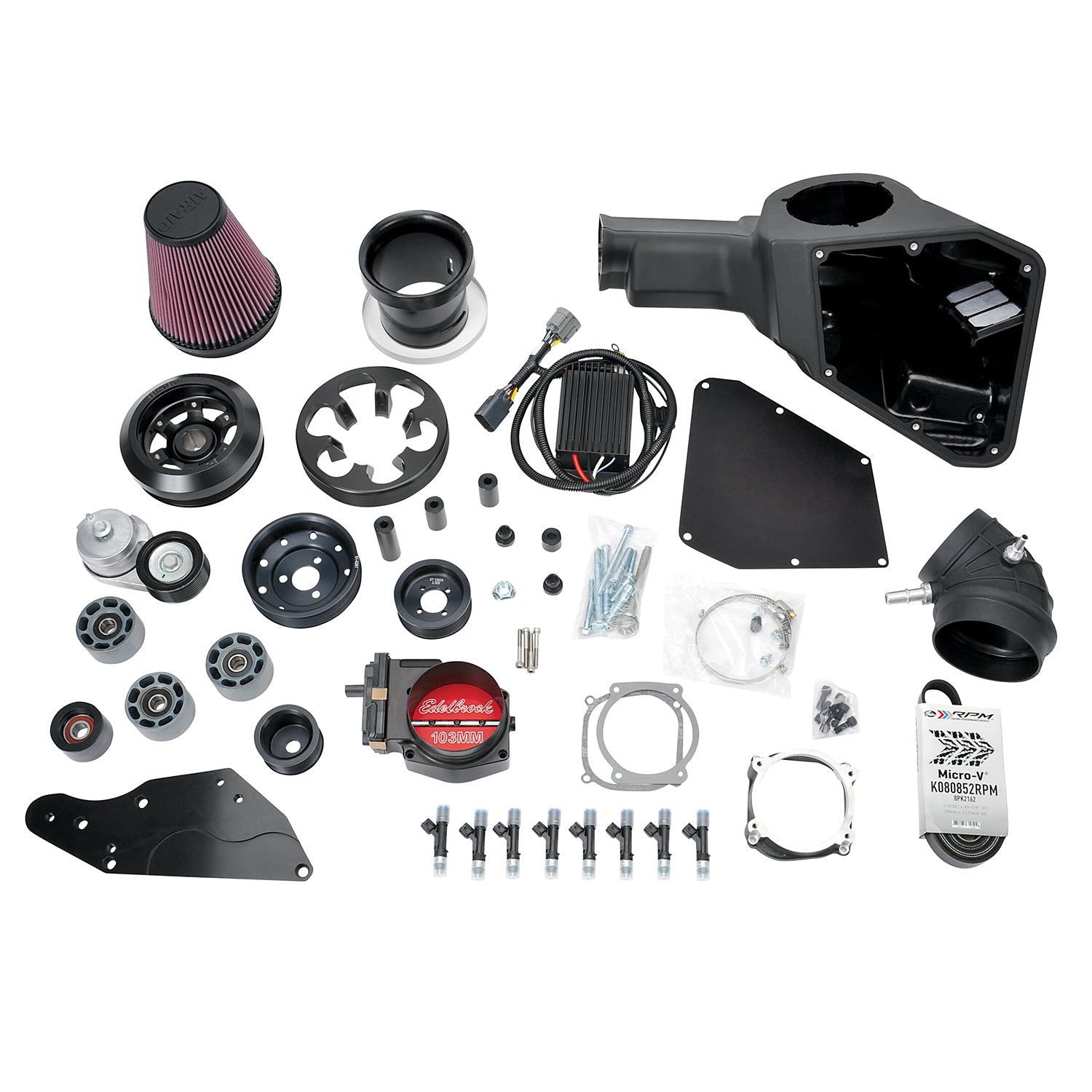

Owners of 2018-2021 Ford Mustangs who have installed an Edelbrock #15832/158320 Stage I Supercharger Kit can now step up to the next level of performance with the Stage II Supercharger System Upgrade Kit #15883. With this Stage II upgrade kit, your vehicle remains emissions-legal in all 50-states while taking full advantage of the improved Gen 3 DI/PI Coyote engine. The Edelbrock Stage II Supercharger Upgrade Kit features all of the vital components required to support the additional horsepower increase that makes this our highest rated horsepower system. Included are a 103mm Throttle Body to replace the Stage I 80mm, a high-flow air intake system, a 113mm Mass Airflow Sensor Kit with injection-molded housing, larger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Regulator, and an 8-rib belt drive to minimize slippage and maintain consistent boost pressure under full throttle.
Specifications:
| Description_ABR |
SprchgrUpgrd |
| Description_DEF |
Supercharger Upgrade Kit |
| Description_EXT |
Owners of 2018-2021 Ford Mustangs who have installed an Edelbrock #15832/158320 Stage I Supercharger Kit can now step up to the next level of performance with the Stage II Supercharger System Upgrade Kit #15883. |
| Description_INV |
Supercharger System Upgrade Kit #15883 |
| Description_MKT |
Owners of 2018-2021 Ford Mustangs who have installed an Edelbrock #15832/158320 Stage I Supercharger Kit can now step up to the next level of performance with the Stage II Supercharger System Upgrade Kit #15883. With this Stage II upgrade kit, your vehicle remains emissions-legal in all 50-states while taking full advantage of the improved Gen 3 DI/PI Coyote engine. The Edelbrock Stage II Supercharger Upgrade Kit features all of the vital components required to support the additional horsepower increase that makes this our highest rated horsepower system. Included are a 103mm Throttle Body to replace the Stage I 80mm, a high-flow air intake system, a 113mm Mass Airflow Sensor Kit with injection-molded housing, larger 50 lb/hr direct-port fuel injectors along with a Fuel Pump Voltage Regulator, and an 8-rib belt drive to minimize slippage and maintain consistent boost pressure under full throttle. |
| Description_LAB |
Edelbrock Stg 2 Supercharger Upgrade #15883 18-21 Ford Mustang 5.0L 4V W/ Tune |
| Description_SLA |
Owners of 2018-2021 Ford Mustangs who have installed our #15832/158320 Stage I Supercharger Kit can now step up to the next level of performance with the Edelbrock Stage II Supercharger System Upgrade Kit #15883. With our Stage II upgrade kit, your vehicle remains emissions-legal in all 50-states while taking full advantage of the improved Gen 3 DI/PI Coyote engine. The Edelbrock Stage II Supercharger Upgrade Kit features all of the vital components required to support the additional horsepower increase that makes this our highest rated horsepower system. Included are a 103mm Throttle Body to replace the Stage I 80mm, a high-flow air intake system, a 113mm Mass Airflow Sensor Kit with injection-molded housing, larger 50 lb/hr direct-port fuel injectors along with our Fuel Pump Voltage Regulator, and an 8-rib belt drive to minimize slippage and maintain consistent boost pressure under full throttle. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Tensioner Included |
Yes |
| Gasket Or Seal Included |
Yes |
| Mounting Hardware Included |
Yes |
| Pulley Color |
Black anodized |
| System Type |
Stage 2 - Street/Strip System |
| Rotor Type |
Eaton TVS 2650 |
| Maximum Torque |
533RW |
| Mounting Bracket Included |
Yes |
| Harmonic Balancer Diameter |
7.75 |
| Fuel Injector Type |
50 |
| Outside Pulley Diameter |
3.5 |
| Pulley Belt Width |
8-Rib |
| Finish |
Black |
| Air Filter Included |
Yes |
| Maximum Horsepower |
686RW |
| Calibration |
Yes |
| Pulley Groove Quantity |
8-Rib |
| Maximum Boost Pressure |
13 |
| Pulley Material |
Aluminum |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Universal Or Specific Fit |
Specific |
| Quantity |
Kit |
| Length |
26.0000 |
| Width |
44.0000 |
| Height |
44.0000 |
| Weight |
50.0000 |
