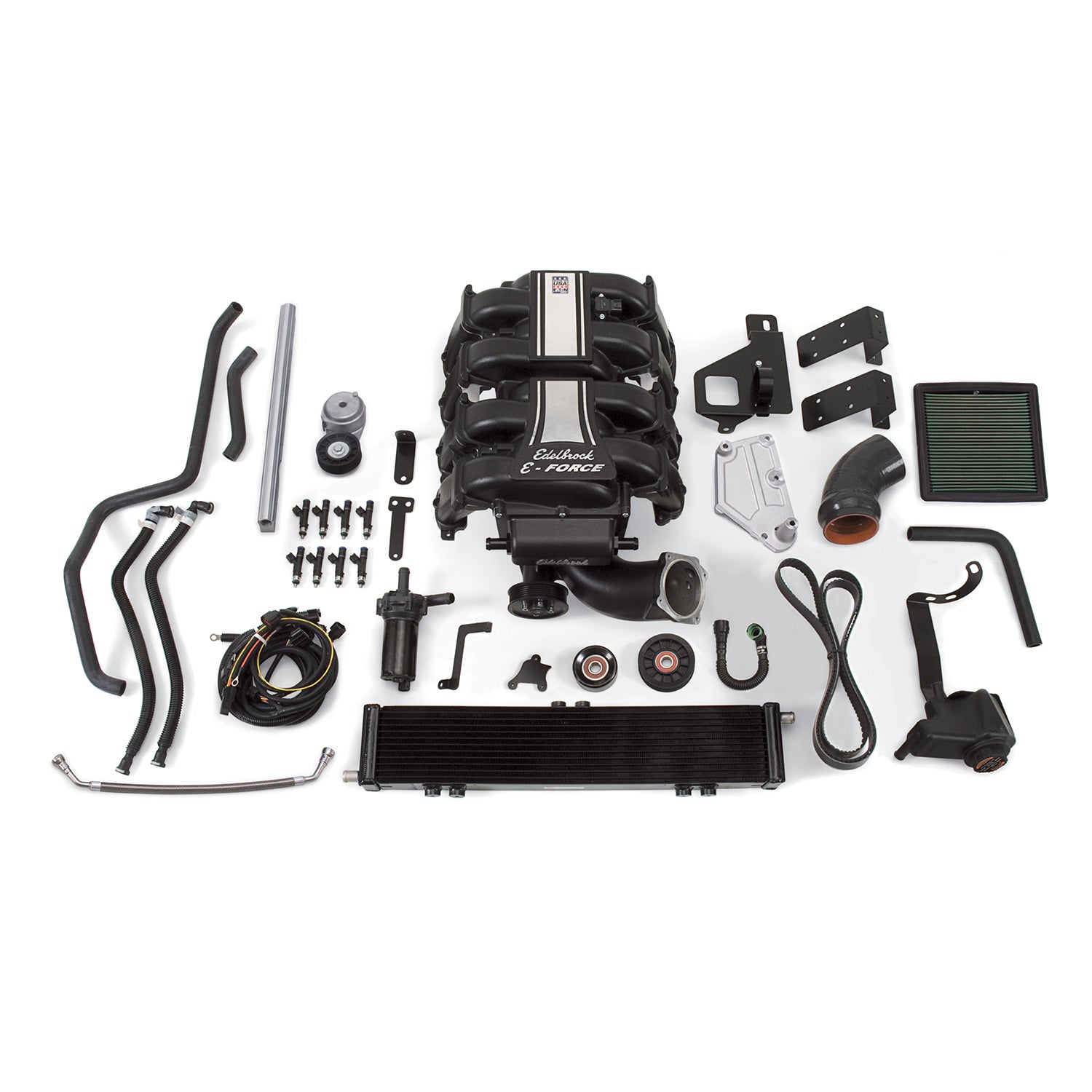

The Edelbrock supercharger Stage 1 Street System part #15840 for 2011-14 Ford F-150 Trucks increases the performance of your 5.0L engine to 421 horsepower and 422 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Ford:Coyote 4V:302 (5.0L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
The Edelbrock Supercharger System part #15840 is for the 2011-14 Ford F-150 5.0L 4V. No Programmer is included which requires custom tuning done by the customer. |
| Description_INV |
Edelbrock supercharger #15840 |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stage 1 Supercharger #15840 For 2011-14 Ford F-150 5.0L 4V W/O Tune |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #15840 for 2011-14 Ford F-150 Trucks increases the performance of your 5.0L engine to 421 horsepower and 422 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Hose Included |
Yes |
| Air Filter Included |
Yes |
| Outside Pulley Diameter |
3.5 |
| Pulley Belt Width |
6-Rib |
| Rotor Type |
Eaton TVS 2300 |
| Mounting Hardware Included |
Yes |
| System Type |
Stage 1 - Street System |
| Quantity |
Kit |
| Mounting Bracket Included |
Yes |
| Center Housing Cooling Type |
Intercooler |
| Internal Step Up |
Yes |
| Vehicle Model |
F-150 |
| Gasket Or Seal Included |
Yes |
| Universal Or Specific Fit |
Specific |
| Harmonic Balancer Diameter |
6.67 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Fuel Injector Type |
50 |
| Oil Capacity |
150 |
| Finish |
Black Powder Coated |
| Calibration |
No |
| Housing Material |
Cast Aluminum |
| Length |
23.0000 |
| Width |
48.0000 |
| Height |
40.0000 |
| Weight |
178.0000 |
