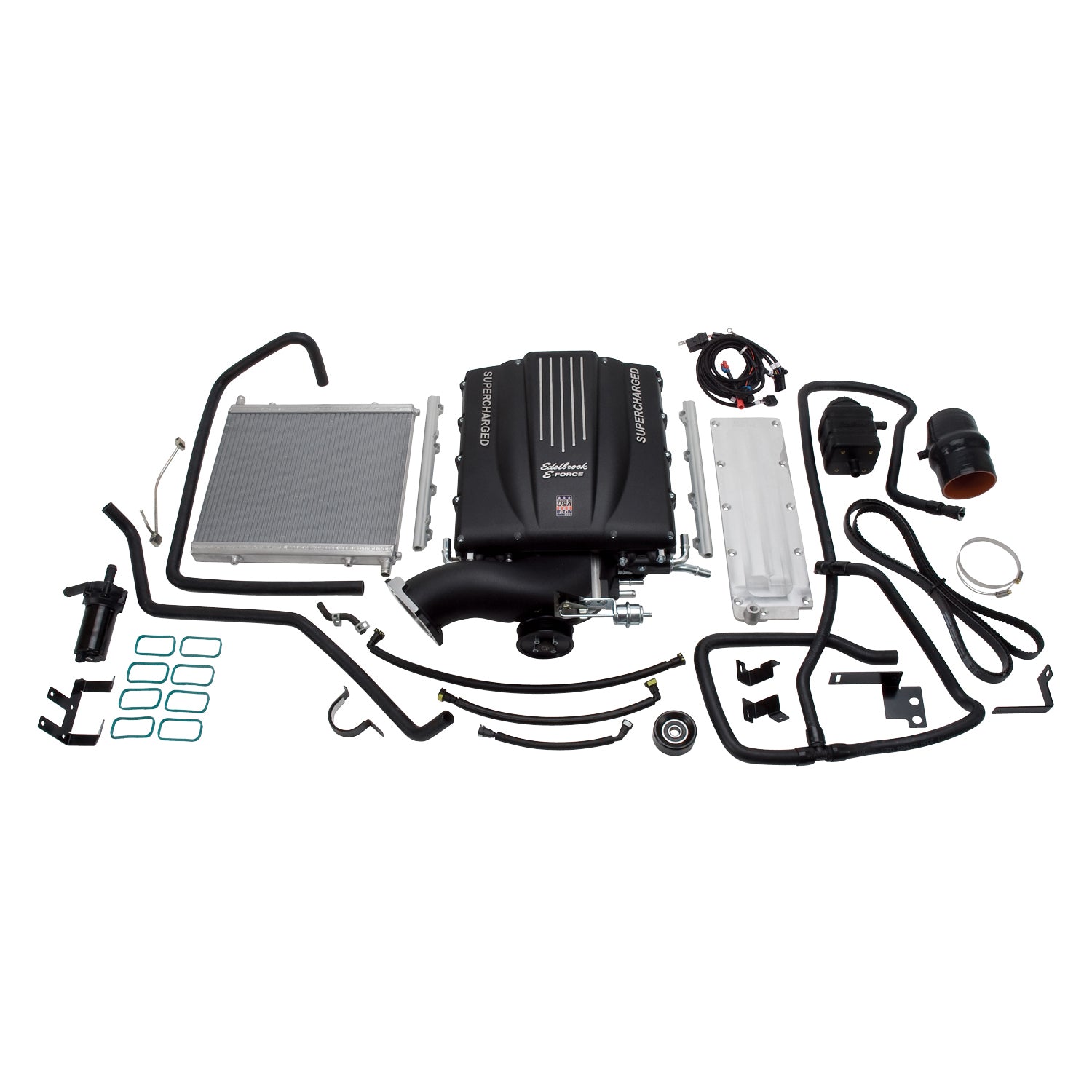

The Edelbrock supercharger Stage 1 Street system part #15790 for 2007-13 Silverado and Sierra 1500 increases the performance of your 6.2L Gen IV engine to 407 horsepower and 434 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV L92:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L94:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L9H:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
The Edelbrock Supercharger System part #15790 is for the 2007-13 Gen IV Silverado/Sierra 1500 6.2L. No Programmer is included which requires custom tuning done by the customer. |
| Description_INV |
Edelbrock supercharger #15790 |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street system part #15790 for 2007-13 Silverado and Sierra 1500 increases the performance of your 6.2L Gen IV engine to 407 horsepower and 434 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Description_LAB |
Edelbrock Stage 1 Supercharger #15790 For 2007-13 Silverado/Sierra 6.2L W/O Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Calibration |
No |
| Vehicle Model |
Silverado 1500 |
| Mounting Hardware Included |
Yes |
| Harmonic Balancer Diameter |
7.5 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Bracket Included |
Yes |
| Internal Step Up |
Yes |
| Universal Or Specific Fit |
Specific |
| Oil Capacity |
150 |
| Finish |
Black Powder Coated |
| Housing Material |
Cast Aluminum |
| Pulley Belt Width |
6-Rib |
| Quantity |
Kit |
| Gasket Or Seal Included |
Yes |
| Air Filter Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| System Type |
Stage 1 - Street System |
| Outside Pulley Diameter |
3.75 |
| Hose Included |
Yes |
| Center Housing Cooling Type |
Intercooler |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
177.0000 |
