| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block LC9:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LH8:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LMF:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LMG:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block LY5:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block Gen III LM7:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block Gen III LR4:293 (4.8L) |
| Description_ASM |
Chevrolet:Small-Block Gen III LS1:346 (5.7L) |
| Description_ASM |
Chevrolet:Small-Block Gen III LS2:364 (6.0L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV LMF:325 (5.3L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV LY5:325 (5.3L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |

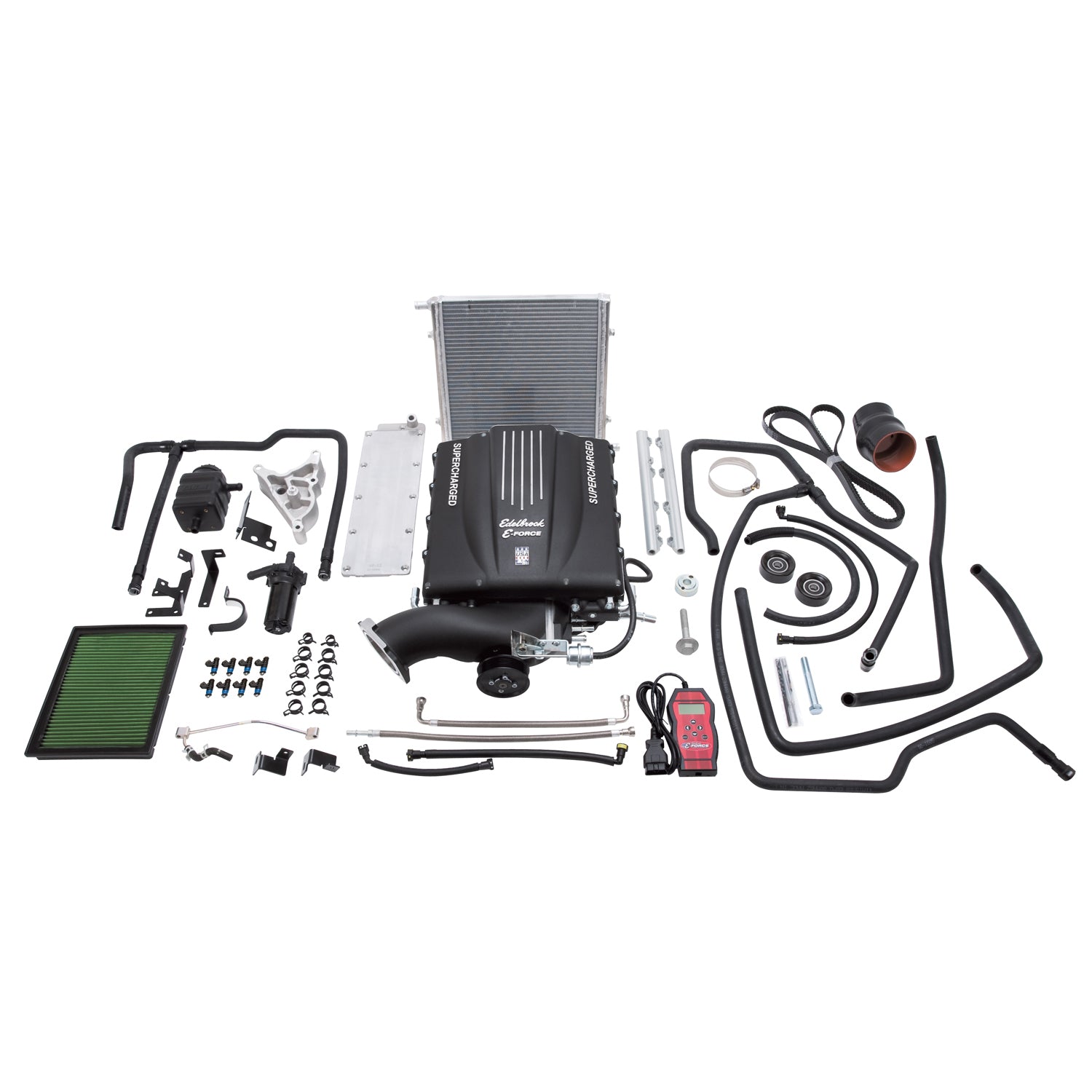

The Edelbrock Supercharger System part #1578 is for the 2007-13 Gen IV Silverado/Sierra 4.8L and 5.3L. This kit produces 334 horsepower and 380 ft-lbs of torque for the 4.8L and 364 horsepower and 397 ft-lbs of torque for the 5.3L. |
| Description_LAB |
Edelbrock Stg 1 Supercharger #1578, 07-13 Silverado/Sierra 4.8L, 5.3L W/ Tune |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street system part #1578 is for 2007-13 Silverado and Sierra 1500 trucks. This supercharger system works with the 4.8L and 5.3L Gen III engines and increases the performance of the 4.8L engine to 334 horsepower and 380 ft-lbs of torque at the rear wheels and the 5.3L engine to 364 horsepower and 397 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1578 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_INV |
Edelbrock supercharger #1578 |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Gasket Or Seal Included |
Yes |
| Internal Step Up |
Yes |
| Mounting Hardware Included |
Yes |
| System Type |
Stage 1 - Street System |
| Fuel Injector Type |
42 |
| Mounting Bracket Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| Harmonic Balancer Diameter |
7.5 |
| Vehicle Model |
Sierra 1500 |
| Universal Or Specific Fit |
Specific |
| Maximum Torque |
380RW; 397RW |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Quantity |
Kit |
| Calibration |
Yes |
| Hose Included |
Yes |
| Oil Capacity |
150 |
| Outside Pulley Diameter |
4.125 |
| Pulley Belt Width |
6-Rib |
| Maximum Boost Pressure |
6 |
| Finish |
Black Powder Coated |
| Maximum Pressure Reading |
6 |
| Maximum Horsepower |
334RW; 364RW |
| Center Housing Cooling Type |
Intercooler |
| Air Filter Included |
Yes |
| Housing Material |
Cast Aluminum |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
177.0000 |
