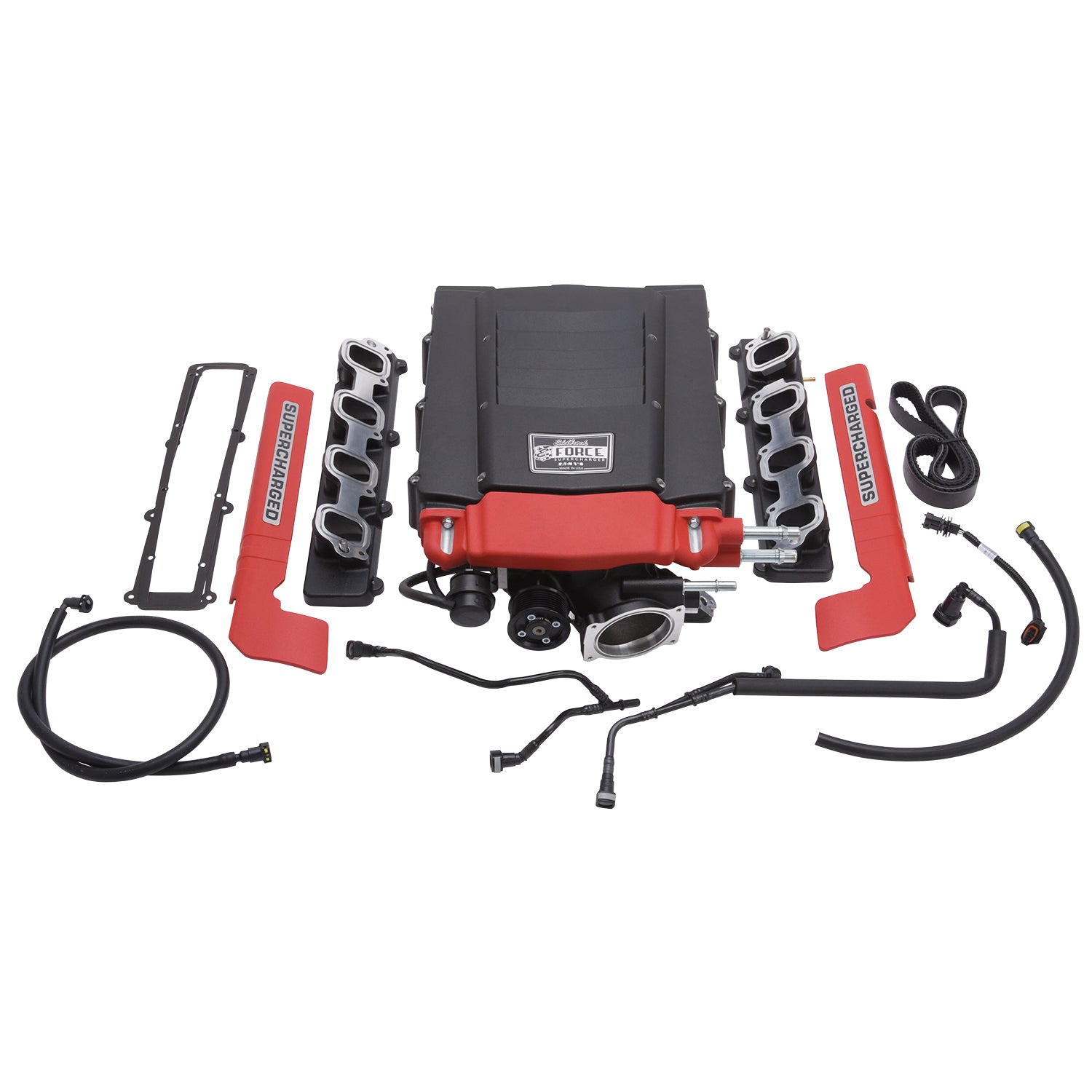

The Edelbrock supercharger Stage 1 Street System part #157310 for 2015-19 Corvette Z06 with Dry sump increases the performance of your LT4 engine to 626 horsepower and 589 ft-lbs of torque to the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen V LT4:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #157310 |
| Description_EXT |
The Edelbrock Supercharger System part #157310 is for the 2015-19 LT4 Corvette Z06. No Programmer is included which requires custom tuning done by the customer. |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #157310 for 2015-19 Corvette Z06 with Dry sump increases the performance of your LT4 engine to 626 horsepower and 589 ft-lbs of torque to the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stage 1 Supercharger Kit #157310 For 2015-19 Corvette Z06 LT4 W/O Tune |
| Quantity |
Kit |
| Outside Pulley Diameter |
2.75 |
| Air Filter Included |
Yes |
| Universal Or Specific Fit |
Specific |
| Oil Capacity |
150 |
| Housing Material |
Cast Aluminum |
| Center Housing Cooling Type |
Intercooler |
| Finish |
Black Powder Coated |
| Calibration |
No |
| Hose Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type |
Eaton TVS 2300 |
| Internal Step Up |
Yes |
| Mounting Hardware Included |
Yes |
| Vehicle Model |
Corvette |
| System Type |
Stage 1 - Street System |
| Harmonic Balancer Diameter |
7.4 |
| Mounting Bracket Included |
Yes |
| Pulley Belt Width |
8-Rib |
| Gasket Or Seal Included |
Yes |
| Length |
18.0000 |
| Width |
23.0000 |
| Height |
32.0000 |
| Weight |
94.0000 |
