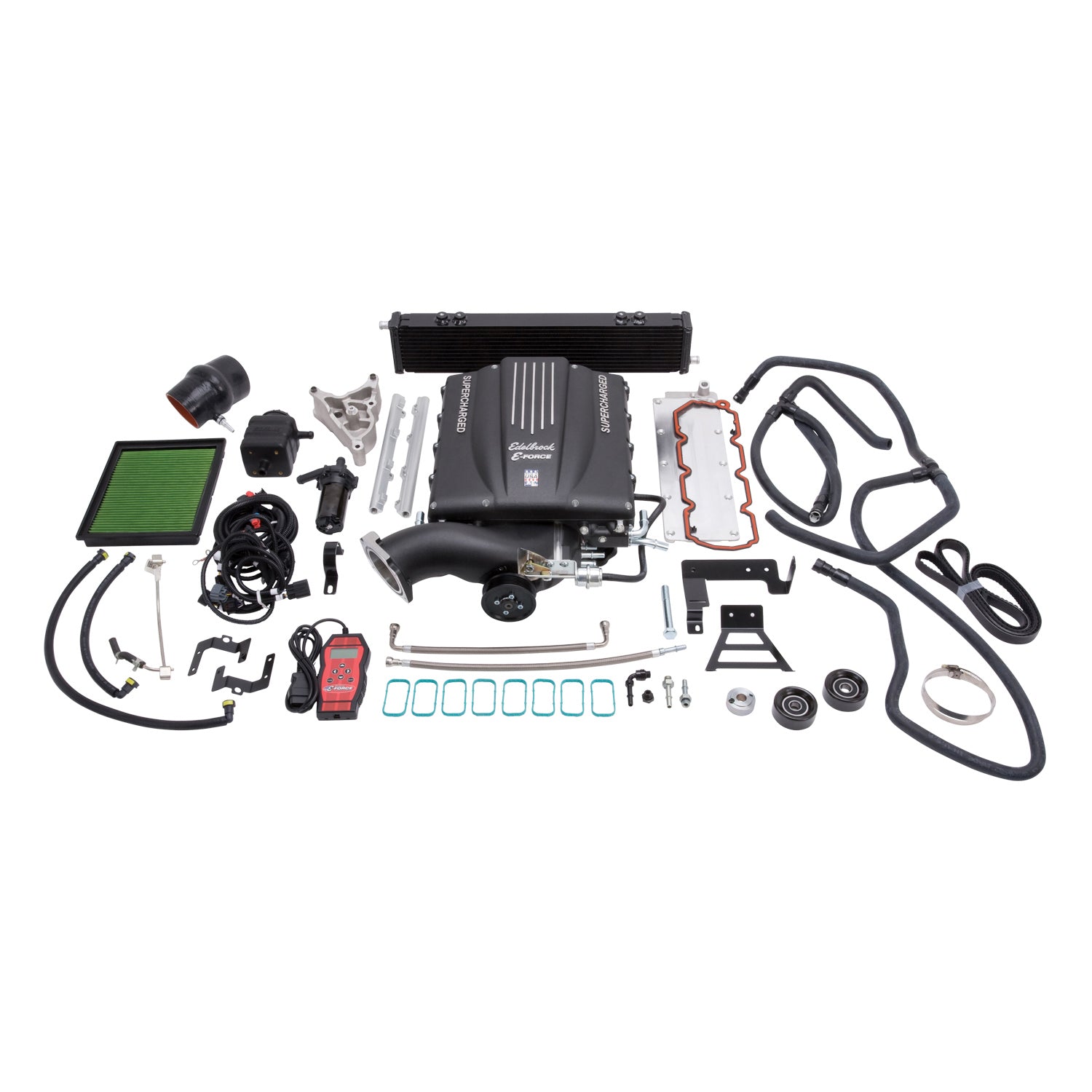

The Edelbrock supercharger Stage 1 Street System part #1567 for 2007-14 Escalade, Escalade ESV, Escalade EXT, Yukon & Yukon XL applications with a 6.2L Gen IV engine. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1567 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV L92:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L94:376 (6.2L) |
| Description_ASM |
Chevrolet:Small-Block Gen IV L9H:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_LAB |
Edelbrock Stg 1 SC #1567 For 07-14 Tahoe/Suburban/Yukon/Escalade 6.2L W/ Tune |
| Description_INV |
Edelbrock supercharger #1567 |
| Description_EXT |
Edelbrock supercharger Stage 1 Street System part #1567 for 2007-14 Escalade, Escalade ESV, Escalade EXT, Yukon & Yukon XL applications with a 6.2L Gen IV engine. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #1567 for 2007-14 Escalade, Escalade ESV, Escalade EXT, Yukon & Yukon XL applications with a 6.2L Gen IV engine. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1567 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Maximum Boost Pressure |
6 |
| Gasket Or Seal Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Hose Included |
Yes |
| System Type |
Stage 1 - Street System |
| Air Filter Included |
Yes |
| Pulley Belt Width |
6-Rib |
| Mounting Hardware Included |
Yes |
| Universal Or Specific Fit |
Specific |
| Internal Step Up |
Yes |
| Vehicle Model |
Yukon Denali XL |
| Mounting Bracket Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| Quantity |
Kit |
| Calibration |
Yes |
| Finish |
Black Powder Coated |
| Harmonic Balancer Diameter |
7.5 |
| Maximum Pressure Reading |
6 |
| Outside Pulley Diameter |
3.75 |
| Housing Material |
Cast Aluminum |
| Oil Capacity |
150 |
| Center Housing Cooling Type |
Intercooler |
| Length |
26.0000 |
| Width |
33.0000 |
| Height |
42.0000 |
| Weight |
177.0000 |
