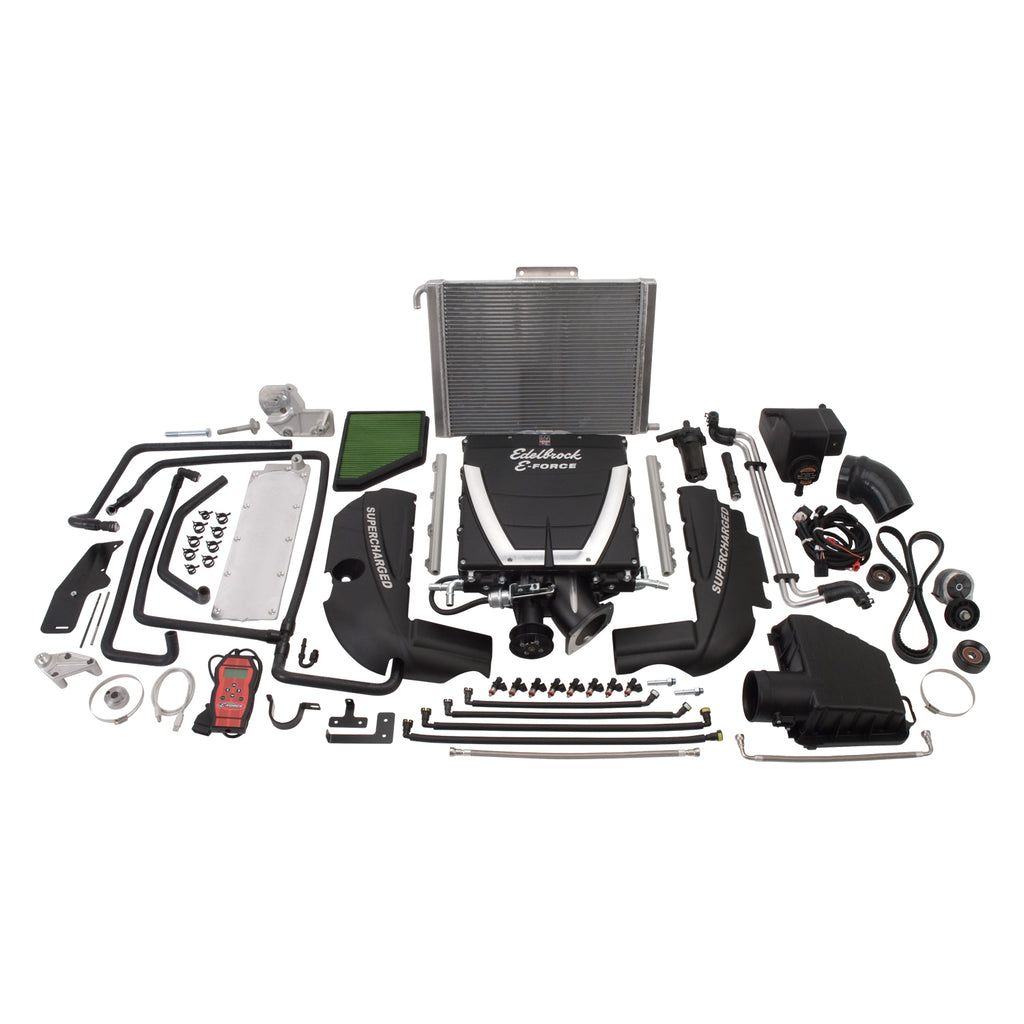

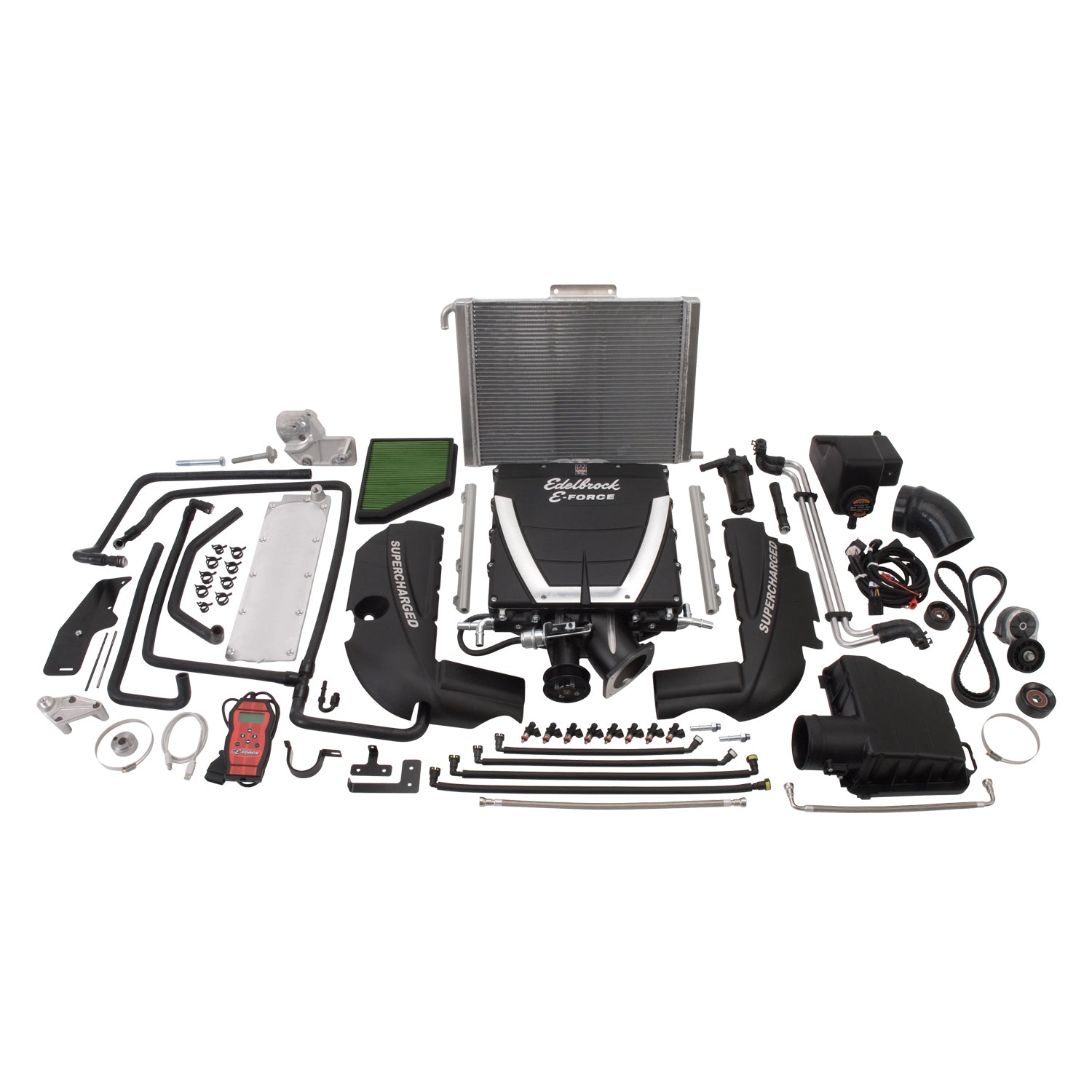

The Edelbrock supercharger Stage 1 Street System part #1563 for 2010-15 Camaro SS with a manual transmission increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1563 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV LS3:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #1563 |
| Description_EXT |
Edelbrock supercharger Stage 1 Street System part #1563 for 2010-15 Camaro SS with Manual trans increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank. |
| Description_LAB |
Edelbrock Stg 1 Supercharger #1563 For 2010-15 Camaro SS LS3 Manual Tran W/ Tune |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #1563 for 2010-15 Camaro SS with a manual transmission increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1563 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Mounting Bracket Included |
Yes |
| Vehicle Model |
Camaro |
| Harmonic Balancer Diameter |
7.5 |
| Housing Material |
Cast Aluminum |
| Universal Or Specific Fit |
Specific |
| Mounting Hardware Included |
Yes |
| Calibration |
Yes |
| Fuel Injector Type |
52 |
| System Type |
Stage 1 - Street System |
| Air Filter Included |
Yes |
| Transmission Type |
Manual |
| Outside Pulley Diameter |
3.5 |
| Maximum Pressure Reading |
7.5 |
| Center Housing Cooling Type |
Intercooler |
| Oil Capacity |
150 |
| Rotor Type |
Eaton TVS 2300 |
| Hose Included |
Yes |
| Quantity |
Kit |
| Finish |
Black Powder Coated |
| Gasket Or Seal Included |
Yes |
| Maximum Boost Pressure |
7.5 |
| Internal Step Up |
Yes |
| Pulley Belt Width |
6-Rib |
| Maximum Horsepower |
599 |
| Tensioner Included |
Yes |
| Maximum Torque |
547 |
| Length |
20.0000 |
| Width |
40.0000 |
| Height |
48.0000 |
| Weight |
206.0000 |
