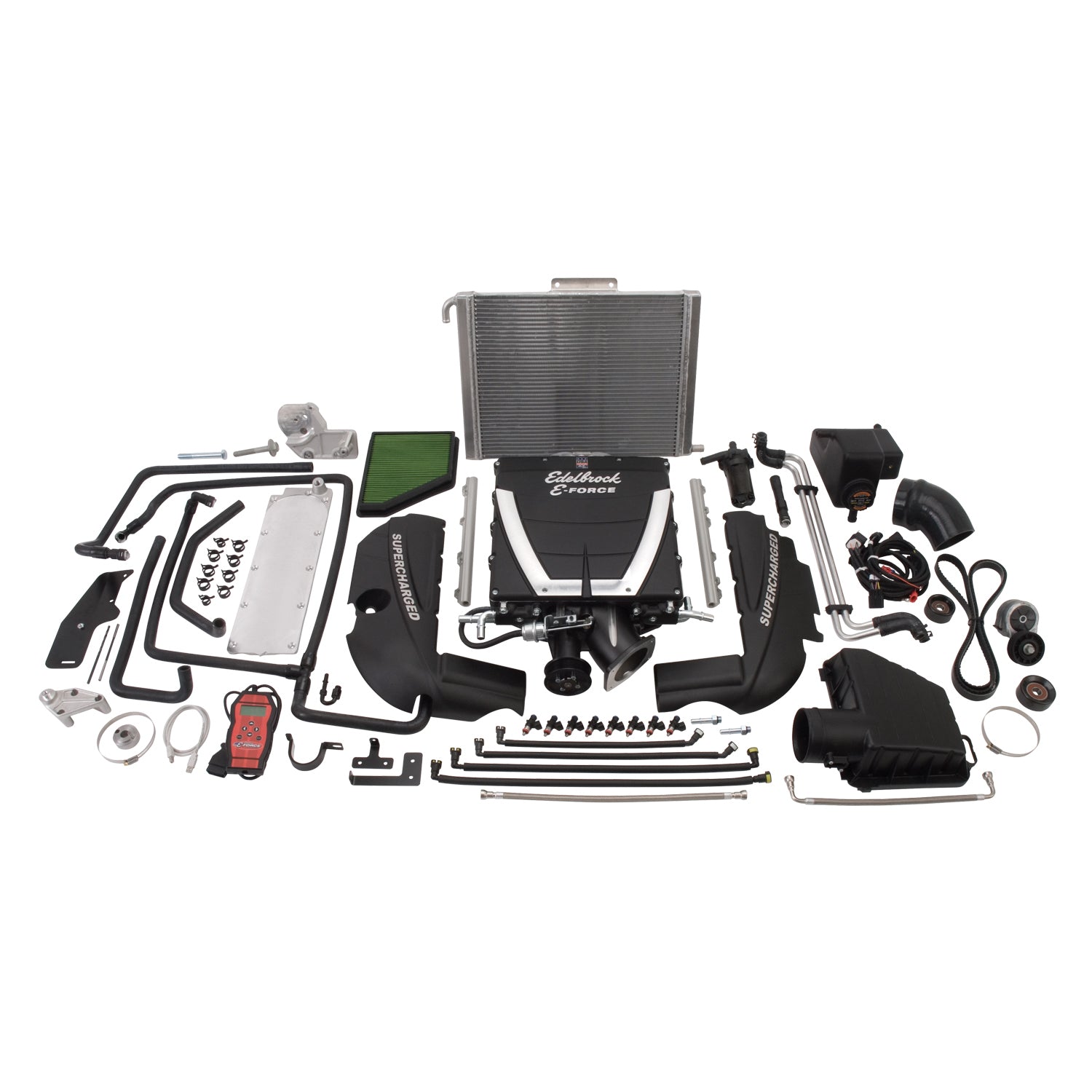

The Edelbrock supercharger Stage 1 Street System part #1562 for 2010-15 Camaro SS with an automatic transmission increases the performance of your L99 engine to 421 horsepower and 439 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1562 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chevrolet:Small-Block Gen IV L99:376 (6.2L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock supercharger Stage 1 Street System part #1562 for 2010-15 Camaro SS with Auto trans increases the performance of your L99 engine to 421 horsepower and 439 ft-lbs of torque at the rear wheels. |
| Description_INV |
Edelbrock supercharger #1562 |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Description_LAB |
Edelbrock Stg 1 Supercharger #1562 For 2010-15 Camaro SS L99 Auto Trans W/ Tune |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #1562 for 2010-15 Camaro SS with an automatic transmission increases the performance of your L99 engine to 421 horsepower and 439 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1562 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Mounting Hardware Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Fuel Injector Type |
52 |
| Vehicle Model |
Camaro |
| Mounting Bracket Included |
Yes |
| Oil Capacity |
150 |
| Universal Or Specific Fit |
Specific |
| Harmonic Balancer Diameter |
7.5 |
| Maximum Pressure Reading |
5.5 |
| Quantity |
Kit |
| Calibration |
Yes |
| Pulley Belt Width |
6-Rib |
| Air Filter Included |
Yes |
| Hose Included |
Yes |
| Maximum Torque |
439RW |
| Internal Step Up |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| Maximum Boost Pressure |
5.5 |
| Finish |
Black Powder Coated |
| Housing Material |
Cast Aluminum |
| Gasket Or Seal Included |
Yes |
| Transmission Type |
Automatic |
| Center Housing Cooling Type |
Intercooler |
| Maximum Horsepower |
421RW |
| Tensioner Included |
Yes |
| System Type |
Stage 1 - Street System |
| Outside Pulley Diameter |
3.875 |
| Length |
20.0000 |
| Width |
40.0000 |
| Height |
48.0000 |
| Weight |
207.0000 |
