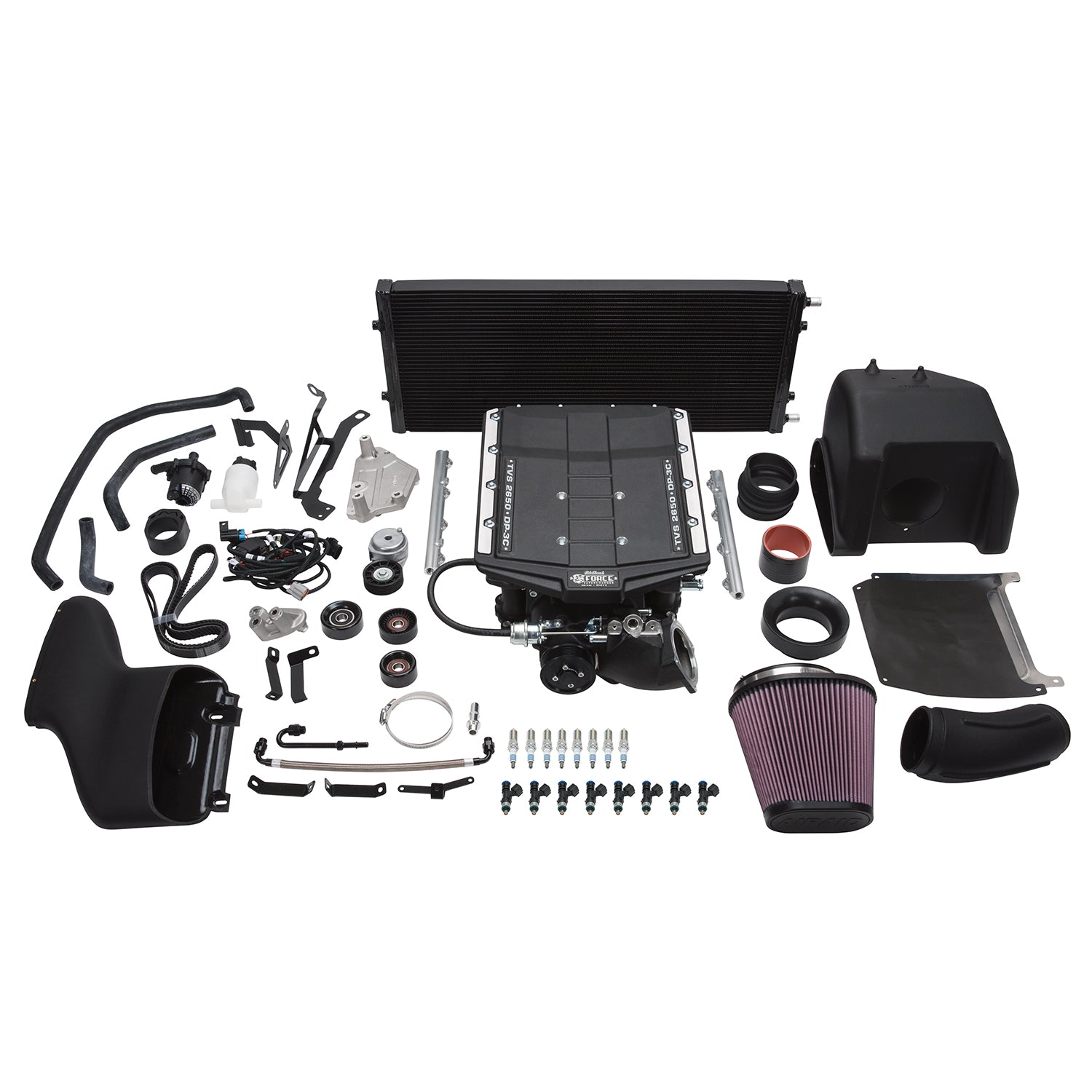

The Edelbrock supercharger Stage 1 Street System part #15570 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Ford:Modular Coyote 4V:302 (5.0L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock supercharger Stage 1 Street System part #15570 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels |
| Description_INV |
Edelbrock supercharger #15570 |
| Description_MKT |
The Edelbrock supercharger Stage 1 Street System part #15570 for 2015-17 Ford F-150 increases the performance of your 5.0L 4V engine to 533 horsepower and 482 ft-lbs of torque at the rear wheels when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Description_LAB |
Edelbrock Stg 1 Supercharger #15570 For 15-17 Ford F-150 Coyote 5.0L 4V W/O Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Vehicle Model |
F-150 |
| Housing Material |
Cast Aluminum |
| Quantity |
Kit |
| Harmonic Balancer Diameter |
Stock |
| Fuel Injector Type |
50 |
| Outside Pulley Diameter |
3.5 |
| Finish |
Black Powder Coated |
| Calibration |
No |
| Oil Capacity |
150 |
| System Type |
Stage 1 - Street System |
| Center Housing Cooling Type |
Intercooler |
| Universal Or Specific Fit |
Specific |
| Mounting Bracket Included |
Yes |
| Gasket Or Seal Included |
Yes |
| Mounting Hardware Included |
Yes |
| Hose Included |
Yes |
| Internal Step Up |
Yes |
| Pulley Belt Width |
6-Rib |
| Rotor Type |
Eaton TVS 2650 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
15.0000 |
| Width |
15.0000 |
| Height |
28.0000 |
| Weight |
82.0000 |
