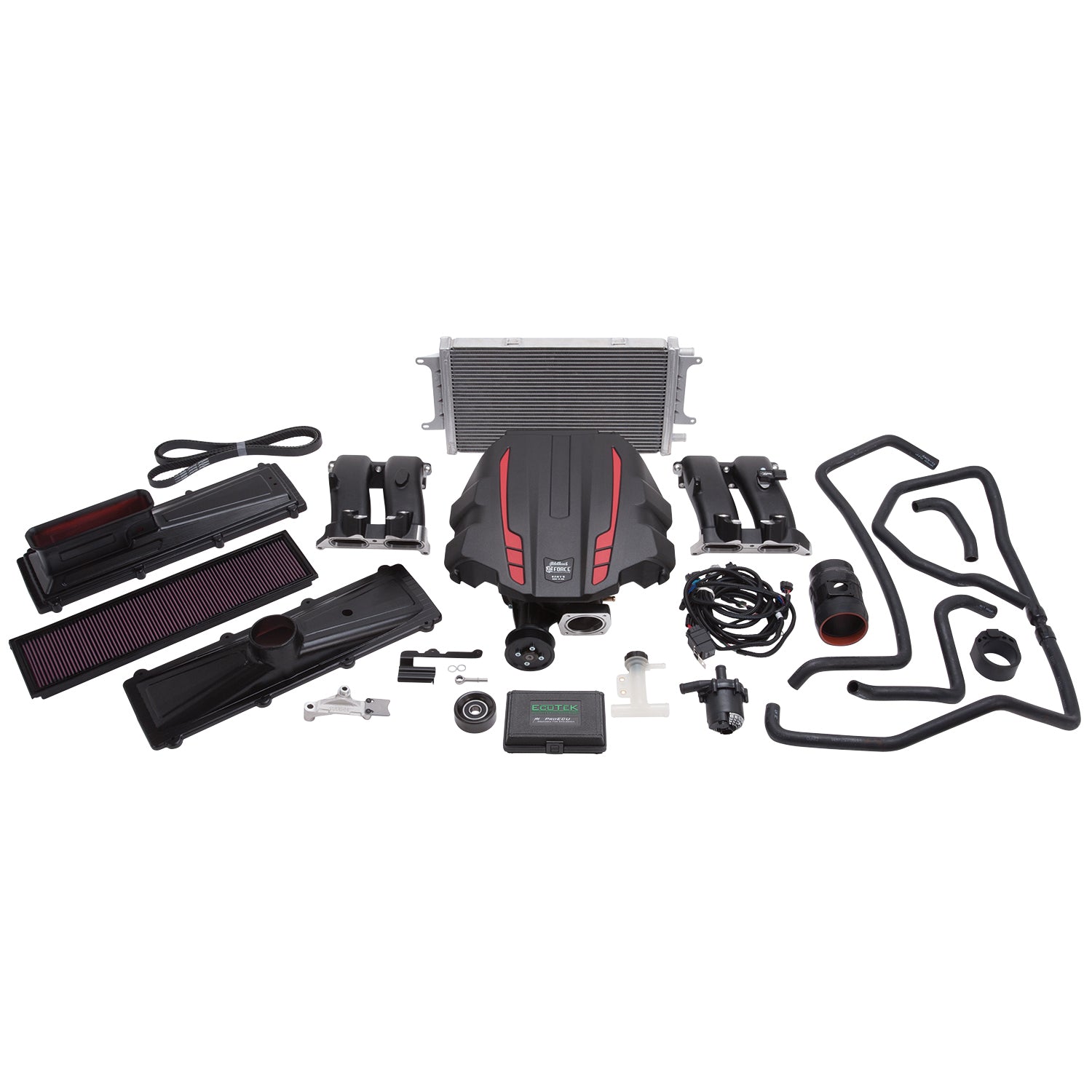

The Edelbrock Stage 1 Street Supercharger System part #1556 for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. Its unique inverted design utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. This system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. The supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock supercharged! The Edelbrock #1556 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Subaru:Opposed 4-Cylinder:122 (2.0L) |
| Description_DEF |
Supercharger Kit |
| Description_INV |
Edelbrock supercharger #1556 |
| Description_EXT |
Edelbrock Stage 1 Street Supercharger System part #1556 for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. |
| Description_LAB |
Edelbrock Supercharger #1556 12-19 Subaru BRZ/Scion FR-S/Toyota 86 2.0L W/ Tune |
| Description_MKT |
The Edelbrock Stage 1 Street Supercharger System part #1556 for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. Its unique inverted design utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. This system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. The supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock supercharged! The Edelbrock #1556 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust. |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Pulley Belt Width |
6-Rib |
| Maximum Boost Pressure |
9 |
| Hose Included |
Yes |
| Mounting Hardware Included |
Yes |
| Maximum Horsepower |
242RW |
| Internal Step Up |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Maximum Torque |
186RW |
| Mounting Bracket Included |
Yes |
| Calibration |
Yes |
| System Type |
Stage 1 - Street System |
| Quantity |
Kit |
| Vehicle Model |
FRS/BRZ/FT86 |
| Air Filter Included |
Yes |
| Rotor Type |
Eaton TVS 1320 |
| Gasket Or Seal Included |
Yes |
| Housing Material |
Cast Aluminum |
| Oil Capacity |
125 |
| Outside Pulley Diameter |
3.25 |
| Universal Or Specific Fit |
Specific |
| Harmonic Balancer Diameter |
Stock |
| Center Housing Cooling Type |
Intercooler |
| Finish |
Black Powder Coated |
| Maximum Pressure Reading |
9 |
| Length |
18.0000 |
| Width |
26.0000 |
| Height |
33.0000 |
| Weight |
110.0000 |
