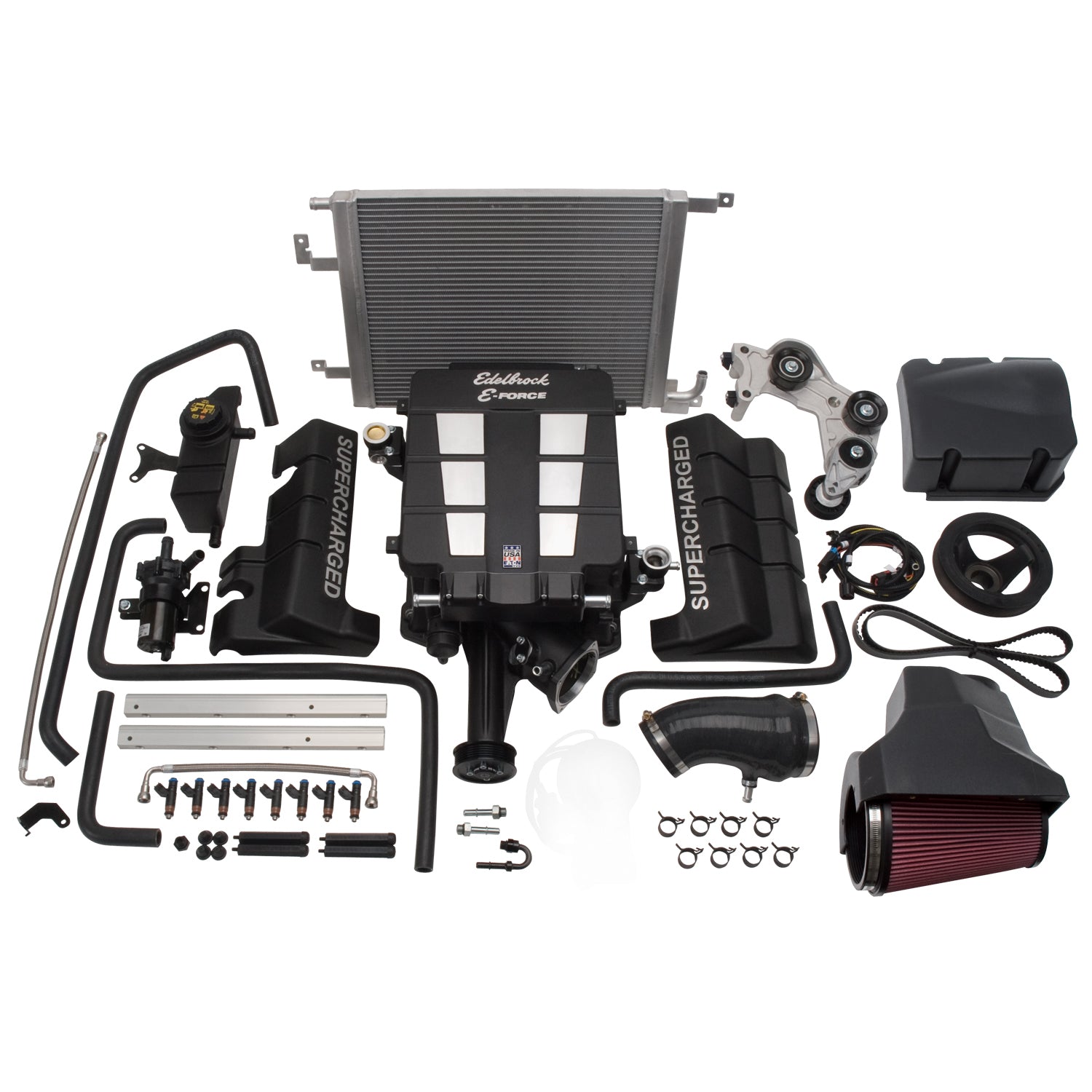

The Edelbrock Supercharger System part #15360 is designed for your 2005-10 6.1L HEMI Chrysler 300, Dodge Charger or Challenger. The part #15360 kit makes excellent horsepower and torque . This kit also gives you the ability to get the custom tune you desire. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. This unit is NOT supplied with a programmer. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chrysler:Gen III HEMI:370 (6.1L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock supercharger part #15360 Dodge Challenger, Chrysler 300, Charger Supercharger systems without tuners are not eligible for supplemental warranty |
| Description_INV |
Edelbrock supercharger #15360 |
| Description_MKT |
The Edelbrock Supercharger System part #15360 is designed for your 2005-10 6.1L HEMI Chrysler 300, Dodge Charger or Challenger. The part #15360 kit makes excellent horsepower and torque . This kit also gives you the ability to get the custom tune you desire. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. This unit is NOT supplied with a programmer. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. |
| Description_LAB |
Edelbrock Stage 1 Supercharger #15360 For 2006-10 Chrysler/Dodge 6.1L W/O Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Internal Step Up |
Yes |
| Fuel Injector Type |
46 |
| Gasket Or Seal Included |
Yes |
| System Type |
Stage 1 - Street System |
| Rotor Type |
Eaton TVS 2300 |
| Tensioner Included |
Yes |
| Mounting Hardware Included |
Yes |
| Vehicle Model |
300C |
| Air Filter Included |
Yes |
| Harmonic Balancer Diameter |
7.5 |
| Mounting Bracket Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Finish |
Black Powder Coated |
| Outside Pulley Diameter |
3.875 |
| Pulley Belt Width |
6-Rib |
| Oil Capacity |
150 |
| Hose Included |
Yes |
| Calibration |
No |
| Housing Material |
Cast Aluminum |
| Center Housing Cooling Type |
Intercooler |
| Universal Or Specific Fit |
Specific |
| Quantity |
Kit |
| Length |
32.0000 |
| Width |
44.0000 |
| Height |
44.0000 |
| Weight |
196.0000 |
