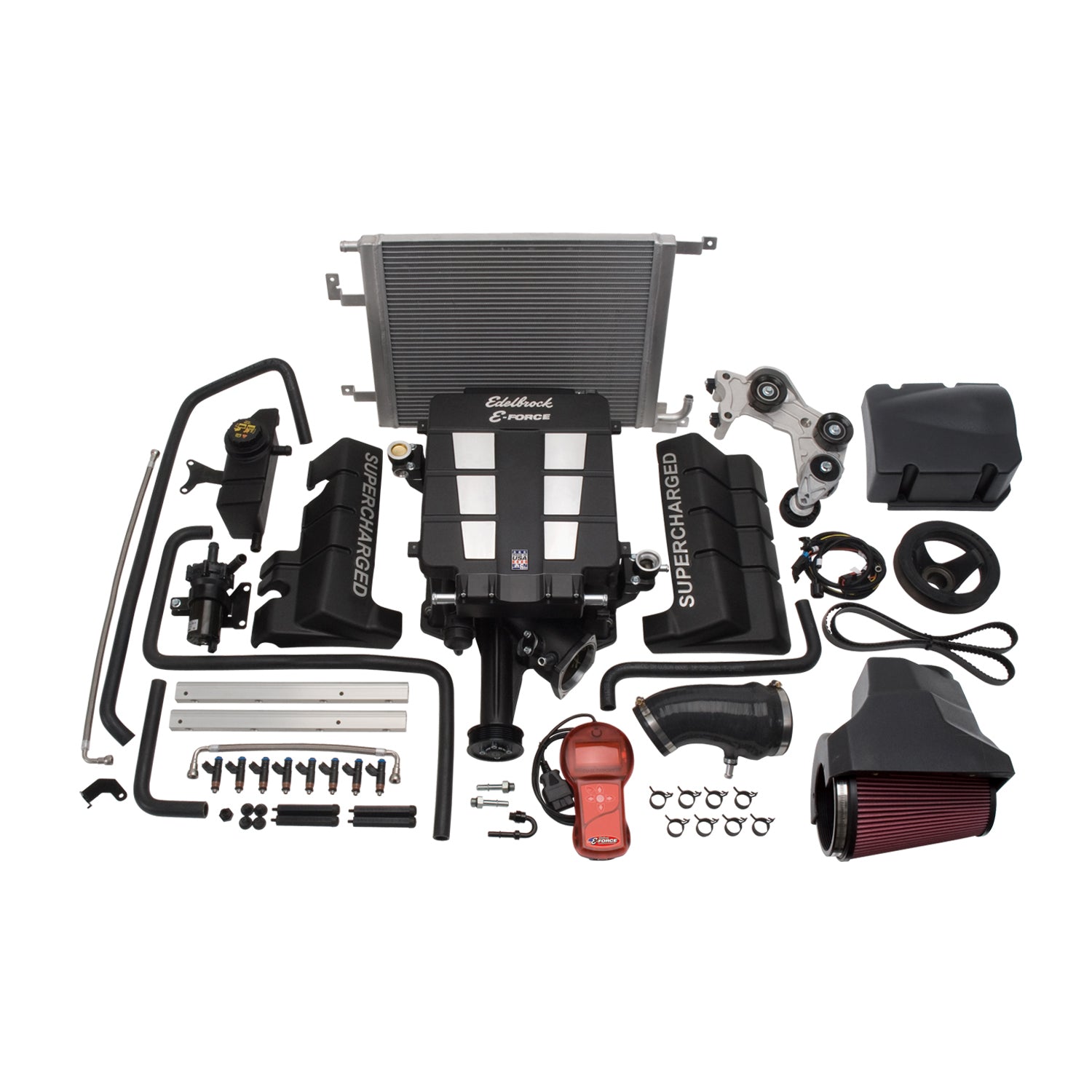

The Edelbrock Supercharger System part #1536 is designed for your 2005-10 6.1L HEMI Chrysler 300, Dodge Charger or Challenger producing 556 horsepower and 501 ft-lbs of torque at the flywheel. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chrysler:Gen III HEMI:370 (6.1L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock Supercharger System part #1536 HEMI V8 6.1 LX and LC 2005-10 Chrysler 300, Dodge Charger or Challenger, produced 556 horsepower and 501 ft-lbs of torque |
| Description_MKT |
The Edelbrock Supercharger System part #1536 is designed for your 2005-10 6.1L HEMI Chrysler 300, Dodge Charger or Challenger producing 556 horsepower and 501 ft-lbs of torque at the flywheel. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. |
| Description_LAB |
Edelbrock Stage 1 Supercharger Kit #1536 For 2006-10 Chrysler/Dodge 6.1L W/ Tune |
| Description_INV |
Edelbrock supercharger #1536 |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Mounting Hardware Included |
Yes |
| Tensioner Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| Internal Step Up |
Yes |
| Gasket Or Seal Included |
Yes |
| System Type |
Stage 1 - Street System |
| Maximum Torque |
501 |
| Vehicle Model |
Challenger |
| Mounting Bracket Included |
Yes |
| Harmonic Balancer Diameter |
7.5 |
| Fuel Injector Type |
46 |
| Universal Or Specific Fit |
Specific |
| Finish |
Black Powder Coated |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Maximum Pressure Reading |
6 |
| Maximum Horsepower |
556 |
| Air Filter Included |
Yes |
| Calibration |
Yes |
| Center Housing Cooling Type |
Intercooler |
| Oil Capacity |
150 |
| Housing Material |
Cast Aluminum |
| Outside Pulley Diameter |
3.875 |
| Hose Included |
Yes |
| Quantity |
Kit |
| Maximum Boost Pressure |
6 |
| Pulley Belt Width |
6-Rib |
| Length |
32.0000 |
| Width |
44.0000 |
| Height |
44.0000 |
| Weight |
198.0000 |
