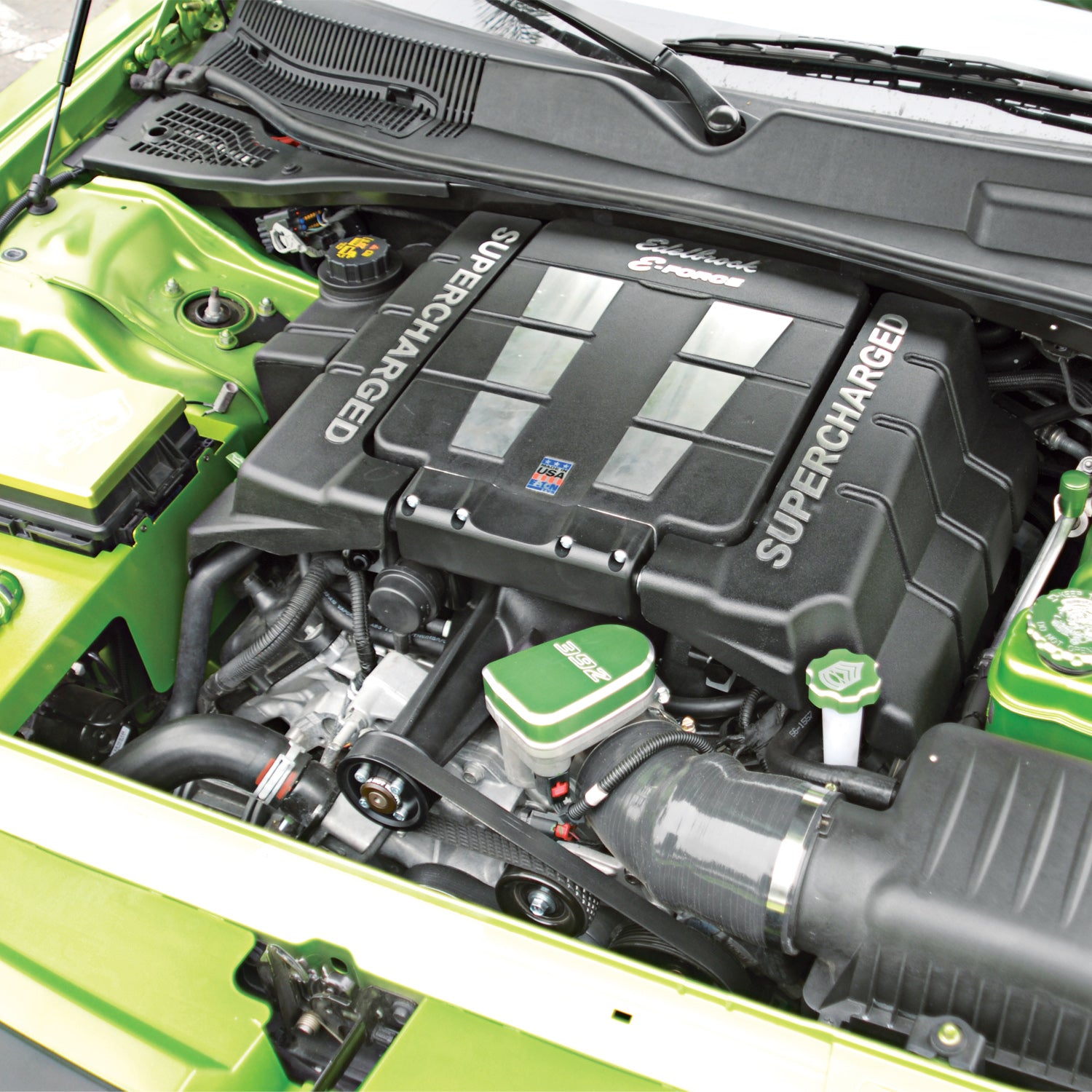

The Edelbrock Supercharger System part #1535 is designed for your 2011-14 6.4L HEMI Chrysler 300, Dodge Charger or Challenger. The part #1535 kit made 551 RWHP and 526 RWTQ. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Chrysler:Gen III HEMI:392 (6.4L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock Supercharger System part #1535 Chrysler HEMI V8 6.4 LX and LC 2011-14 produced 551 RWHP and 526 RWTQ, will retain the factory vehicle speed limiter setting. |
| Description_INV |
Edelbrock supercharger #1535 |
| Description_MKT |
The Edelbrock Supercharger System part #1535 is designed for your 2011-14 6.4L HEMI Chrysler 300, Dodge Charger or Challenger. The part #1535 kit made 551 RWHP and 526 RWTQ. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. |
| Description_LAB |
Edelbrock Stage 1 Supercharger Kit #1535 For 2011-14 Chrysler/Dodge 6.4L W/ Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Hose Included |
Yes |
| Maximum Boost Pressure |
6 |
| Air Filter Included |
Yes |
| Outside Pulley Diameter |
3 |
| Maximum Horsepower |
551RW |
| Calibration |
Yes |
| System Type |
Stage 1 - Street System |
| Gasket Or Seal Included |
Yes |
| Rotor Type |
Eaton TVS 2300 |
| Maximum Torque |
526RW |
| Oil Capacity |
150 |
| Mounting Hardware Included |
Yes |
| Fuel Injector Type |
46 |
| Harmonic Balancer Diameter |
6.3 |
| Center Housing Cooling Type |
Intercooler |
| Finish |
Black Powder Coated |
| Maximum Pressure Reading |
6 |
| Tensioner Included |
Yes |
| Vehicle Model |
Charger |
| Quantity |
Kit |
| Universal Or Specific Fit |
Specific |
| Pulley Belt Width |
6-Rib |
| Internal Step Up |
Yes |
| Mounting Bracket Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Housing Material |
Cast Aluminum |
| Length |
32.0000 |
| Width |
44.0000 |
| Height |
44.0000 |
| Weight |
198.0000 |
