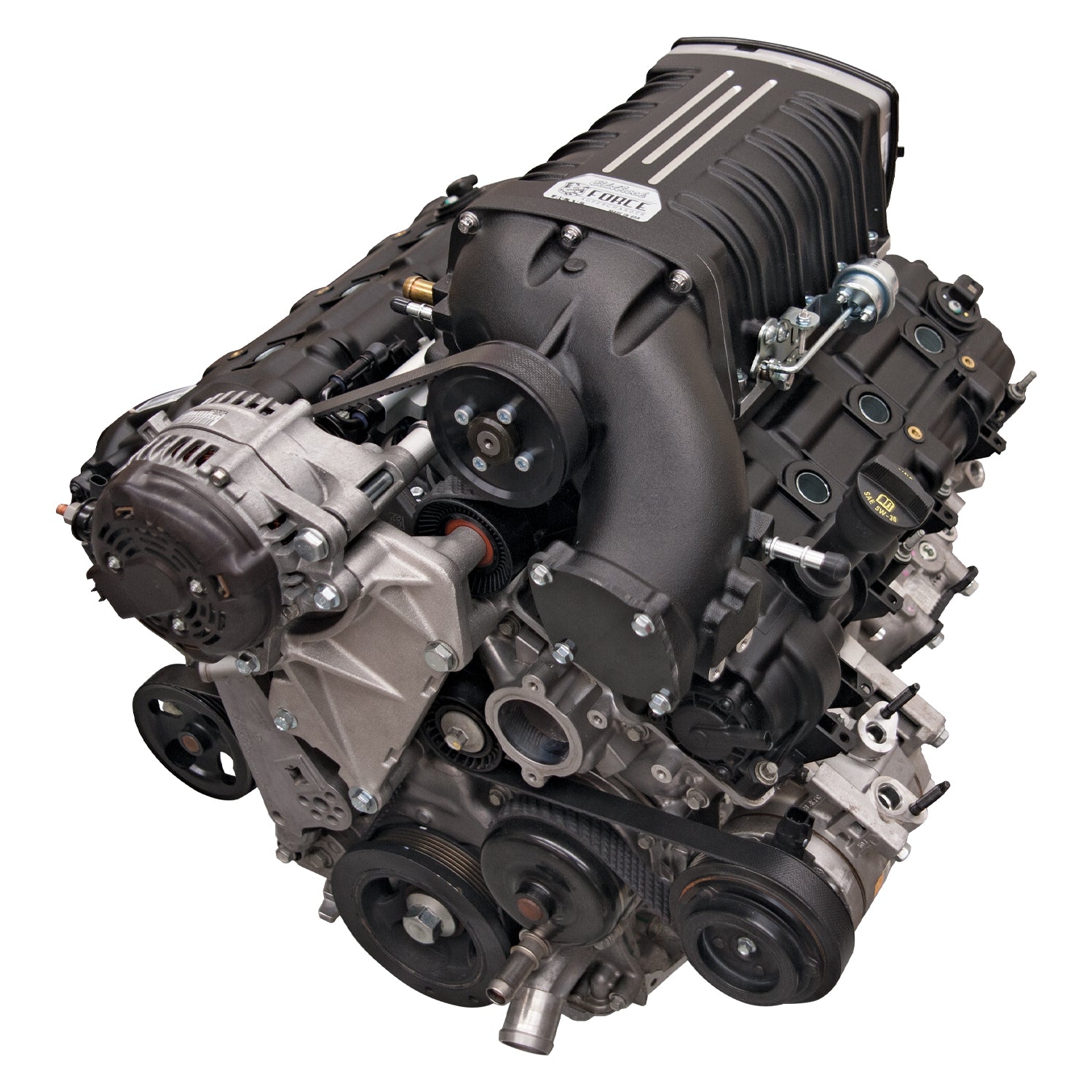

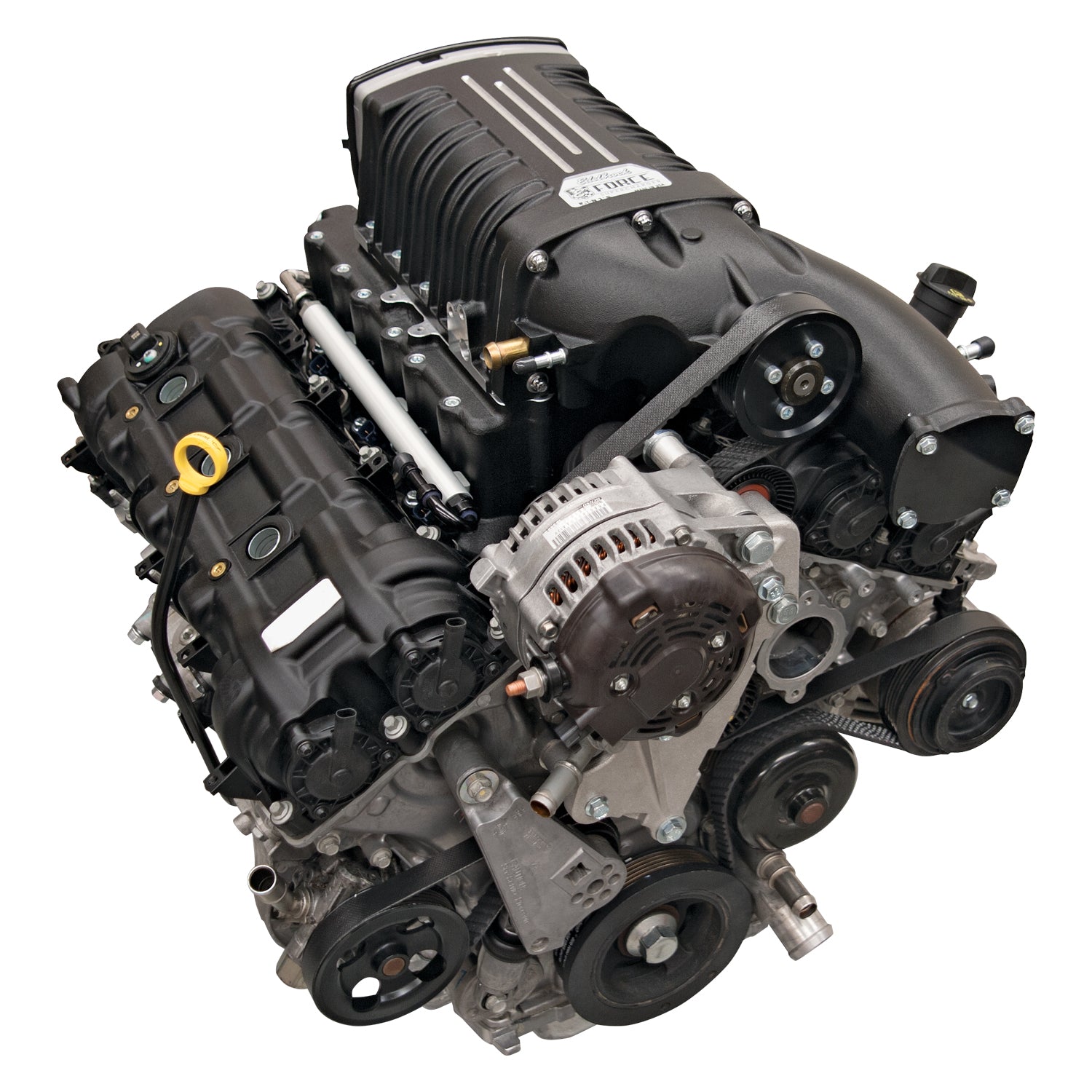

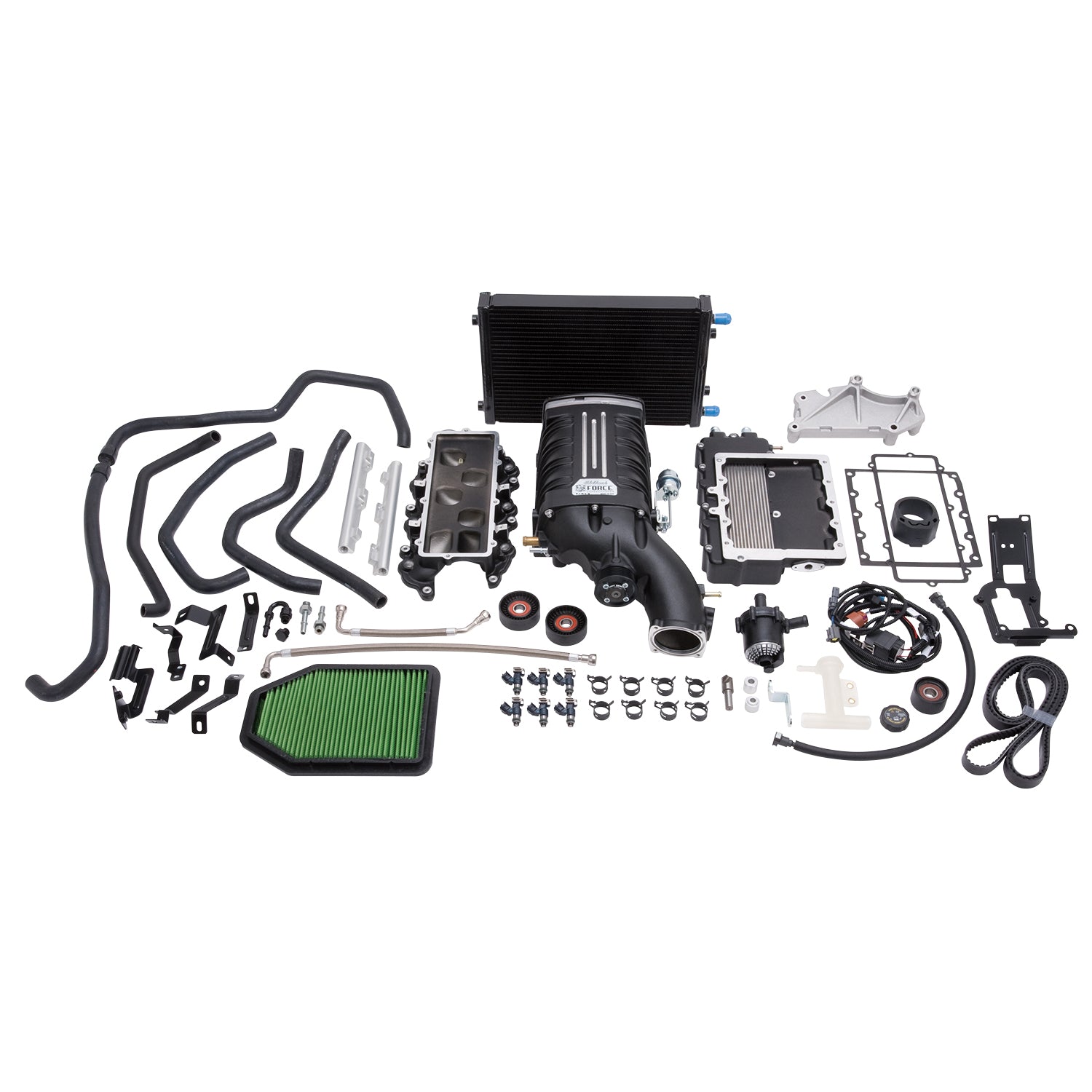

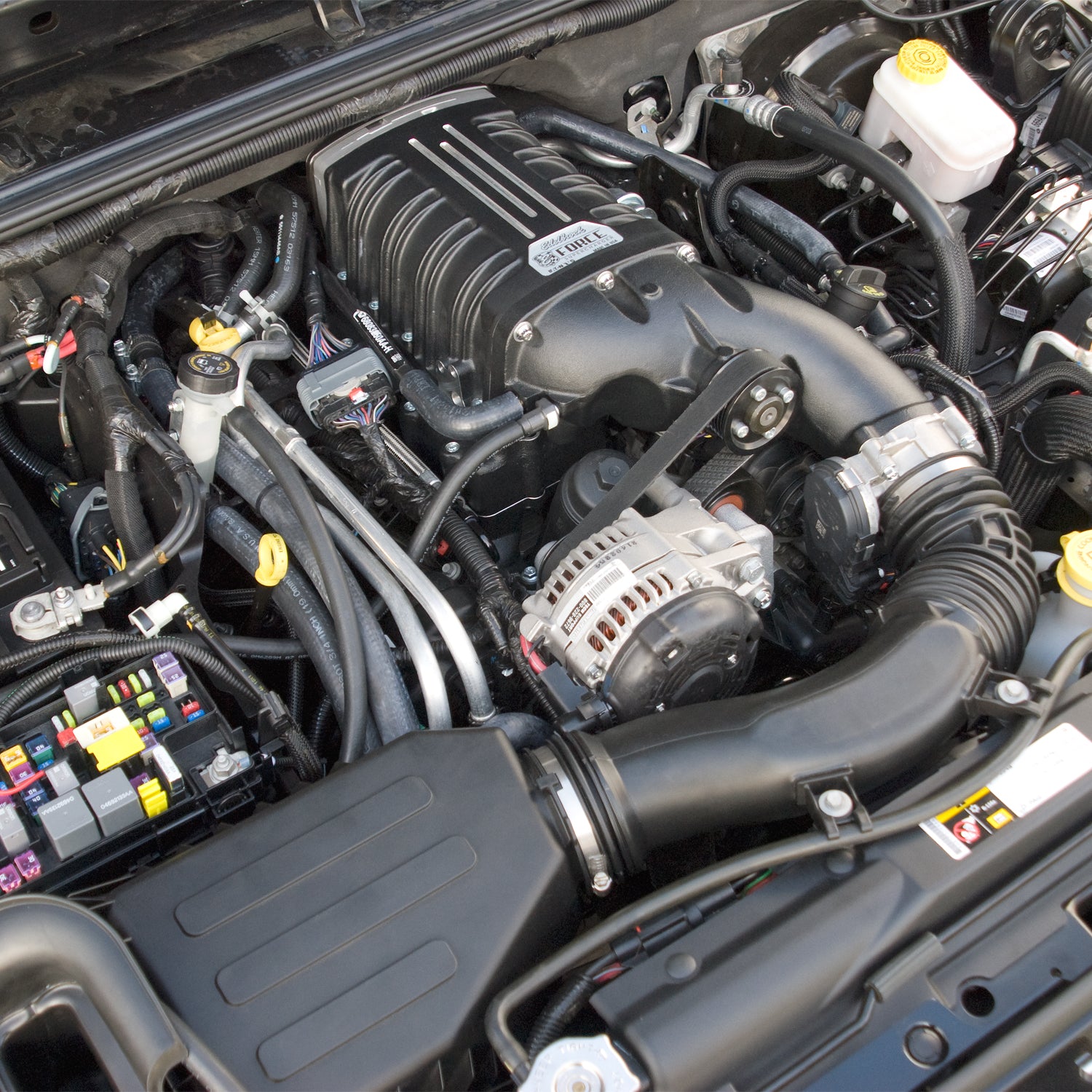

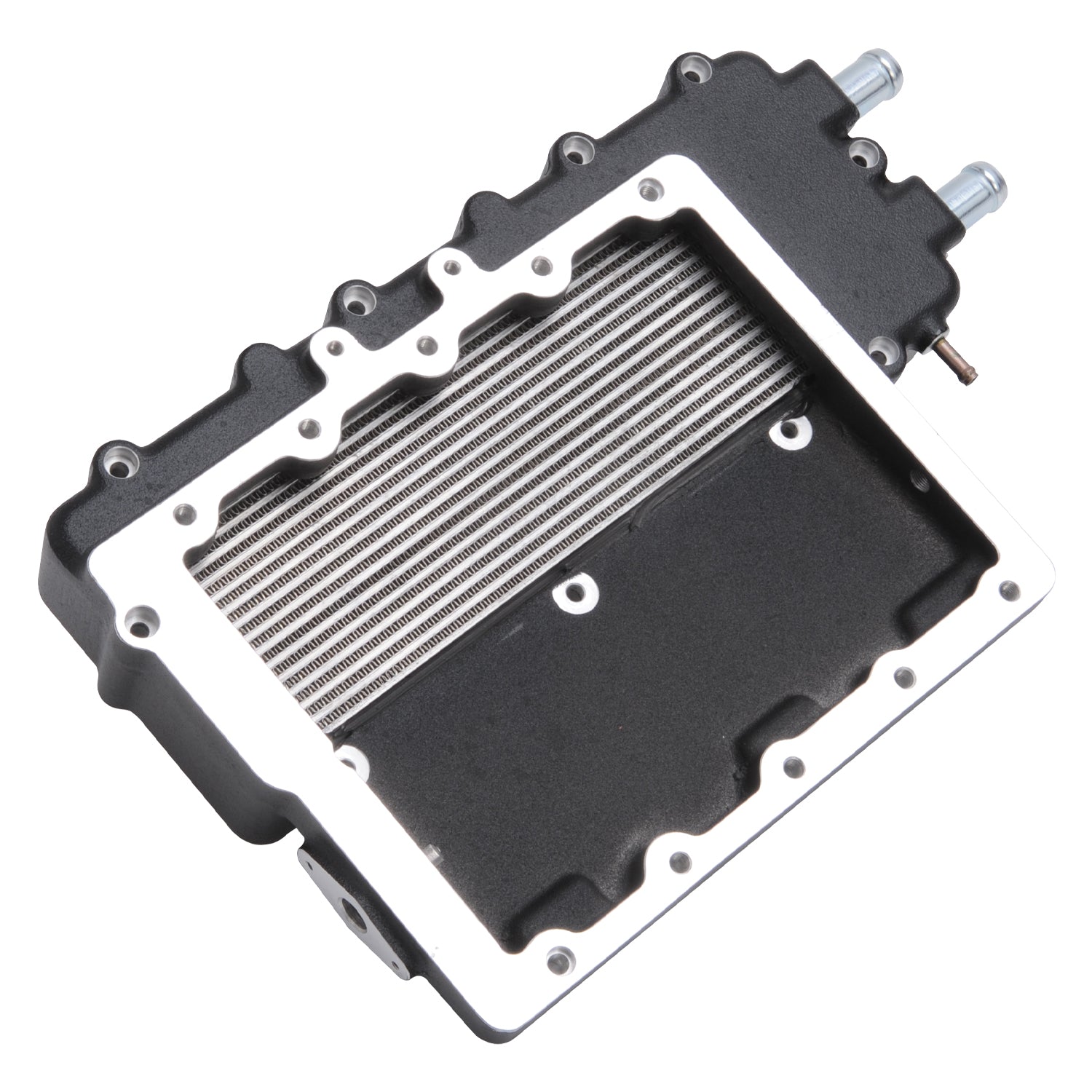

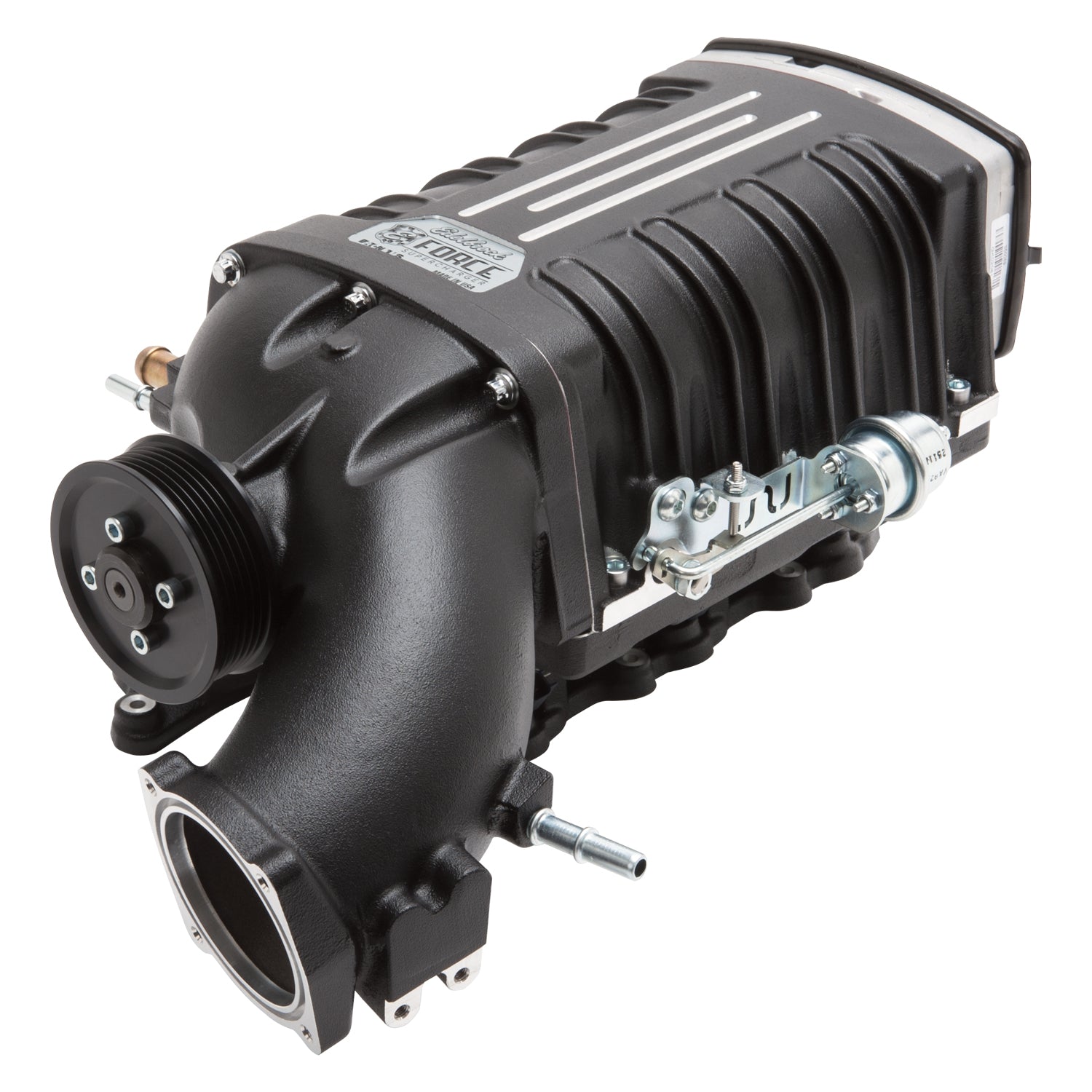

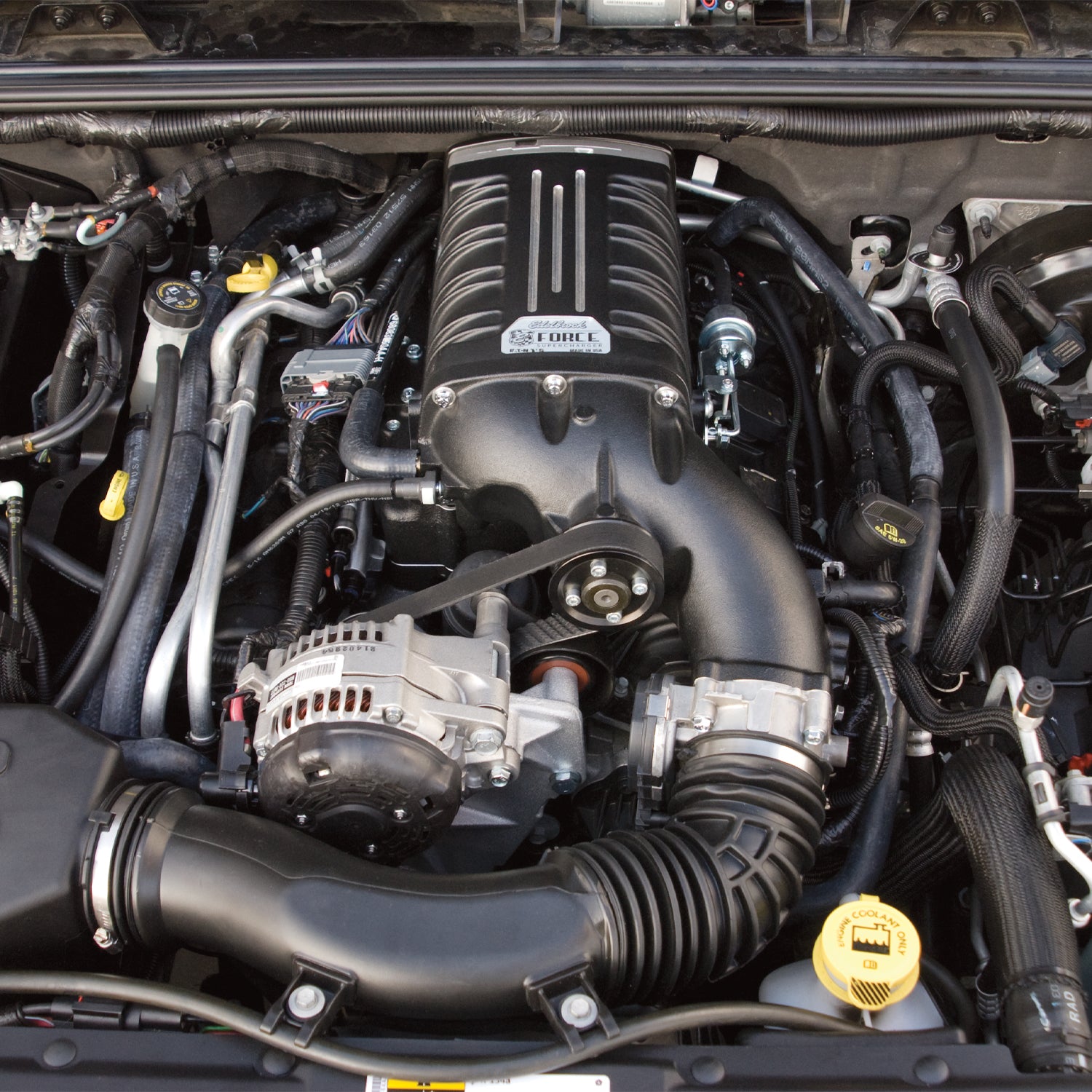

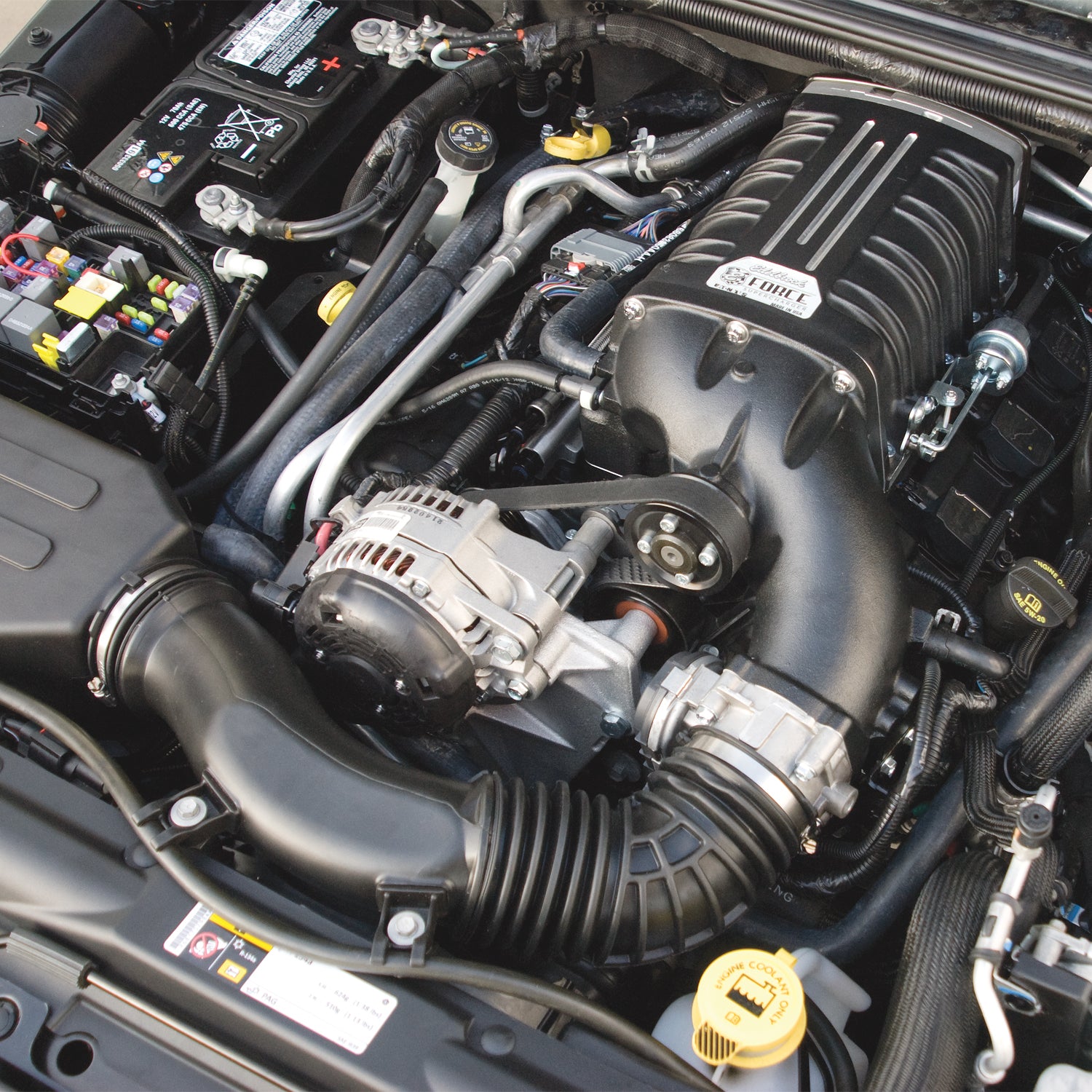

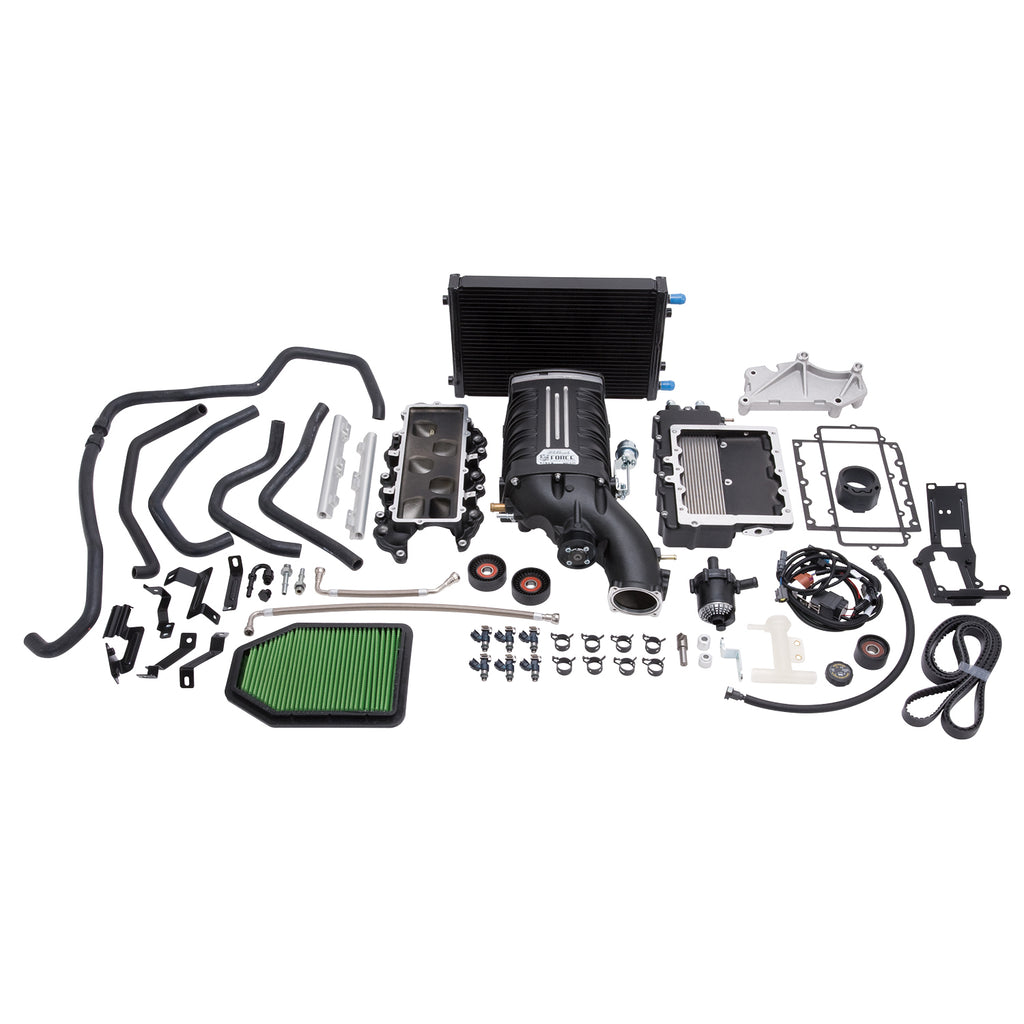

The Edelbrock Supercharger System Without Tuner #15270 is designed exclusively for the 2012-18 Jeep Wrangler JK featuring a unique design with minimal components that makes it possible to fit under the stock hood with no cutting or body modifications. At the core of this system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. Horsepower output is 317 at the wheel with 277 ft-lbs of RWTQ (manual transmission). This supercharger has an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. This system #15270 fits 2012-18 JK models but does not include the hand-held programmer or calibration. Complete systems with programmer and calibration are available under part number 1527 for the 2012-14 Jeep Wrangler, and part number 1528 for the 2015-18 Jeep Wrangler.
Specifications:
| Description_ABR |
SuperchrgrKt |
| Description_ASM |
Jeep:Pentastar V6:220 (3.6L) |
| Description_DEF |
Supercharger Kit |
| Description_EXT |
Edelbrock supercharger part #15270 Jeep Wrangler 2012-18 3.6L Supercharger systems delivers 303 RWHP and 262 ft-lbs (automatic) and 317 RWHP and 277 ft-lbs (manual) without tuners are not eligible for supplemental warranty |
| Description_INV |
Edelbrock supercharger #15270 |
| Description_MKT |
The Edelbrock Supercharger System Without Tuner #15270 is designed exclusively for the 2012-18 Jeep Wrangler JK featuring a unique design with minimal components that makes it possible to fit under the stock hood with no cutting or body modifications. At the core of this system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. Horsepower output is 317 at the wheel with 277 ft-lbs of RWTQ (manual transmission). This supercharger has an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. This system #15270 fits 2012-18 JK models but does not include the hand-held programmer or calibration. Complete systems with programmer and calibration are available under part number 1527 for the 2012-14 Jeep Wrangler, and part number 1528 for the 2015-18 Jeep Wrangler. |
| Description_LAB |
Edelbrock Stage 1 Supercharger #15270 For 2012-18 Jeep Wrangler JK 3.6L W/O Tune |
| Description_TRA |
Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting. |
| Description_TRA |
Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada. |
| Center Housing Cooling Type |
Intercooler |
| Calibration |
No |
| Outside Pulley Diameter |
2.625 |
| Oil Capacity |
125 |
| Universal Or Specific Fit |
Specific |
| Finish |
Black Powder Coated |
| Quantity |
Kit |
| Air Filter Included |
Yes |
| Housing Material |
Cast Aluminum |
| Pulley Belt Width |
6-Rib |
| Fuel Injector Type |
42 |
| Rotor Type |
Eaton TVS 1320 |
| Hose Included |
Yes |
| Mounting Bracket Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Gasket Or Seal Included |
Yes |
| Internal Step Up |
Yes |
| Vehicle Model |
Wrangler |
| System Type |
Stage 1 - Street System |
| Mounting Hardware Included |
Yes |
| Harmonic Balancer Diameter |
6.1 |
| Length |
18.0000 |
| Width |
26.0000 |
| Height |
33.0000 |
| Weight |
89.0000 |
