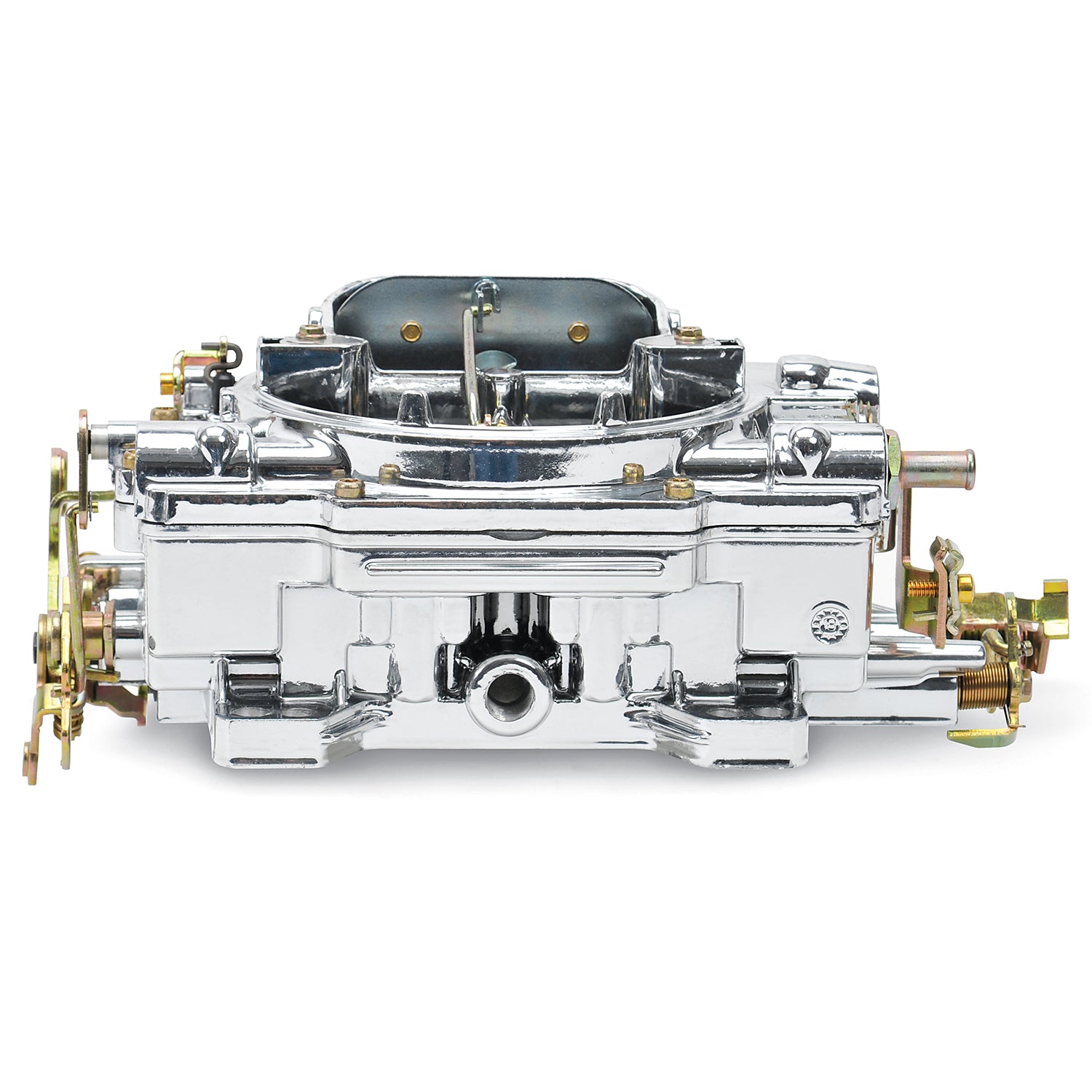

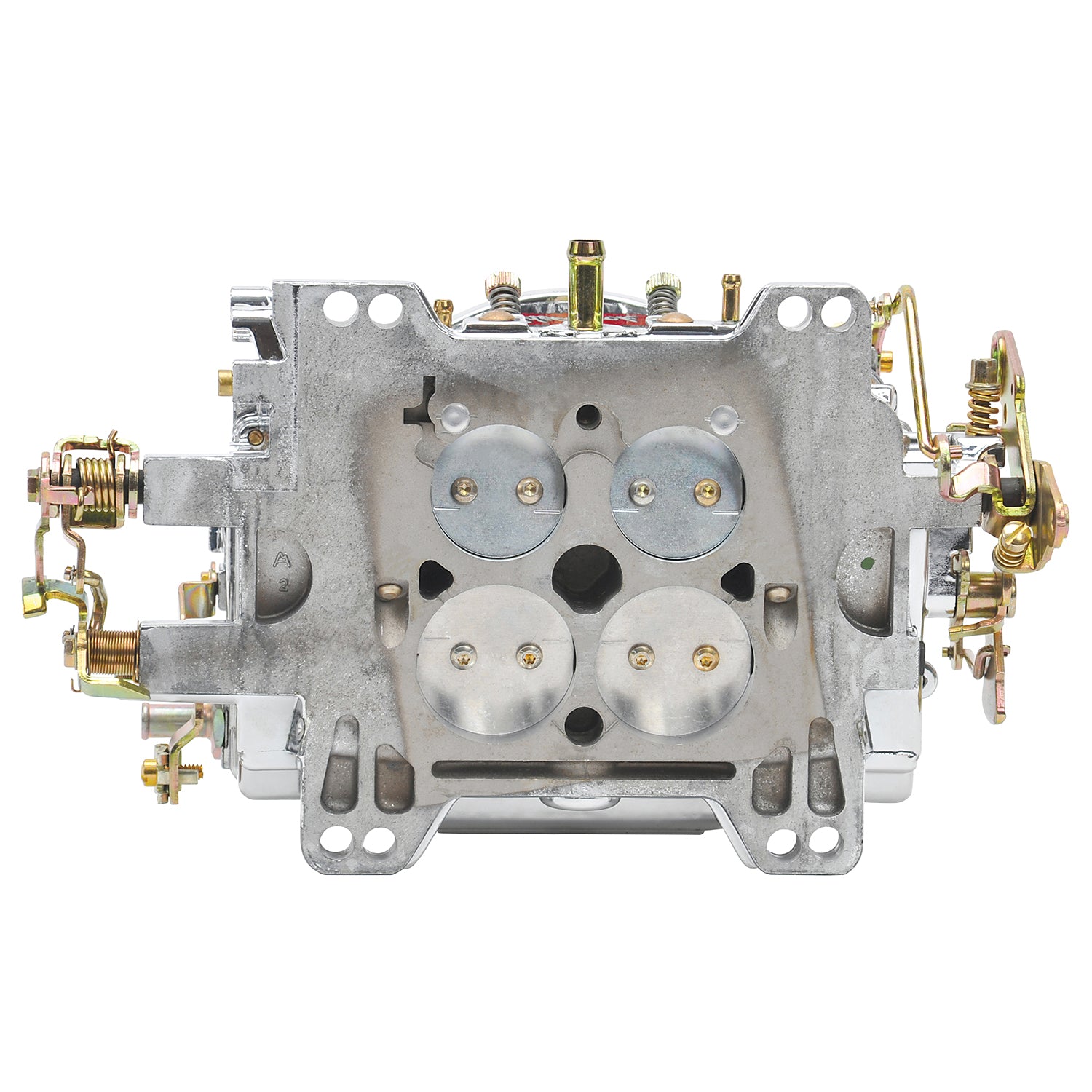

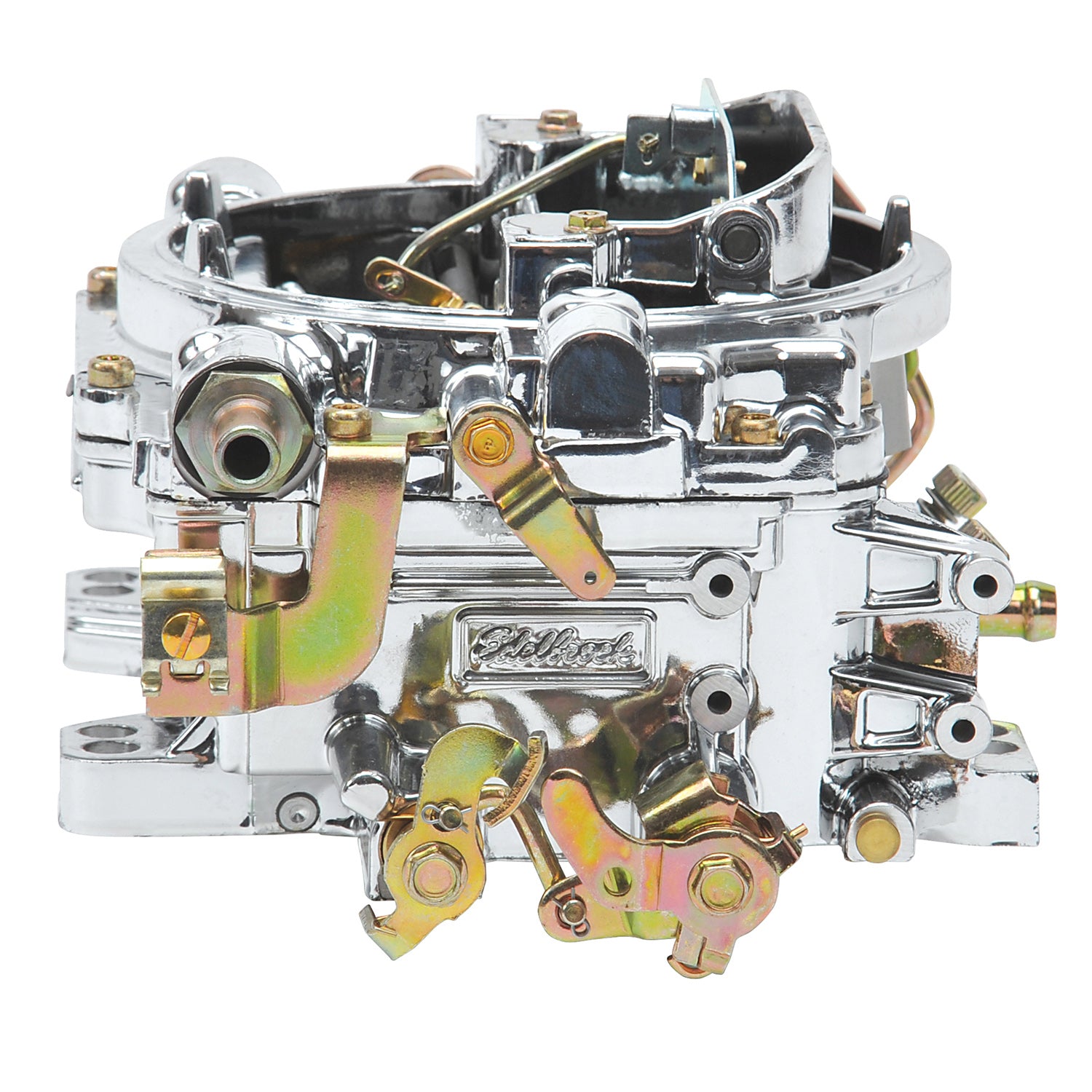

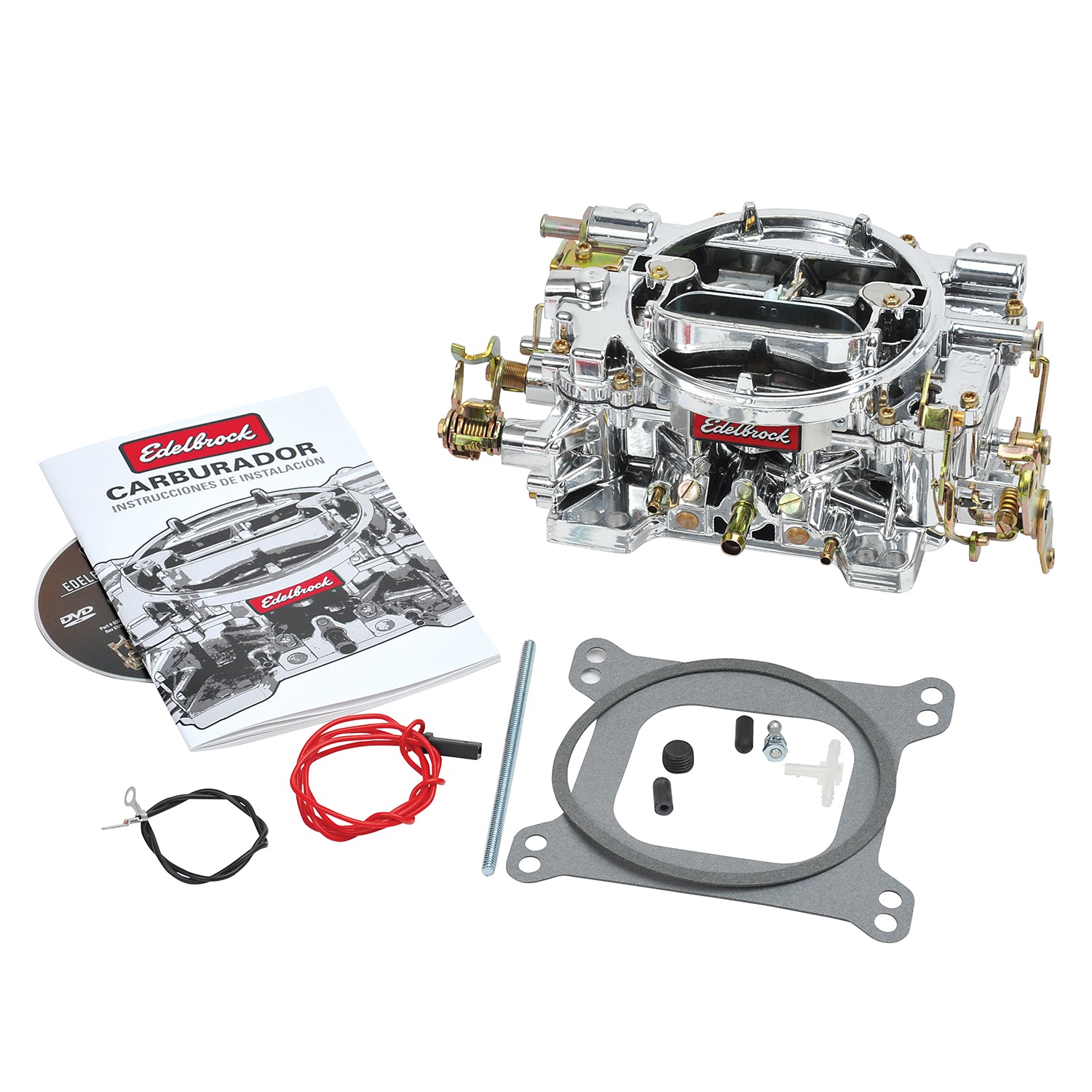

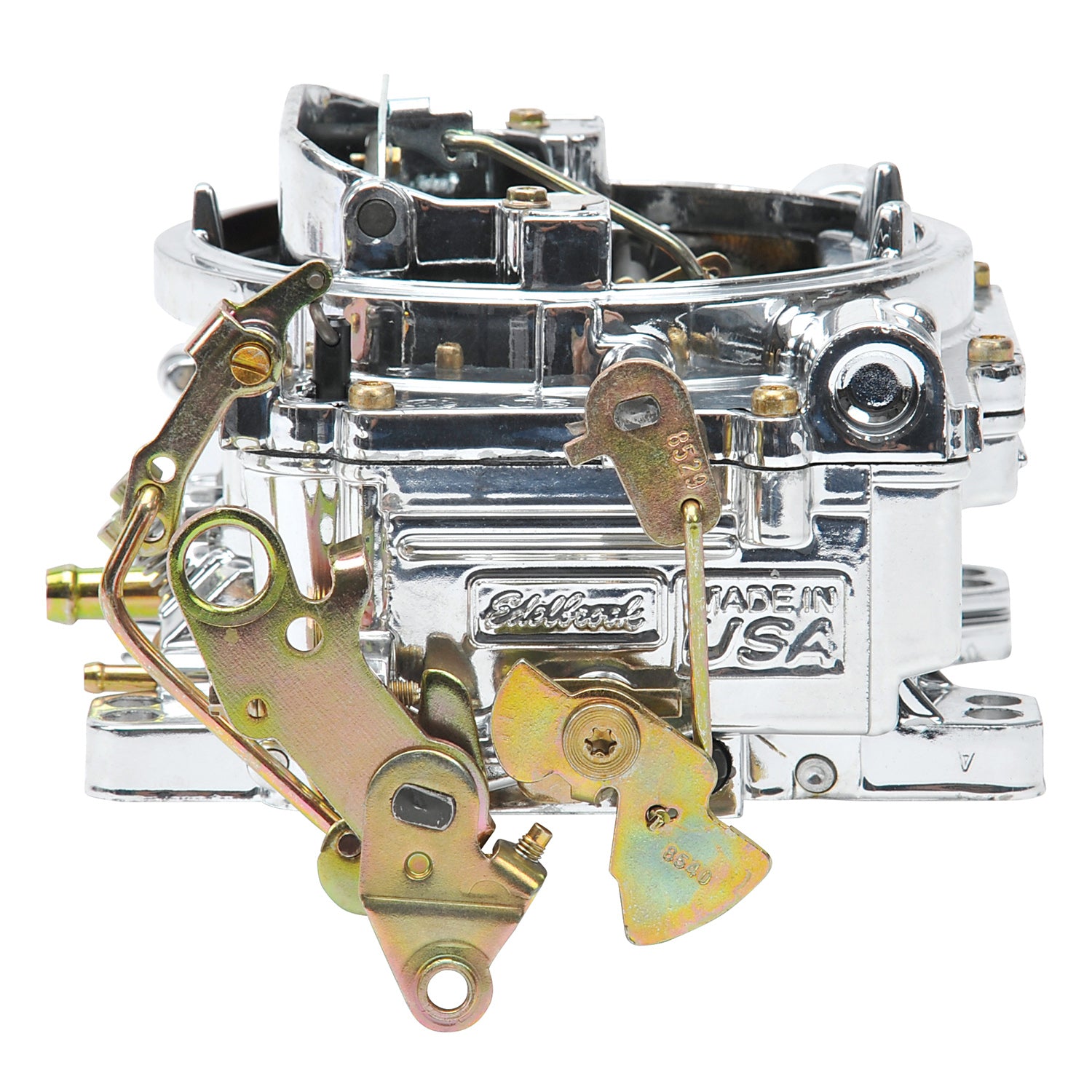

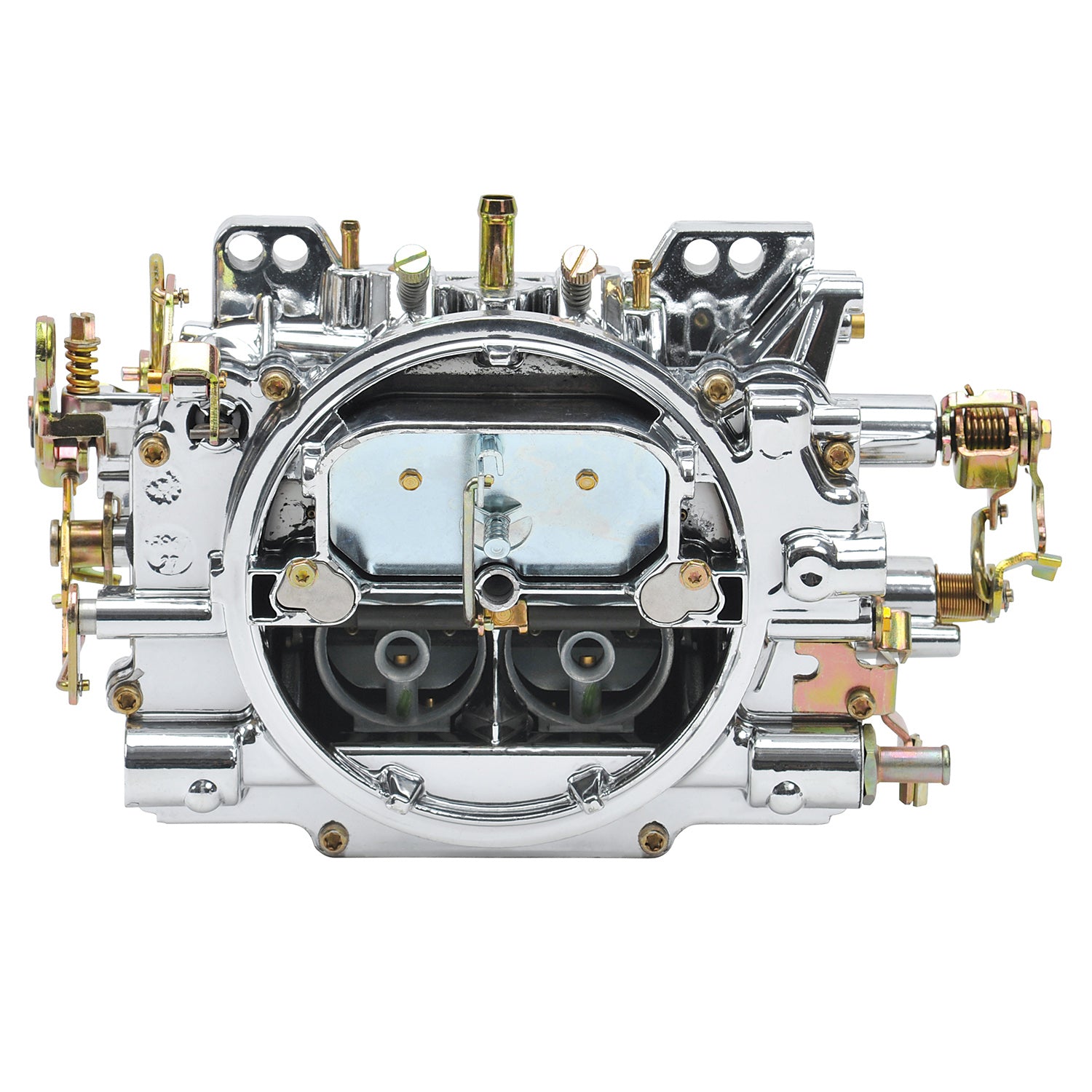

The Edelbrock 140549 Remanufactured Performer Series 600 CFM manual choke EnduraShine carburetor is a precisely tuned, quality-built carburetor that can handle the rigors of daily driving while delivering consistent, reliable street performance from day to day. Several characteristics make the 140549 Remanufactured Performer Series 600 CFM manual choke EnduraShine carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with gasohol and blended fuels. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for miles and miles of trouble-free operation.
Specifications:
| Description_ABR |
CARB |
| Description_DEF |
Carburetor |
| Description_LAB |
Reman Performer Carb #140549 600 CFM W/ Manual Choke, EnduraShine (Non-EGR) |
| Description_INV |
Reman Edelbrock Performer 600 CFMCarb |
| Description_EXT |
Edelbrock Remanufactured Performer Series 600 cfm, Square-Flange, Manual Choke Carburetor (non-EGR) |
| Description_MKT |
The Edelbrock 140549 Remanufactured Performer Series 600 CFM manual choke EnduraShine carburetor is a precisely tuned, quality-built carburetor that can handle the rigors of daily driving while delivering consistent, reliable street performance from day to day. Several characteristics make the 140549 Remanufactured Performer Series 600 CFM manual choke EnduraShine carburetor an outstanding street performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that resists warping and is compatible with gasohol and blended fuels. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for miles and miles of trouble-free operation. |
| Description_TRA |
Electric choke #1478 can be added if needed |
| Description_TRA |
Recommended cubic inch displacement for big block dual quad applications is 396-502+ c.i.d. |
| Description_TRA |
Performer Series Carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000 |
| Description_TRA |
Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. |
| Description_TRA |
The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor |
| Flange Shape |
Square Bore |
| Maximum Flow Rating |
600 |
| Primary Jet Diameter |
0.100 |
| EGR Port |
No |
| Barrel Quantity |
4 |
| Air Cleaner Flange Diameter |
5.125 |
| Mounting Hole Diameter |
0.355 |
| Grade Type |
Performance |
| Main Venturi Diameter |
1.190 |
| Base Length |
6.25 |
| Finish |
EnduraShine |
| Body Material |
Aluminum |
| Inlet Fitting Thread Diameter |
0.625 |
| Base Width |
5.937 |
| Metering Rod Power Tip Diameter |
0.047 |
| Spacer Included |
No |
| Street Legal |
No |
| Body Height |
3.25 |
| Center Hung Floats |
No |
| Metering Rod Length |
3.15 |
| Gasket Or Seal Included |
Yes |
| Choke Type |
Manual |
| Small Venturi Diameter |
1.560 |
| Adjustable Float Level |
No |
| Float Level |
0.437 |
| Float Material |
Brass |
| Marine Approved |
No |
| Mounting Hole Quantity |
8 |
| Float Drop |
1.0 |
| RGL |
WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Secondary Jet Diameter |
0.095 |
| Linkage Attached |
No |
| Mounting Hardware Included |
No |
| Length |
7.0000 |
| Width |
7.0000 |
| Height |
13.0000 |
| Weight |
9.0000 |
