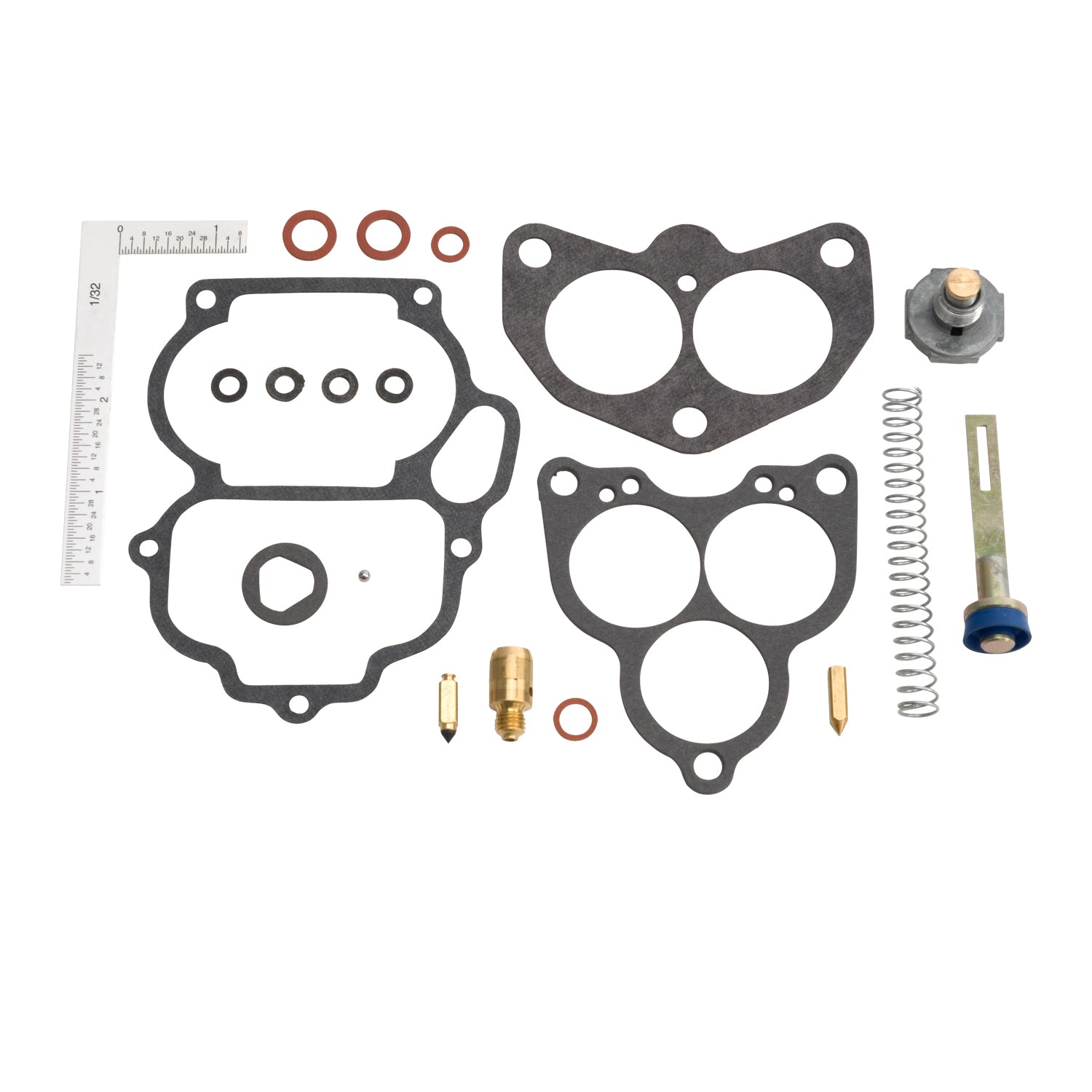

The Edelbrock #1154 Rebuild kit has everything needed to rebuild any Edelbrock 94 carburetor. Includes fuel inlet seat, fuel inlet needle, accelerator pump assembly, accelerator pump spring, accelerator check ball, check ball retainer, power valve assembly, float gauge and all necessary gaskets
Specifications:
| Description_ABR |
CARB KIT |
| Description_DEF |
Carburetor Repair Kit |
| Description_EXT |
Edelbrock 94 Carburetor Rebuild Kit |
| Description_INV |
Carb Rebuild Kit |
| Description_MKT |
The Edelbrock #1154 Rebuild kit has everything needed to rebuild any Edelbrock 94 carburetor. Includes fuel inlet seat, fuel inlet needle, accelerator pump assembly, accelerator pump spring, accelerator check ball, check ball retainer, power valve assembly, float gauge and all necessary gaskets |
| Description_LAB |
Carburetor Rebuild Kit for Edelbrock 94 Carburetors |
| Description_TRA |
FLOAT LEVEL |
| Description_TRA |
With the air horn assembly inverted and the weight of the float resting on a fully seated needle, there should be roughly 1-13/32" between the bottom of the float and the bowl cover gasket surface (not the gasket itself). To adjust, bend the float lever. CAUTION! DO NOT PRESS NEEDLE INTO SEAT WHEN ADJUSTING FLOAT LEVER. |
| Description_TRA |
FLOAT DROP |
| Description_TRA |
With the air horn held in an upright position, adjust the stop tab on the float bracket to achieve approximately |
| Description_TRA |
1-3/4" between the bottom of the float and the bowl cover gasket surface. To adjust, bend the tab on float lever |
| Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Accelerator Pump Included |
Yes |
| Barrel Quantity |
2 |
| Float Included |
No |
| Length |
2.0000 |
| Width |
7.0000 |
| Height |
8.0000 |
