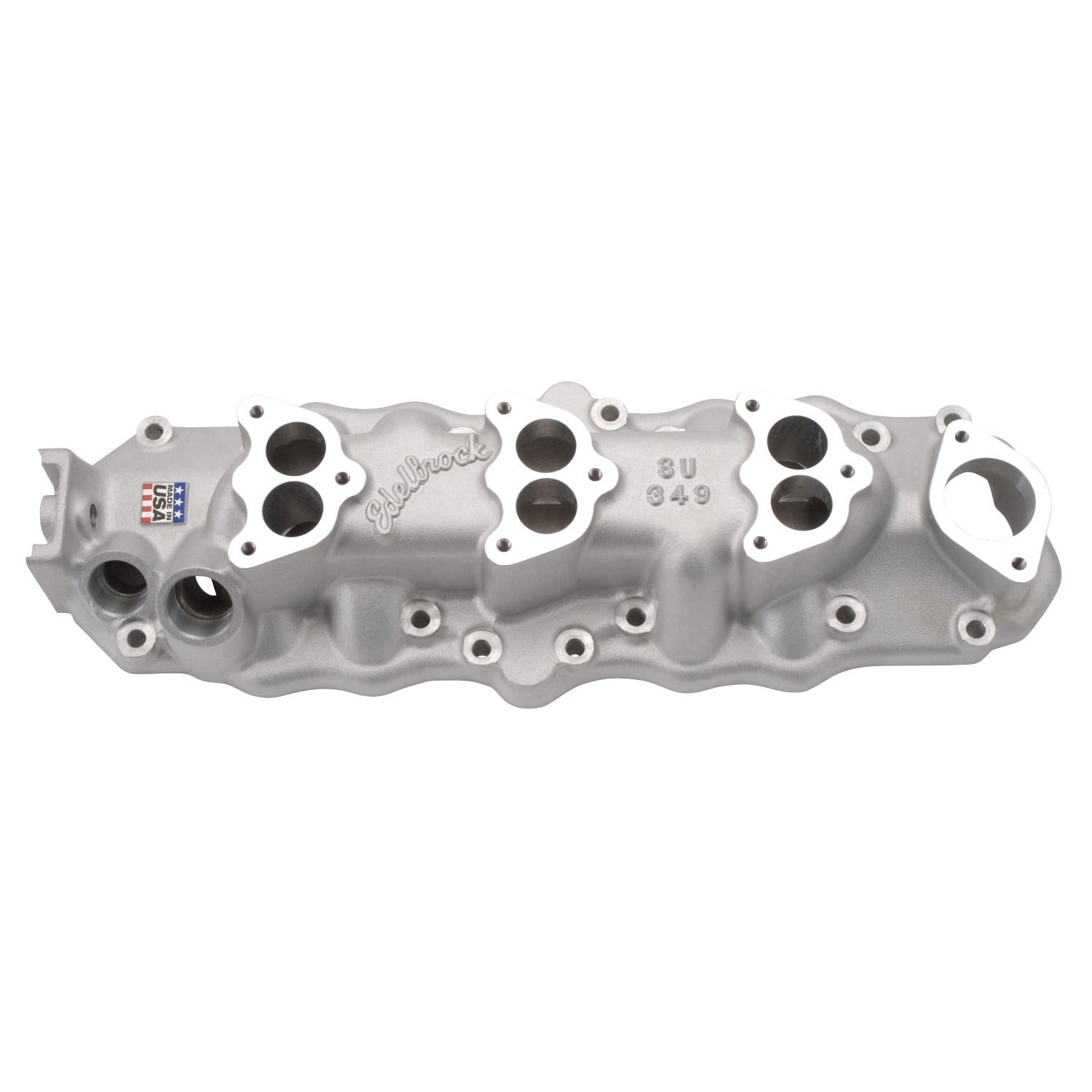

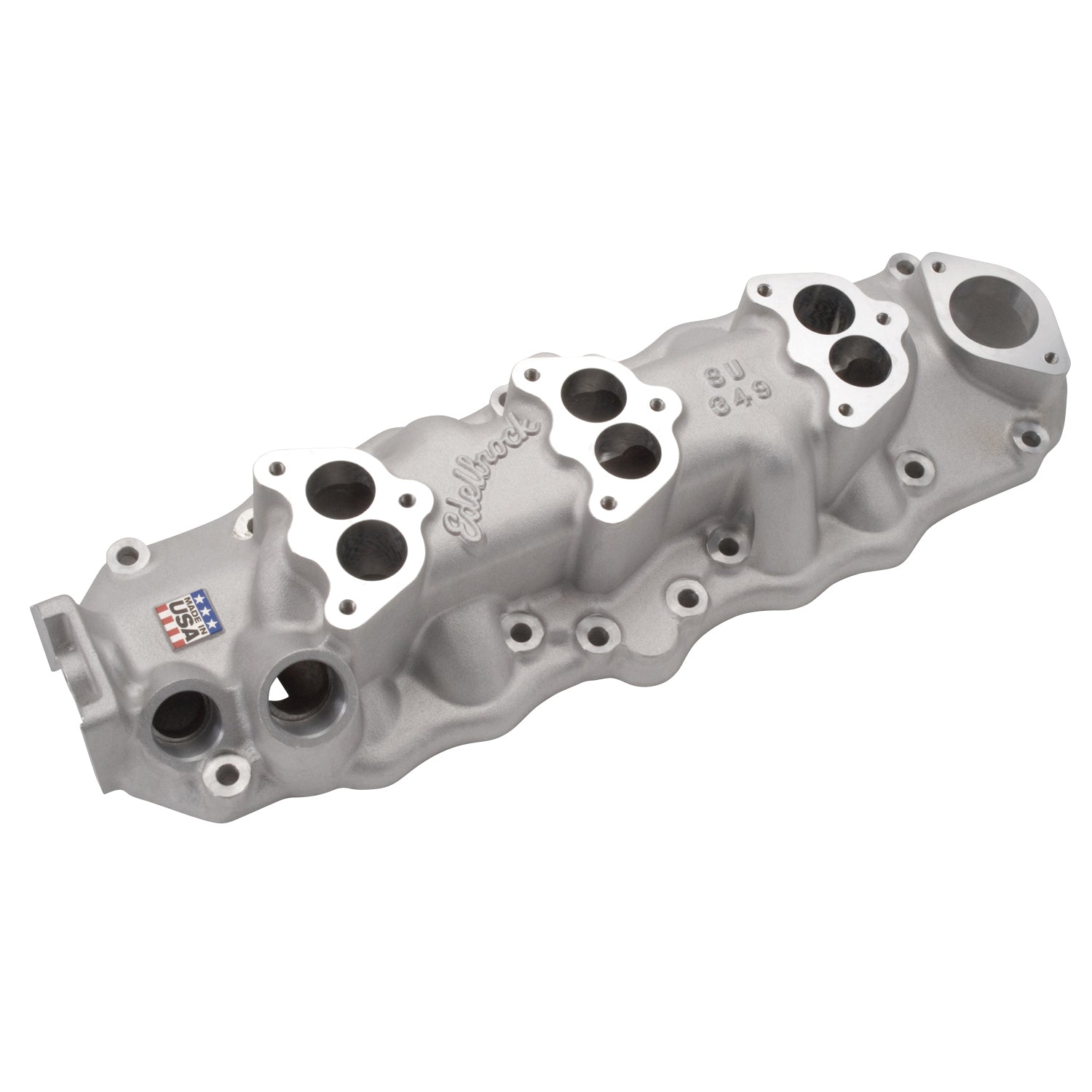

Edelbrock part #1109 Triple Deuce intake manifold is a reproduction of the vintage Edelbrock manifold #SU 349 allow the use of three 2-barrel carburetors on 1949-1953 Ford Flathead engines. #1109 features front road draft and 1-3/8" diameter oil fill bosses and a raised fuel pump boss. The Edelbrock Triple Deuce #1109 intake manifold accepts, Stromberg 3-bolt (97 type), Holley 3-bolt and Demon 98 carburetors.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Flathead:239 (3.6L)/255 (4.2L) |
| Description_ASM |
Mercury:Flathead:239 (3.6L)/255 (4.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Triple Deuce Intake Manifold for 1949 to 1953 Ford/Mercury Flathead V8 allows the use of Three, 3-bolt / 2-Barrel Carburetors on a Late Flathead Engines. Features added front oil fill, road draft bosses, & raised fuel pump boss. |
| Description_LAB |
Triple Deuce Intake Manifold for 1949-53 Ford Flathead, Satin Finish |
| Description_MKT |
Edelbrock part #1109 Triple Deuce intake manifold is a reproduction of the vintage Edelbrock manifold #SU 349 allow the use of three 2-barrel carburetors on 1949-1953 Ford Flathead engines. #1109 features front road draft and 1-3/8" diameter oil fill bosses and a raised fuel pump boss. The Edelbrock Triple Deuce #1109 intake manifold accepts, Stromberg 3-bolt (97 type), Holley 3-bolt and Demon 98 carburetors. |
| Description_INV |
Triple Deuce Flathead Manifold 1949-53 |
| Description_TRA |
Recommended intake gasket: Edelbrock #7234 or Fel-Pro #MS2853 |
| Description_TRA |
Carb recommendations: 94 or 97 2-Bbl with 3-bolt flange |
| Description_TRA |
Use Edelbrock progressive linkage kit #1033 or non-progressive kit #1034 |
| Description_TRA |
Use Edelbrock carb stud kit #8006 |
| Description_TRA |
Use Edelbrock generator stud kit #8506 |
| Description_TRA |
Manifold height: A-3.66", B-3.66 |
| Description_TRA |
Port exit dimensions: 1.3" x 1.7" |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Series |
Dual-Quad/Multi Carb |
| CNC Ported |
No |
| Material |
Aluminum |
| Grade Type |
Performance |
| EGR Port |
No |
| Flange Type |
2-Barrel 3-Bolt |
| Rear Maximum Height |
3.660 |
| Finish |
Satin |
| Single Or Dual Plane Type |
Dual |
| Center Maximum Height |
3.660 |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Ford |
| Front Maximum Height |
3.660 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
14.0000 |
