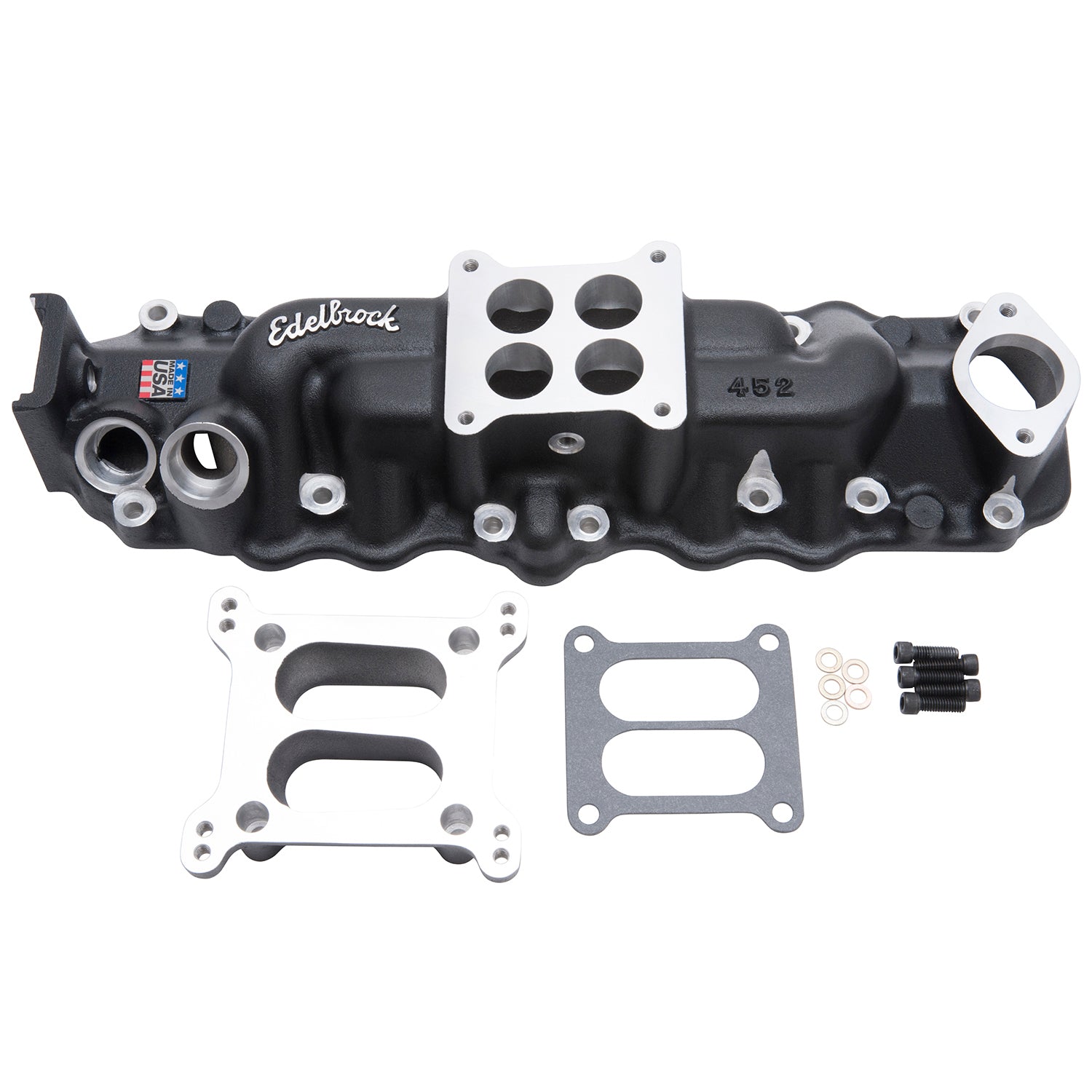

Edelbrock part #11073 Ford Flathead 4-barrel intake manifold for 1949-53 engines. This intake manifold allows the use of square-bore carbs such as the Edelbrock Performer Series or Thunder Series AVS 500. This is a reproduction of the vintage Edelbrock #452 two-piece manifold with a new carb adapter flange. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Flathead:239 (3.6L)/255 (4.2L) |
| Description_ASM |
Mercury:Flathead:239 (3.6L)/255 (4.2L) |
| Description_DEF |
Engine Intake Manifold |
| Description_LAB |
Ford Flathead 4-Barrel Int. Manifold, 1949-53, Black Finish |
| Description_EXT |
Edelbrock 4-Barrel Intake Manifold for 1949 to 1953 Ford/Mercury Flathead V8 |
| Description_INV |
Black 4-Barrel Flathead Manifold |
| Description_MKT |
Edelbrock part #11073 Ford Flathead 4-barrel intake manifold for 1949-53 engines. This intake manifold allows the use of square-bore carbs such as the Edelbrock Performer Series or Thunder Series AVS 500. This is a reproduction of the vintage Edelbrock #452 two-piece manifold with a new carb adapter flange. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. |
| Description_TRA |
Recommended intake gasket: Edelbrock #7234 or Fel-Pro #MS2853 |
| Description_TRA |
Manifold height: A-4.06", B-6.06" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2, Performer or Thunder Series AVS 500 cfm |
| Description_TRA |
Port exit dimensions: 1.3" x 1.7" |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
5.060 |
| CNC Ported |
No |
| Finish |
Black Powder Coated |
| Material |
Aluminum |
| Front Maximum Height |
4.060 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Grade Type |
Performance |
| Single Or Dual Plane Type |
Dual Plane |
| Rear Maximum Height |
6.060 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
15.0000 |
