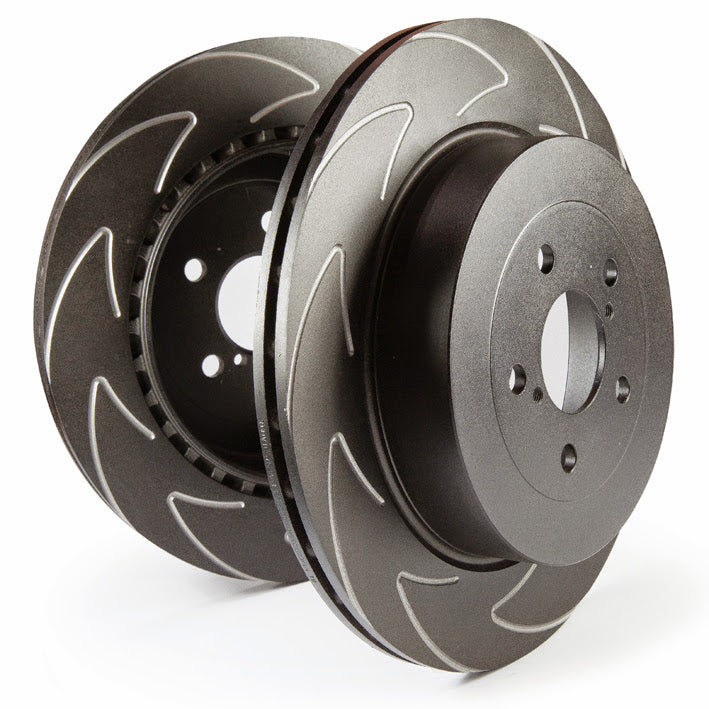

EBC's BSD rotors feature a 'V' pattern which improves heat dispersion and helps the pads run cooler on average over OE style rotors. BSD rotors are a perfect addition to any vehicle looking to add performance and style to any vehicle.
Specifications:
Description_DEF |
Disc Brake Rotor |
Description_EXT |
BSD Series Sport Rotor w/Ultra Quiet V Slot Configuration; Front; For FMSI Pad No. D804; Vented; 5 Bolt Holes; 276mm Dia.; 47mm Height; 26mm Thick; 71.1mm Center Hole Dia.; |
Description_DES |
BSD Series Sport Rotor w/Ultra Quiet V Slot Configuration |
Description_MKT |
EBC's BSD rotors feature a 'V' pattern which improves heat dispersion and helps the pads run cooler on average over OE style rotors. BSD rotors are a perfect addition to any vehicle looking to add performance and style to any vehicle. |
Description_FAB |
High Carbon Thermally Stable |
Description_FAB |
New Vee Slot Design |
Description_FAB |
Silent Slot Pattern |
Description_SHO |
Disc Brake Rotor |
Solid or Vented |
V |
Height - MM |
47 |
WARNING CA Proposition 65 |
No |
Number of Bolt Holes/Studs |
5 |
Rotor Diameter - MM |
276 |
Minimum Thickness - MM |
25 |
Title |
BSD V Slotted Rotors |
Center Hole Diameter - MM |
71.1 |
PCD - MM |
114.3 |
New Thickness - MM |
26 |
Position |
Front |
Style |
OE |
Length |
7.0000 |
Width |
13.0000 |
Height |
13.0000 |
Weight |
30.0000 |
