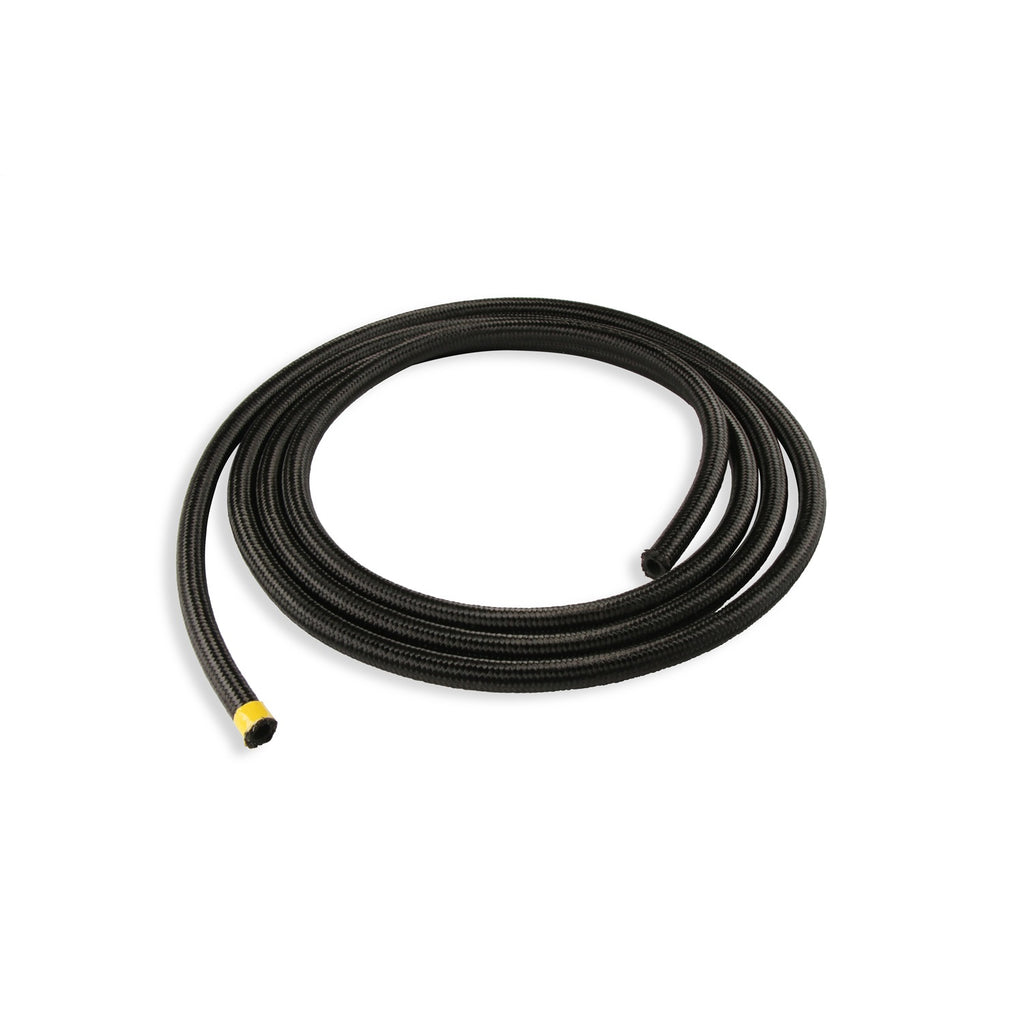

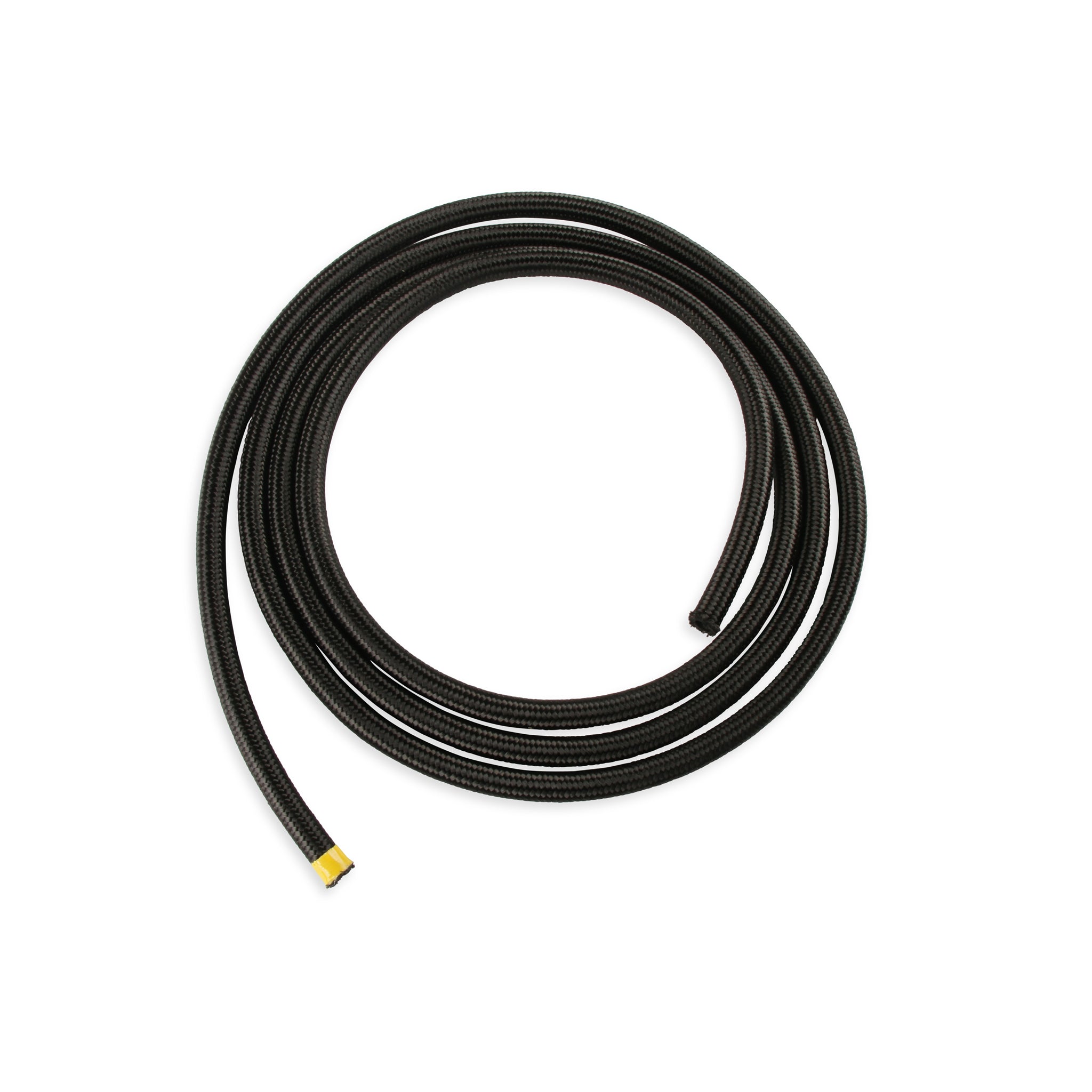

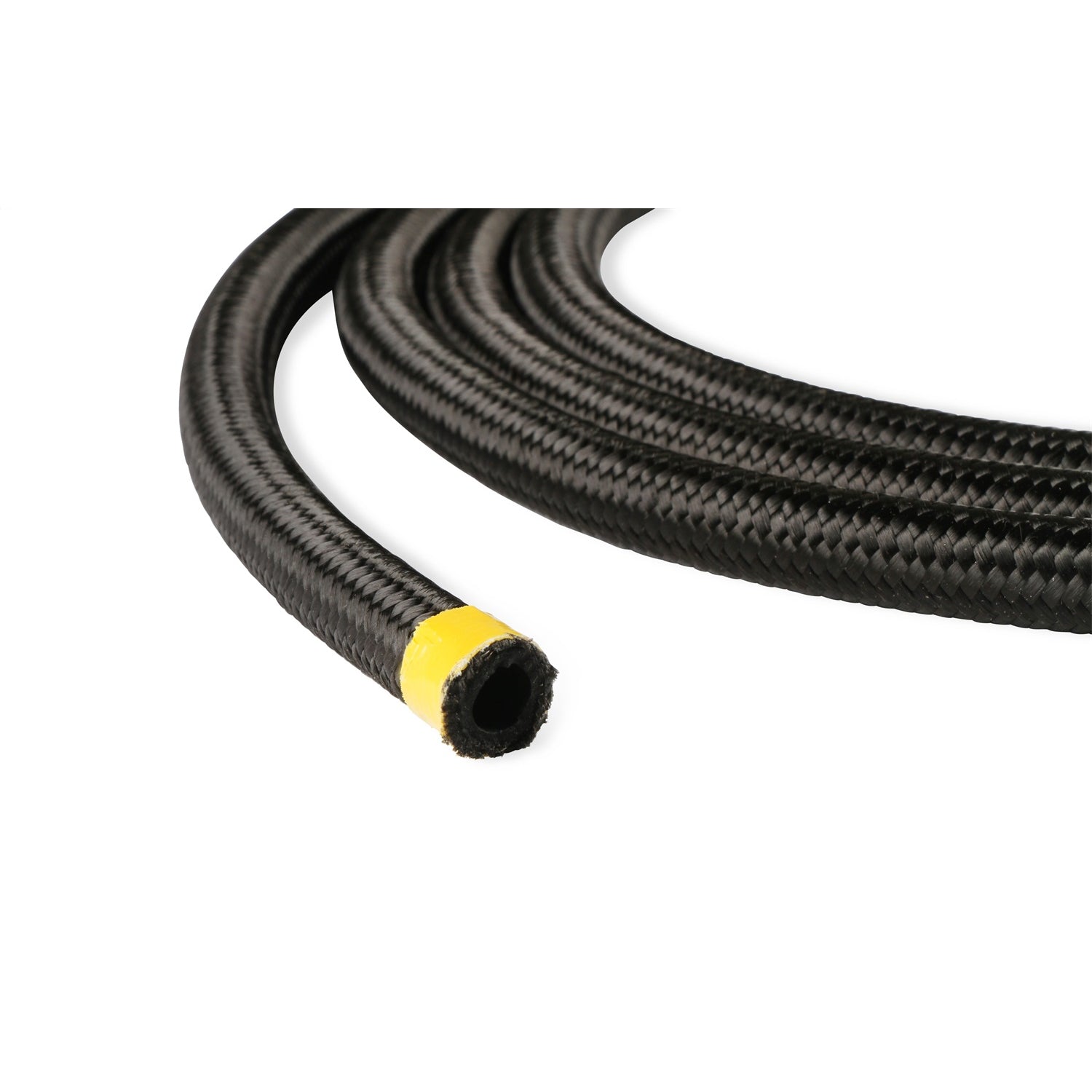

Introducing Pro-Lite 390 (TM) from Earl's! A perfect mix of Stainless under braid and fabric outer braid and 100% constructed in the USA. Pro-Lite 390 consists of an inner tube of oil resistant "PKR" synthetic rubber. A partial coverage stainless wire inner braid and an oil, weather, and abrasion resistant, black, entangled filament nylon fiber cover. This added stainless braid under the cover and over the liner, adds additional hoop strength for higher pressure ratings and added strength for tight radius applications. It also adds needed strength for high suction and vacuum conditions. Much more durable for extreme uses over Pro Lite 350 which does not have the inner stainless braid. For use with Swivel Seal, Auto Crimp, and Auto Fit hose ends.
Specifications:
| Description_DEF |
Fuel Hose |
| Description_DES |
Earl's Pro-Lite 390 Hose - Size 6 - 6 Ft. Length |
| Description_INV |
-6 PRO-LITE 390 HOSE 6 FT |
| Description_EXT |
Lightweight Tough Nylon Covered High Pressure Hose. Easy to Cut and Assemble. Accepts Swivel-Seal, Auto-Crimp & Auto-Fit Hose Ends. |
| Description_KEY |
earls; pro-lite 350 hose; hose; plumbing; goodridge; xrp; aeroquip; fragola |
| Description_FAB |
In recent years various fuel manufacturers may have added any number of new unpublished additives to their blends. It is therefore very difficult to know how the tube compound used in the inner liner of our Pro-Lite Ultra (TM) or any other brand of elastomeri |
| Description_MKT |
Introducing Pro-Lite 390 (TM) from Earl's! A perfect mix of Stainless under braid and fabric outer braid and 100% constructed in the USA. Pro-Lite 390 consists of an inner tube of oil resistant "PKR" synthetic rubber. A partial coverage stainless wire inner braid and an oil, weather, and abrasion resistant, black, entangled filament nylon fiber cover. This added stainless braid under the cover and over the liner, adds additional hoop strength for higher pressure ratings and added strength for tight radius applications. It also adds needed strength for high suction and vacuum conditions. Much more durable for extreme uses over Pro Lite 350 which does not have the inner stainless braid. For use with Swivel Seal, Auto Crimp, and Auto Fit hose ends. |
| Description_SHO |
Hose |
| Minimum Bend Radius |
2.250 in. |
| Compatible Hose End |
Auto-Crimp |
| Material |
Braided Stainless Steel |
| Color |
Black |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Hose Ends |
Auto-Crimp, Auto-Fit, Econ-O-Fit, Swivel-Seal |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Hose Family |
Pro-Lite 390 |
| Max Working PSI |
500 PSI |
| Inside Diameter |
0.350 in. |
| Maximum Working PSI |
500 |
| Outside Diameter |
0.550 in. |
| Temperature |
-40-350 degrees F |
| WARNING CA Proposition 65 |
Yes |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
1 out of 5 Rating |
| Hose Length |
6 Feet |
| Hose Size |
6 AN |
| Min. Bend Radius |
2.25" |
| Product Type |
Hose |
| Hose Outer Material |
Black Nylon |
| Product Length |
6 ft. |
| Size |
6AN |
| Submersible in Fuel |
No |
| Vacuum |
0-27 in. Hg |
| Brand |
Earl's |
| Emission Code |
5 |
| Fluid Type Rating - Diesel |
2 out of 5 Rating |
| Fluid Type Rating - E85 |
2 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
2 out of 5 Rating |
| Fluid Type Rating - Race Gas |
3 out of 5 Rating |
| Fluid Type Rating - Vacuum |
1 out of 5 Rating |
| Max Vacuum |
27 in Hg |
| Temperature Range |
-40 degrees to 350 degrees F |
| Warning |
California Proposition 65 |
| Fluid Type |
Automatic Transmission Fluid, Coolant, Oil, Race Gas |
| Length |
2.0000 |
| Width |
14.0000 |
| Height |
14.0000 |
| Weight |
1.0000 |
