| Description_ASC |
*Pump gas compatible for intermittent or under 90 degree ambient temperature use
Pump gas use recommendations:
ΓÇó This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees
ΓÇó For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-1200-2 or 12-1600-2 for optimum hot fuel handling
ΓÇó Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.
ΓÇó To reduce fuel temperatures and vapor lock issues, it is recommended to operate these pumps using one pump for daily driving and low power levels and bring the second pump in with a pressure switch or other device when fuel flow needs increase. This will reduce heating of the fuel load by eliminating excess fuel circulating to the front of the vehicle, thru the fuel rails and back the tank.
Will work with E-85!
These pumps do not have an internal bypass. A bypass style regulator and return line are required.
This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985010ERL.
|
| Description_DEF |
Electric Fuel Pump |
| Description_DES |

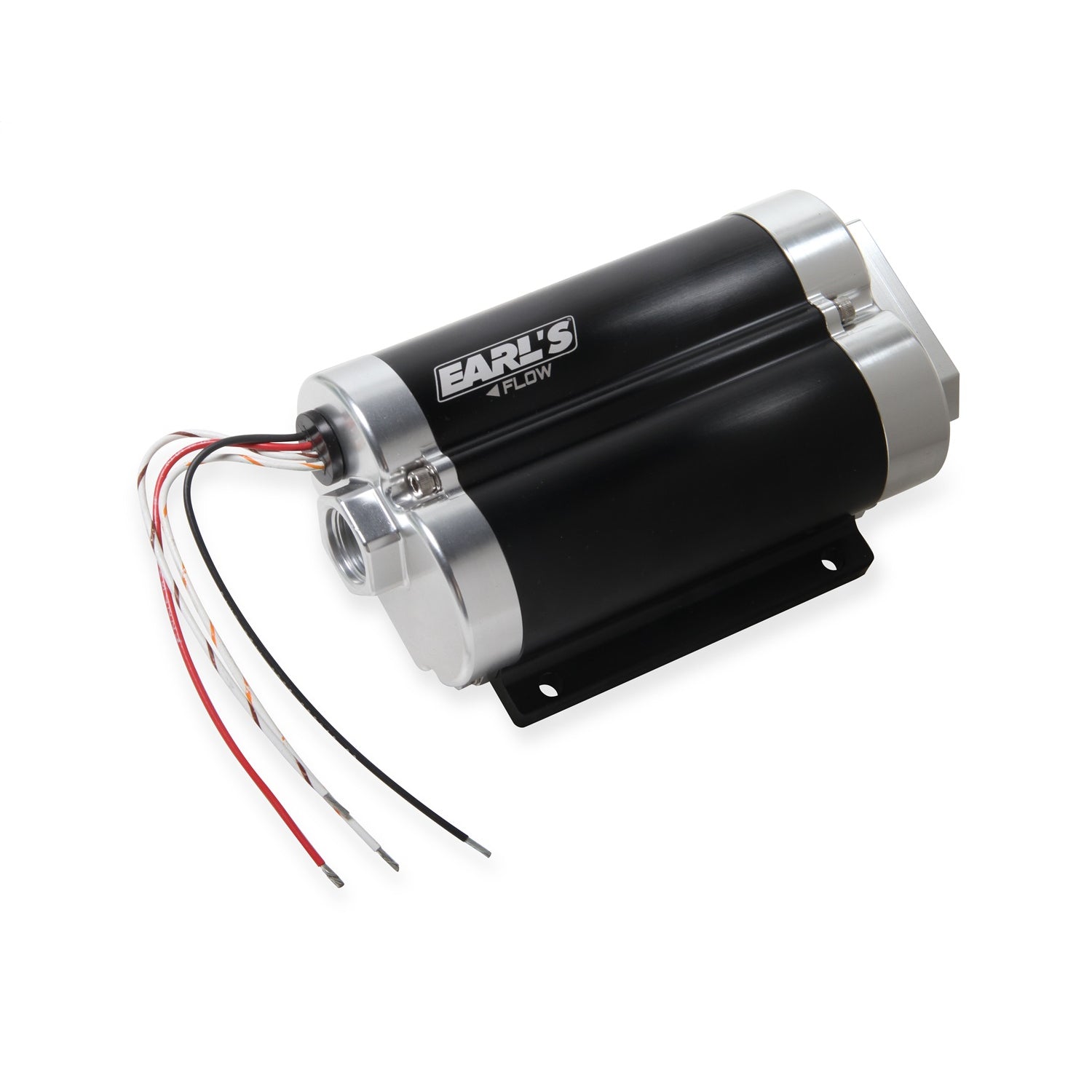

Earl's 200 GPH Dual In-Line Billet Fuel Pump (Dual Inlet) |
| Description_INV |
EARLS FUEL PUMP, DBL HI FLOW DUAL INLET |
| Description_EXT |
In-Line Billet Fuel Pump; Carb/EFI; 200 GPH; DBL Pump; 10AN Inlet/Outlet; 36 AMPS; Anodized Black; Bypass; Gasoline/Diesel; High Flow; Dual Inlet; |
| Description_MKT |
Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Earl's Dual in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. |
| Description_MKT |
As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features! |
| Description_FAB |
Billet aluminum construction for durability and good looks |
| Description_FAB |
10 AN O-ring inlet/outlet for high flow and superior sealing |
| Description_FAB |
Excellent for use with carbureted or EFI applications |
| Description_FAB |
Fully submersible in-tank for custom applications, space savings and less plumbing |
| Description_FAB |
Compatible with 12v to 18.5v systems for street or race use |
| Description_FAB |
Compact (7.66" Long x 5" Wide x 2.5" Tall) for easy installation on frame rails or other tight areas |
| Description_FAB |
Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost |
| Description_FAB |
Patent pending dual pump technology |
| Description_FAB |
Proven durability beyond 3,000 hours in race gas or diesel fuels |
| Description_FAB |
Weighs only 5.1 lbs. |
| Description_FAB |
Current draw at 43 PSI and 13.5 VDC is 17.2 Amps |
| Description_FAB |
Not designed for use on aircraft of any type. |
| Description_KEY |
holley; fuel pump; electric fp |
| Description_SHO |
Fuel Pump Electric |
| Forced Induction HP@60PSI |
1200 |
| Forced Induction HP@43PSI |
1400 |
| Free Flow GPH |
200 |
| Naturally Aspirated HP@43PSI |
1800 |
| Forced Induction HP@8PSI |
1600 |
| LPH@43PSI |
530 |
| LPH@60PSI |
590 |
| LPH@8PSI |
720 |
| Naturally Aspirated HP@60PSI |
1600 |
| Naturally Aspirated HP@8PSI |
2100 |
| Application |
Universal |
| Emission Code |
5 |
| Fuel Type |
Diesel, Gasoline |
| Fuel System Type |
Carbureted |
| Housing Color |
Black Anodized |
| Material |
Aluminum |
| Outlet Size |
10AN O-Ring - 0.875 in. - 14 SAE |
| WARNING CA Proposition 65 |
Yes |
| Discount Percentage |
26-50% |
| Product Type |
Fuel Pump |
| Pump Body Color |
Black Anodized |
| Warning |
California Proposition 65 |
| Warranty |
Limited 90 Day |
| GPH@43PSI |
156 |
| GPH@60PSI |
140 |
| GPH@8PSI |
200 |
| Inlet Size |
2.000 in. x 10AN O-Ring - 0.875 in. -14 SAE |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Brand |
Earl's |
| Clearance Category |
Air and Fuel Delivery |
| Fuel System |
Carbureted, EFI |
| Sale Category |
Air and Fuel Delivery |
| Length |
3.2500 |
| Width |
7.3500 |
| Height |
11.2500 |
| Weight |
5.8100 |
