| Description_ASC |
These pumps do not have an internal bypass. A bypass style regulator and return line are required.
NOT FOR USE WITH METHANOL!
Will not work with E-85 or Diesel
This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985081ERL.
|
| Description_DEF |
Electric Fuel Pump |
| Description_DES |

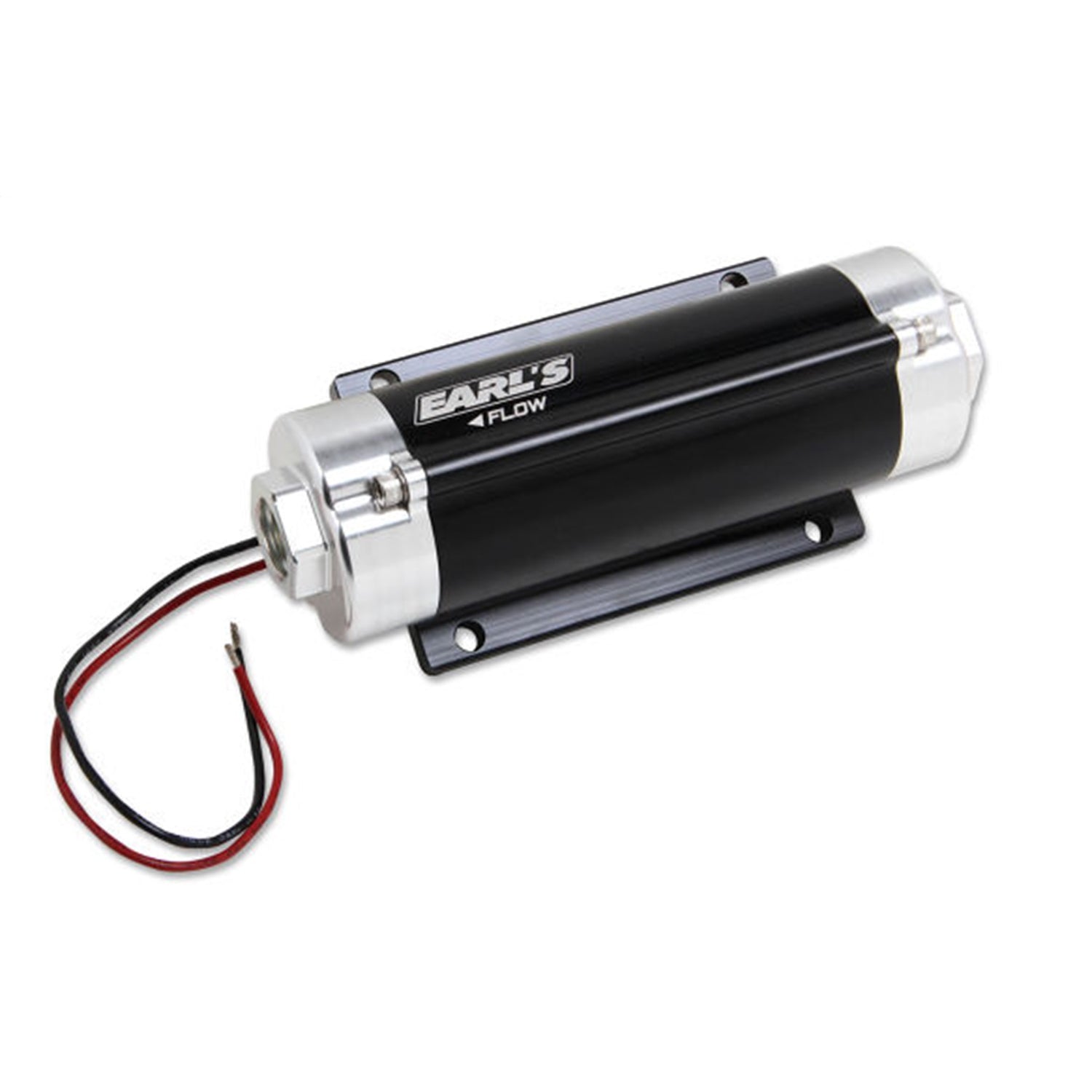

Earl's 65 GPH HP In-line Fuel Pump |
| Description_FAB |
Billet aluminum construction for durability & good looks |
| Description_FAB |
-10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing |
| Description_FAB |
Excellent for use with carbureted or EFI applications |
| Description_FAB |
Fully submersible in-tank for custom applications, space savings and less plumbing |
| Description_FAB |
Compatible with 12v to 18.5v systems for street or race use |
| Description_FAB |
Compact (7.5" long x 3" wide x 2.75" tall) for easy installation on frame rails or other tight areas |
| Description_FAB |
Proven durability beyond 3,000 hours in gasoline |
| Description_FAB |
Weighs only 3.1 lbs. |
| Description_FAB |
10 AMP maximum amp draw |
| Description_FAB |
Not designed for use on aircraft of any type. |
| Description_MKT |
Earl's (TM) In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP (TM) fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. |
| Description_MKT |
The 1200600ERL features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Earl's has still got you covered with the 1200890ERL fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi |
| Description_KEY |
holley; fuel pump; electric fp |
| Description_EXT |
In-Line Billet Fuel Pump; Carb/EFI; 65 GPH; -10AN Inlet; -8AN Outlet; 10 AMPS; HP; Low Flow; Electric; Anodized Black; Billet; Bypass; Gasoline; |
| Description_INV |
EARLS FUEL PUMP, HP LOW FLOW ELECTRIC |
| Description_SHO |
Fuel Pump Electric |
| GPH@43PSI |
48 |
| Brand |
Earl's |
| Housing Color |
Black Anodized |
| WARNING CA Proposition 65 |
Yes |
| Pump Body Color |
Black Anodized |
| Outlet Size |
8AN O-Ring - 0.750 in. - 16 SAE |
| Warning |
California Proposition 65 |
| Fuel System Type |
Carbureted |
| Material |
Aluminum |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Application |
Universal |
| Fuel System |
Carbureted, EFI |
| Product Type |
Fuel Pump |
| Warranty |
Limited 90 Day |
| Forced Induction HP@43PSI |
450 |
| Forced Induction HP@60PSI |
380 |
| Free Flow GPH |
65 |
| GPH@8PSI |
65 |
| Inlet Size |
10AN O-Ring - 0.875 in. -14 SAE |
| Clearance Category |
Air and Fuel Delivery |
| Sale Category |
Air and Fuel Delivery |
| Forced Induction HP@8PSI |
560 |
| Fuel Type |
Gasoline |
| GPH@60PSI |
41 |
| LPH@43PSI |
155 |
| LPH@60PSI |
181 |
| LPH@8PSI |
230 |
| Discount Percentage |
26-50% |
| Emission Code |
5 |
| Length |
3.2000 |
| Width |
7.2000 |
| Height |
11.2000 |
| Weight |
2.9500 |
