The GM LS engine has the oil filter mounted in a pocket in the side of the oil pan & sometimes it isn't in the ideal location when doing an engine swap. The stock oil filter is very small and this can restrict flow or require more frequent service. Earl's new spin-on oil filter adapters are an economical and easy way to relocate the oil filter & use a less restrictive larger filter at the same time.
Specifications:
| Description_ASC |
Check Thread Size on Oil Filter Stud. Most 1997-'06 GM LS engines have 13/16"-16 threads, and 2007 & up engines have 22mm x 1.5 threads. The GM Gen V LT engines use 22mm x 1.5 threads.
May also fit other engines w/ 13/16"-16 Filter and 2-3/4" O-Ring Diameter. |
| Description_DEF |
Engine Oil Filter Adapter |
| Description_DES |

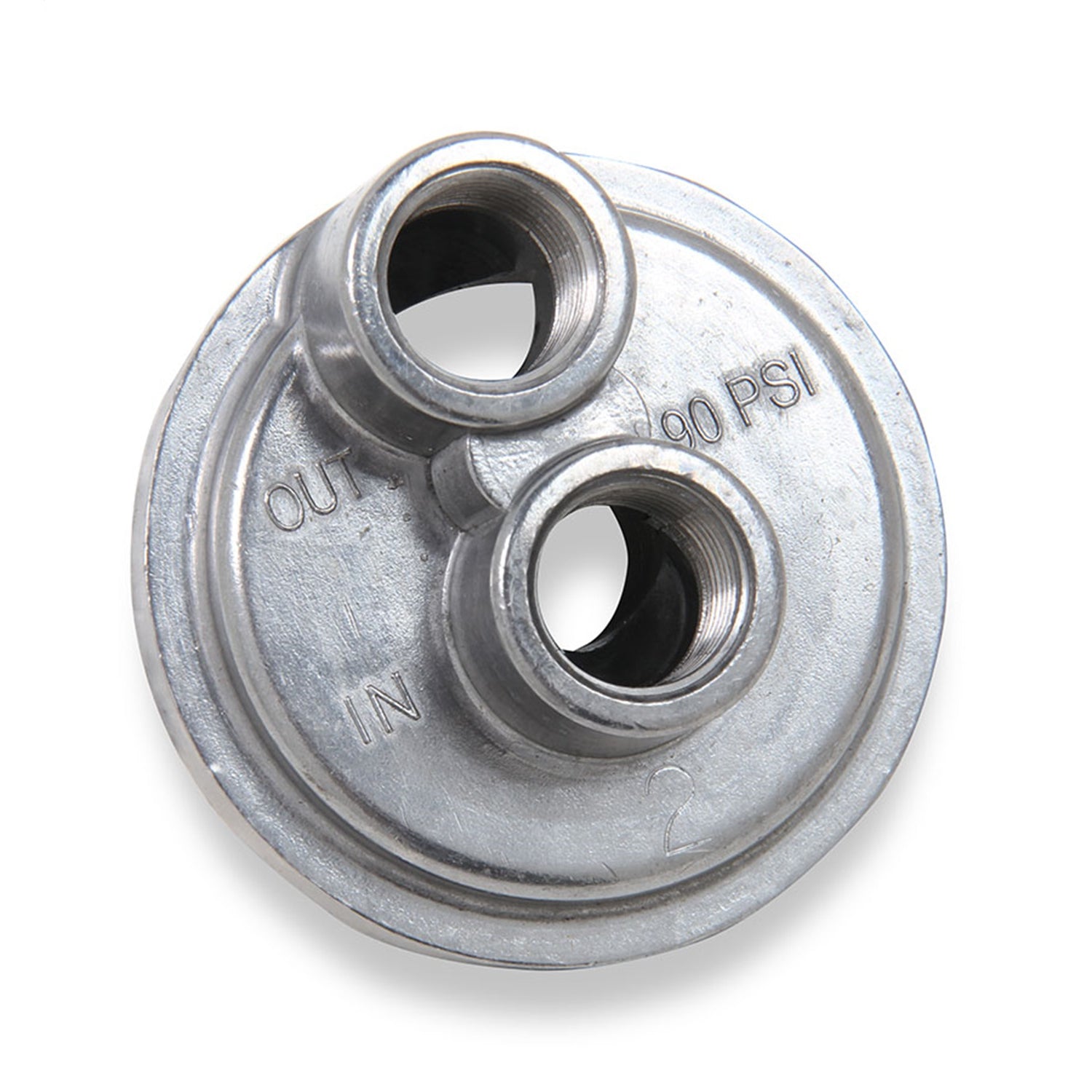

Earl's Spin On Adapter - Die Cast |
| Description_EXT |
Oil Filter By-Pass Adapter; Center Stud Size: 13/16 x 16; Port Size: 1/2 in. NPT Female; O-Ring Dia.: 2-3/4 in.; For 97-06 LS Engines; Die Cast Aluminum; |
| Description_INV |
13/16-16 LS SPIN-ON MOUNT OIL FILTER ADA |
| Description_KEY |
earls; by-pass adapters; plumbing; goodridge; xrp; aeroquip; fragola |
| Description_FAB |
Economical Way to Relocate Oil Filter |
| Description_FAB |
1/2" NPT Female Ports |
| Description_FAB |
Cast Aluminum |
| Description_FAB |
O-Ring Seal |
| Description_FAB |
Fits Most GM LS 1997-'06 |
| Description_SHO |
OilFltBPassAdpt |
| Description_MKT |
The GM LS engine has the oil filter mounted in a pocket in the side of the oil pan & sometimes it isn't in the ideal location when doing an engine swap. The stock oil filter is very small and this can restrict flow or require more frequent service. Earl's new spin-on oil filter adapters are an economical and easy way to relocate the oil filter & use a less restrictive larger filter at the same time. |
| Description_MKT |
Add an Earl's remote filter mount, and AN hose & fittings to complete the installation. |
| Finish |
Natural |
| Material |
Aluminum |
| O-Ring Cross Section |
0.125 in. |
| WARNING CA Proposition 65 |
No |
| Product Type |
Oil Cooler |
| Center Stud Diameter |
0.8125 in. -16 |
| O-Ring Diameter |
2.750 in. |
| Port Size |
0.500 in. NPT Female |
| Brand |
Earl's |
| Center Stud Size |
13/16-16 |
| Emission Code |
5 |
| O-Ring Diameter |
2-3/4 Inches |
| Clearance Category |
Plumbing AN Fittings and Hose |
| Sale Category |
Plumbing AN Fittings and Hose |
| Length |
2.0000 |
| Width |
4.0000 |
| Height |
6.0000 |
