Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles.
Specifications:
| Description_ASC |
Minor clearancing of block at bottom of cylinders and pan rails required. |
| Description_DEF |
Engine Crankshaft Rotating Assembly |
| Description_DES |
Balanced Street & Strip Assembly Ford 302 |
| Description_INV |
ESP Bal Str & Strip Assy |
| Description_EXT |

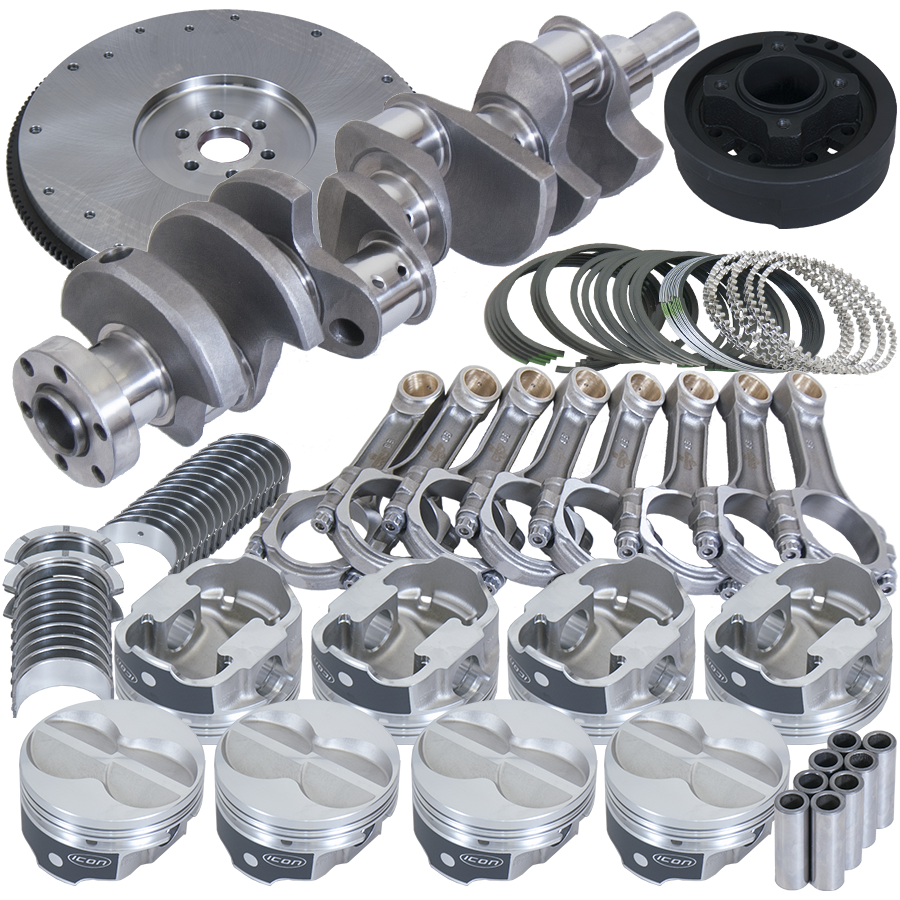

BALANCED 3.400" Cast Crank,5.400" I-BEAM Rods,3/8" ARP 8740 BOLTS,Forged 4032 ICON -11CC FLAT TOP 4.000" PISTONS,PLASMA-MOLY FILE-FIT RINGS,KING SI Rod/MAIN BEARINGS, PIONEER DAMPER & 164 TOOTH FLYWHEEL. |
| Description_MKT |
Eagle Street & Strip Rotating Assemblies are perfect for pump gas, naturally aspirated, street vehicles. |
| Description_SHO |
Bal Str & Strip Assy |
| Crankshaft Center Counterweights |
No |
| Piston Pin Diameter |
.927" |
| Crankshaft Main Journal Diameter |
2.249" |
| Prop 65 (C, R or CR) |
C |
| Connecting Rod Length |
5.400" |
| Prop 65 Yes/No |
Yes |
| Rod Bearing Type |
O.E. replacement |
| Piston Type |
Flat Top Forged |
| Flexplate/Flywheel Included |
164 Tooth Flywheel |
| Second Piston Ring Type |
Reverse Twist Iron |
| Top Piston Ring Type |
Barrel Faced Plasma-Moly |
| Piston Pin Type |
Full Floating |
| Main Bearings Included |
Yes |
| Piston Material |
Forged 4032 Aluminum |
| Balance Type |
External 28in-oz |
| Thrust Washer Included |
No |
| Connecting Rod Bolt Material |
ARP 8740 |
| Piston Face Type |
flat top |
| Product Line |
Street & Strip |
| Piston Dome Volume |
-11cc |
| Main Bearing Type |
O.E. Replacement |
| Crankshaft Rod Journal Diameter |
2.123" |
| Title |
ESP Balanced Street & Strip Assembly Ford 302 |
| Connecting Rod Material |
Forged 5140 steel |
| Piston Ring Thickness |
1/16", 1/16", 3/16" |
| Connecting Rod Bolt Diameter |
3/8" |
| Connecting Rod Design |
I-Beam |
| Crankshaft Reluctor |
No |
| Damper Included |
Yes |
| Oil Rail Support Included |
No |
| Assembly Balanced |
Yes |
| Cylinder Bore Diameter |
4.000" |
| Bore |
4 |
| Crankshaft Material |
Cast Steel |
| Piston Brand |
Icon |
| Crankshaft Flange Bolt Holes |
6 |
| Prop 65 - Short Label |
prop65_warning.jpg |
| Crankshaft Stroke |
3.400" |
| Piston Ring Gap |
Standard |
| Rod Bearings Included |
Yes |
| Assembly Type |
Balanced Street & Strip Assembly |
| Length |
12.0000 |
| Width |
22.0000 |
| Height |
33.0000 |
| Weight |
117.0000 |
