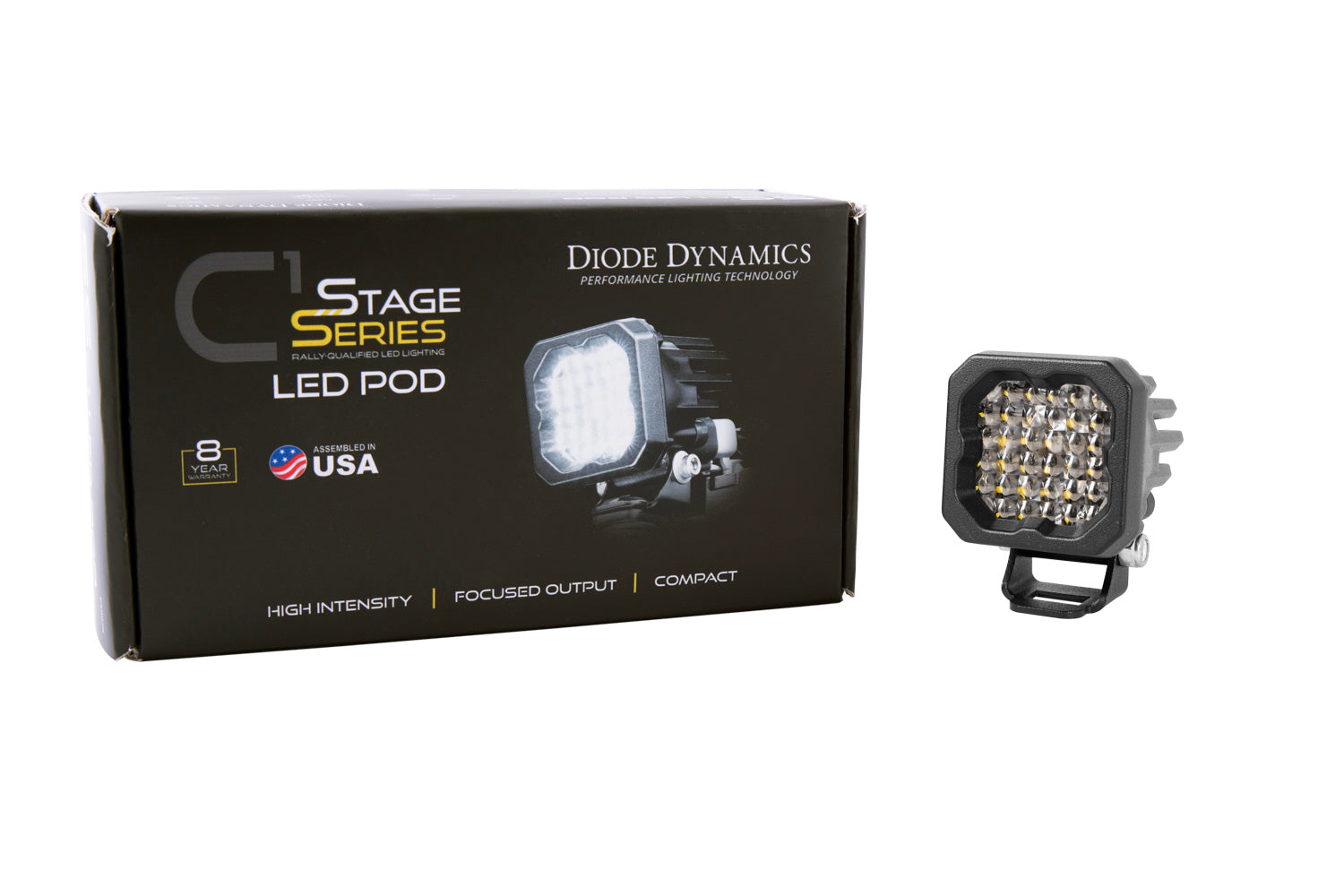

Diode Dynamics DD7423S Triple Function C1R Pod with modern TIR optics for high intensity lighting.
Guaranteed Fitment
Always the correct part
Added Value
Performance matched parts
In-House Experts
We know our products
Nationwide Delivery
Economy shipping
Features
- Ultra-compact single-LED form factor
- Triple function: high-power white main beam high-power red main beam and low-power red accent light
- Pin-fin heatsink design for superior thermal dissipation
- Integrated Deutsch-style connector
- Designed torture-tested and assembled in USA
Overview

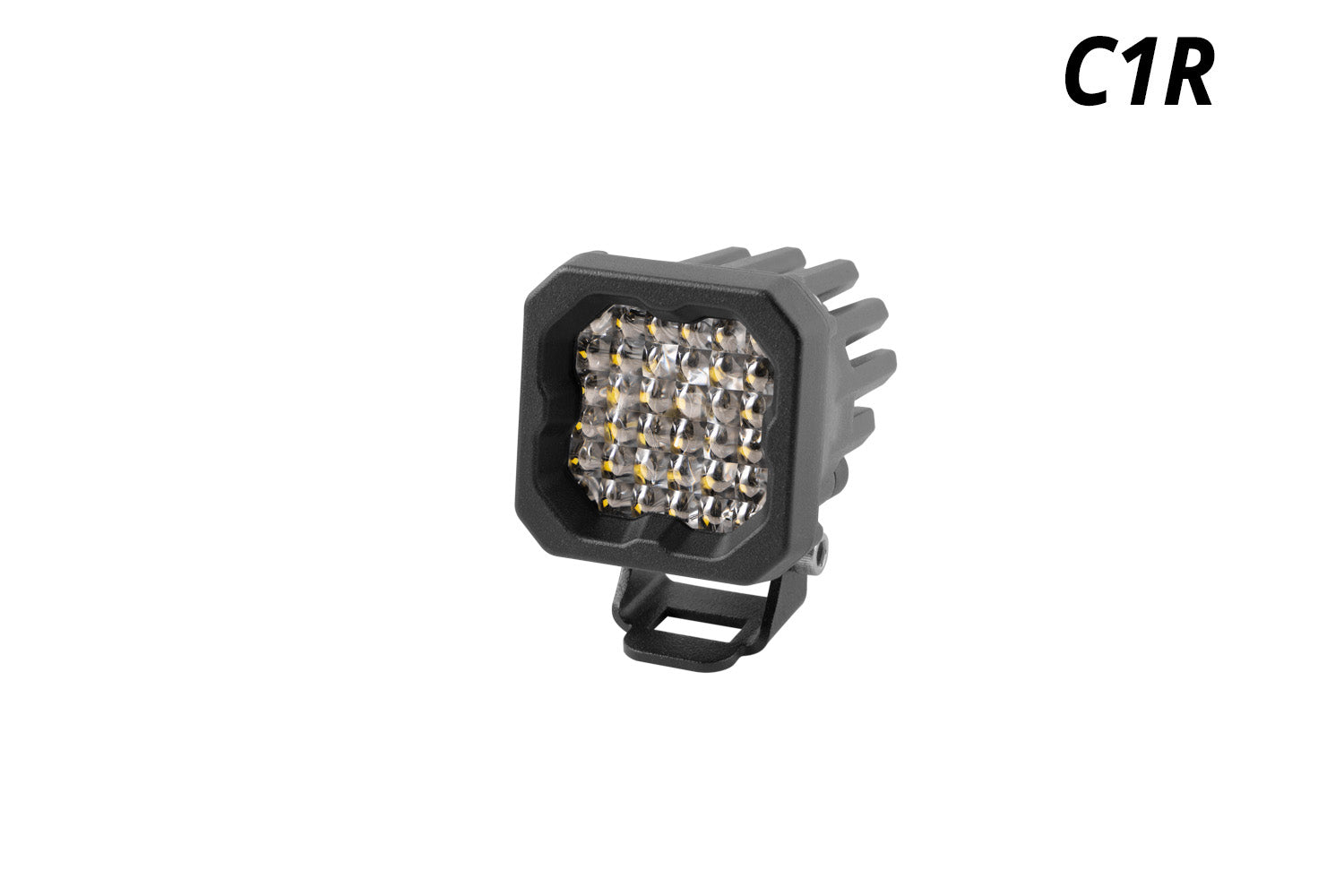

Introducing the Stage Series C1R LED Pod! Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed to provide three different lighting functions in our most compact versatile package yet. Thanks to its compact size the C1R can be mounted virtually anywhere on your car truck motorcycle or UTV including spots where larger LED pods won't fit.
Triple Function. The Stage Series C1R LED pod features a cool white main beam along with a high-power red main beam and low-power red accent light that can be activated independently. The C1R was designed to serve as a high-power reverse light along with your factory reverse lights a 4th brake light when your brakes are applied and a secondary running light with your tail lights.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the Stage Series C1R collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
Simple connections. All Stage Series C1R LED pods feature a custom-molded DT-type Deutsch-style connector on the back and come with a 4-pin 6-inch pigtail with bare leads. The yellow wire on the pigtail powers high-power red the red wire powers the white main beam the blue wire powers low-power red and the black wire is ground.
Featuring custom-engineered TIR optics combined with a single high-power LED chip these pods have been designed to provide three different lighting functions in our most compact versatile package yet.
Please review Specifications and the detailed fitment table for notes and exceptions.
