Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Manufactured in USA.
Specifications:
Description_ASC |

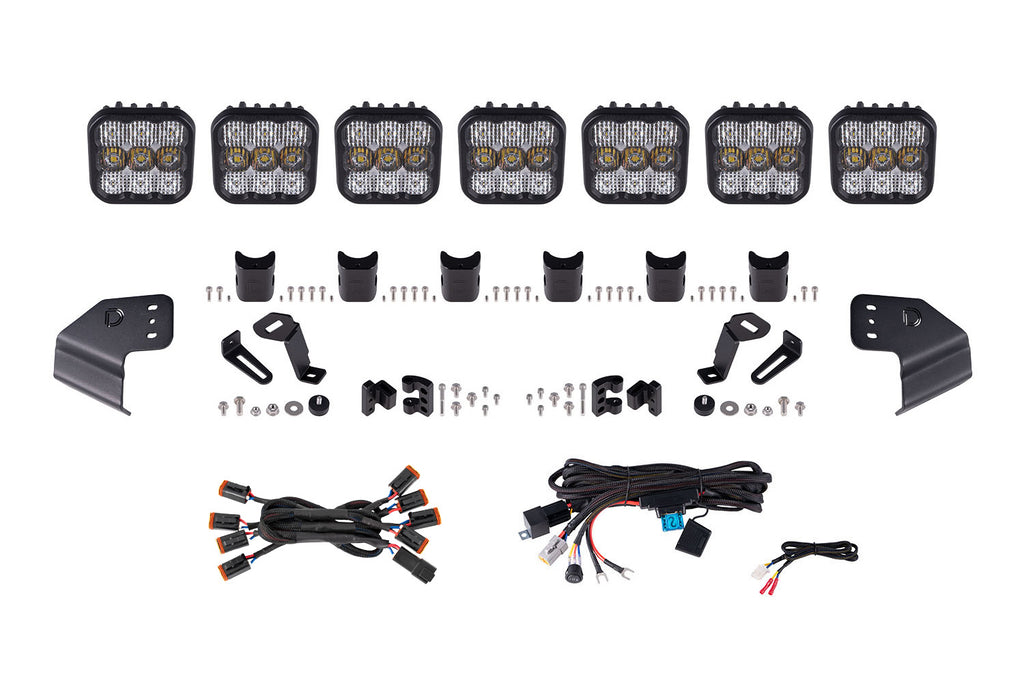

Included in the box: Two (2) Application-specific heavy-duty steel brackets. Seven (7) Stage Series 5inch LED Pods. Six (6) CrossLinks with hardware. Two (2) CrossLink supports. One (1) CrossLink endmount kit. Five (5) Ultra Heavy Duty Crosslink splitters. One (1) Ultra Heavy Duty Terminating splitter. One (1) Ultra heavy-duty relay single-output harness. Installation Guide. |
Description_DEF |
Light Bar Mounting Kit |
Description_DES |
Pod light featuring advanced TIR optics for high efficiency and focus. |
Description_EXT |
Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Manufactured in USA. |
Description_INV |
Diode Dynamics Offroad |
Description_MKT |
Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Manufactured in USA. |
Description_SHO |
Offroad |
Compliance Rating |
SAE J581 Driving/Auxiliary High Beam Pattern |
Prop 65 Yes/No |
N |
Add-On |
N/A |
Color Temp |
6000K |
Input Power (watts) |
90 |
Measured Output (lumens) |
9,700 lm |
Operating Voltage |
9-16V |
Title |

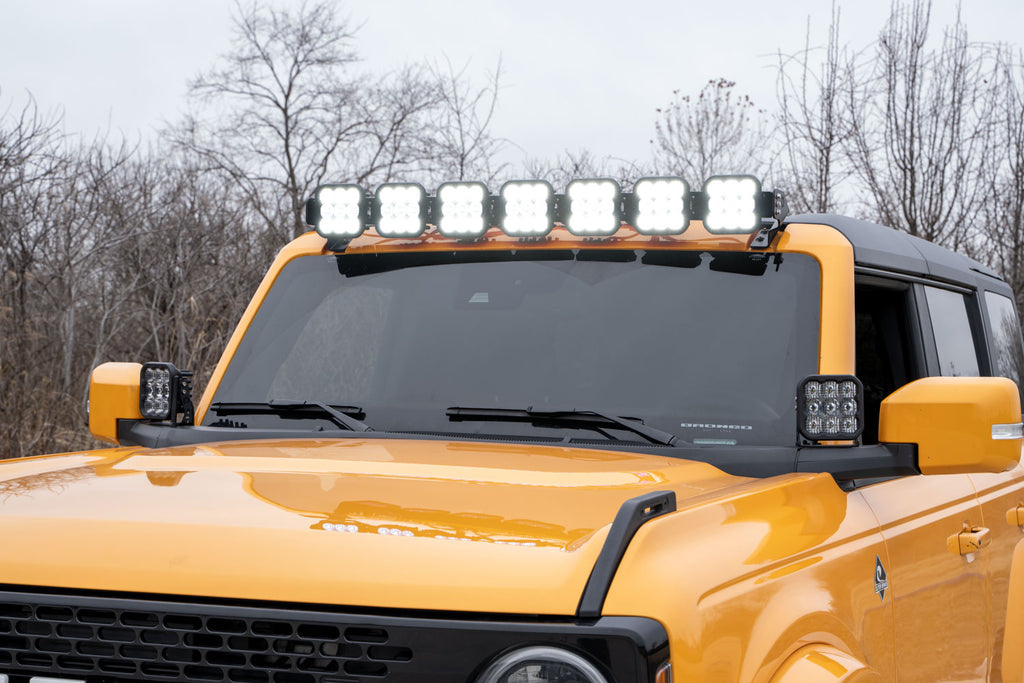

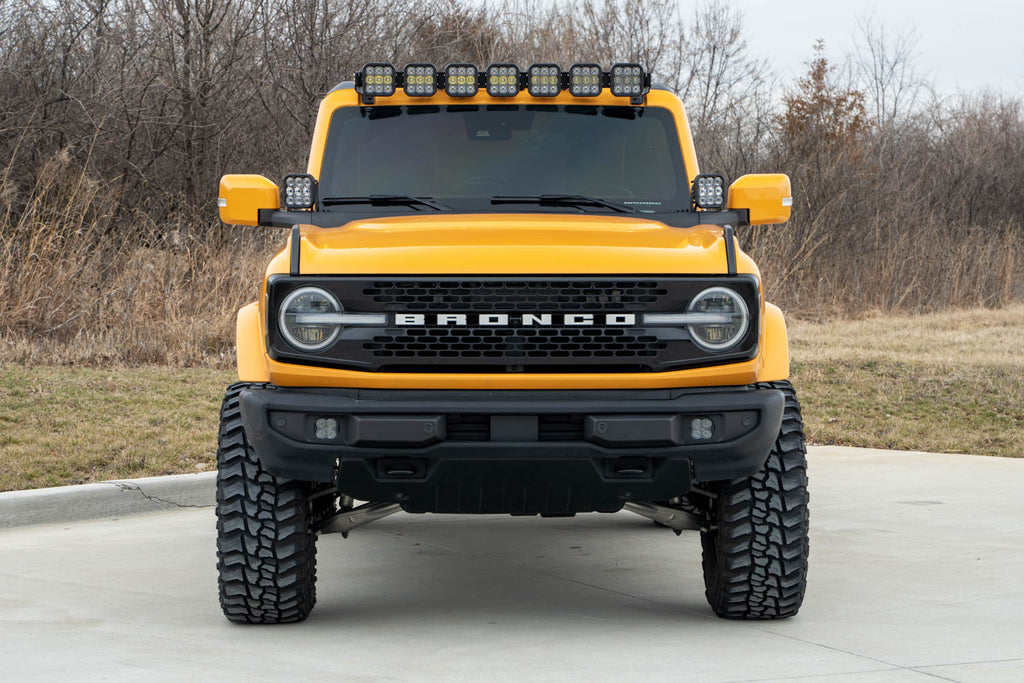

Diode Dynamics - Bronco SS5 Pro CrossLink Windshield White Combo Lightbar Kit |
Operating Temperature |
-40C to 85C (-40F to 185F) |
Length |
12.0000 |
Width |
15.0000 |
Height |
18.0000 |
Weight |
26.0000 |
