Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Manufactured in USA.
Specifications:
Description_ASC |

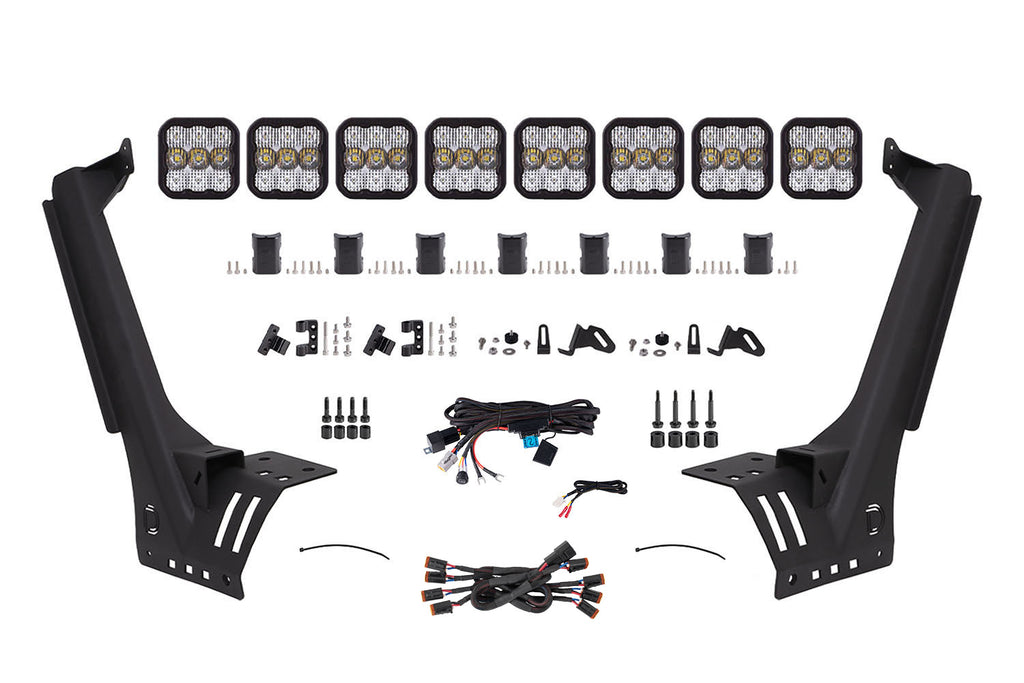

Included in the box: Two (2) Application-specific heavy-duty steel brackets for installation on 2018-2021 Jeep Wrangler. Eight (8) Stage Series 5inch LED Pods. Seven (7) CrossLinks with hardware. Two (2) CrossLink supports. One (1) CrossLink endmount kit. Six (6) Ultra Heavy Duty CrossLink splitters. One (1) Ultra Heavy Duty Terminating splitter. One (1) Ultra heavy-duty relay single-output harness. Installation Guide. |
Description_DEF |
Light Bar Mounting Kit |
Description_EXT |
Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Manufactured in USA. |
Description_DES |
Pod light featuring advanced TIR optics for high efficiency and focus. |
Description_SHO |
Offroad |
Description_MKT |
Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Manufactured in USA. |
Description_INV |
Diode Dynamics Offroad |
Add-On |
N/A |
Color Temp |
6000K |
Prop 65 Yes/No |
N |
Compliance Rating |
SAE J581 Driving/Auxiliary High Beam Pattern |
Operating Temperature |
-40C to 85C (-40F to 185F) |
Input Power (watts) |
90 |
Measured Output (lumens) |
9,700 lm |
Operating Voltage |
9-16V |
Title |
Diode Dynamics - Jeep JL SS5 Pro CrossLink Windshield White Combo Lightbar Kit |
Length |
12.0000 |
Width |
16.0000 |
Height |
50.0000 |
Weight |
69.0000 |
