Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Manufactured in USA.
Specifications:
Description_ASC |
Included in the box: Two (2) SS3 3inch Standard LED Pods. Two (2) Type A brackets. Two (2) H11 2-pin DT adapters. One (1) H11 4-pin DT backlight tap wire kit. Mounting hardware. Mounting guide. |
Description_DEF |
Light Bar Mounting Kit |
Description_DES |

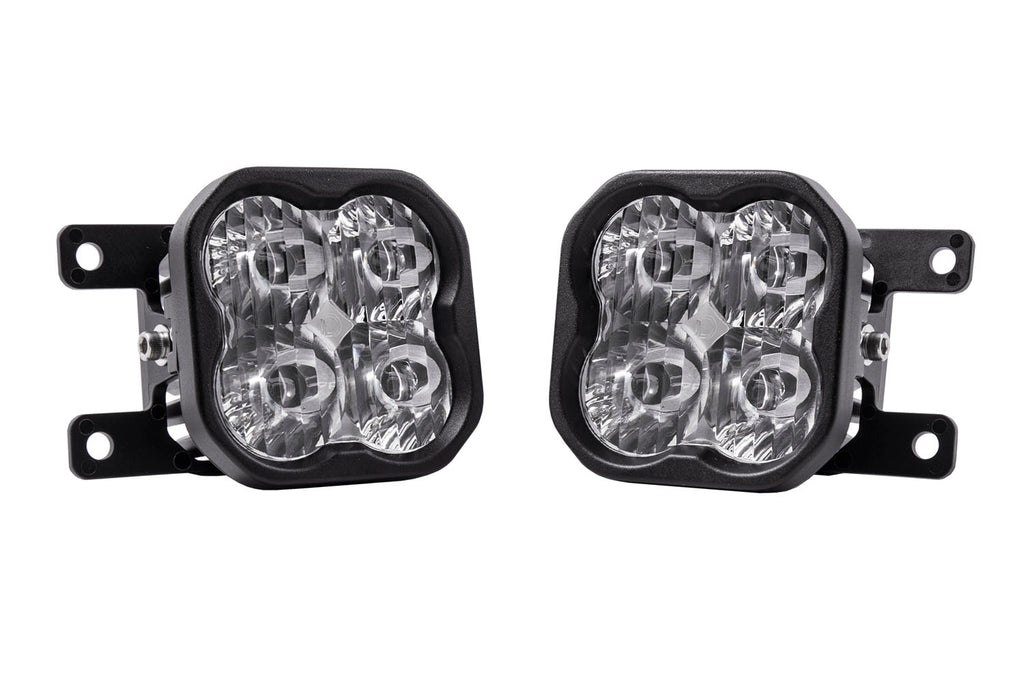

Pod light featuring advanced TIR optics for high efficiency and focus. |
Description_EXT |
Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Manufactured in USA. |
Description_SHO |
Offroad |
Description_INV |
Diode Dynamics Offroad |
Description_MKT |
Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Manufactured in USA. |
Compliance Rating |
SAE J583 Foglamp Beam Pattern |
Intensity (lux) |
9,050 cd |
Operating Voltage |
9-30V |
Measured Output (lumens) |
1,300 lm |
Add-On |
N/A |
Color Temp |
3000K |
Input Power (watts) |
14.5 |
Operating Temperature |
-40C to 85C (-40F to 185F) |
Prop 65 Yes/No |
N |
Title |
Diode Dynamics - SS3 Sport Type AS Kit ABL Yellow SAE Fog |
Length |
4.0000 |
Width |
11.0000 |
Height |
14.0000 |
Weight |
3.0000 |
