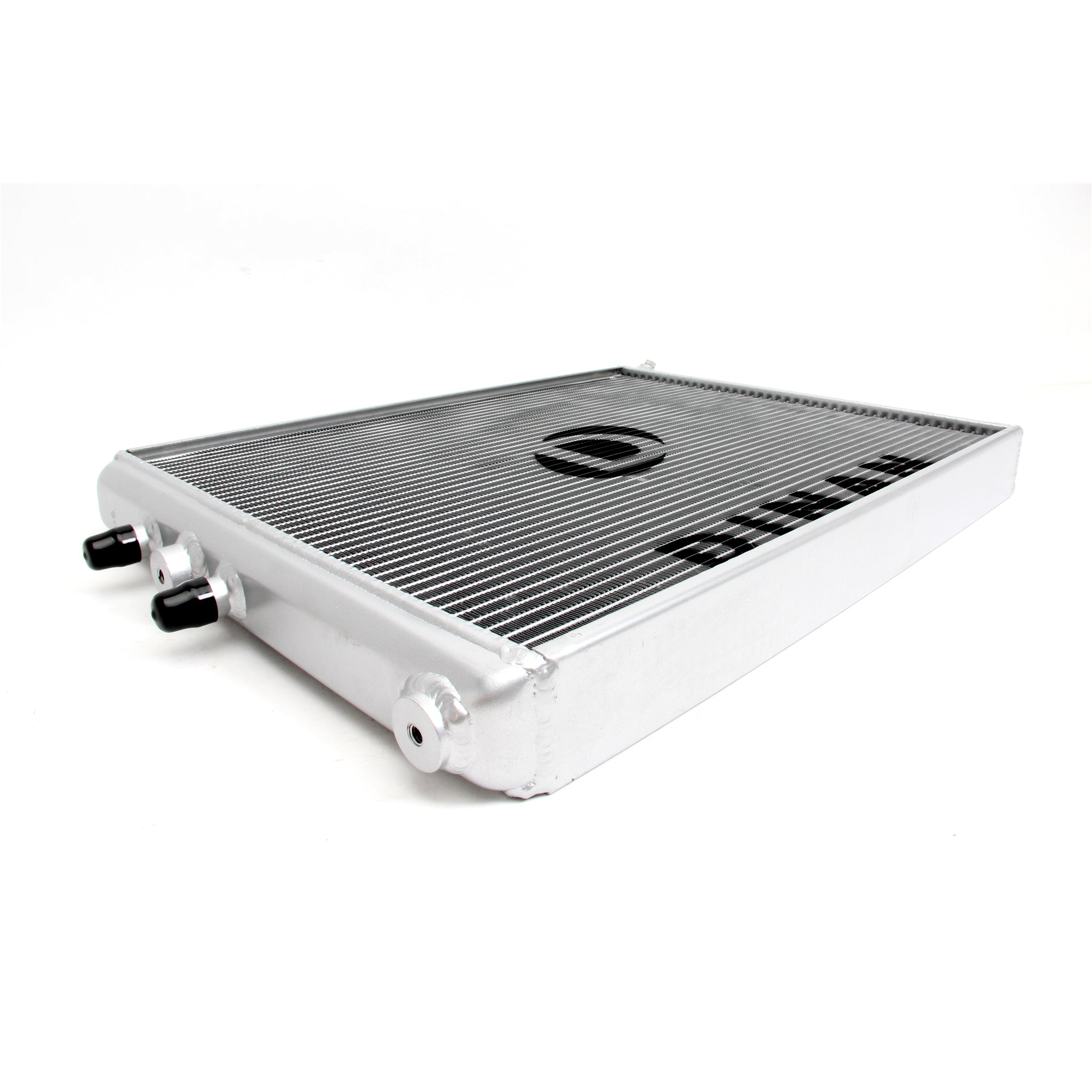

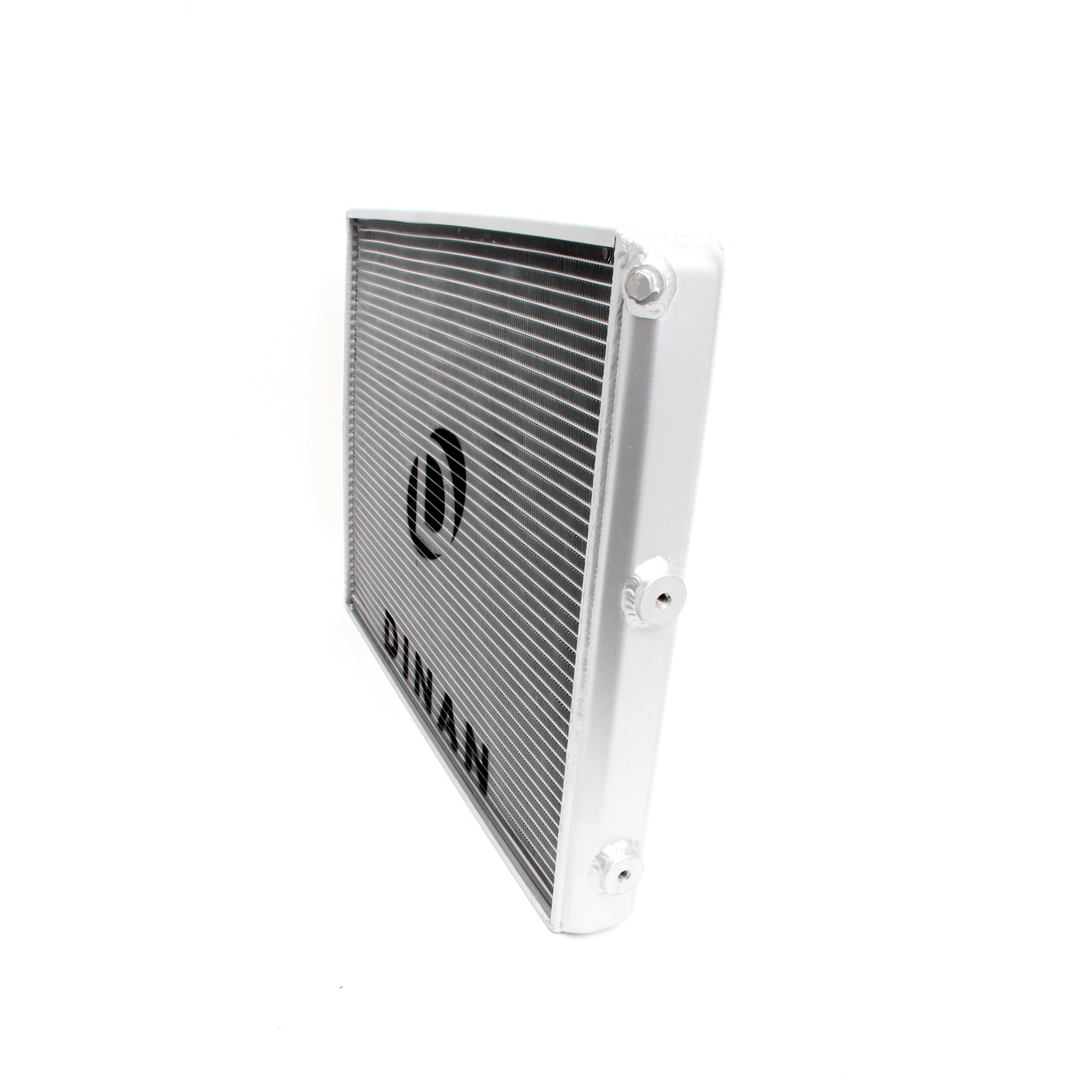

Dinan D780-0001A High Performance Heat Exchanger - 2015-2021 Bmw M2/M3/M4

Name: Dinan D780-0001A High Performance Heat Exchanger - 2015-2021 Bmw M2/M3/M4
Brand: Dinan
Price: 1615.99 CAD
Availability: OutOfStock

by Dinan

• SKU: ds_GFBV_D780-0001A

• Product Type: Turbocharger Heat Exchanger

2 sold in last 8 days

$1,615.99

Inventory:

Guaranteed Fitment

Always the correct part

Added Value

Performance matched parts

In-House Experts

We know our products

Nationwide Delivery

Economy shipping

Description_EXT	F80/F82/F83/F87
Description_DES	Dinan High Performance Heat Exchanger - 2015-2021 BMW M2/M3/M4
Description_MKT	Heat is the enemy of performance. Keep temps down and performance will go up as a result of increased efficiency. It's really as simple as that.
Description_MKT	In stock trim, testing made it painfully obvious that cooling was going to hold an even more vital role on the F8x (S55) platform to achieve maximum results. The stock cooling system heat soaks after only 3 pulls and allows the engine air intake temperatures (IAT) to rise dangerously. The ECU must then reduce engine power to prevent detonation. With the Dinan high-performance heat exchanger the vehicle does not heat soak even after 7 pulls; more than twice the effectiveness of a stock setup!
Description_MKT	Some may ask why change the heat exchanger and not the intercooler itself? Wouldn't it be more beneficial to go directly to the source of the charge air? The simple answer is yes, but at a cost. The stock system cools the intake charge by using a water-to-air intercooler, an expensive piece to engineer. The cooling circuit for the water that feeds the intercooler uses a primary cooler (heat exchanger) and a smaller secondary cooler in front of the passenger side wheel. Through rigorous testing of all 3 of those components and multiple combinations therein, it was discovered that the most effective performance per dollar solution was replacing the heat exchanger with a larger unit.

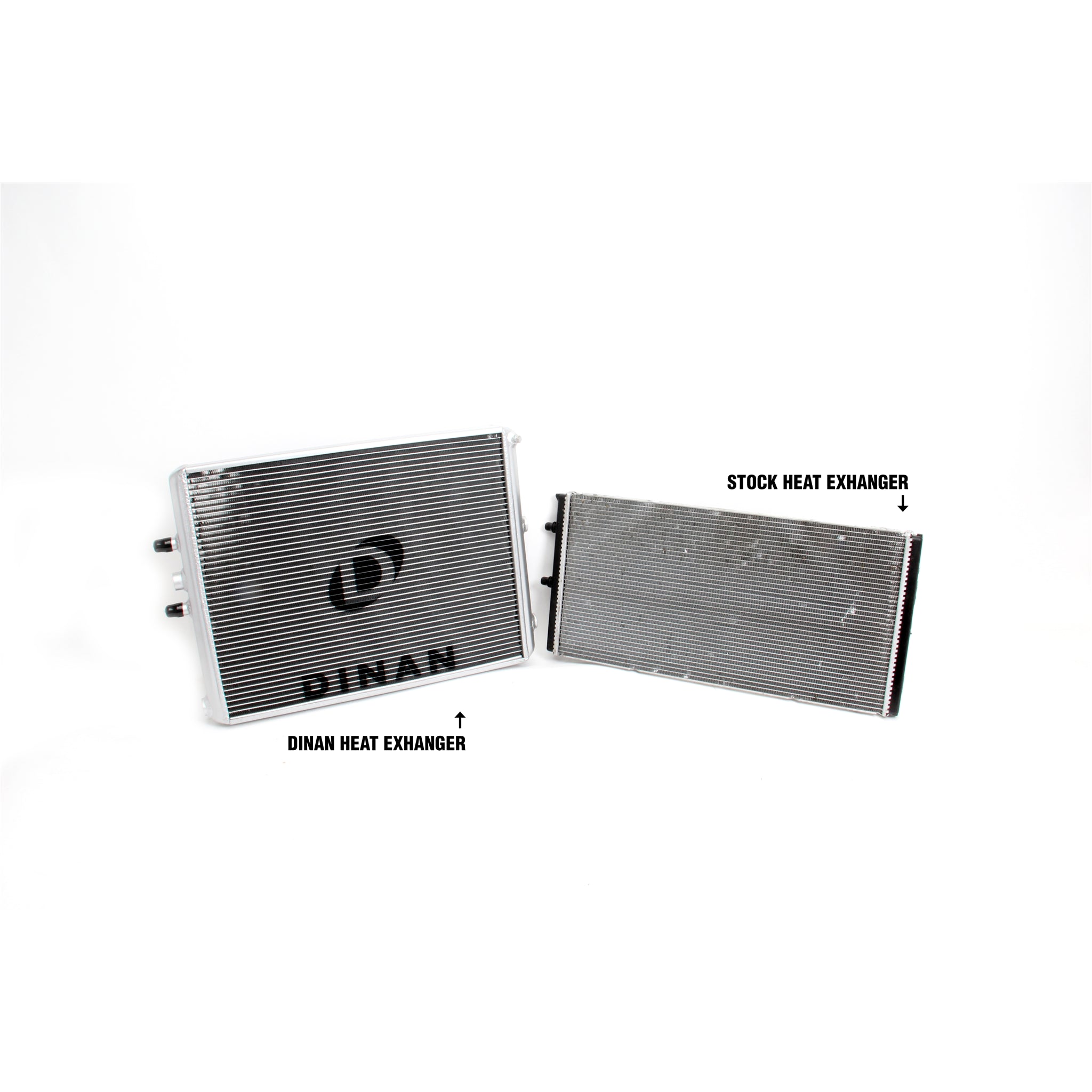

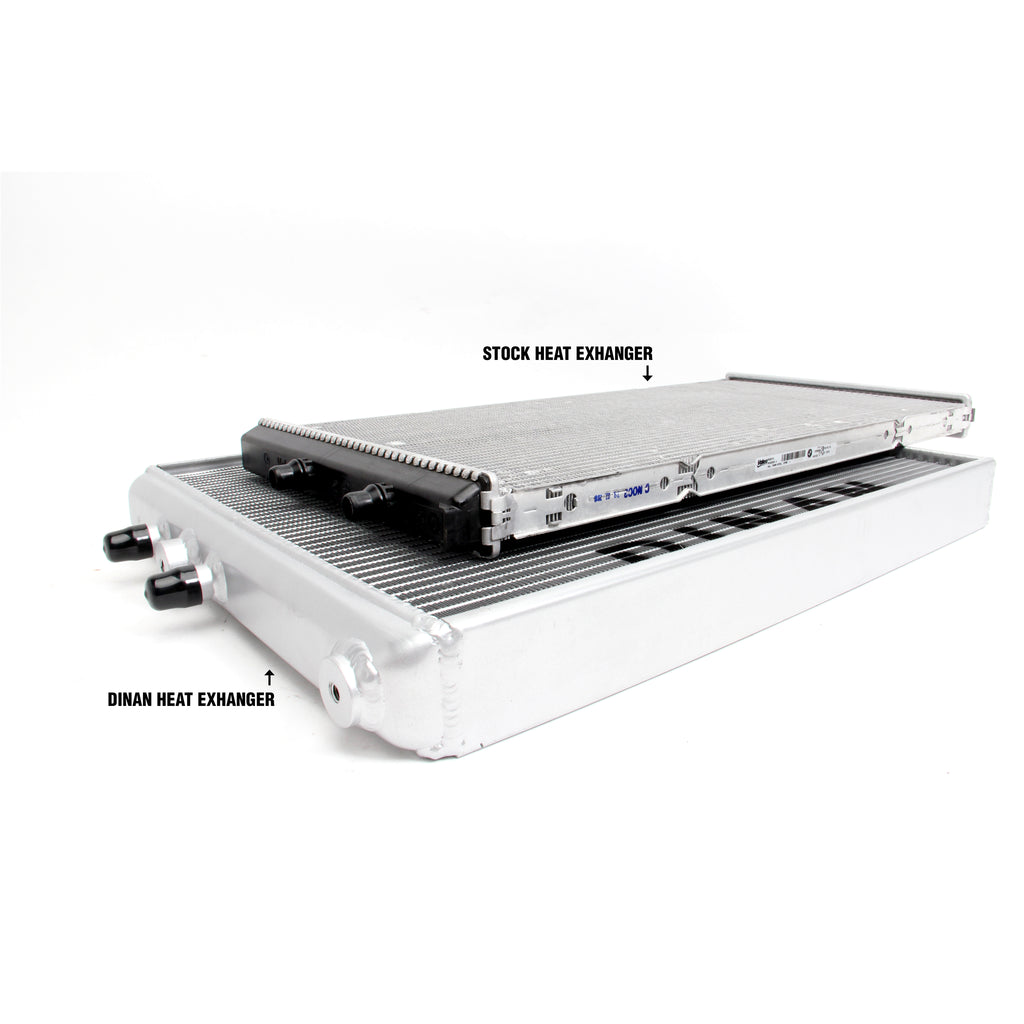

Description_MKT	Further testing focused on the heat exchanger produced the optimized design you see before you. With 60% more volume and 19% more face area than stock along with being a whopping 40mm thick (stock is 24mm), it becomes quickly apparent how heat soak is averted with the improved setup. While the unit could be physically thicker the 40mm dimension was ultimately chosen with consideration of airflow requirements of the main radiator which is located directly behind the heat exchanger. A thicker core would diminish airflow and sacrifice normal engine cooling which would be potentially detrimental to the long term health of the engine. The increased physical stature of the heat exchanger allows a reduction in water temperatures to the intercooler an average of 9 degrees across the RPM range. The colder water entering the intercooler then improves is efficiency and allows the intake air to be cooled by an additional 6 degrees average across the RPM range compared to the stock unit. The reduction in intake air results in an impressive 10 HP and 20 ft-lb of torque gain without any changes in the engine tune.
Description_INV	S55 HIGH PERF HEAT EXCHANGER K
Description_FAB	More Power: Consistent +10 HP / +20 LB-FT of torque on the stock engine tune
Description_FAB	60% more core volume & 19% more face area than stock
Description_FAB	40mm thick Dinan cooler vs. 24mm thick stock cooler
Description_FAB	9 degrees average water termperature reduction to the intercooler across the RPM range. Colder water improves intercooler efficiency and allows the intake air to be cooled by an additional 6 degrees average across the RPM range compared to stock
Description_FAB	Significant reduction in tendency to heat soak

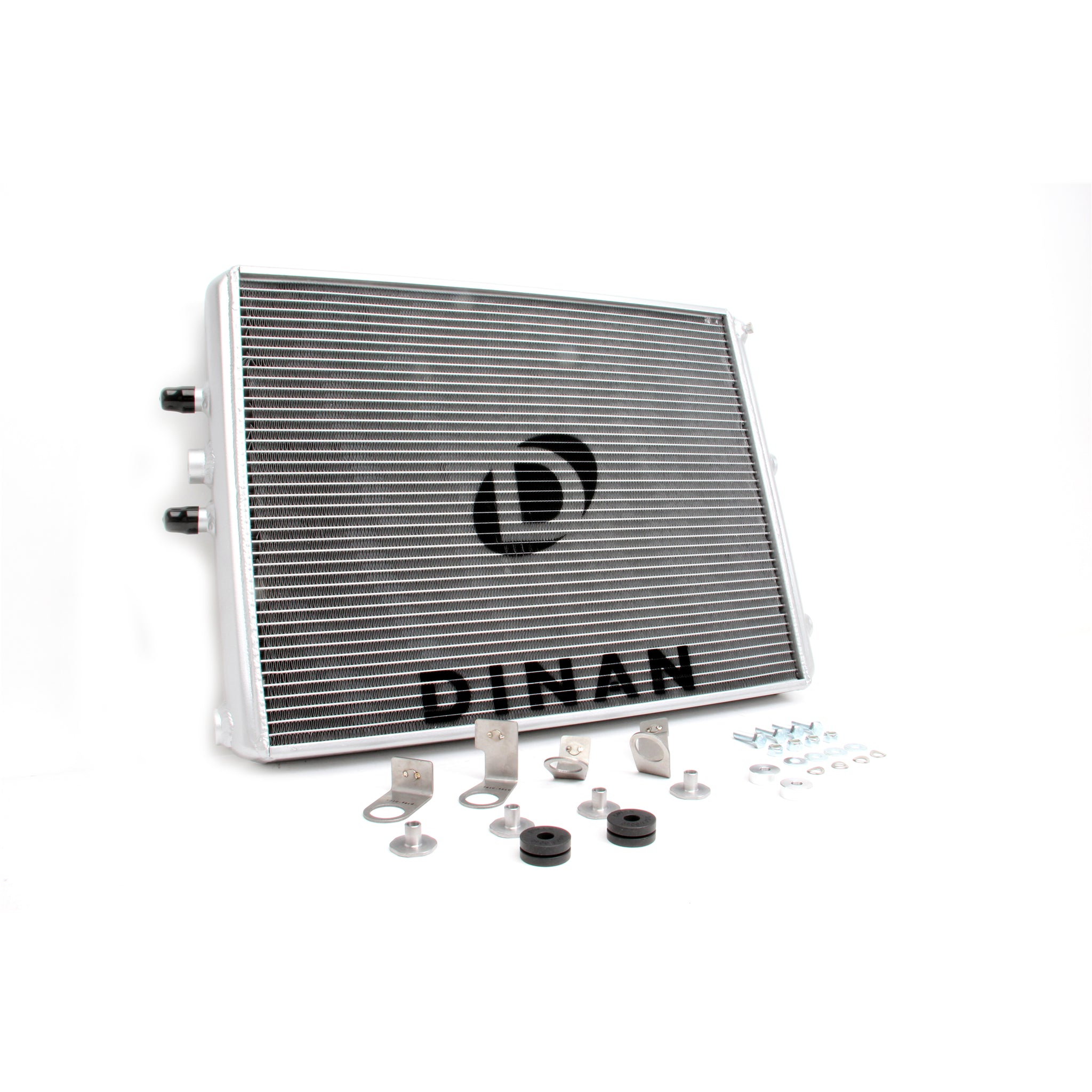

Description_FAB	Rubber mounted for vibration isolation
Description_FAB	Track tested to ensure consistent performance under extreme conditions
Brand	Dinan
Dinan Point Value	2
Emission Code	1, 5, 7
Height	9
Labor Time (Hours)	3.5
Length	29
Max HP Gain	10
Max Torque (lb-ft) Gain	20
Product Type	Heat Exchanger
Weight	14
Width	17
Length	7.6000
Width	20.7000
Height	30.5000
Weight	16.5000
